Beyond Seamless Extruded Tubes: Why Custom Forging Outperforms for Critical Components

Are you hitting performance limits with standard extruded aluminum tubes¹? Discover how SWA Forging's custom-forged solutions offer a significant leap in strength and reliability for your most demanding applications.

When the limitations of extruded aluminum tubes in terms of material integrity, strength, and design flexibility become apparent, SWA Forging's precision-forged aluminum rings and discs provide a superior, monolithic solution with enhanced mechanical properties and optimized grain flow for critical industrial needs.

Many of our clients at SWA Forging start their projects considering standard extruded aluminum tubes. Extrusion is a common manufacturing process where aluminum is pushed through a die of a desired cross-section. This method is efficient for creating standard shapes like tubes, bars, and complex profiles with consistent cross-sections. Extruded tubes are widely used across industries for fluid transport, structural elements, and protective conduits because of their cost-effectiveness and the ability to create intricate shapes that are not possible with simple drawing. However, extruded products have inherent limitations. The extrusion process can introduce mechanical stresses and can sometimes result in less uniform material properties across the cross-section compared to seamless tubing or forged components. More importantly, for applications requiring exceptionally high strength, resistance to extreme internal or external pressures, or the integration of complex features that cannot be achieved through simple extrusion, standard extruded tubes may not be sufficient. This is where SWA Forging's custom forging expertise becomes crucial. We transform aluminum alloys into monolithic components with superior material integrity, optimized grain structures, and enhanced mechanical properties that far surpass the capabilities of typical extruded tubes for critical, high-performance applications.

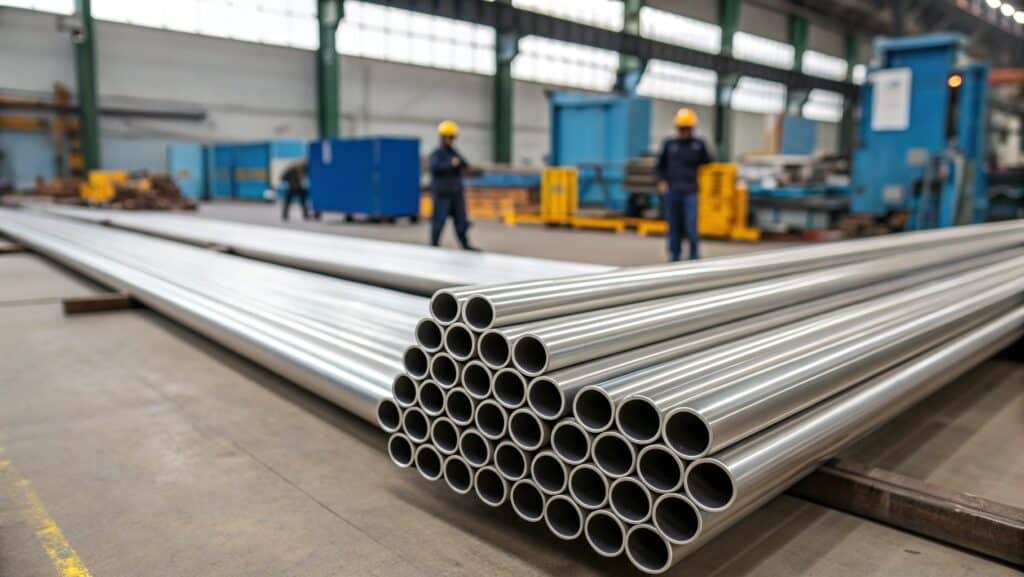

What is the difference between extruded and seamless tubing?

While both processes create hollow aluminum tubes, they differ significantly in their manufacturing method and resulting material properties.

Extruded tubing is made by forcing heated aluminum through a die, creating a hollow shape with the desired profile. Seamless tubing, on the other hand, is typically produced by piercing a solid aluminum billet and then stretching it over a mandrel to achieve the hollow form, resulting in a more uniform grain structure and often higher strength.

At SWA Forging, we often discuss the nuances of how aluminum components are made, and the distinction between extruded and seamless tubing is a common topic. Extrusion involves pushing softened aluminum through a shaped die. This is very versatile for creating complex cross-sections, but the process can result in a less uniform grain structure and can sometimes include residual stresses from the shaping process. Seamless tubing, by contrast, starts with a solid piece of aluminum (a billet), which is heated and then pierced with a hole, followed by rolling or drawing over a mandrel. This piercing and stretching process creates a tube with a continuous grain flow around its circumference, which typically leads to better mechanical properties, including higher strength and improved resistance to pressure or rupture. While extrusion excels at creating complex shapes efficiently, seamless tubing often offers superior material integrity for high-pressure applications or where uniform strength is critical. Our forging process takes this a step further by not only ensuring a seamless, continuous grain structure but also by working the metal into specific shapes like rings and discs, optimizing it for peak performance in highly demanding scenarios.

Key differences:

• Manufacturing Process: Extrusion pushes metal through a die; seamless tubing² is pierced and stretched.
• Grain Structure: Seamless tubing generally has a more uniform and continuous grain flow.
• Material Properties: Seamless tubing often offers higher strength and better pressure resistance.
• Complexity: Extrusion excels at creating complex cross-sectional shapes.
• Cost: Extrusion can be more cost-effective for high-volume, standard shapes.

Each method has advantages depending on the application's specific needs.

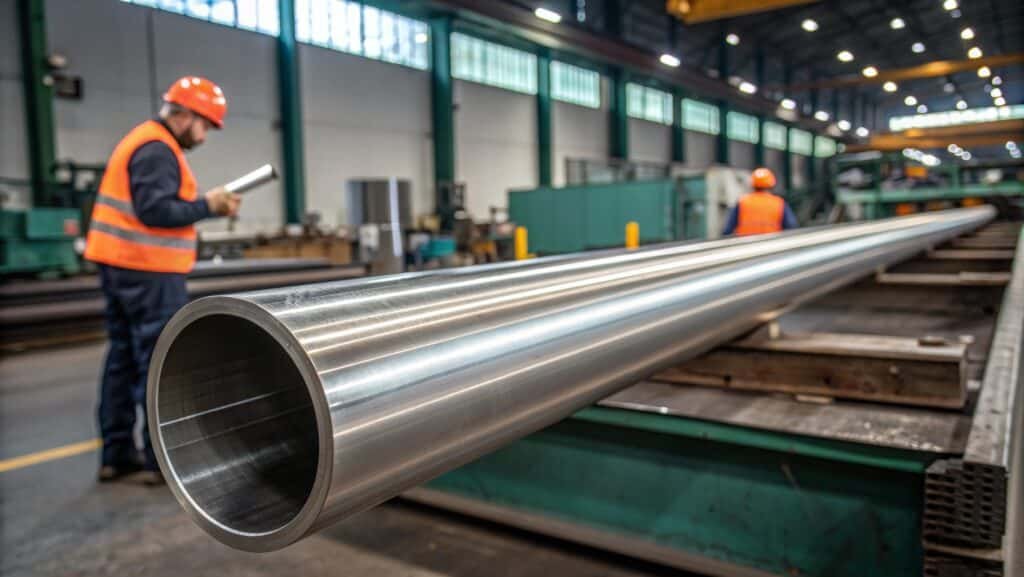

What is an extruded tube?

An extruded aluminum tube is a hollow cylindrical product manufactured by forcing heated aluminum through a die with a specific opening.

An extruded aluminum tube is formed by pushing heated aluminum through a shaped die. This process allows for the creation of tubes with a wide variety of cross-sectional shapes and dimensions, often with integral features, making it a versatile method for producing many types of aluminum tubing.

When clients consider aluminum tubing for their projects, understanding what an extruded tube is helps clarify its manufacturing origin and inherent characteristics. Extrusion is a metal-forming process where a heated aluminum alloy is subjected to high pressure and forced through an open die. The die shapes the aluminum into the desired profile as it emerges. For tubes, this means the die has a central pin or core to create the hollow interior. This method is very flexible; it can produce round tubes, but also square, rectangular, or even more complex, custom profiles. The advantage is that the desired shape is formed in a single step, making it efficient and cost-effective for many applications. However, the high pressures and temperatures involved, along with the die design, can influence the material's microstructure and introduce some residual stresses. While extruded tubes are excellent for many general purposes, for applications demanding the absolute highest strength, uniformity, and resistance to extreme conditions, our forged components offer a step up in material performance by working the metal in a different way to refine its internal structure.

Characteristics of extruded tubes:

• Formation Method: Forcing aluminum through a die.
• Shape Versatility: Can produce complex and non-round cross-sections.
• Cost-Effectiveness: Generally more economical for standard shapes and high volumes.
• Microstructure: May have less uniform grain structure compared to seamless or forged.
• Applications: Fluid lines, structural components, frames, conduits.

Extrusion is a primary method for creating a vast array of aluminum tubing products.

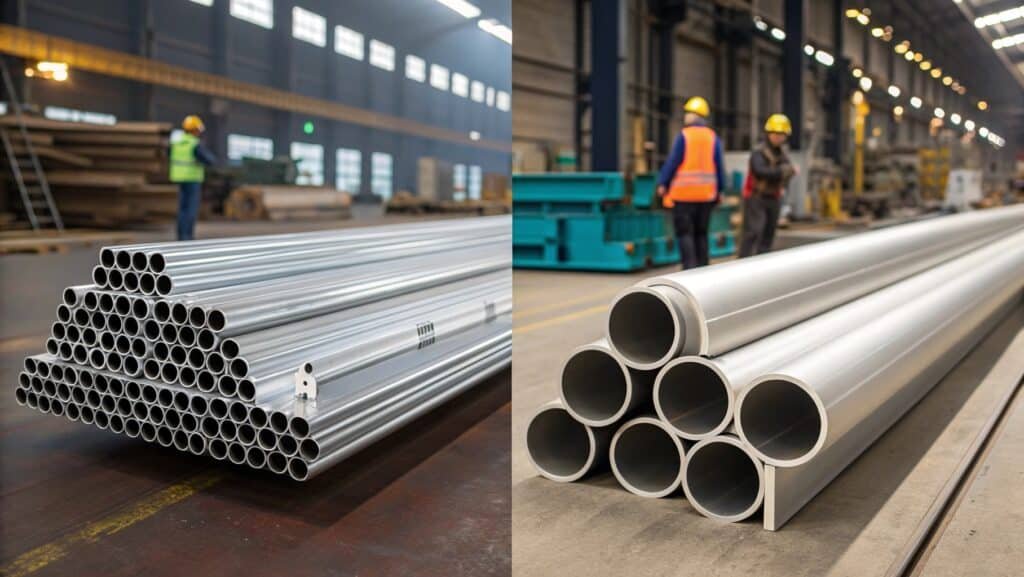

What is the difference between extruded and drawn aluminum tube?

Both extrusion and drawing are metal-forming processes used to create aluminum tubes, but they differ in how the shape is achieved and the resulting material properties.

The primary difference is that extrusion pushes aluminum through a die to form its shape, while drawing involves pulling a pre-formed tube through a die or over a mandrel to reduce its diameter and wall thickness. Drawing typically results in a smoother surface finish, tighter dimensional tolerances, and improved mechanical properties compared to basic extrusion.

For clients at SWA Forging, understanding the distinctions between various aluminum manufacturing processes helps them appreciate the value of custom forging. Extrusion, as discussed, is a pushing process. Drawing, often performed after extrusion or on seamless tubes, is a pulling process. In tube drawing, a pre-formed tube (which could be extruded or seamless) is pulled through a die with a smaller opening, and often over a plug or mandrel inside the die. This process elongates the tube, reduces its diameter and wall thickness, and improves its surface finish and dimensional accuracy. Drawing can also work-harden the aluminum, increasing its strength. Therefore, a "drawn tube" often implies a higher level of precision and potentially improved mechanical properties over a simply extruded tube, especially if it's drawn over a mandrel for a more uniform wall thickness and better internal finish. However, neither process inherently aligns the grain structure as effectively as forging does for ultimate strength and fatigue resistance. For applications requiring the highest performance characteristics, our forging process provides a more fundamental enhancement to the aluminum's metallurgical structure.

Process comparison:

• Extrusion: Pushing aluminum through a die.
• Drawing: Pulling aluminum through a die or over a mandrel.
• Surface Finish: Drawing typically yields a smoother surface.
• Dimensional Control: Drawing often achieves tighter tolerances.
• Mechanical Properties: Drawing can increase strength through work hardening.

Drawing refines the shape and properties of a tube, often following extrusion or piercing.

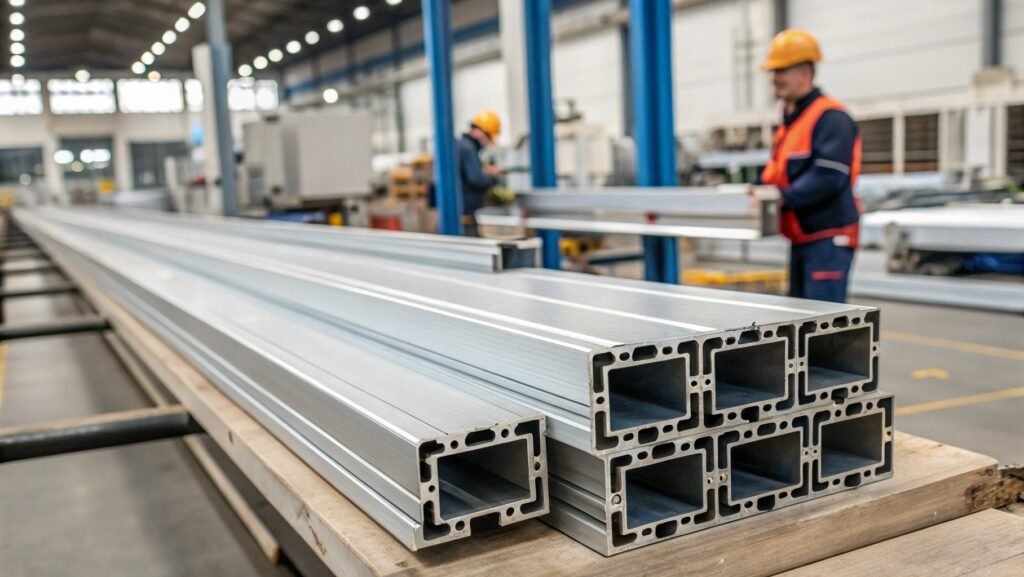

What are the disadvantages of extruded aluminum?

While extruded aluminum is versatile and cost-effective, it does have certain limitations that can make it unsuitable for highly demanding applications.

The main disadvantages of extruded aluminum include potential inconsistencies in material properties across the cross-section, the presence of residual stresses from the extrusion process, and limitations in achieving the highest levels of strength and fatigue resistance compared to forged components. Additionally, complex dies can be expensive, and extrusion is less suited for very thick walls or certain highly specialized alloy compositions.

At SWA Forging, we often encounter situations where clients have tried using extruded aluminum components and found they don't quite meet the performance mark for their critical applications. One significant disadvantage is the potential for non-uniformity in the material's microstructure. The extrusion process involves significant deformation, and while it creates the desired shape, it can lead to variations in grain size and orientation across the profile, which can affect strength and performance predictability under stress. Another issue is the presence of residual stresses that can remain in the material after extrusion, which might need to be relieved through subsequent heat treatment or can affect how the part behaves under load. For applications where the absolute highest strength, exceptional fatigue life, or resistance to extreme pressures is required, the material integrity achieved through forging—with its aligned grain structure and elimination of internal defects—offers a performance advantage that extrusion cannot match. While extrusion is excellent for many uses, its inherent limitations often lead discerning engineers to seek out the enhanced capabilities of custom-forged parts for mission-critical components.

Key disadvantages of extruded aluminum:

• Microstructural Inconsistencies: Grain variation across the cross-section.
• Residual Stresses: Can be present from the manufacturing process.
• Lower Strength/Fatigue Life: Generally less robust than forged components for extreme loads.
• Die Costs: Initial investment for complex custom dies can be high.
• Wall Thickness Limits: Less ideal for very thick-walled extrusions.

These limitations highlight when alternative manufacturing methods are necessary.

Conclusion

When standard extruded aluminum tubes fall short of your engineering requirements for strength, fatigue life, and structural reliability, SWA Forging's custom-forged aluminum rings and discs offer a superior, precision-engineered solution.
