Beyond Seamless Tubes: Discover SWA Forging’s Superior Strength and Integrated Structures for Extreme Demands

Are the limitations of standard seamless tubes¹ holding back the performance of your critical components? Explore the advanced capabilities of SWA Forging's precision 3D components.

When the linear form and geometric constraints of seamless tubes prevent optimal integration, strength, or performance in extreme demand applications, SWA Forging's custom-engineered 3D components offer superior, monolithic solutions with enhanced material properties.

Many of our clients at SWA Forging begin their material selection process with seamless tubes. This is a wise choice for applications needing consistent wall thickness, smooth surfaces, and reliability under pressure, such as in fluid transfer lines, structural supports, or hydraulic systems. The "seamless" nature means the tube is formed from a solid billet without any welded joints, ensuring the highest integrity and preventing potential failure points common in welded tubes. However, the inherent challenge with all tubes, seamless or otherwise, is their primarily linear geometry. They are designed to convey something from one point to another along a path. Creating complex, three-dimensional shapes, integrating multiple functions into a single part, or optimizing material flow for intricate stress paths is where traditional tubes, no matter how seamless, reach their limits. At SWA Forging, we address these limitations by utilizing our expertise in precision forging. We transform high-performance aluminum alloys into complex, monolithic 3D components that often consolidate multiple parts, offering unparalleled strength and integrated functionality that goes far beyond what standard seamless tubes can achieve.

What are seamless tubes?

Seamless tubes are a type of tubular product manufactured without any welded seam, ensuring a continuous and uniform material structure throughout their length.

Seamless tubes are produced by piercing a solid metal billet and then drawing or rolling it to the desired diameter and wall thickness, resulting in a component with no longitudinal weld, which enhances its structural integrity and reliability for high-pressure or critical applications.

For our clients at SWA Forging, understanding the fundamental construction of seamless tubes is key to appreciating why we offer forged components as an alternative for advanced applications. The process of creating a seamless tube typically involves heating a solid metal billet and then piercing it with a projectile or mandrel to create a hollow cavity. This hollow shell is then passed through various rolling or drawing processes to achieve the final dimensions and wall thickness. The absence of a weld is the defining characteristic, making these tubes exceptionally strong and consistent, especially under internal pressure or in applications where stress is applied uniformly. However, even with their inherent integrity, seamless tubes are fundamentally linear. When a design requires complex curves, branching, specific load-bearing contours, or integrated features in a three-dimensional space, the capabilities of seamless tubing are limited, pushing clients toward more versatile manufacturing methods like forging.

Key aspects of seamless tubes:

• Manufacturing Origin: Made from a solid billet that is pierced.
• Key Feature: No welded seam along the length.
• Integrity: Offers higher bursting strength and better resistance to stress compared to welded tubes.
• Applications: Commonly used in high-pressure systems, hydraulics, and critical structural components.

Their uniform structure makes them reliable for many demanding uses.

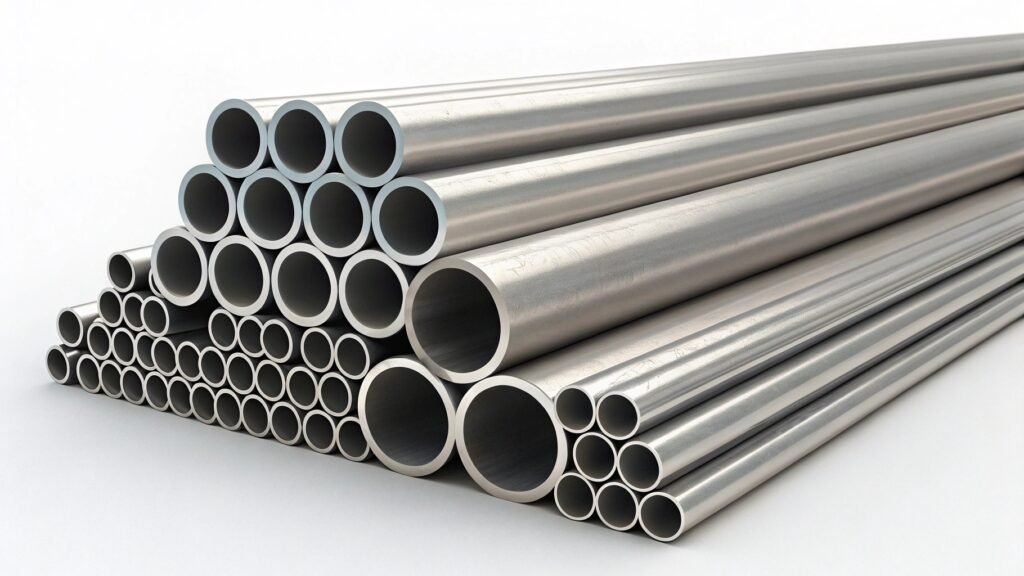

What are the grades of seamless tubes?

Seamless tubes are manufactured from various materials, and their "grades" refer to the specific material composition, mechanical properties, and intended applications, particularly in steel and specialized alloys.

Seamless tubes are produced in numerous grades depending on the base material, such as different carbon steel grades (e.g., ASTM A106 Grade B, A53 Grade B), alloy steel grades (e.g., ASTM A335 P11, P22), and stainless steel grades (e.g., ASTM A312 TP304, TP316). For aluminum, specific alloy designations like 6061 or 7075, when formed into seamless tubes, denote their respective grades.

When SWA Forging's clients consider seamless aluminum tubing, they often specify the alloy grade based on performance requirements, such as 6061 for general structural use or 7075 for high-strength aerospace applications. These designations define the alloy's chemical composition and its resulting mechanical properties. For seamless steel tubes, the grade system, often dictated by ASTM standards, provides even more specific details about strength, temperature resistance, and intended service conditions. For instance, ASTM A106 is a common standard for seamless carbon steel pipe for high-temperature service, with grades like Grade B indicating specific minimum tensile and yield strengths. While seamless tubes, regardless of the material or grade, are excellent for their intended linear applications, the need for complex 3D forms, integrated features, or optimized material grain flow for highly critical stress points often leads clients to SWA Forging's precision forging capabilities, where we can engineer these advanced characteristics into monolithic aluminum components.

Examples of seamless tube grades (by material):

• Carbon Steel: ASTM A106 (Grades A, B, C), ASTM A53 (Grades A, B), API 5L.
• Alloy Steel: ASTM A335 (Grades P1, P5, P9, P11, P22, etc.), ASTM A333 (for low-temperature service).
• Stainless Steel: ASTM A312 (Grades TP304/304L, TP316/316L, TP321, etc.).
• Aluminum: Specific alloy designations like 1xxx, 3xxx, 5xxx, 6xxx, 7xxx series (e.g., seamless 6061-T6 tubing).

Each grade is engineered for specific performance characteristics and environments.

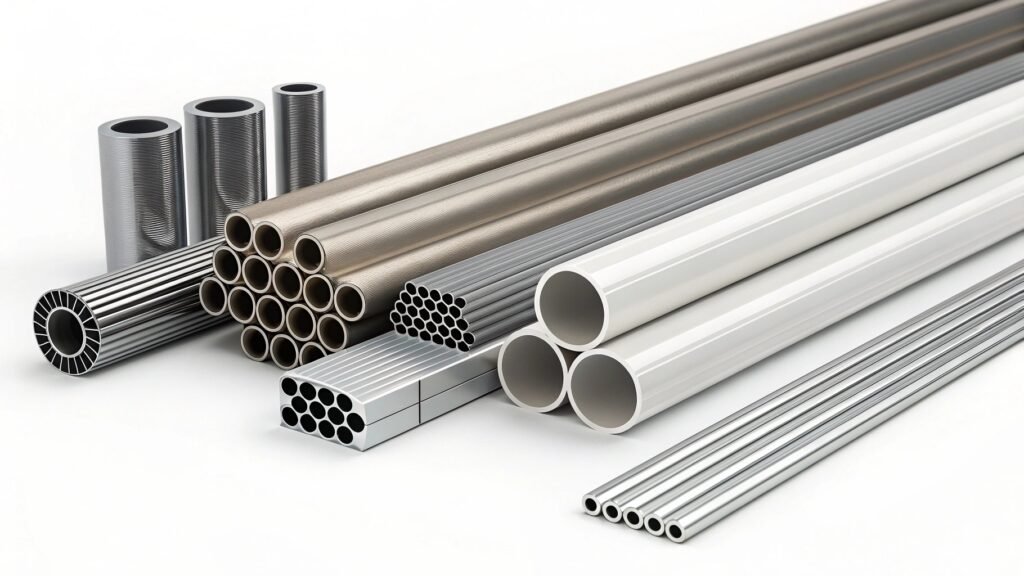

What are different types of tubes?

Tubes, in a general sense, are hollow cylindrical products, but they are categorized by their manufacturing method, material, and intended application.

The primary types of tubes include seamless tubes (made without welds), welded tubes (made by joining flat-rolled metal with a weld), and drawn tubes (which can be either seamless or welded, but have undergone a further drawing process to improve dimensions and surface finish). Other classifications exist based on material, such as aluminum tubes, steel tubes, and copper tubes.

When our clients at SWA Forging are looking for material solutions, they often start by considering tubing. Understanding the different types helps them articulate their needs and the limitations they face. Seamless tubes, as we've discussed, offer superior integrity. Welded tubes, typically made by forming a flat strip into a cylinder and then welding the seam, are often more cost-effective for lower-pressure applications or where extreme structural integrity isn't paramount. Drawn tubes are not a distinct manufacturing method in themselves but rather a secondary process applied to either seamless or welded tubes. Drawing refines the tube's dimensions, improves its surface finish, and can enhance its mechanical properties by aligning the grain structure. While these types of tubes serve vital linear roles, SWA Forging's precision forging process moves beyond the linear constraints of any tubing. We create complex, three-dimensional components that integrate multiple functions and exhibit superior material properties tailored for extreme demands, often replacing assemblies that would otherwise require multiple pieces of tubing or complex machining.

Common tube types and classifications:

• Manufacturing Method: Seamless vs. Welded (ERW, LSAW, SSAW).
• Secondary Process: Drawn tubes (improves tolerances and finish).
• Material: Aluminum, Steel (carbon, alloy, stainless), Copper, Titanium, etc.
• Shape: Round, Square, Rectangular, Oval, or custom profiles.
• Application: Hydraulic, Pneumatic, Structural, Mechanical, Heat Exchanger, etc.

Each type is suited for different performance requirements and manufacturing considerations.

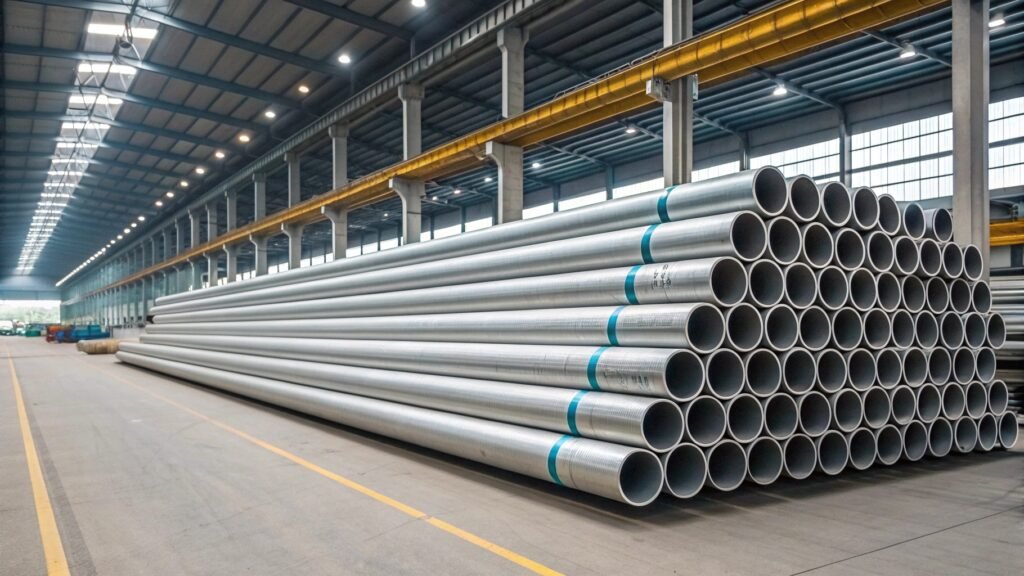

When to use seamless pipe?

Seamless pipe is specified for applications where maximum reliability, integrity, and performance under pressure or stress are critical requirements.

Seamless pipe should be used when applications demand high strength, resistance to leakage under pressure, uniform wall thickness, and durability in demanding environments such as high-pressure fluid transport, critical structural components, or in industries like oil and gas, chemical processing, and aerospace.

For our clients at SWA Forging, the decision of when to opt for something beyond standard seamless pipe or tubing is often driven by complex design challenges. Seamless pipe is an excellent choice for conveying fluids or gases at high pressures and temperatures, or where structural loads are significant, precisely because it lacks the potential weak points of welds. Industries like oil and gas, chemical plants, and power generation rely heavily on seamless pipes for their safety and operational integrity. In aerospace, while seamless aluminum tubing is used, the demand for complex, integrated, 3D structures that optimize weight and strength often leads clients to SWA Forging. We can produce components from aerospace-grade aluminum that might serve a similar functional purpose to a complex pipe network but in a single, stronger, lighter, and more integrated forged part, eliminating the need for multiple connections and potential leak paths inherent in even the most robust pipe systems.

Key scenarios for specifying seamless pipe:

• High-Pressure Applications: Where containment integrity is paramount.
• High-Temperature Service: Where material stability and strength are maintained.
• Corrosive Environments: Where material uniformity provides better resistance.
• Critical Structural Support: Where consistent strength is required along its length.
• Applications Requiring High Cleanliness: Where internal surface smoothness and lack of weld contamination are important.

Its inherent strength and reliability make it indispensable for safety-critical systems.

Conclusion

For extreme demand applications that surpass the capabilities of standard seamless tubes, SWA Forging's precision 3D components offer superior strength, integrated structures, and optimized material properties through advanced forging techniques.
