Can Aluminum and Brass Fittings Be Used Together?

Problem: Planning a project involving plumbing or assembly and wondering if you can mix aluminum and brass fittings? Agitation: Using incompatible metals can lead to galvanic corrosion, leaks, and premature failure, costing time and money. Solution: Understand the risks before combining them.

Generally, it's not recommended to use aluminum and brass fittings directly together, especially where moisture or an electrolyte is present. This combination creates a high risk of galvanic corrosion, which will degrade the aluminum component over time.

While sometimes done in dry, controlled environments, the potential for problems is significant. We need to look deeper into why this pairing is often a bad idea and what happens when these metals meet.

Are Brass and Aluminum Compatible?

Problem: You see brass and aluminum used often, maybe they are okay together? Agitation: Assuming compatibility without knowing the science can lead to hidden corrosion destroying your assembly from the inside out. Solution: Know the electrochemical facts first.
No, brass and aluminum are generally considered incompatible metals for direct contact in most applications. This is due to their different positions on the galvanic series, leading to corrosion when an electrolyte (like moisture) is present.
!

Dive Deeper Paragraph: Understanding Galvanic Incompatibility

The core issue between aluminum and brass is galvanic corrosion. This happens when two dissimilar metals are in electrical contact within a conductive liquid (electrolyte). Think of it like a tiny battery:

• How it Works: One metal becomes the anode (less noble, more reactive) and corrodes preferentially, while the other becomes the cathode (more noble, less reactive) and is protected.
• Aluminum vs. Brass: In this pairing, aluminum is significantly less noble (more anodic) than brass (which is primarily copper and zinc).
  • Anode: Aluminum (corrodes)
  • Cathode: Brass (protected)
  • Electrolyte: Moisture, condensation, saltwater, even humid air can act as an electrolyte.
• The Result: The aluminum fitting will corrode at an accelerated rate, potentially leading to pitting, weakening, leaks, or complete failure. The brass fitting remains relatively unaffected or might even develop a protective patina.
  Simplified Galvanic Series Comparison:
  (Metals higher on the list are more anodic/less noble and corrode first)

As a manufacturer focused on quality aluminum components like forged rings and discs, we know how critical material compatibility is. Seeing aluminum parts fail due to poor pairing with metals like brass is something our machining customers want to avoid. They rely on the integrity of the materials we supply.

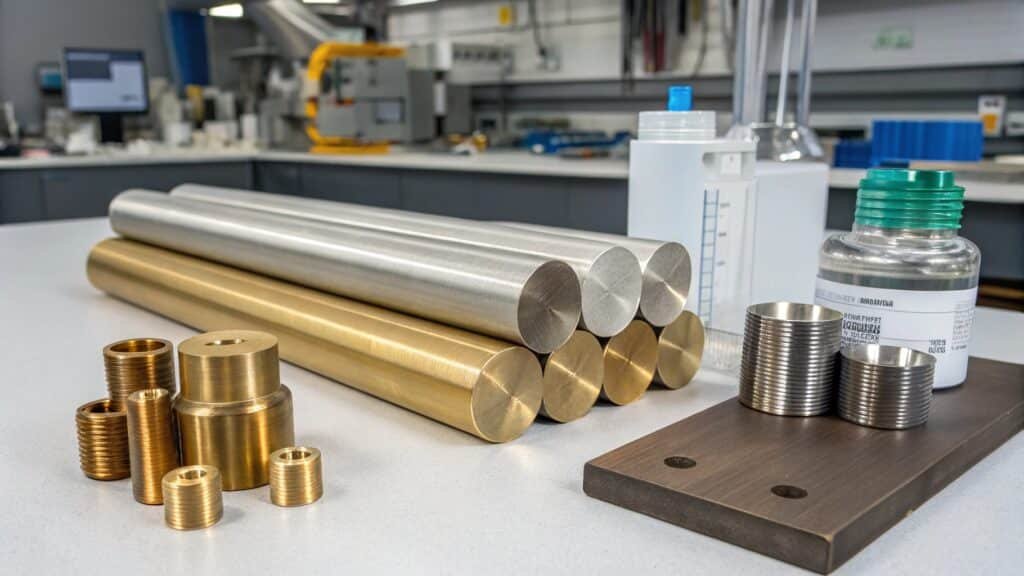

Which Metals Should Not Be Used Together?

Problem: Knowing aluminum/brass is bad isn't enough. Agitation: You might accidentally create a corrosive pair with other metals if you don't know the general rule. Solution: Learn which combinations are riskiest.

Generally, you should avoid direct contact between metals that are far apart on the galvanic series, especially in corrosive environments. The greater the difference in electrochemical potential, the faster the more anodic metal will corrode.

Dive Deeper Paragraph: The Galvanic Series Rule

The "distance apart" rule on the galvanic series is key. This series ranks metals based on their electrochemical potential in a specific environment (like seawater).

• The Principle: When connected electrically in an electrolyte:
  • Metals far apart generate a stronger corrosive "battery."
  • Metals close together have less potential difference and thus less galvanic corrosion risk.
• High-Risk Combinations (Avoid Direct Contact, Especially with Moisture):
  • Aluminum and Copper/Brass/Bronze: Aluminum is highly anodic to these copper alloys. Very problematic.
  • Aluminum and Stainless Steel (Passive): Aluminum is anodic to passive stainless steel. Corrosion of aluminum occurs.
  • Steel/Iron and Copper/Brass/Bronze/Stainless Steel: Standard steel is anodic to these and will corrode.
  • Zinc (Galvanized Steel) and Copper/Brass/Stainless Steel: Zinc is very anodic and will sacrifice itself quickly.
• Lower-Risk Combinations:
  • Different grades of Stainless Steel (usually okay).
  • Brass and Copper (relatively close).
  • Aluminum and Zinc or Cadmium (sometimes used as protective coatings for steel against aluminum, but context matters).
    Factors Influencing Severity:

For our clients, especially those in the Middle East dealing with potentially humid or coastal environments, understanding these pairings is vital. Providing high-quality aluminum requires knowing how it interacts with other materials in the final application. Using isolation (plastic washers, sleeves, coatings) or compatible fasteners is essential when joining dissimilar metals.

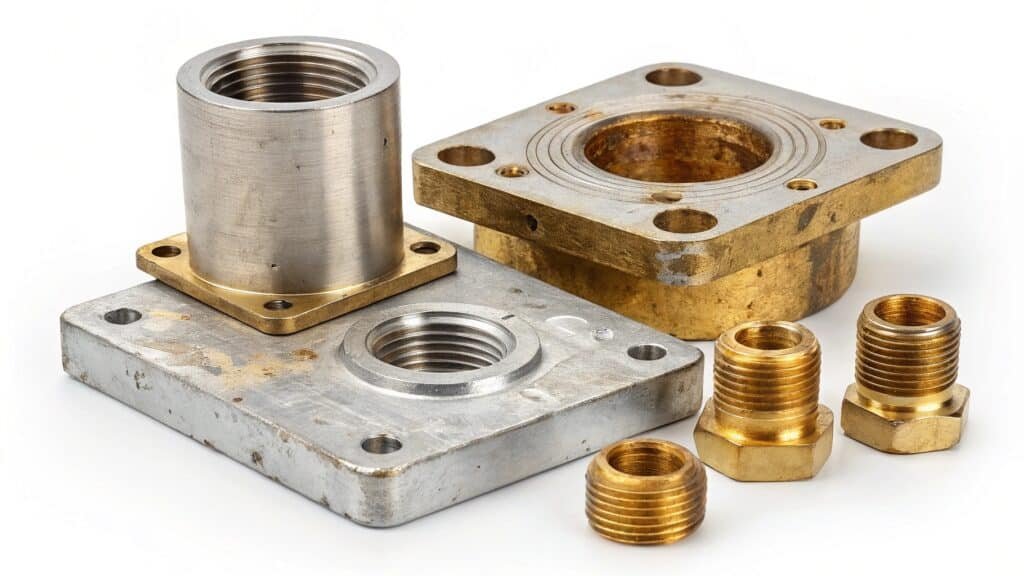

Will Aluminum and Brass Fuse Together?

Problem: You connect aluminum and brass, and it seems fine for a while. Agitation: Later, you try to take them apart, but they're stuck fast, almost like they're welded! Solution: Understand why this happens – it's corrosion, not fusion.

Aluminum and brass won't truly fuse metallurgically under normal conditions. However, galvanic corrosion products (aluminum oxides/hydroxides) can build up in the threads or contact surfaces, effectively seizing the fittings together and making disassembly extremely difficult or impossible.

Dive Deeper Paragraph: Corrosion Seizure Explained

This "fusing" is actually a mechanical blockage caused by corrosion build-up. Here's the breakdown:

• The Process:
  1. Aluminum and brass are joined (e.g., threaded connection).
  2. An electrolyte (moisture) enters the interface.
  3. Galvanic corrosion starts: aluminum (anode) corrodes.
  4. Aluminum ions react with water and oxygen, forming aluminum oxide and hydroxide.
  5. These corrosion products are often white, powdery, and voluminous – they take up more space than the original aluminum metal they replaced.
  6. This expanding corrosion product packs tightly into the gaps (like threads), creating immense pressure and friction.
• Distinction from Galling: This is different from galling, which is cold welding caused by friction and adhesion between similar metals under pressure (common with stainless steel threads). Corrosion seizure is a chemical process result.
• Why It Feels Fused: The corrosion products act like a strong, hard cement locking the parts together. Applying force to separate them can often shear the aluminum part before the corrosion bond breaks.
• Prevention:
  • Avoid the Pairing: The best solution is not to connect them directly in the first place.
  • Isolation: Use non-metallic washers, sleeves, or gaskets to break the electrical path.
  • Thread Sealants/Lubricants: Use appropriate thread sealant or anti-seize compound specifically designed for metal compatibility (some contain zinc or other inhibitors). This can displace moisture and sometimes provide a barrier. Caution: Ensure the compound doesn't introduce its own compatibility issues.
  • Plated Fittings: Using a brass fitting plated with a compatible metal (like nickel or chrome) might help, but the plating must remain intact. Scratches expose the brass.
    For machining customers creating assemblies, seized fittings are a major headache, leading to rework or scrapped parts. We always advise considering long-term material interactions during the design phase.

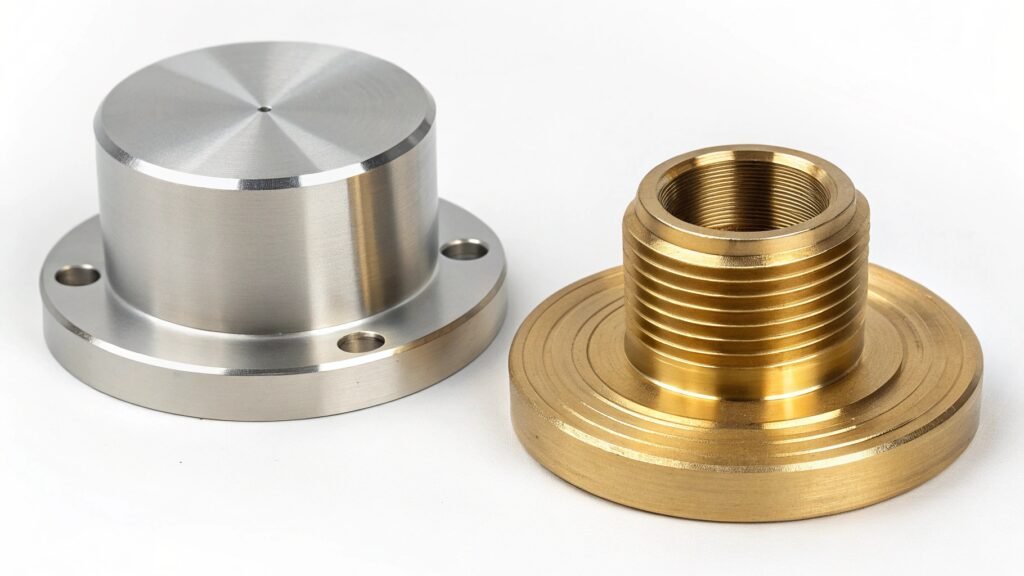

Can Brass and Aluminum Be Soldered Together?

Problem: You need to join aluminum and brass components, and welding or fasteners aren't suitable. Agitation: Soldering seems like an option, but attempts often fail, leaving weak or unreliable joints. Solution: Realize standard soldering methods won't work well here.
Soldering aluminum directly to brass is very difficult and generally not recommended for reliable, strong joints. Aluminum's persistent oxide layer and the significant galvanic potential difference between the two metals pose major challenges for standard soldering techniques.

Dive Deeper Paragraph: Challenges and Alternatives

Joining aluminum and brass via soldering faces several hurdles:

• Aluminum Oxide Layer: Aluminum instantly forms a tough, refractory oxide layer (Al₂O₃) in air. Standard solder fluxes cannot remove this layer effectively, preventing the solder from wetting and bonding to the aluminum surface.
• Specialized Fluxes/Solders: Soldering aluminum itself requires very aggressive, often corrosive fluxes and specialized zinc-based solders with lower melting points. Extending this to join aluminum to brass adds complexity. Even if a joint is achieved:
  • Flux residues can be highly corrosive if not completely removed.
  • The joint strength might be low.
• Galvanic Corrosion: Even if you manage to solder them, you've created a direct electrical connection between highly dissimilar metals. The joint area remains susceptible to galvanic corrosion in the presence of moisture, potentially failing over time, especially compromising the aluminum side.
• Thermal Conductivity Differences: Aluminum conducts heat much faster than brass, making it tricky to heat both parts evenly to the correct soldering temperature without overheating the aluminum or underheating the brass.
  Alternatives to Consider:

As a supplier, we focus on providing quality materials like our forged aluminum rings and discs. While we don't perform joining, we advise clients that forcing incompatible joining methods like standard soldering for aluminum/brass is usually counterproductive. Proper design using mechanical isolation or appropriate transition fittings is almost always the better, more reliable solution.

Conclusion
Avoid direct contact between aluminum and brass fittings, especially where moisture is present. Galvanic corrosion will damage the aluminum. Use insulating methods or compatible materials for reliable, long-lasting connections.
