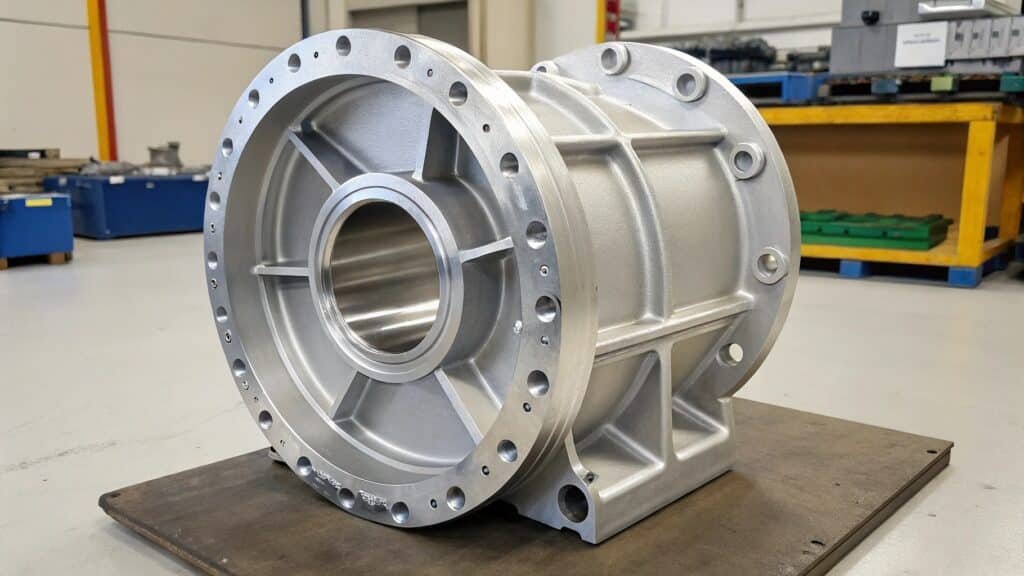

You're considering aluminum for a pressure vessel, but casting is your preferred manufacturing method. Is this combination safe and reliable? Using the wrong material or process for pressurized applications can lead to catastrophic failures.
While some cast aluminum alloys can be used for low-pressure vessels or components, high-pressure vessels generally require wrought aluminum alloys (like those used in forging or extrusions) or other materials like steel or composites due to casting's potential for porosity and lower ductility.
At SWA Forging, our expertise since 2012 lies in producing high-integrity forged aluminum components like large-diameter rings and discs. Forging generally results in a denser, more uniform material structure compared to casting, which is crucial for applications involving internal pressure. While we don't produce castings, understanding the suitability of different aluminum forms for various applications is key to advising our clients, who are often traders and machining companies looking for the best material solutions.
What aluminum alloy is used for pressure die casting?
You're specifically looking at pressure die casting for your aluminum part. Which alloys are best suited for this process, especially if some level of pressure containment is involved? Choosing an unsuitable alloy can lead to poor casting quality or failure under stress.
Common aluminum alloys for pressure die casting include A380, A383, and A360. These offer good castability, moderate strength, and corrosion resistance. However, they are not typically the first choice for primary pressure-retaining components in high-pressure vessels.
Pressure die casting is a popular manufacturing process for producing complex aluminum parts at high volumes with good dimensional accuracy and surface finish. The alloys chosen for this process need excellent fluidity to fill the die cavity quickly, good resistance to hot cracking, and the ability to achieve decent mechanical properties in the as-cast or lightly heat-treated condition.
Some of the most common aluminum alloys used in pressure die casting include:
- A380 (ADC10 in JIS standard): This is arguably the most widely used die-casting alloy. It offers a good combination of castability, mechanical properties (moderate strength and hardness), and thermal conductivity. It's often used for housings, enclosures, and general mechanical components.
- A383 (ADC12 in some regional standards): Similar to A380 but with slightly better die-filling characteristics, making it suitable for more intricate castings.
- A360: Known for its higher corrosion resistance and good strength at elevated temperatures compared to A380.
While these alloys are excellent for many applications, including some that might involve containing low internal pressures (e.g., certain types of pump housings or valve bodies), they are generally not specified for critical, high-pressure vessels where safety and guaranteed pressure integrity are paramount. The inherent nature of the die casting process, even when well-controlled, can sometimes lead to microporosity or gas entrapment within the casting, which can become leak paths or stress concentration points under high pressure. For many of our clients who require components for systems handling significant pressures, a forged aluminum alloy1 like 6061-T6 or a 7xxx series alloy would be a more common recommendation due to the superior material integrity achieved through the forging process.
| Alloy | Key Characteristics | Common Applications | Pressure Suitability |
|---|---|---|---|
| A380 | Good castability, moderate strength, good thermal conductivity | Housings, enclosures, general mechanical parts | Low pressure, non-critical |
| A383 | Excellent die-filling, for intricate parts | Complex housings, decorative parts | Low pressure, non-critical |
| A360 | Higher corrosion resistance, good strength at high temp | Marine components, outdoor applications | Low to moderate pressure, non-critical |
What is Aluminium alloy used for?
You see aluminum alloys everywhere, from foil to airplanes. What are the broad applications? Understanding its uses helps you gauge its suitability for your specific needs, like pressure vessels.
Aluminum alloys are used for a vast range of applications due to their light weight, good strength-to-weight ratio, corrosion resistance, conductivity, and recyclability. Common uses include transportation (aerospace, automotive, marine), construction, packaging, electronics, and consumer goods.
Aluminum alloys2 are incredibly versatile materials, which is why they find use in so many different sectors. Their unique combination of properties makes them indispensable.
In transportation, aluminum's light weight is a huge advantage. The aerospace industry relies heavily on high-strength aluminum alloys (like 2xxx and 7xxx series) for aircraft structures because they reduce weight, improving fuel efficiency and performance. The automotive industry uses aluminum for engine blocks, body panels, wheels, and structural components to lighten vehicles. Marine applications use corrosion-resistant 5xxx series alloys for boat hulls and superstructures.
In construction, aluminum alloys (often 6xxx series like 6063) are used for window frames, curtain walls, roofing, and structural elements due to their durability, low maintenance, and design flexibility.
Packaging is another major area, with aluminum used for beverage cans (typically 3xxx series) and foils because it's lightweight, formable, and provides an excellent barrier.
Electrical applications utilize aluminum's good electrical conductivity (though not as good as copper, it's lighter) for power lines and busbars. Its thermal conductivity also makes it ideal for heat sinks in electronics.
Consumer goods see aluminum in everything from cookware and ladders to furniture and sporting equipment.
At SWA Forging, our forged aluminum rings and discs often go into industrial machinery, power generation equipment, and specialized components where the strength, reliability, and light weight of forged aluminum are crucial. For example, a large 6061-T6 forged ring might be used as a structural component in a wind turbine, or a 7075 forged disc might become part of a high-performance clutch assembly. The specific alloy and manufacturing process are tailored to the application.

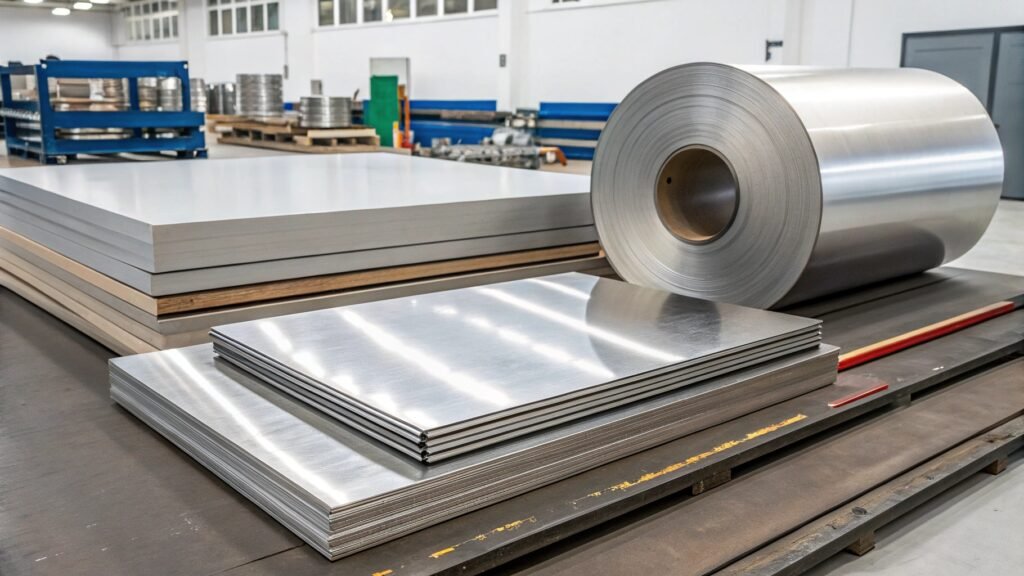

What material is used for pressure vessels?
When it comes to containing pressure safely, what are the go-to materials? Knowing the industry standards and common choices will guide your decision for your own pressure vessel design.
Common materials for pressure vessels include carbon steel, stainless steel, high-strength low-alloy (HSLA) steels, aluminum alloys (typically wrought), nickel alloys, titanium, and composites. The choice depends on pressure, temperature, contents, and cost.
The selection of material for a pressure vessel is a critical engineering decision, governed by design codes (like ASME Boiler and Pressure Vessel Code) and the specific operating conditions.
Carbon Steel is the most common material due to its good strength, excellent toughness, fabricability, and relatively low cost. It's used for a vast range of applications, from air receivers to large industrial process vessels.
Stainless Steels (e.g., 304, 316) are used when corrosion resistance is required, for example, in food processing, pharmaceutical, or chemical industries. They also offer good strength at elevated and cryogenic temperatures.
High-Strength Low-Alloy (HSLA) Steels provide higher strength-to-weight ratios than carbon steels, allowing for thinner walls and lighter vessels for high-pressure applications.
Aluminum Alloys, typically wrought grades like 6061-T6 or 5xxx series for corrosion resistance, are used for pressure vessels where light weight is critical (e.g., portable oxygen tanks, cryogenic storage for liquefied gases like LNG, or aerospace applications). Forged aluminum components, like the rings and discs we produce, can be integral parts of such vessels. I remember a project where we supplied large-diameter 6061-T6 forged rings for the end closures of lightweight hydraulic accumulators. The consistent material properties and fine grain structure achieved through forging were essential for meeting the stringent safety and performance requirements.
Nickel Alloys (e.g., Inconel, Monel) are chosen for very demanding applications involving high temperatures, extreme corrosion, or specific chemical compatibility.
Titanium is used for its excellent corrosion resistance (especially to seawater and many chemicals) and high strength-to-weight ratio, but it's more expensive.
Composites (e.g., carbon fiber or glass fiber reinforced polymers) are increasingly used for very high-pressure applications where light weight is paramount, such as hydrogen storage tanks or rocket motor casings.
The choice always involves a trade-off between mechanical properties, corrosion resistance, temperature capabilities, fabricability, and cost.

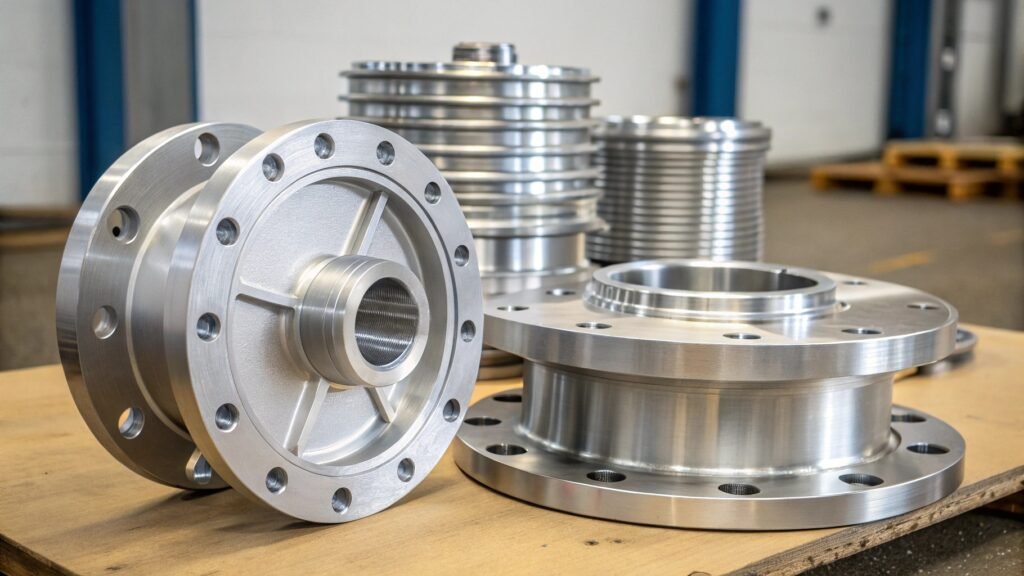

Can aluminum handle pressure?
Simply put, can aluminum stand up to being pressurized? You need a clear understanding of its capabilities and limitations when subjected to internal or external forces.
Yes, certain aluminum alloys, especially wrought alloys in appropriate tempers (e.g., 6061-T6, 7075-T6), can handle significant pressure and are used for various pressure vessel applications, particularly where light weight or specific corrosion resistance is needed.
Aluminum alloys absolutely can handle pressure, and they do so in many critical applications. The key is selecting the right alloy, the correct temper, and using a manufacturing process that ensures material integrity.
Wrought aluminum alloys, such as those in the 5xxx, 6xxx, and 7xxx series, are commonly used.
- 5xxx series alloys (e.g., 5083) are often chosen for their excellent corrosion resistance in marine environments and good toughness at cryogenic temperatures, making them suitable for LNG storage tanks and other low-temperature pressure vessels.
- 6061-T6 is a versatile workhorse, widely used for general-purpose pressure vessels, hydraulic cylinders, compressed air tanks, and scuba tanks due to its good strength, corrosion resistance, and weldability.
- 7xxx series alloys (e.g., 7075-T6) offer very high strength and are used in high-performance applications like aerospace hydraulic systems or lightweight, high-pressure gas cylinders.
The manufacturing method is also crucial. Forged aluminum components, like the seamless rings and discs we produce at SWA Forging, are often preferred for critical pressure-retaining parts because the forging process refines the grain structure, eliminates porosity, and enhances mechanical properties, leading to a highly reliable material. Extruded tubes and pipes are also common.
However, not all aluminum is suitable. Pure aluminum (1xxx series) is too soft. While some cast aluminum alloys can handle low pressures, their potential for internal defects like porosity makes them less reliable for high-pressure or critical safety applications compared to wrought products.
So, when a client asks if aluminum can handle pressure, my answer is a confident "yes, with the right alloy and process." We often provide product quality certificates and can arrange third-party certifications (SGS, BV, TUV) to give our customers full confidence in the material's ability to perform under pressure.
Conclusion
Cast aluminum alloys can suit low-pressure applications, but high-pressure vessels typically demand wrought alloys for their superior integrity. Steel, stainless steel, and composites are also common, chosen based on specific operational needs.
