Considering Extruded Aluminum Tubes? Understanding the Process and Benefits

Are you looking at aluminum tubing for your project and wondering about the manufacturing process and its implications? Let's explore the world of extruded aluminum.

Extruded aluminum tubing is formed by pushing heated aluminum through a die, creating precise shapes with consistent properties, offering advantages in design flexibility, strength, and surface finish compared to other methods.

At SWA Forging, while our primary focus is on forging, we have a deep understanding of other aluminum manufacturing processes, including extrusion. Extrusion is a widely used method for producing aluminum components, especially tubing and complex profiles. It’s a versatile process that involves heating aluminum alloy¹ to a specific temperature and then forcing it through a shaped die under high pressure. This process allows for the creation of intricate cross-sections and hollow shapes, like tubes, with remarkable precision. The resulting extruded products typically have a smooth surface finish and good dimensional accuracy, making them suitable for a wide range of applications without extensive post-processing. Understanding the difference between extrusion and other methods, like drawing, is key to selecting the best material for your needs. The inherent properties and benefits of extrusion make it a highly valued manufacturing technique in the aluminum industry.

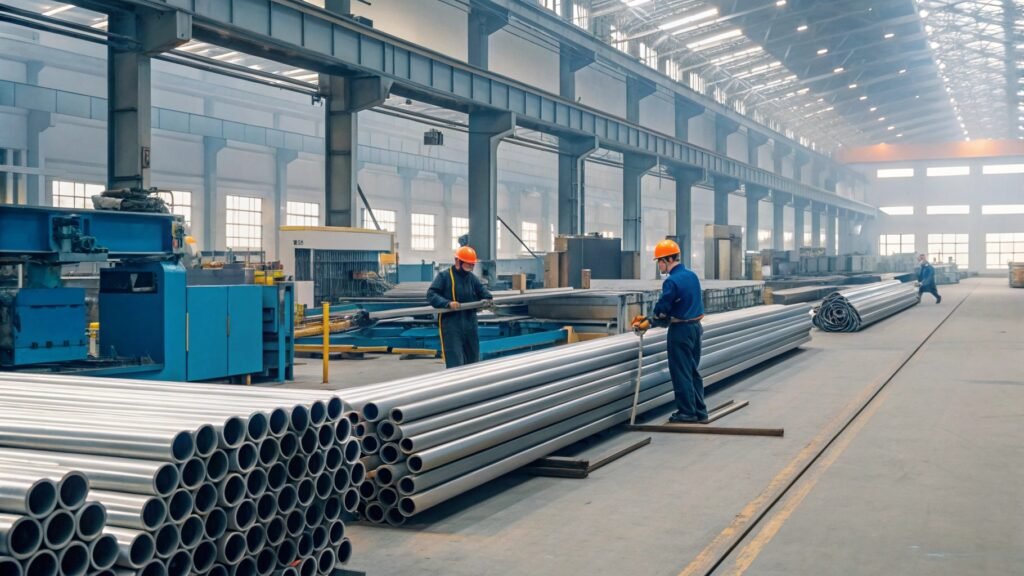

What is the difference between extruded and drawn aluminum tubing?

Extruded aluminum tubing is formed by forcing heated aluminum through a die, while drawn aluminum tubing is made by pulling a pre-extruded or cast tube through a die to reduce its diameter and wall thickness.

Extrusion creates the desired shape and dimensions by pushing aluminum through a die, whereas drawing further refines a tube's dimensions, improves its surface finish, and enhances its mechanical properties by pulling it through a die.

When clients at SWA Forging inquire about tubing, they sometimes ask about the distinction between extruded and drawn aluminum. Both processes result in aluminum tubes, but they are fundamentally different and yield different characteristics. Extrusion is a shaping process where heated aluminum alloy is pushed through a die. This method is excellent for creating complex shapes, including hollow profiles like tubes, directly to their final or near-final dimensions and desired cross-sectional geometry. The grain structure in extruded aluminum tends to be more uniform along the length of the extrusion. Drawing, on the other hand, is typically a secondary process used to further refine a tube that has already been extruded or cast. In drawing, a larger tube is pulled through a die that is smaller than the tube's current diameter. This reduces the tube's outer diameter, wall thickness, and increases its length. Drawing often improves the dimensional accuracy, surface finish, and mechanical properties (strength and hardness) of the tubing by cold working the aluminum. So, while extrusion defines the shape, drawing refines it.

Process comparison:

• Extrusion: Pushing heated aluminum through a die; creates shape and dimensions.
• Drawing: Pulling a tube through a die; reduces diameter/wall thickness, improves surface and properties.
• Relationship: Drawing often follows extrusion.

Extrusion forms the initial shape; drawing refines dimensions and properties.

What are the advantages of extruded aluminum?

Extruded aluminum offers several significant advantages, including design flexibility, cost-effectiveness for complex shapes, good mechanical properties, and excellent surface finishes.

The advantages of extruded aluminum include its remarkable design freedom for creating intricate shapes, cost-efficiency for complex profiles, precise dimensional control, good strength and structural integrity, and a smooth surface finish ideal for many applications.

Extrusion is a cornerstone process in the aluminum industry, and for good reason. One of the primary advantages, and something our clients at SWA Forging appreciate in their material choices, is the incredible design flexibility it offers. Through extrusion, manufacturers can create highly complex cross-sectional shapes that would be difficult or impossible to achieve with other methods like casting or machining. This allows engineers to design custom profiles that integrate multiple functions, reduce part count, and optimize performance. Another key benefit is cost-effectiveness, especially for producing these complex shapes in medium to high volumes. While the initial cost of the die can be a factor, the efficiency of the extrusion process and the reduced need for subsequent machining make it economical. Furthermore, extruded aluminum typically exhibits good mechanical properties, including uniform strength and good surface quality. The process yields precise dimensional control, which is critical for many applications, from aerospace components to architectural elements. This combination of intricate design capability, economic viability, and quality finish makes extruded aluminum a highly versatile material choice.

Key advantages of extrusion:

• Design Flexibility: Ability to create complex and custom shapes.
• Cost-Effectiveness: Economical for high-volume production of intricate profiles.
• Dimensional Accuracy: Precise control over tolerances.
• Good Mechanical Properties: Uniform strength and integrity.
• Excellent Surface Finish: Smooth surface suitable for various applications.

Extruded aluminum provides significant benefits in design and manufacturing.

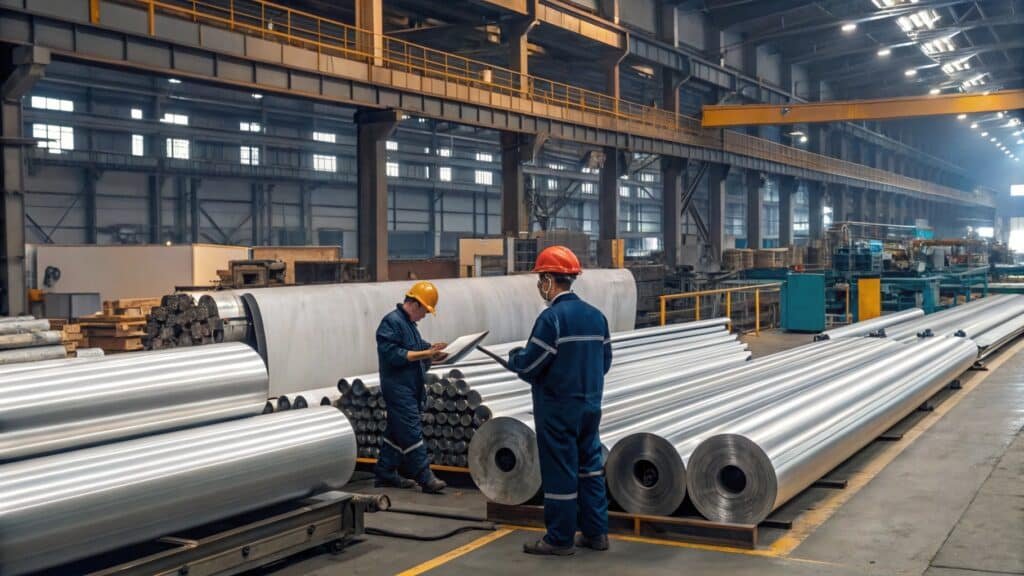

What is considered extruded aluminum?

Extruded aluminum refers to aluminum alloy products that have been formed by forcing heated aluminum through a die with a specific cross-sectional shape.

Extruded aluminum is any aluminum product, such as bars, rods, profiles, or tubing, that has been manufactured by heating aluminum alloy to a plastic state and then pushing it through a shaped die to create a continuous length of the desired cross-section.

When we talk about extruded aluminum, we are referring to a product that has undergone a specific manufacturing process. The essence of extrusion is about shaping. You start with aluminum alloy, typically in the form of logs or billets. These are heated to a high temperature, making them malleable. Then, this heated aluminum is placed into a die cavity. A powerful hydraulic press applies immense force, pushing the aluminum through the opening in the die. This opening is precisely machined to the desired cross-sectional shape of the final product. As the aluminum is forced through, it takes on the shape of the die and emerges as a continuous length. This length is then cooled, cut to size, and often further processed, such as with heat treatment or stretching, to achieve specific properties. So, anything from intricate frames for windows to solid rods or hollow tubes that were made using this push-through-a-die method is considered extruded aluminum. It’s the process that defines the product category.

Defining extruded aluminum:

• Process: Forcing heated aluminum through a shaped die.
• Result: Continuous lengths of specific cross-sections.
• Products: Bars, rods, tubes, complex profiles.
• Key Feature: Shape defined by the die.

Extruded aluminum is aluminum shaped by pushing it through a die.

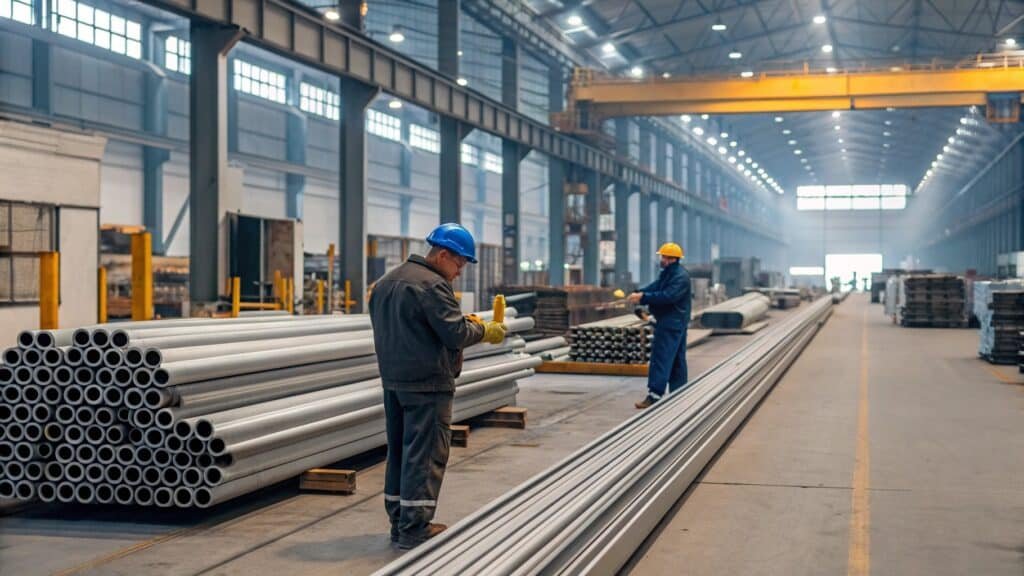

Why is extruded aluminum worth more?

Extruded aluminum is often worth more due to the specialized tooling, the precision of the manufacturing process, the design flexibility it offers, and the superior mechanical properties and finishes achievable.

Extruded aluminum commands a higher price due to the significant investment in custom dies, the precision required for the extrusion process, its ability to create complex shapes efficiently, and the resulting quality, strength, and finish that are often superior to simpler manufacturing methods.

The value proposition of extruded aluminum is tied to several factors that contribute to its cost being higher than, say, basic sheet metal or raw aluminum stock. Firstly, the creation of the extrusion die itself is a significant investment. These dies are custom-made for each specific profile and require precise engineering and manufacturing. This tooling cost is often amortized over the production run, making it more economical for larger quantities, but it's an initial expense that adds to the product's value. Secondly, the extrusion process itself requires specialized, high-tonnage presses and careful control of temperature and pressure, which represents a capital expenditure for manufacturers. The precision involved ensures tight tolerances and consistent quality, which translates to higher value for the end-user. Moreover, as we’ve discussed, extrusion allows for complex geometries that are difficult or impossible to achieve otherwise. This design freedom and the ability to create integrated, optimized parts often reduce assembly steps and material waste in downstream manufacturing, adding value that justifies the initial cost. Finally, the inherent advantages of good strength, corrosion resistance², and excellent surface finish contribute to the overall perceived and actual worth of extruded aluminum products.

Factors contributing to value:

• Tooling Costs: Custom dies require significant investment.
• Process Complexity: Specialized equipment and precise control needed.
• Design Freedom: Ability to create intricate and optimized shapes.
• Quality & Precision: Tight tolerances and consistent properties.
• Performance Benefits: Enhanced strength, finish, and reduced downstream costs.

The specialized process and design advantages make extruded aluminum a valuable material.

Conclusion

Extruded aluminum tubing is a versatile choice offering great design flexibility and precise dimensions, making it an excellent option, though understanding its differences from drawn tubing and its inherent value is key to making the right material decision.
