Do Materials Lose Their Properties After Forging?

Have you ever wondered if the process of forging changes a material's inherent properties, and if so, whether it's for better or worse? It's a critical question for engineers and manufacturers.

No, materials do not lose their beneficial properties after forging; in fact, the forging process significantly enhances them. Forging refines the grain structure, eliminates internal defects, and creates optimized grain flow, which collectively leads to increased strength, toughness, and fatigue resistance in the final product. It is a process designed to improve, not degrade, material properties.

As a forging specialist, I can tell you that we rely on this enhancement. It's why forging is often preferred for critical applications where material integrity is paramount.

What Are the Material Losses in Forging?

Are you concerned about material waste or "losses" during the forging process? It's a valid consideration in terms of efficiency and cost.

Material losses in forging primarily refer to the waste generated during the process, rather than a degradation of the base material itself. These losses typically include flash (excess material squeezed out), scale (oxide layers formed at high temperatures), and material removed during subsequent trimming or machining operations. The aim is to minimize these losses through efficient design and process control.

Minimizing waste is always a goal in our operations. It impacts both cost and environmental footprint.

Understanding Material "Losses" and How to Minimize Them

When we talk about material loss in forging, we're discussing the portion of the raw material that does not become part of the final, usable forged product.

• Flash: This is the most common form of material loss. During closed-die forging, excess material is intentionally allowed to flow into a thin web around the part (the flash). This flash serves a crucial purpose: it ensures that the die cavity is completely filled, leading to a fully formed part with optimal grain flow. While necessary, this flash must then be trimmed off, becoming scrap.
  • Minimization: Careful preform design (the initial shape of the material before forging) and precise control of the forging parameters (temperature, pressure) can reduce the amount of flash generated. Flashless forging, where no flash is produced, is an advanced technique for certain geometries.
• Scale: Forging processes often involve heating the metal to high temperatures. At these temperatures, especially for steel, a layer of oxide (scale) can form on the surface. This scale can be abrasive and needs to be removed, often through shot blasting or pickling. This removed scale represents material loss. For aluminum, which we specialize in, scale formation is less of an issue due to its protective oxide layer.
  • Minimization: Forging in controlled atmospheres or using induction heating, which heats the material more rapidly and locally, can reduce scale formation.
• Trimming and Punching Scrap: After forging, the flash is trimmed off. Additionally, internal holes or openings in the part might be punched out. The material removed during these secondary operations becomes scrap.
  • Minimization: Designing parts with minimal or no internal holes (if feasible) or optimizing the punching process can reduce this type of scrap.
• End Cropping: The ends of the raw material stock (billets or bars) might be uneven or have defects. These ends are often cropped off before forging to ensure consistent quality, contributing to material loss.
  • Minimization: Sourcing raw materials with good end quality and optimizing cutting processes can help.

I recall a project where a client was very sensitive about material cost. We spent extra time optimizing the preform design for a complex aluminum forging. By reducing the flash by even a small percentage per part, we realized significant material savings over a large production run. It highlighted how even minor adjustments can lead to substantial gains.

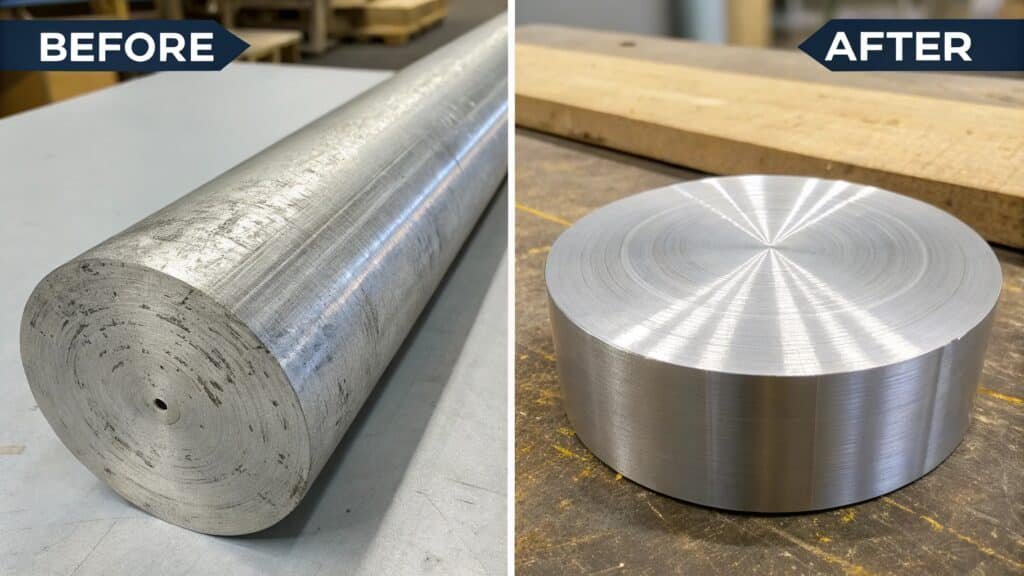

Does Forging Change Density?

Are you wondering if the immense pressure of forging can make a material denser? It's a common and insightful question regarding material transformation.

Yes, forging typically increases the density of a material, particularly if the initial raw material had internal porosity, voids, or a coarse grain structure. The compressive forces applied during forging consolidate the material, reducing these internal defects and resulting in a denser, more uniform, and structurally sound product. This enhanced density contributes directly to improved mechanical properties.

In our work, ensuring maximum density and integrity is a key reason customers choose forged parts. It's about getting the most out of the material.

The Impact of Forging on Material Density

The change in density during forging is a direct consequence of the plastic deformation and consolidation of the material under high pressure.

• Elimination of Porosity and Voids: Many raw materials, especially cast ingots or continuous cast billets, can have microscopic pores or voids trapped within their structure. During forging, the intense compressive forces literally squeeze these voids shut. This compaction reduces the empty spaces within the material, thereby increasing its effective density.
• Grain Refinement and Uniformity: Forging breaks down the coarse, non-uniform grain structure often found in as-cast materials. It refines these grains into a finer, more uniform structure. While grain refinement primarily affects strength and toughness, a more uniform structure also implies better packing of atoms. This contributes to a more consistent and higher overall density throughout the material.
• Consolidation of Inclusions: Non-metallic inclusions can sometimes be present in raw materials. While forging doesn't eliminate these, it can break them up and redistribute them more uniformly, or in some cases, consolidate them, leading to a more consistent material.
• Comparison to Casting: This density increase is a significant advantage of forging over casting. Cast parts, by their nature, are prone to various forms of porosity (shrinkage porosity, gas porosity), which inherently lower their density and mechanical properties compared to a wrought or forged equivalent. Forged parts are almost always fully dense.

I remember a project where a critical aerospace component required absolute minimal internal defects. We forged it from a high-quality aluminum billet. Post-forging ultrasonic testing confirmed that the part was virtually free of porosity. This would have been extremely difficult, if not impossible, to achieve with a cast part. This level of density and integrity is a hallmark of forging.

Does Forging Increase Ductility?

Are you curious if the powerful process of forging can make a material more flexible or less brittle? It's a common misconception that hardening means reduced ductility.

Yes, forging generally increases a material's ductility. While the overall strength and hardness are enhanced, the refinement of the grain structure, elimination of internal defects, and creation of a favorable grain flow during forging lead to a more uniform and robust material. This allows it to deform plastically to a greater extent before fracturing, thus improving its ductility and toughness.

This aspect of forging is often overlooked. It's not just about making things stronger; it's about making them more reliable under stress.

How Forging Enhances Ductility

The mechanical work applied during forging refines the material's microstructure in ways that directly improve its ability to deform without breaking.

• Grain Refinement: As mentioned, forging breaks down large, columnar grains (common in cast materials) into smaller, equiaxed grains. Fine-grained materials generally have better ductility and toughness than coarse-grained materials because there are more grain boundaries to impede crack propagation.
• Elimination of Porosity and Voids: Internal defects like porosity and voids act as stress concentrators and potential sites for crack initiation. By closing these defects, forging removes these weak points. This allows the material to distribute stress more evenly and deform more uniformly, leading to improved ductility.
• Optimized Grain Flow: This is one of the most unique and significant benefits of forging. During deformation, the material's internal grain structure is elongated and aligned along the lines of greatest stress in the component. This "grain flow" follows the contour of the part. It is similar to the wood grain in a baseball bat. This optimized grain flow gives the forged part directional properties that enhance its strength, toughness, and fatigue resistance, particularly in critical areas. A part with proper grain flow is much less likely to crack or fail in service compared to one where the grain structure is cut across (as in machining from a plate) or is random (as in casting).
• Homogenization: Forging also helps to homogenize the material, distributing alloying elements more uniformly. This reduces segregation and localized weak spots, further contributing to consistent properties, including ductility.

I once witnessed a drop test comparison between a cast aluminum component and its forged counterpart. The cast part fractured catastrophically under impact. The forged part, due to its enhanced ductility and superior grain flow, absorbed the impact by deforming significantly but did not break. It was a powerful demonstration of how forging¹ improves a material's ability to withstand sudden loads.

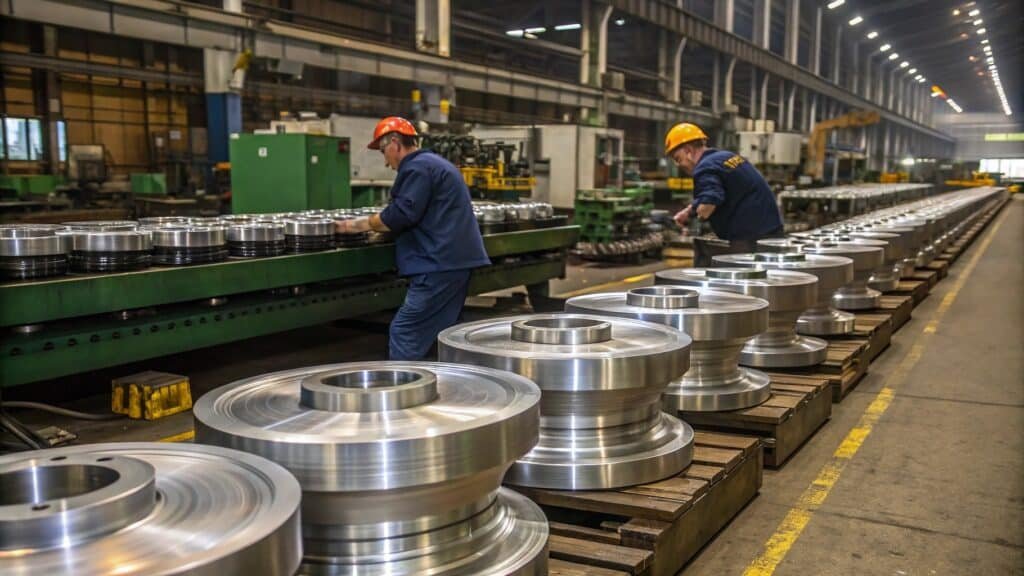

Is Forging Good for Mass Production?

Are you considering forging for a large-volume manufacturing operation? Its suitability for mass production depends on several factors.

Yes, forging can be very good for mass production, especially for high-volume components requiring superior mechanical properties and reliability. While initial tooling costs can be higher than other methods, the high production rates, minimal material waste, and reduced need for secondary operations often make forging a cost-effective and efficient solution for large-scale manufacturing runs.

At SWA Forging, we regularly handle large orders. We see firsthand how efficient and economical forging can be for mass production.

Factors Making Forging Suitable for Mass Production

The advantages of forging become particularly apparent when manufacturing parts in large quantities.

• High Production Rates: Modern forging presses and hammers are capable of rapid cycle times. This allows for thousands, even millions, of parts to be produced annually. Automation, including robotic handling, further enhances throughput.
• Repeatability and Consistency: Once the dies are set and the process parameters are established, forging produces highly consistent parts. Each forged component will have very similar mechanical properties and dimensional accuracy. This reduces quality control issues in mass production.
• Material Savings (Reduced Scrap): While there is flash, overall material utilization can be very high compared to machining parts from solid bar stock. Near-net-shape forging techniques further reduce the need for extensive subsequent machining, saving material and machining time.
• Superior Mechanical Properties: For mass-produced critical components (e.g., automotive, aerospace), the enhanced strength, toughness, and fatigue life achieved through forging often outweigh initial cost considerations. This leads to longer product life and fewer warranty claims.
• Reduced Secondary Operations: Because forged parts have superior mechanical properties and are often produced to near-net shape, the need for extensive heat treatment, machining, or welding may be reduced or eliminated. This simplifies the overall manufacturing chain for mass production.
• Tooling Longevity: While forging dies are expensive, they are designed to withstand high forces and temperatures. They can produce a very large number of parts before needing replacement or refurbishment, spreading the tooling cost over many units.

I've seen the transformation from prototyping to mass production in our forge. What starts as a complex, labor-intensive process for a few parts becomes a highly automated, efficient line producing thousands of identical, high-quality forgings daily. It's truly impressive how effectively forging scales for high-volume manufacturing.

Conclusion

Materials do not lose properties after forging; instead, they are greatly enhanced in strength, toughness, and ductility due to grain refinement and void elimination. While there are material losses like flash and scale, these are managed. Forging also increases density and is highly effective for mass production, especially for high-performance components.
