How are aluminium tubes made?

Are you wondering how the aluminum tubes used in so many products are actually created? The manufacturing process affects the final quality, so understanding it is important.

Aluminum tubes are primarily made using extrusion or seamless drawing¹. Extrusion pushes heated aluminum through a die to shape it. Seamless drawing pulls aluminum over a mandrel, creating a hollow tube without any welds, ideal for high-pressure uses.

Understanding these methods helps in choosing the right tube for your specific needs. Let's look closer at how these processes work and compare aluminum tubes to similar items like pipes.

How is an aluminum tube made?

Do you need aluminum tubes with specific features but unsure how they get them? Choosing tubes made with the wrong process can lead to poor performance or failure.

The main ways we make aluminum tubes are extrusion, seamless drawing, and welding. Extrusion is great for complex shapes. Seamless drawing provides uniform walls for high pressure. Welded tubes are often more cost-effective.

Detailed Manufacturing Processes

Let's explore these methods more thoroughly. Each one gives the tube different characteristics.

1. Extrusion Process:
This is the most common method we use for structural aluminum tubes.

• First, we heat a solid aluminum cylinder, called a billet, to around 400-500°C (750-930°F). This makes the aluminum soft but not molten.
• Next, we place the billet in a powerful hydraulic press.
• The press pushes the softened aluminum through a steel die. The die has a specific opening shape, which determines the tube's cross-section. A mandrel inside the die creates the hollow center.
• The extruded tube emerges from the die and is then cooled, straightened, and cut to length.
• Extrusion allows us to create quite complex shapes and varying wall thicknesses, typically from 1mm up to 50mm.

2. Seamless Drawing:
When high strength and uniform wall thickness are critical, we often use seamless drawing.

• This process usually starts with an extruded or drilled hollow tube blank.

• We pull this blank through a series of smaller and smaller dies. A fixed or floating plug (mandrel) inside the tube controls the inner diameter and wall thickness.

• Drawing reduces the diameter and wall thickness while increasing the length. It also work-hardens the aluminum, making it stronger.

• This method gives very precise dimensions (tolerances around ±5%) and a smooth surface finish. Wall thicknesses typically range from 0.5mm to 20mm. It's ideal for hydraulic lines or high-pressure gas cylinders.

3. Welded Tube Production:
This is often the most economical method.

• We start with a flat aluminum strip or sheet.
• The strip is progressively rolled and formed into a round shape.
• The edges are then joined together using a welding process, like TIG (Tungsten Inert Gas) or high-frequency laser welding.
• The weld seam is often smoothed or scarfed.
• Welded tubes are suitable for many applications where the highest pressure resistance isn't needed, such as furniture frames or architectural elements. Wall thicknesses range from 0.2mm to 10mm, but tolerances are usually wider (±15%).

Post-Processing:
After forming, tubes often undergo heat treatment (like T6 tempering) to achieve desired strength, anodizing for corrosion protection, cutting, and surface finishing.

Feature	Extrusion	Seamless Drawing	Welded
Starting Mat.	Billet	Hollow Blank	Strip/Sheet
Process	Push through die	Pull through die	Roll & Weld
Wall Uniformity	Good	Excellent	Good (except weld zone)
Strength	Good to High	Very High	Moderate to Good
Shapes	Complex possible	Simple (Round/Square)	Simple (Round/Square)
Cost	Medium	High	Low
Typical Use	Structures, Frames	High Pressure, Precision	General Use, Furniture

Understanding these details helps you specify the exact type of tube needed for your project, whether you're a trader supplying various industries or a machining company creating precise parts.

What is the difference between aluminum pipe and aluminum tube?

Are you confused about whether you need aluminum pipe² or aluminum tube³? Using the wrong term or product can lead to ordering mistakes and application problems.
The main difference lies in how they are measured and their intended use. Pipes are measured by nominal inside diameter (ID) for fluid/gas transport. Tubes are measured by exact outside diameter (OD) and wall thickness for structural purposes.

Comprehensive Comparison

While they might look similar at first glance, pipes and tubes have distinct differences that matter in engineering and procurement. Let's break it down.

1. Measurement and Size:

• Pipe: Sized using a 'Nominal Pipe Size' (NPS) system. This number relates loosely to the inside diameter (bore) for schedule 40 pipes up to 12 inches. The actual outside diameter is fixed for a given NPS, regardless of wall thickness (schedule). Pipes are designed to carry something inside.
• Tube: Always specified by its exact outside diameter (OD) and a specific wall thickness. Tolerances for tubes are much tighter than for pipes, which is crucial for fitting components or structural integrity. Tubes are typically used where the outside dimension is critical for assembly or structural calculations.

2. Wall Thickness:

• Pipe: Wall thickness is specified by a 'schedule' number (e.g., Sch 40, Sch 80). Higher schedule numbers mean thicker walls and higher pressure ratings for the same NPS.
• Tube: Wall thickness is specified directly in millimeters or inches (or gauge).

3. Shape Availability:

• Pipe: Almost always round.
• Tube: Can be round, square, rectangular, or even custom extruded shapes. This versatility makes tubes suitable for mechanical and structural applications.

4. Tolerances and Precision:

• Tube: Manufactured to much stricter tolerances for OD, wall thickness, and straightness compared to pipes. This precision is necessary for components that need to fit together accurately or bear specific loads.
• Pipe: Tolerances are looser as the primary function is transport, not precise structural fitting.

5. Applications:

• Pipe: Primarily used for conveying fluids or gases (plumbing, process lines, compressed air systems). Think of capacity and pressure rating.
• Tube: Used in structural and mechanical applications (machine parts, heat exchangers, furniture frames, aerospace components, automotive parts). Think of strength, weight, and precise dimensions.

6. Joining Methods:

• Pipe: Often joined using threaded fittings, flanges, or welding focused on sealing.
• Tube: Typically joined by welding, brazing, flaring, or precision fittings that match the exact OD.

As a supplier, we understand these differences are critical for our customers. Whether you're a trader sourcing materials or a machining company needing precise stock, specifying pipe versus tube correctly ensures you get the right material for the job. Misunderstanding this can lead to costly errors and project delays.

Is an aluminium tube stronger than steel?

Are you deciding between aluminum and steel tubes for your project? Choosing incorrectly based just on 'strength' can compromise weight, cost, or durability targets.

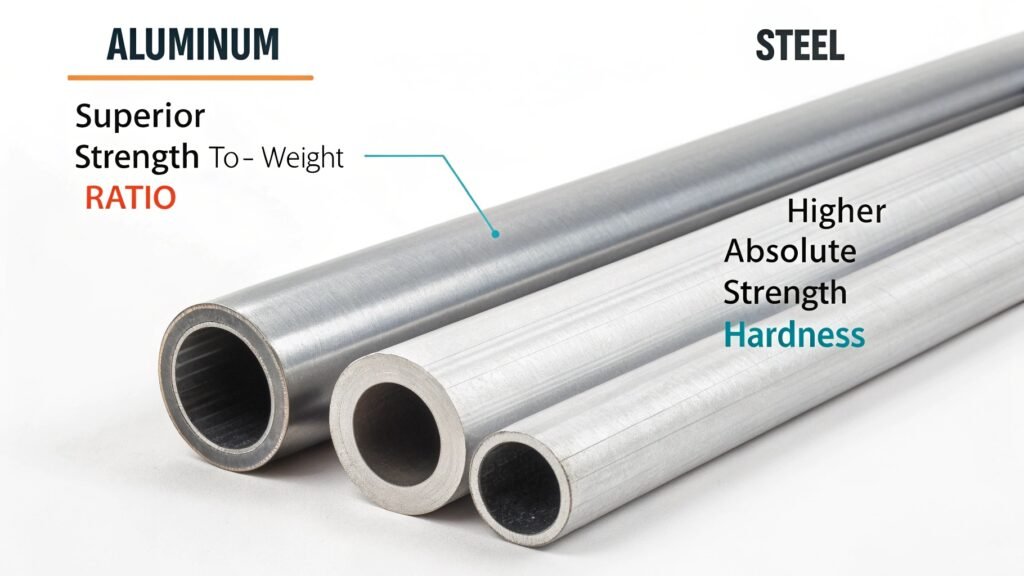

Steel tubes generally have higher absolute strength and hardness. However, aluminum tubes offer a superior strength-to-weight ratio⁴, meaning they provide more strength for less weight, which is crucial in many applications like aerospace and automotive.

Strength Comparison Analysis

Comparing aluminum and steel tube strength isn't a simple yes or no question. It depends heavily on the specific alloys being compared and how 'strength' is defined – yield strength, tensile strength, or strength-to-weight ratio.

1. Absolute Strength (Yield & Tensile):

• Common structural steel (like A36) has a yield strength around 250 MPa (36 ksi). Higher strength steels can exceed 700 MPa (100 ksi).
• Common aluminum alloys used for tubes vary widely. 6061-T6 has a yield strength around 275 MPa (40 ksi), comparable to mild steel. However, high-strength aerospace alloys like 7075-T6 can reach yield strengths over 500 MPa (72 ksi), significantly stronger than mild steel but usually less than high-strength steels.
• Conclusion: On a direct strength basis (MPa or ksi), steel alloys generally offer higher maximum strengths than aluminum alloys.

2. Strength-to-Weight Ratio:

• This is where aluminum truly shines. Aluminum's density is about 2.7 g/cm³, while steel's is around 7.85 g/cm³. Steel is roughly 2.9 times heavier than aluminum.
• Even if an aluminum alloy like 6061-T6 has similar yield strength to mild steel, it achieves this at nearly one-third the weight.
• For alloys like 7075-T6, the strength-to-weight ratio significantly surpasses that of most common steels.
• Conclusion: For applications where weight is critical (aerospace, automotive, portable structures), aluminum provides more efficient strength.

3. Stiffness (Modulus of Elasticity):

• Steel is significantly stiffer than aluminum (approx. 200 GPa vs 70 GPa). This means a steel tube will deflect less under the same load compared to an aluminum tube of the exact same dimensions.
• However, you can design an aluminum tube with a larger diameter or thicker walls to achieve similar stiffness to a steel tube, often while still saving weight.

4. Other Factors:

• Corrosion Resistance⁵: Aluminum naturally forms a protective oxide layer, offering excellent corrosion resistance in many environments without needing coating. Steel usually requires painting or galvanizing.
• Workability⁶: Aluminum is generally easier to extrude, machine, and form than steel.
• Cost: Raw material cost per kilogram is typically higher for aluminum than for common steel grades. However, the lower weight and easier fabrication can sometimes offset this.
  Decision Factors: Choose steel if maximum absolute strength or stiffness in a constrained size is the top priority. Choose aluminum if weight reduction, corrosion resistance, and good strength are key requirements. As manufacturers, we help clients select the best alloy and tube type based on these trade-offs.

What is the manufacturing process of collapsible tube?

Have you ever wondered how those soft, squeezable aluminum tubes for toothpaste or ointments are made? Their unique properties require a specialized manufacturing technique quite different from standard structural tubes.
Collapsible aluminum tubes are primarily made using a process called impact extrusion. A small aluminum disc (slug) is struck with immense force, causing the metal to flow upwards around a punch, forming the seamless tube body in a single stroke.

Step-by-Step Production Process

Making collapsible tubes is a fascinating high-speed process that transforms a small piece of aluminum into a functional container. Here’s how we typically see it done:

1. Slug Preparation:

• The process starts with high-purity aluminum (often 99.7% pure or higher). Purity is vital for the metal's ability to flow easily during extrusion and create a thin, defect-free wall.
• Large coils of aluminum sheet are fed into a blanking press. This press punches out small, coin-like discs called 'slugs'.
• The slugs are often tumbled to remove sharp edges and may be annealed (heated and cooled) to make them even softer and more malleable for extrusion. Lubricant is also applied.

2. Impact Extrusion:

• This is the core step. A slug is placed into a die cavity shaped like the base and shoulder of the tube.
• A punch, shaped like the desired internal dimensions of the tube, strikes the slug with very high speed and pressure.
• The intense impact forces the soft aluminum to flow backward (extrude) up the sides of the punch, instantaneously forming the seamless tube body. This all happens in a fraction of a second. Modern presses can produce hundreds of tubes per minute.

3. Trimming, Threading, and Capping:

• The formed tube has an uneven edge at the open end, which is trimmed to the correct length.
• If required, threads are rolled or formed onto the nozzle (shoulder) area.
• Often, a plastic cap is applied at this stage.

4. Annealing and Internal Coating:

• The impact extrusion process work-hardens the aluminum, making it stiff. To make the tube soft and collapsible, it's passed through an annealing oven.
• Since pure aluminum can react with some contents, the inside of the tube is sprayed with a protective lacquer or epoxy resin lining. This lining is then cured by heat. The type of lining depends on the product the tube will hold.

5. Base Coating and Printing:

• The exterior of the tube receives a base coat of enamel, typically white or a custom color.
• High-speed offset printing machines then apply intricate designs, branding, and text directly onto the base coat. Multiple colors can be applied almost simultaneously. A final over-varnish protects the printing.

6. Packing and Shipment:

• The finished, open-ended tubes are carefully packed into boxes for shipment to the filling companies, who will fill them with product and crimp the open end shut.
  This entire process, from slug to decorated tube, is highly automated and requires precise control over material purity, tooling, and process parameters to ensure tube integrity and collapsibility.

Conclusion

Aluminum tubes are made mainly by extrusion, seamless drawing, or welding. Collapsible tubes use impact extrusion. Knowing these methods helps choose the right tube for strength, precision, or function.

---
