How are Aluminum Alloys classified? What do the “series” mean?

Have you ever looked at a piece of aluminum, perhaps a bike frame or a soda can, and noticed a number like "6061¹" or "3003" stamped on it? These numbers aren't random; they're part of a standardized system that tells you exactly what kind of aluminum alloy you're dealing with.

Aluminum alloys are classified into "series" based on their primary alloying element. This classification system, managed by organizations like The Aluminum Association, uses a four-digit numbering system where the first digit indicates the main alloying group: 1xxx for pure aluminum, 2xxx for aluminum-copper alloys, 3xxx for aluminum-manganese, 4xxx for aluminum-silicon, 5xxx for aluminum-magnesium, 6xxx for aluminum-magnesium-silicon, and 7xxx for aluminum-zinc. The subsequent digits and a letter prefix (temper designation) further specify alloy composition and mechanical condition, helping engineers select the right material for specific applications by understanding its expected properties.

At SWA Forging, understanding this classification is fundamental to our operations. When a client requests forged components, we need to know if they require the high strength of a 7xxx series alloy for aerospace or the good corrosion resistance² and weldability of a 5xxx series for marine applications, ensuring we select the correct alloy for their specific needs.

How are aluminium alloys classified?

Have you ever noticed numbers like 6061 or 7075 associated with aluminum products? These aren't just random codes; they are part of a systematic way to identify and understand the properties of different aluminum alloys³.

Aluminum alloys are primarily classified into distinct "series" based on their main alloying element. This system, standardized by bodies like The Aluminum Association, uses a four-digit numbering system where the first digit indicates the primary alloying element group: 1xxx for pure aluminum, 2xxx for aluminum-copper alloys, 3xxx for aluminum-manganese, 4xxx for aluminum-silicon, 5xxx for aluminum-magnesium, 6xxx for aluminum-magnesium-silicon, and 7xxx for aluminum-zinc. Subsequent digits refine the specific alloy within that group, and a temper designation (a letter and number) indicates its mechanical treatment, allowing for precise material selection based on desired properties like strength, corrosion resistance, and formability.

For us at SWA Forging, this classification is crucial. When a client needs, for instance, a high-strength forged ring for an aircraft, knowing they need a 7xxx series alloy immediately tells us about its potential properties – high tensile strength due to zinc, magnesium, and copper – and guides our material selection and forging process.

Decoding the Aluminum Alloy Numbering System

The Aluminum Association's numbering system is a widely accepted standard that provides valuable information about an alloy's composition and properties. Let's break down the four-digit system:

1. The First Digit: The Alloying Group

   • This is the most critical digit, as it tells you the principal alloying element(s) added to pure aluminum.
   • 1xxx Series: Pure Aluminum
     • Contains at least 99.0% aluminum.
     • Alloying elements are present in very small amounts.
     • Properties: Excellent corrosion resistance, high ductility, high thermal and electrical conductivity, low strength.
     • Examples: 1100 (general purpose), 1350 (electrical conductor).
   • 2xxx Series: Aluminum-Copper
     • Copper is the primary alloying element.
     • Properties: High strength, can be heat-treated, but generally has lower corrosion resistance and weldability than other series.
     • Examples: 2014, 2024 (aerospace applications).
   • 3xxx Series: Aluminum-Manganese
     • Manganese is the primary alloying element.
     • Properties: Good workability, moderate strength, good corrosion resistance. Not heat-treatable.
     • Examples: 3003 (common for food containers, cookware), 3105.
   • 4xxx Series: Aluminum-Silicon
     • Silicon is the primary alloying element.
     • Properties: Lower melting point, improved castability, good wear resistance. Often used in welding filler metals. Can reduce ductility.
     • Examples: 4043 (welding), 4047.
   • 5xxx Series: Aluminum-Magnesium
     • Magnesium is the primary alloying element.
     • Properties: Good strength, excellent corrosion resistance (especially in marine environments), good weldability. Not heat-treatable (strength from work hardening).
     • Examples: 5052 (sheet metal, marine applications), 5083.
   • 6xxx Series: Aluminum-Magnesium-Silicon
     • Magnesium and Silicon are the primary alloying elements, forming Mg₂Si.
     • Properties: Good strength, formability, corrosion resistance, and weldability. Heat-treatable. Very versatile.
     • Examples: 6061 (widely used for structural components, extrusions, frames), 6063 (architectural applications).
   • 7xxx Series: Aluminum-Zinc
     • Zinc is the primary alloying element, often with magnesium and copper.
     • Properties: Very high strength, often the strongest aluminum alloys. Heat-treatable. Can have lower corrosion resistance and weldability depending on specific composition.
     • Examples: 7075 (aerospace, high-stress structural parts), 7050.
   • 8xxx Series: Other Elements
     • This series includes alloys where elements other than those in the above series are the primary alloying element (e.g., lithium, iron, tin).
     • Examples: 8011 (foil), 2195 (Al-Li for aerospace).

2. The Second Digit: Modification of the Original Alloy

   • For series 2xxx through 7xxx, the second digit indicates a modification of the original alloy.
   • A '0' (e.g., 6060) indicates the original alloy.
   • A digit from '1' to '9' (e.g., 6061) indicates a modification to the original alloy composition, such as tighter controls on impurities or the addition of specific elements.

3. The Third and Fourth Digits: Specific Alloy Identification

   • For the 1xxx series, these digits indicate the purity of the aluminum (e.g., 1100 means 99.00% minimum aluminum, 1050 means 99.50% minimum aluminum).
   • For series 2xxx through 8xxx, these digits identify the specific alloy within that group. For example, 6061 and 6063 are distinct alloys within the 6xxx series, each with slightly different compositions and properties.

4. Temper Designation:

   • Following the four-digit number, there's often a temper designation (e.g., -T6, -H14, -F, -O). This is crucial because it indicates the mechanical or thermal treatment the alloy has undergone to achieve specific properties.
     • -F: As fabricated.
     • -O: Annealed (softest state).
     • -H: Strain hardened (work hardened). The second and third digits indicate the process (e.g., H14 means strain hardened 1/2 hard).
     • -W: Solution heat-treated (unstable temper).
     • -T: Thermally treated to produce stable tempers other than F, O, or H. (e.g., T4, T6). T6 typically means solution heat-treated and artificially aged, resulting in high strength.

Understanding these classifications allows us to precisely select materials that meet the demanding specifications of industries like aerospace, where even minor differences in alloy composition or temper can have significant impacts on performance and safety.

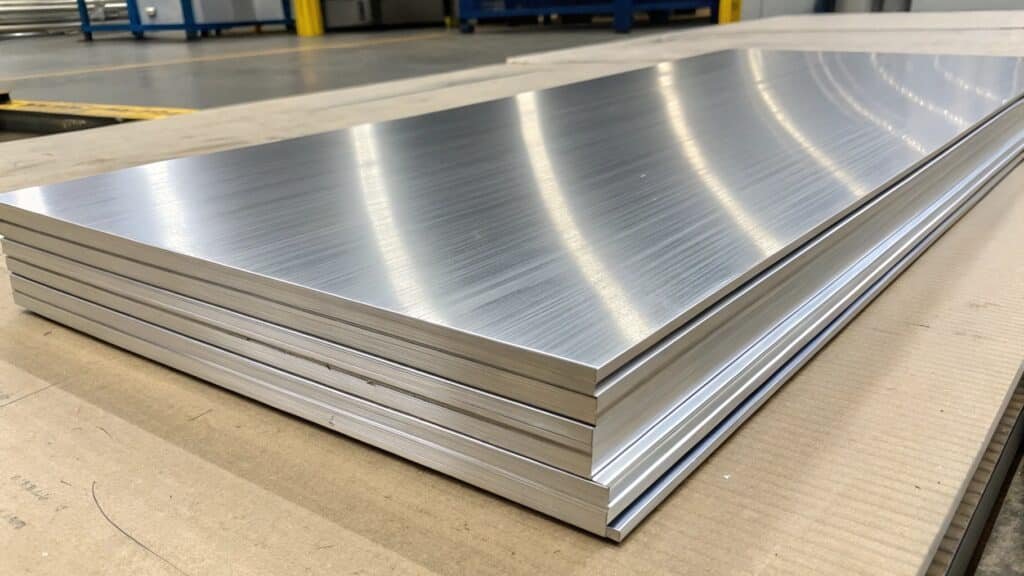

What is the 7 series aluminum?

Have you ever wondered about the strongest types of aluminum out there, the ones used in critical applications like aircraft structures? These are typically found within the 7xxx series.

The 7xxx series aluminum alloys are characterized by zinc as their primary alloying element, often combined with magnesium and copper. These alloys are renowned for having the highest strength among all aluminum alloys, rivaling many steels. They are also heat-treatable, meaning their strength can be significantly increased through processes like solution heat treatment and aging. While they offer exceptional tensile strength, they can sometimes have reduced corrosion resistance and weldability compared to other aluminum series, making careful material selection and processing crucial for their application in high-stress environments like aircraft frames and components.

At SWA Forging, we frequently work with 7xxx series alloys like 7075⁴. This alloy is a favorite for critical aerospace⁵ components because its incredible strength-to-weight ratio is paramount for aircraft design, allowing us to produce components that meet stringent performance requirements while minimizing weight.

Key Characteristics and Applications of the 7xxx Series

Let's explore what makes the 7xxx series unique and where it's typically used:

1. Primary Alloying Element: Zinc

   • Zinc is the main element added, typically in amounts ranging from 3% to 8%.
   • Magnesium and copper are almost always present in conjunction with zinc. Magnesium plays a key role in enabling precipitation hardening. Copper further enhances strength and can improve resistance to stress corrosion cracking in some compositions.

2. Exceptional Strength:

   • The defining characteristic of the 7xxx series is its very high tensile and yield strength.
   • When properly heat-treated (typically to a T6 or T73 temper), alloys like 7075 can achieve strengths comparable to, or even exceeding, many steels.
   • This makes them the go-to choice for applications where weight savings are critical, and high mechanical loads must be withstood.

3. Heat Treatability:

   • Most 7xxx series alloys are precipitation-hardenable (or age-hardenable).
   • The process involves solution heat treatment (heating to a high temperature to dissolve alloying elements) followed by rapid quenching and then aging (either naturally at room temperature or artificially at elevated temperatures).
   • Aging causes the formation of very fine, dispersed precipitate particles that impede dislocation movement, thereby significantly increasing strength and hardness.

4. Common Alloys and Their Properties:

   • 7075: One of the most popular and strongest alloys. It's used extensively in aircraft structures, including fuselage components, wings, and structural frames. It offers a good balance of strength and toughness.
   • 7050: Developed for improved fracture toughness and stress corrosion cracking resistance compared to 7075, especially in thicker sections. Also widely used in aerospace.
   • 7005: Often used for welded structures and sporting goods (like bicycle frames) due to its good weldability and strength, though it typically doesn't reach the peak strengths of 7075.

5. Considerations and Limitations:

   • Corrosion Resistance: Higher-strength 7xxx alloys, particularly those with significant copper content, can have lower resistance to certain types of corrosion, such as stress corrosion cracking (SCC) and exfoliation. Specific tempers (like T73) are developed to improve SCC resistance.
   • Weldability: Many high-strength 7xxx alloys have limited weldability. Welding can cause annealing of the heat-affected zone, leading to a significant loss of strength. For structural welding, other alloy series (like 5xxx or 6xxx) are often preferred.
   • Machinability: They generally have good machinability, allowing for the creation of complex parts.

Typical Applications:

• Aerospace: Airframes, wing structures, fuselage panels, landing gear components.
• Military Equipment: High-stress structural parts.
• Sporting Goods: High-performance bicycle frames, golf club heads.
• High-Stress Structural Components: Any application where maximum strength and minimum weight are critical.

The 7xxx series represents the pinnacle of aluminum alloy strength, providing essential materials for industries pushing the boundaries of engineering design.

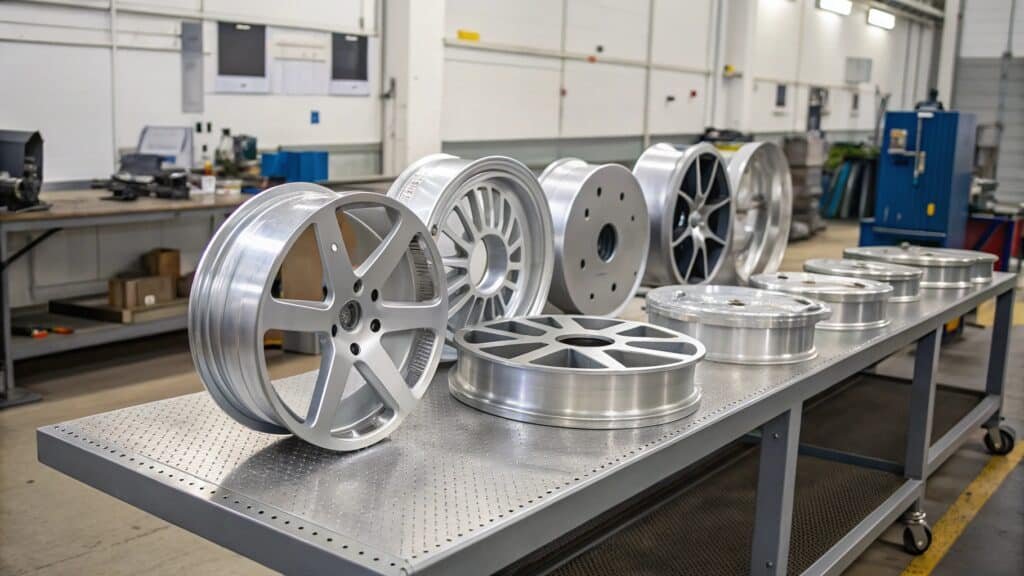

How would you classify aluminium?

Have you ever encountered a piece of aluminum and wanted to know more about its specific type and properties? Aluminum isn't just one material; it's a family of metals with different compositions and characteristics, categorized into distinct groups.

Aluminum is classified into series based on its primary alloying element. The Aluminum Association uses a four-digit numbering system: 1xxx for pure aluminum, 2xxx for aluminum-copper alloys, 3xxx for aluminum-manganese, 4xxx for aluminum-silicon, 5xxx for aluminum-magnesium, 6xxx for aluminum-magnesium-silicon, and 7xxx for aluminum-zinc alloys. The first digit designates the main alloying element group, while subsequent digits and temper designations (like -T6 or -H14) specify the exact alloy composition and its mechanical state, allowing for precise material selection based on desired strength, ductility, corrosion resistance, and other properties.

At SWA Forging, we deal with these classifications daily. For instance, if a client needs a component for a high-stress aerospace application, we know to look at the 7xxx series for its superior strength, or if they need something for marine use where corrosion resistance is key, the 5xxx series is a strong contender. This classification system is fundamental to selecting the right material for the job.

The Standard Aluminum Alloy Classification System Explained

The most common and widely recognized classification system for aluminum alloys is the four-digit numbering system developed by The Aluminum Association. It provides a systematic way to identify an alloy's composition and, by extension, its properties.

1. The Four-Digit System:

   • This system categorizes aluminum and its alloys based on their principal alloying elements. The first digit of the four-digit number signifies the major alloying group.

2. Classification by Series:

   • 1xxx Series: Pure Aluminum
     • Minimum aluminum content of 99.0%.
     • Key Properties: Excellent corrosion resistance, high ductility, high thermal and electrical conductivity, low strength.
     • Common Uses: Electrical conductors, chemical equipment, foil, decorative trim.
     • Examples: 1100, 1350.
   • 2xxx Series: Aluminum-Copper
     • Copper is the principal alloying element.
     • Key Properties: High strength (comparable to some steels), heat-treatable, but often reduced corrosion resistance and weldability.
     • Common Uses: Aerospace structures, high-temperature applications.
     • Examples: 2014, 2024.
   • 3xxx Series: Aluminum-Manganese
     • Manganese is the principal alloying element.
     • Key Properties: Good workability, moderate strength, good corrosion resistance. Not heat-treatable.
     • Common Uses: Cookware, food containers, beverage cans.
     • Examples: 3003, 3105.
   • 4xxx Series: Aluminum-Silicon
     • Silicon is the principal alloying element.
     • Key Properties: Lower melting point, improved castability, good wear resistance. Often used in welding filler metals.
     • Common Uses: Welding, brazing, pistons.
     • Examples: 4043, 4047.
   • 5xxx Series: Aluminum-Magnesium
     • Magnesium is the principal alloying element.
     • Key Properties: Good strength, excellent corrosion resistance (especially in marine environments), good weldability. Strength derived from work hardening.
     • Common Uses: Marine applications, automotive body panels, storage tanks.
     • Examples: 5052, 5083.
   • 6xxx Series: Aluminum-Magnesium-Silicon
     • Magnesium and silicon are the principal alloying elements.
     • Key Properties: Good strength, formability, corrosion resistance, weldability, and heat-treatable. Very versatile.
     • Common Uses: Structural components, extrusions, automotive parts, frames.
     • Examples: 6061, 6063.
   • 7xxx Series: Aluminum-Zinc
     • Zinc is the principal alloying element, often with magnesium and copper.
     • Key Properties: Very high strength, heat-treatable. Can have lower corrosion resistance and weldability.
     • Common Uses: Aerospace structures, high-stress components.
     • Examples: 7075, 7050.
   • 8xxx Series: Other Elements
     • Includes alloys where other elements are primary alloying additions (e.g., Lithium, Iron, Tin).
     • Common Uses: Specialized aerospace applications (e.g., Al-Li alloys for stiffness and weight reduction).
     • Examples: 8011, 2195.

3. The Significance of the Second Digit:

   • For series 2xxx through 7xxx, the second digit indicates a modification of the original alloy composition. A '0' denotes the original alloy, while digits '1' through '9' indicate variations.

4. The Third and Fourth Digits:

   • In the 1xxx series, these digits indicate the minimum aluminum purity (e.g., 1100 means 99.00% Al; 1050 means 99.50% Al).
   • In other series (2xxx-8xxx), they identify the specific alloy within that group.

5. Temper Designations:

   • These are crucial as they indicate the mechanical or thermal treatment applied to the alloy, significantly affecting its strength and ductility (e.g., -T6 means solution heat-treated and artificially aged for maximum strength; -O means annealed or softened).

This systematic classification allows us to precisely identify materials and predict their performance characteristics, which is vital for ensuring the quality and suitability of the forged components we produce for demanding industries.

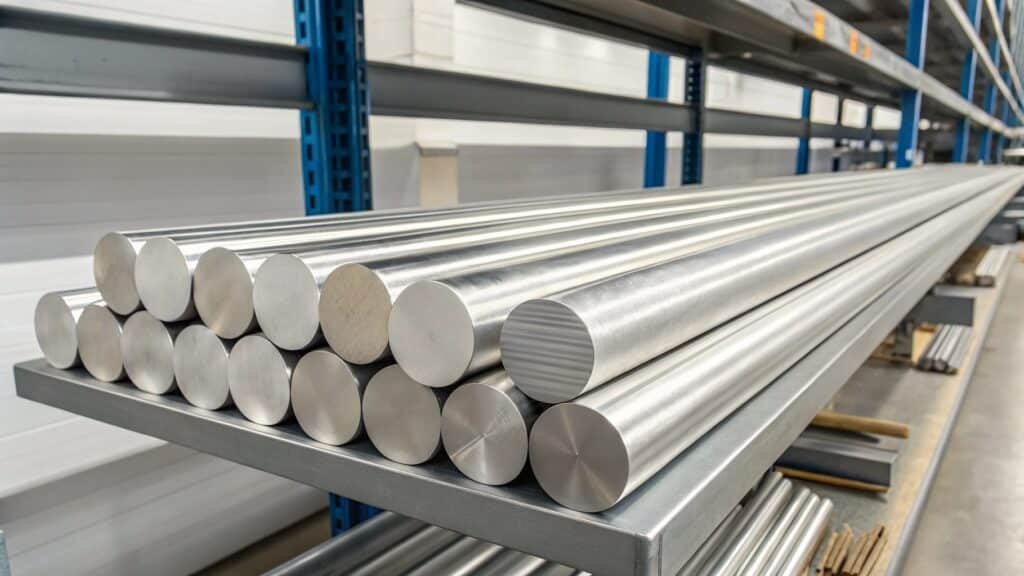

What is series aluminium?

Have you ever picked up an aluminum product and seen a number like 6061 or 5052 associated with it? These numbers refer to the classification of aluminum alloys into different "series," which tell you about their fundamental composition and properties.

Aluminum alloys are classified into series based on their main alloying element. The Aluminum Association uses a four-digit numbering system where the first digit indicates the series: 1xxx for pure aluminum, 2xxx for aluminum-copper alloys, 3xxx for aluminum-manganese, 4xxx for aluminum-silicon, 5xxx for aluminum-magnesium, 6xxx for aluminum-magnesium-silicon, and 7xxx for aluminum-zinc. Each series has distinct characteristics regarding strength, corrosion resistance, weldability, and heat-treatability, allowing engineers to choose the specific alloy best suited for their application's requirements.

At SWA Forging, understanding these series is fundamental. For example, if a client needs high-strength components for aerospace, we know to look towards the 7xxx series (aluminum-zinc), while for marine applications where corrosion resistance is paramount, the 5xxx series (aluminum-magnesium) is often the preferred choice.

Understanding the Different Aluminum Alloy Series

The classification system, mainly governed by The Aluminum Association, provides a clear way to identify the primary alloying element, which dictates the alloy's fundamental properties. Here's a breakdown:

1. 1xxx Series: Pure Aluminum

   • Primary Element: Aluminum (minimum 99.0% pure).
   • Key Characteristics: Excellent corrosion resistance, high ductility, good electrical and thermal conductivity, but low mechanical strength.
   • Typical Uses: Electrical wiring, foil, cookware, reflective surfaces.

2. 2xxx Series: Aluminum-Copper Alloys

   • Primary Element: Copper.
   • Key Characteristics: High strength, heat-treatable to achieve even greater strength, but generally have lower corrosion resistance and weldability compared to other series.
   • Typical Uses: Aerospace structural components (e.g., aircraft skin and fuselage parts).

3. 3xxx Series: Aluminum-Manganese Alloys

   • Primary Element: Manganese.
   • Key Characteristics: Moderate strength, good workability, and good corrosion resistance. Not heat-treatable, strength gained through work hardening.
   • Typical Uses: Common in beverage cans, cookware, roofing, and general sheet metal applications.

4. 4xxx Series: Aluminum-Silicon Alloys

   • Primary Element: Silicon.
   • Key Characteristics: Lower melting point, improved castability and fluidity, good wear resistance. Often used in welding filler metals. Can reduce ductility.
   • Typical Uses: Welding and brazing filler materials, cast components, automotive pistons.

5. 5xxx Series: Aluminum-Magnesium Alloys

   • Primary Element: Magnesium.
   • Key Characteristics: Good strength, excellent corrosion resistance (especially in marine environments), and good weldability. Strength is enhanced by work hardening.
   • Typical Uses: Marine applications, automotive body panels, truck trailers, tanks.

6. 6xxx Series: Aluminum-Magnesium-Silicon Alloys

   • Primary Element: Magnesium and Silicon (forming Mg₂Si).
   • Key Characteristics: Good strength, excellent formability, good corrosion resistance, and good weldability. These alloys are heat-treatable, making them very versatile for structural applications.
   • Typical Uses: Widely used in extrusions, automotive components, structural frames, bicycle frames. (e.g., 6061, 6063).

7. 7xxx Series: Aluminum-Zinc Alloys

   • Primary Element: Zinc.
   • Key Characteristics: Highest strength among aluminum alloys, heat-treatable to achieve exceptional tensile strength. Can have lower corrosion resistance and weldability compared to other series.
   • Typical Uses: Critical aerospace components, high-stress structural parts. (e.g., 7075, 7050).

8. 8xxx Series: Other Elements

   • This series includes alloys where elements other than those mentioned above are the primary alloying additions, such as Lithium, Iron, or Tin.
   • Typical Uses: Specialized applications, such as Al-Li alloys in aerospace for weight reduction and increased stiffness.

Each series offers a unique profile of properties, making the classification system essential for engineers and manufacturers to
