How much weight can aluminum actually support?

Wondering if aluminum is strong enough for your project? Its lightweight nature can be deceptive. The truth is, aluminum's load-bearing capacity is impressive but depends on several key factors.

Aluminum's ability to support weight varies greatly depending on the specific alloy, temper (heat treatment), the design and shape of the component, and how the load is applied. It's not a one-size-fits-all answer, but many alloys are very strong.

At SWA Forging, we've been manufacturing and exporting customized aluminum alloy solutions, particularly large-diameter forged rings and forged discs, since 2012. Our clients, primarily traders and machining companies in the Middle East, often need to understand the strength characteristics of the materials they source from us. The question of "how much weight can it hold?" is fundamental. Let's break it down.

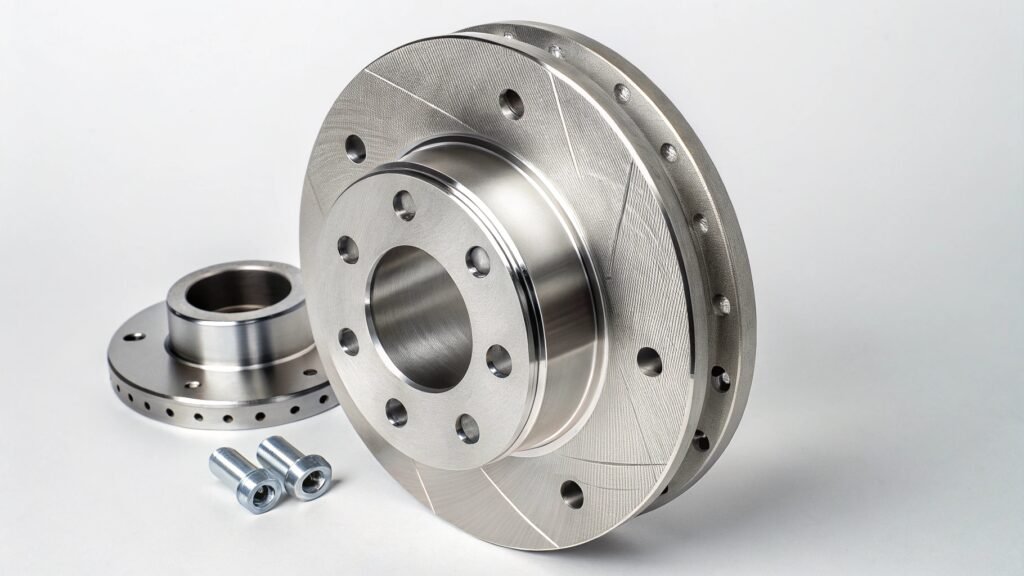

Is aluminum strong for its weight?

You often hear aluminum is lightweight, but does that mean it's weak? It's a common question. People are surprised when they learn just how capable this metal really is when you consider its density.

Yes, aluminum is exceptionally strong for its weight. Many aluminum alloys boast a high strength-to-weight ratio, meaning they offer considerable strength with significantly less mass compared to materials like steel. This makes them ideal for applications where weight reduction is crucial.

!
The concept of strength-to-weight ratio is really important here. It’s not just about absolute strength, but how much strength you get for a given amount of material. Aluminum's density is about one-third that of steel. So, if you have a piece of aluminum and a piece of steel of the exact same size, the aluminum will be much lighter.
Now, while that steel piece might be stronger in absolute terms, some high-strength aluminum alloys can come impressively close, or even match the strength of certain common steel grades, but at a fraction of the weight. This is why you see aluminum used extensively in aerospace, automotive (for lightweighting and fuel efficiency), and even in structural applications where reducing dead load is beneficial. For our clients who machine components from our forged aluminum rings and discs, this high strength-to-weight ratio means they can create parts that are both robust and lightweight, which is a huge advantage in many industries like machinery equipment or even automotive parts. We often forge alloys like 6061-T6 or 7075-T6, which are well known for their excellent strength-to-weight characteristics.

Is aluminum as strong as steel?

It's a classic comparison: aluminum versus steel. Many assume steel is always the stronger option. But is that always true, especially when you consider different types of strength and applications?

Pound for pound, some high-strength aluminum alloys¹ can be stronger than certain mild steels. However, by volume, steel is generally stronger and stiffer than aluminum. The choice depends on whether absolute strength or strength-to-weight ratio is more critical.

When comparing aluminum and steel, we need to be specific.

• Absolute Strength (Volume for Volume): If you take a bar of steel and an aluminum bar of the exact same dimensions, the steel bar will typically be able to withstand a higher load before yielding or breaking. Steel has a higher ultimate tensile strength and yield strength on average when comparing common structural grades.
• Strength-to-Weight Ratio (Strength per Unit Mass): This is where aluminum shines. Because aluminum is about a third of the density of steel, an aluminum structure designed to provide the same strength as a steel one can often be significantly lighter. For example, alloys like 7075-T6 can have tensile strengths comparable to many carbon steels, but at a much lower weight.
• Stiffness (Modulus of Elasticity): Steel is also about three times stiffer than aluminum. This means aluminum will deflect more under the same load if the dimensions are identical. To achieve the same stiffness as steel, an aluminum part often needs to be designed with a larger cross-section, though it can still end up being lighter.

For our clients, the choice between aluminum and steel often comes down to the specific application needs. If extreme strength and rigidity are paramount and weight isn't a major concern, steel might be chosen. But if lightweighting, corrosion resistance, and good strength are needed – as is often the case in automotive, aerospace, or specialized machinery – then aluminum alloys, like the ones we forge at SWA Forging, become the preferred material.

How strong is 3mm aluminium?

You have a 3mm sheet of aluminum and need to know its strength. It seems like a simple question, right? But the answer depends on more than just the thickness. It's a bit more complex than that.

The strength of 3mm aluminum varies significantly based on the specific alloy (e.g., soft 1100 vs. strong 7075), its temper (e.g., annealed 'O' vs. heat-treated 'T6'), and how it's supported or shaped. Thickness alone doesn't define its load-bearing capacity.

Saying "3mm aluminum" is like saying "a piece of wood" – it doesn't tell you enough. To understand its strength, we need more information:

1. Alloy Type: A 3mm sheet of commercially pure aluminum like 1100-H14 (often used for its excellent formability and corrosion resistance) will be much weaker than a 3mm sheet of a high-strength aerospace alloy like 7075-T6. The alloying elements (magnesium, silicon, zinc, copper, etc.) dramatically affect the mechanical properties.
2. Temper: As we discussed before, heat treatment (temper) profoundly impacts strength. A 3mm sheet of 6061 in an annealed 'O' temper will be soft and ductile. The same 3mm sheet of 6061 in a 'T6' temper (solution heat-treated and artificially aged) could be several times stronger.
3. Design and Support: How is this 3mm sheet being used?
   • Is it a flat panel supported only at the edges, expected to bear a distributed load?
   • Is it part of a box section or a formed channel, giving it structural shape?
   • Is it under tension, compression, or bending?
     The geometry of the part and how it's supported are critical. A flat sheet will bend much more easily than a corrugated sheet or an I-beam of the same material and thickness.
     Many of our machining customers at SWA Forging start with thicker forged aluminum stock, like our discs or rings, and then machine them down to precise dimensions, sometimes involving sections that are 3mm or other specific thicknesses. They rely on the consistent properties of the specified alloy and temper we provide to ensure their final parts meet the required strength. For general guidance, a 3mm sheet of 6061-T6 might have a yield strength around 276 MPa (40,000 psi), but how much weight it can support depends entirely on the design of the part it becomes.

How much weight can aluminum alloy hold?

So, the big question remains: how much can aluminum alloy actually hold? You know it's not simple. But there must be a way to figure out its capabilities for specific applications.

The weight an aluminum alloy can hold depends on its yield strength, the component's design (shape, size, support), and the safety factor applied. High-strength alloys like 7075-T6 can hold significantly more than softer alloys like 3003-H14 under identical conditions.

There's no single number for this. Engineers determine the load-bearing capacity of an aluminum alloy component through careful calculation and design, considering these main factors:

1. Yield Strength of the Alloy: This is a material property indicating the stress at which the aluminum will start to deform permanently. Higher yield strength means it can "hold" more stress before yielding. For example:

   • 6061-T6: A very common structural alloy. Typical yield strength is around 276 MPa (40,000 psi).
   • 7075-T6: A high-strength aerospace alloy. Typical yield strength is around 503 MPa (73,000 psi).
   • 5052-H32: A moderate-strength alloy with excellent corrosion resistance. Typical yield strength is around 193 MPa (28,000 psi).
     At SWA Forging, we produce large-diameter forged rings and discs from various alloys, including these, tailored to the specific strength requirements of our clients.

2. Design of the Component: This is crucial. A well-designed I-beam will support far more weight than a flat sheet of the same material and weight. Engineers use principles of mechanics and structural analysis to optimize shapes for load-bearing. The cross-sectional area, moment of inertia, and how the part is supported (e.g., cantilevered, simply supported) all play major roles.

3. Type of Load: Is the load static (constant) or dynamic (changing, like vibrations or impacts)? Is it compressive, tensile, bending, or torsional? Each requires a different design consideration.

4. Safety Factor: Engineers always incorporate a safety factor. This means designing the part to withstand a load significantly higher than its expected service load to account for unforeseen circumstances, material variations, or uncertainties in load estimation.

Our clients often provide us with detailed specifications for the forged rings and discs they need, including the alloy and temper, because they have already performed these calculations for their specific application, be it for heavy machinery components or other structural uses. Our job is to deliver a product that meets those exacting material standards, backed by our ISO certifications and product quality certificates.

Conclusion

Aluminum can support significant weight, especially high-strength alloys in well-designed structures. Its strength-to-weight ratio is a key advantage, making it a versatile choice for many load-bearing applications across various industries.
