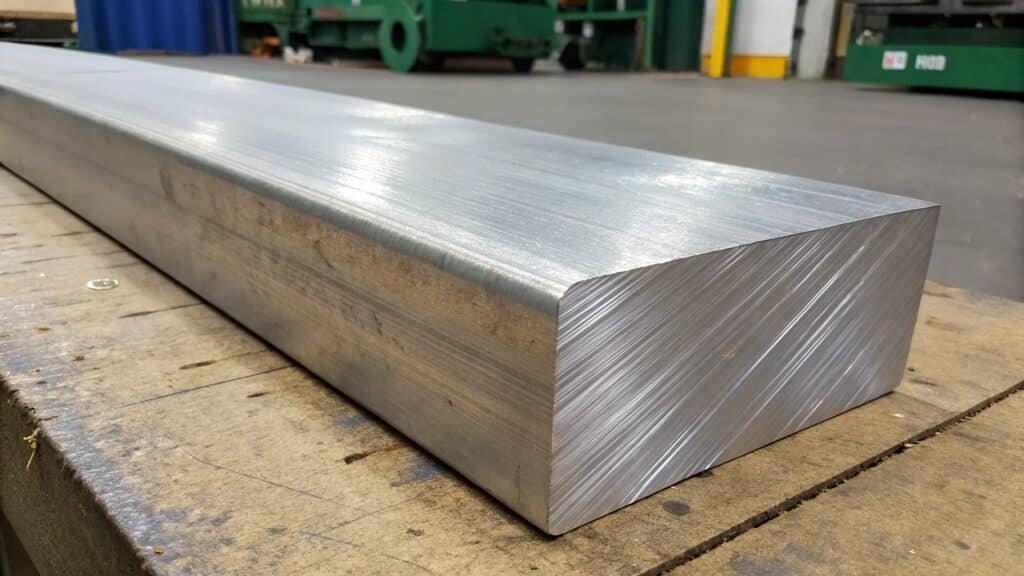

How to Identify a Heat Treated Aluminum Alloy?

Have you ever looked at a piece of aluminum and wondered if it's been heat-treated, or if it's just a raw, un-processed material? Identifying a heat-treated aluminum alloy isn't always straightforward, but there are some reliable methods.

Identifying a heat-treated aluminum alloy often requires more than just visual inspection. While some heat treatments can alter surface appearance, definitive identification typically involves destructive or non-destructive testing, such as hardness testing (e.g., Rockwell or Brinell), microstructural analysis, or in some cases, spectrographic analysis to determine the alloy composition, which then indicates its potential for heat treatment.

In my daily work, especially when dealing with incoming materials or customer specifications, precise identification of a heat-treated aluminum alloy is critical for ensuring product performance and quality.

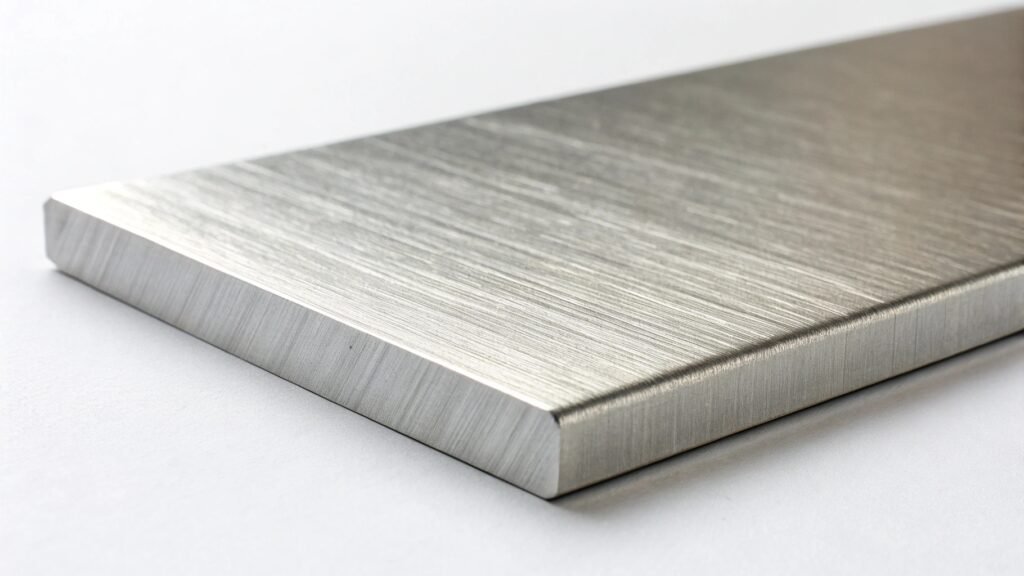

How Can You Distinguish Between Heat Treatable and Non-Heat Treatable Aluminum Alloys?

Are you curious about the fundamental difference that makes some aluminum alloys respond to heat treatment for strengthening, while others do not? It comes down to their chemical makeup.

You can distinguish between heat-treatable and non-heat-treatable aluminum alloys primarily by their main alloying elements. Heat-treatable alloys contain elements like copper, magnesium, silicon, and zinc (2xxx, 6xxx, 7xxx series) that can form precipitates when heated and quenched. Non-heat-treatable alloys (1xxx, 3xxx, 5xxx series) primarily rely on work hardening and solid solution strengthening for their strength, as they lack the elements necessary for precipitation hardening.

When a client sends us a material for forging or asks about properties, my first question is often, "Is it a heat-treatable alloy?" This immediately tells me a lot about its potential.

The Science Behind Heat Treatability

The ability of an aluminum alloy to be strengthened by heat treatment (specifically, precipitation hardening) depends entirely on its chemical composition.

• Heat-Treatable Alloys:

  • Key Alloying Elements: These alloys contain specific elements that have limited solubility in aluminum at room temperature but become more soluble at elevated temperatures. These include copper (Cu), magnesium (Mg) in combination with silicon (Si), and zinc (Zn) in combination with magnesium (Mg).
  • Mechanism: When these alloys are heated to a high temperature (solution heat treatment), the alloying elements dissolve uniformly into the aluminum matrix. Rapid cooling (quenching) then traps these elements in a supersaturated solid solution. Over time, or with artificial aging, these alloying elements precipitate out as extremely fine, dispersed particles. These precipitates "pin" dislocations (defects in the crystal lattice), making the metal much stronger and harder.
  • Common Series:
    • 2xxx Series (Al-Cu): Known for very high strength (e.g., 2024 for aerospace).
    • 6xxx Series (Al-Mg-Si): Good strength, formability, and corrosion resistance, excellent weldability (e.g., 6061, 6063).
    • 7xxx Series (Al-Zn-Mg-Cu): The highest strength aluminum alloys (e.g., 7075 for aircraft structures).
    • (Also some 8xxx series, but less common for general use)

• Non-Heat-Treatable Alloys:

  • Key Alloying Elements: These alloys typically contain elements like manganese (Mn), magnesium (Mg) alone, or are commercially pure aluminum. These elements either form stable solid solutions that don't precipitate effectively, or they don't form precipitates at all.
  • Mechanism: Their strength is primarily achieved through:
    • Solid Solution Strengthening: Alloying elements dissolve in the aluminum matrix, distorting the lattice and hindering dislocation movement.
    • Strain Hardening (Work Hardening): Deforming the metal (e.g., by rolling, drawing, or forging) at room temperature increases its strength by increasing the density of dislocations.
  • Common Series:
    • 1xxx Series (Pure Al): Very high corrosion resistance, excellent formability, but low strength (e.g., 1100).
    • 3xxx Series (Al-Mn): Good formability and moderate strength (e.g., 3003 for general purpose).
    • 5xxx Series (Al-Mg): Excellent corrosion resistance, good weldability, moderate to high strength, especially in work-hardened tempers (e.g., 5052, 5083).

I recall a situation where a customer sent us some aluminum that they thought was 6061 for a structural component. After a quick elemental analysis, we found it was actually a 5xxx series alloy. While it was still good aluminum, it couldn't be heat-treated to the strength they needed. This highlighted the importance of knowing the alloy composition before assuming heat treatability.

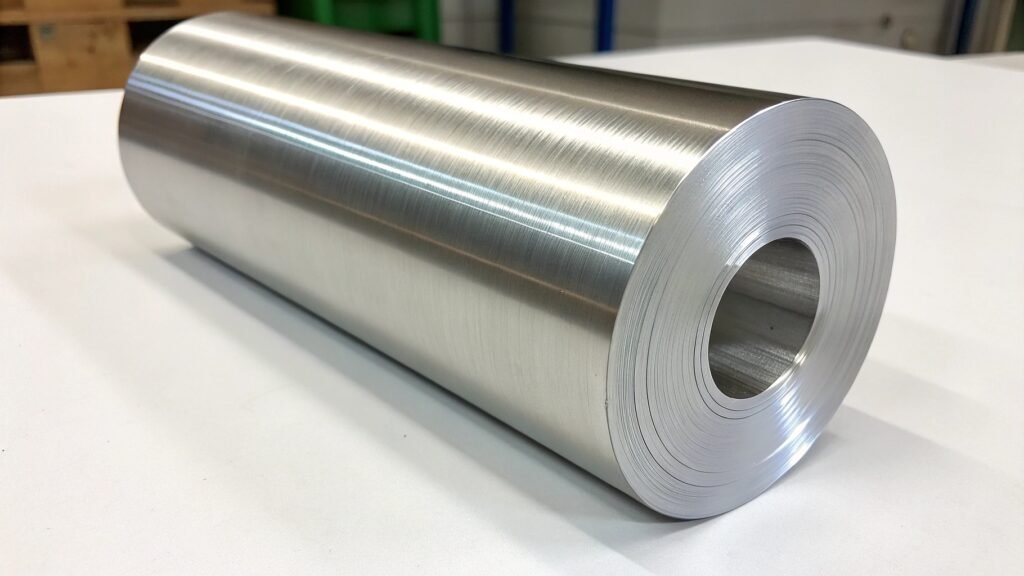

How Do I Tell What Aluminum Alloy I Have?

Have you ever found yourself with an unmarked piece of aluminum, needing to know its exact alloy type? Identifying an unknown aluminum alloy can be a challenge without specialized tools.

To definitively tell what aluminum alloy you have, the most reliable methods involve laboratory testing: an X-ray fluorescence (XRF) spectrometer provides a quick, non-destructive elemental analysis; a spark OES (Optical Emission Spectrometer) offers more precise quantitative analysis; or, as a last resort, destructive testing like wet chemical analysis or microstructural examination can be performed. Visual inspection and simple physical tests are generally not sufficient for positive identification.

At SWA Forging, we regularly use XRF and OES. When material comes in without clear documentation, or if there's any doubt, these tests are standard procedure to ensure we're working with the correct alloy for our customers' specifications.

Methods for Aluminum Alloy Identification

From quick checks to precise lab analysis, here's how one might go about identifying an aluminum alloy:

1. Visual Inspection & Markings (Least Reliable on its own):

   • Markings: Look for stamps, tags, or engravings. Many aluminum products (sheets, extrusions, forgings) come with markings indicating the alloy and temper (e.g., "6061-T6"). However, these can be missing or incorrect.
   • Appearance: Pure aluminum (1xxx series) might appear brighter or softer. Some alloys might have a slightly different sheen. However, this is highly unreliable for specific alloy identification.

2. Simple Physical Tests (Indicative, Not Definitive):

   • Spark Test: Grinding a piece of the aluminum against a grinding wheel can produce faint sparks. The color and pattern of these sparks can sometimes give a rough indication, but it's much less distinct than for steel. Not very reliable for specific aluminum alloy identification.
   • Hardness Test (e.g., File Test, Rockwell/Brinell): While a file test (trying to scratch the surface with a file) can tell you if it's "hard" or "soft," it won't identify the alloy. A Rockwell or Brinell hardness tester can give a numerical hardness value, which, when combined with an educated guess of the alloy series, might point to a specific temper, but still doesn't identify the base alloy definitively.
   • Density Test: While aluminum is known for being lightweight, the density difference between specific alloys is too small to be a practical identification method without extremely precise measurements.
   • Chemical Spot Tests: Some very specific, often hazardous, chemical solutions can react differently with certain alloy components, but these are often messy, require careful handling, and typically only differentiate broad categories.

3. Advanced Laboratory Analysis (Most Reliable):

   • X-ray Fluorescence (XRF) Spectrometer:
     • How it works: This is a common, non-destructive method. The XRF gun (handheld or benchtop) emits X-rays that cause the atoms in the sample to fluoresce, emitting their own characteristic X-rays. The detector measures these X-rays to identify and quantify the elemental composition.
     • Benefits: Quick (seconds), non-destructive, portable.
     • Limitations: Surface analysis only, may struggle with very light elements (e.g., magnesium in lower concentrations) or very thin coatings.
   • Optical Emission Spectrometer (OES) / Spark OES:
     • How it works: A high-voltage spark is applied to the sample, vaporizing a small amount of material. The light emitted by the excited atoms is then analyzed to determine the exact elemental composition, including very low concentrations.
     • Benefits: Very precise, analyzes bulk material (by burning a small spot), can detect light elements accurately.
     • Limitations: Destructive (leaves a small burn mark), usually a lab-based instrument, less portable than XRF.
   • Atomic Absorption Spectroscopy (AAS) / Inductively Coupled Plasma (ICP):
     • How it works: These are wet chemical methods where the sample is dissolved in acid, and the solution is analyzed.
     • Benefits: Highly accurate for specific elements.
     • Limitations: Destructive, time-consuming, requires chemical expertise.
   • Microstructural Analysis: Examining a polished and etched sample under a microscope can reveal grain structure, precipitates, and phases that are characteristic of certain alloys and heat treatments. This requires significant metallography expertise.

When we receive material for forging at SWA, we run an XRF scan on every incoming batch if there is no clear MTR (Material Test Report) or if we need to confirm the MTR. For critical aerospace projects, we might even send samples to a third-party lab for OES analysis to get an absolutely definitive elemental breakdown. It's all about precision and eliminating doubt.

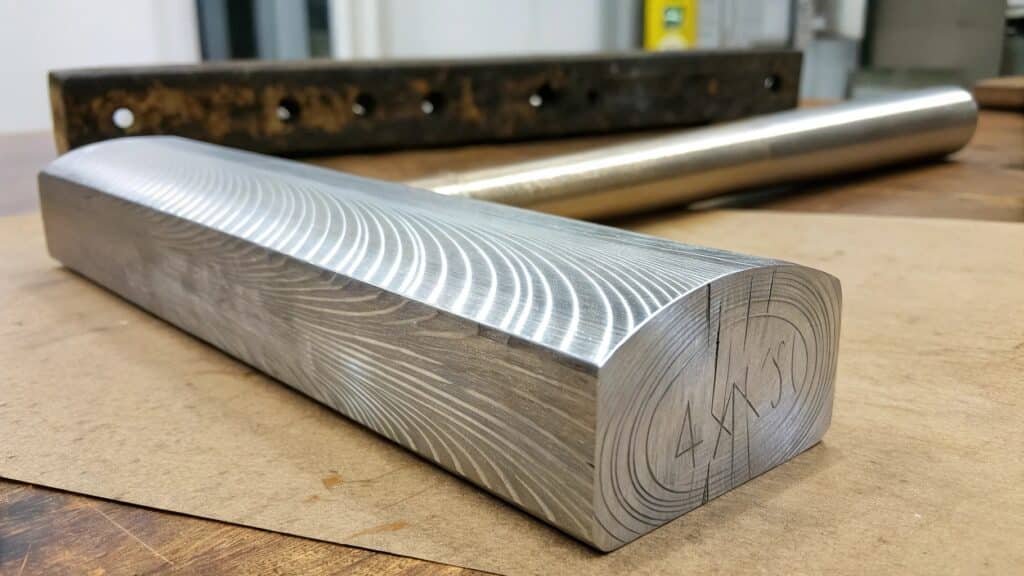

What Series of Aluminum Are the Heat Treatable Aluminum?

Are you trying to remember which specific series of aluminum alloys gain their strength through heat treatment? It's a key piece of information for any material selection.

The primary series of heat-treatable aluminum alloys are the 2xxx (Al-Cu), 6xxx (Al-Mg-Si), and 7xxx (Al-Zn-Mg) series. These alloys contain specific alloying elements that allow them to be strengthened significantly through solution heat treatment, quenching, and artificial aging, a process known as precipitation hardening.

I consistently emphasize these series when discussing high-strength aluminum applications, as they are the backbone of many advanced engineering designs.

Diving Deeper into Heat-Treatable Aluminum Series

Understanding the characteristics of each heat-treatable series helps in selecting the right material for a specific application.

• 2xxx Series (Al-Cu):

  • Key Alloys: 2014, 2024.
  • Characteristics: Known for very high strength and good fatigue resistance. However, their corrosion resistance is generally lower than other series, and they can be more challenging to weld.
  • Typical Applications: Primarily used in aerospace structures (fuselage, wings), aircraft rivets, and some high-strength military applications.
  • My insight: When you hear "aircraft aluminum" and high strength, 2xxx is often what they're talking about, especially 2024-T3 or T4.

• 6xxx Series (Al-Mg-Si):

  • Key Alloys: 6061, 6063.
  • Characteristics: Excellent balance of properties. Good strength (though generally not as high as 2xxx or 7xxx), very good corrosion resistance, excellent weldability, and good formability. They are also easily extruded, allowing for complex shapes.
  • Typical Applications: Structural components (frames, bridges, building materials), automotive parts, marine applications (less harsh environments), bicycle frames, general engineering.
  • My insight: 6061-T6 is probably the most versatile and widely used heat-treatable aluminum alloy. It's often my go-to recommendation for general-purpose structural parts where a good balance of strength, weldability, and corrosion resistance is needed.

• 7xxx Series (Al-Zn-Mg):

  • Key Alloys: 7075, 7050.
  • Characteristics: These are the strongest aluminum alloys commercially available. They achieve extremely high tensile and yield strengths. However, they can be more susceptible to stress corrosion cracking in certain tempers (like T6) and generally have lower weldability compared to 6xxx series.
  • Typical Applications: Critical aerospace structural components (landing gear, major airframe structures), high-performance sports equipment, military applications requiring maximum strength.
  • My insight: For applications where every ounce of strength matters, like landing gear for aircraft, 7075-T6 or 7050-T7451 are the choices. The T7x tempers for these alloys are specifically designed to reduce the risk of stress corrosion cracking.

I once had a conversation with an engineer who initially specified 6061-T6 for a very high-stress aerospace fitting. After discussing the load requirements, I suggested moving to a 7xxx series alloy. While it was more expensive and a bit harder to work with, the 7xxx alloy provided the necessary strength margin for safety in a critical application.

What is T5 Heat Treatment Aluminum Alloys?

Are you specifically interested in the "T5" heat treatment process for aluminum alloys¹ and what it implies for their properties? It's a common temper for certain types of aluminum products.

T5 heat treatment for aluminum alloys involves cooling from an elevated temperature shaping process (such as extrusion or casting) followed by artificial aging. This process is designed to improve the alloy's mechanical properties, particularly strength and hardness, by promoting controlled precipitation. It is most commonly applied to 6xxx series alloys like 6063, which are typically extruded, offering a good balance of strength, formability, and surface finish.

In our forging operations, while we primarily deal with T6 for maximum strength, I often see customers using T5 materials in their assembled products, especially for architectural components.

The Specifics of T5 Temper

The T5 temper is a specific heat treatment sequence that falls under the broader category of "thermally treated to produce stable tempers other than F, O, H."

• The "T" designation: Means the alloy has been thermally treated to produce a stable temper.

• The "5" designation: Indicates that the material has been cooled from an elevated temperature processing step (like extrusion, forging, or solution heat treatment if done immediately after forming) and then artificially aged. This means it did not undergo a separate solution heat treatment and quench cycle before aging, as T6 would.

• Process Steps:

  1. Cooling from Fabrication Temperature: The aluminum alloy part is cooled (quenched) immediately after being shaped at an elevated temperature (e.g., extruded from a die, or hot-forged). This traps alloying elements in a supersaturated solid solution, similar to the initial quench in a T6 process, but without a dedicated solution heat treatment step if the forming temperature was sufficient.
  2. Artificial Aging: The part is then heated to an intermediate temperature (typically between 120°C and 190°C, 250°F and 375°F) and held for a specific period. This controlled heating causes the dissolved alloying elements to precipitate out as very fine particles within the aluminum matrix, which significantly increases the material's strength and hardness.

• Common Alloys for T5:

  • 6063: This is the most common alloy for T5 temper. 6063-T5 extrusions are widely used for architectural trim, window frames, door frames, and other applications where a good surface finish, moderate strength, and easy formability are desired.
  • 6005, 6005A: Also common for structural extrusions, offering slightly higher strength than 6063-T5.
  • Some 6082 profiles: Can also be found in T5.

• Key Characteristics of T5:

  • Strength: Generally offers good, moderate strength. It's stronger than the as-fabricated (F) or annealed (O) condition, but typically not as strong as the T6 temper for the same alloy (if a T6 temper is possible for that alloy).
  • Efficiency: The T5 process is often more energy and time-efficient than T6 because it combines the cooling from forming with the start of the strengthening process.
  • Surface Finish: Extrusions in T5 temper often have an excellent surface finish, making them ideal for aesthetic and decorative applications.
  • Dimensional Stability: Offers good dimensional stability.

I remember a project for a large-scale building façade. The architect specifically requested 6063-T5 extrusions. The T5 temper was perfect because it provided enough strength for the non-load-bearing panels, had an excellent anodized finish, and the extrusion process was very efficient, keeping costs down for such a massive project.

Conclusion

Identifying heat-treated aluminum alloys typically requires laboratory testing like XRF or OES, as visual cues are insufficient. Heat-treatable alloys (2xxx, 6xxx, 7xxx series) contain specific elements like copper, magnesium+silicon, or zinc+magnesium, allowing strengthening through precipitation hardening, unlike non-heat-treatable alloys (1xxx, 3xxx, 5xxx series) which rely on work hardening. T5 heat treatment involves cooling from hot forming followed by artificial aging, commonly seen in 6063 extrusions, offering moderate strength and good surface finish, often in contrast to the higher strength of T6 processes.
