How to tell if aluminum alloy is extruded?

Struggling to identify if an aluminum part is extruded? Misidentifying it can lead to using the wrong material or process for your needs. Recognizing extruded aluminum often comes down to visual cues and understanding its typical forms.

To tell if an aluminum alloy is extruded, look for a consistent cross-sectional profile along its length, often with fine, parallel lines (die lines) on the surface. Extruded parts are typically long and have uniform shapes like tubes, channels, or angles.

Knowing how to spot an extruded aluminum alloy product is a practical skill, especially for our clients at SWA Forging, whether they are traders handling various aluminum forms or machining companies sourcing material. While we specialize in forged rings and discs, understanding other common manufacturing processes like extrusion helps everyone in the supply chain. Let's delve into the tell-tale signs.

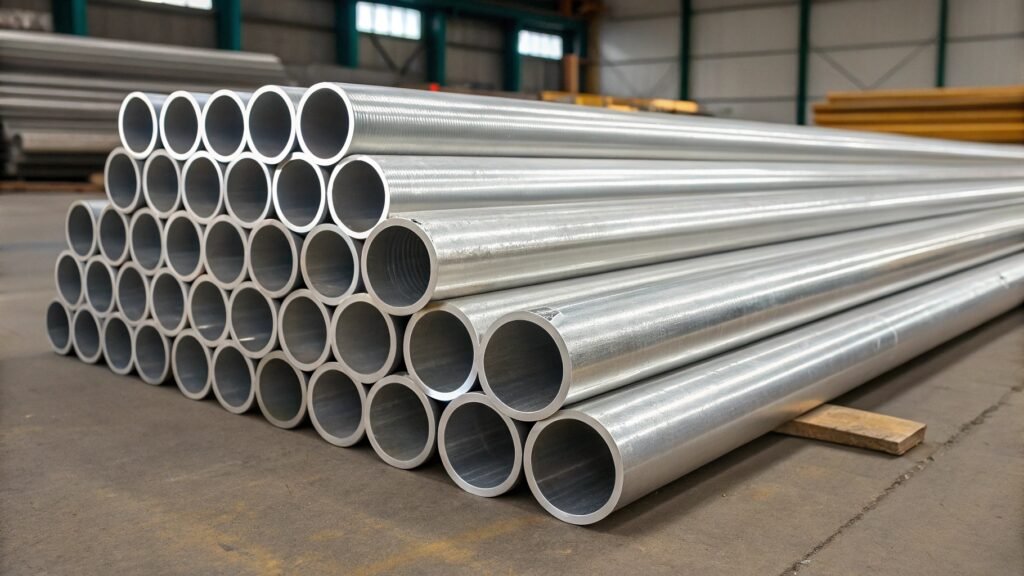

How can you tell the difference between cast and extruded aluminum?

Confused between cast and extruded aluminum¹ parts? Choosing the wrong type can impact strength, finish, and suitability for an application. They have distinct visual and structural differences from their manufacturing processes.

Cast aluminum often has a rougher surface, possible parting lines from molds, and a more complex, non-uniform shape. Extruded aluminum has a smoother finish, consistent cross-section, and possible die lines along its length. Internally, cast parts may have porosity.

Distinguishing between cast and extruded aluminum is usually straightforward once you know what to look for. I've handled countless samples over the years, and the differences become quite apparent.
Visual Cues:

• Surface Finish: Cast aluminum, especially sand-cast, tends to have a more granular or rougher surface texture unless it's been heavily machined or polished. Die-cast parts can be smoother but often show ejector pin marks. Extruded aluminum generally has a smoother, more uniform surface finish directly from the process, though it can have those characteristic die lines.
• Shape Complexity & Uniformity: Castings are excellent for producing complex, three-dimensional shapes, often with varying wall thicknesses. You might see intricate internal features. Extrusions, by their nature, have a constant cross-section along their entire length. If you cut an extruded piece anywhere, the shape of the cut end will be the same.
• Parting Lines & Die Lines: Cast parts often show faint parting lines where the mold halves met. Extruded parts will not have parting lines but may exhibit fine, parallel lines or striations running along their length – these are the "die lines" I mentioned, left by the extrusion die.

Internal Structure (if visible or known):

• Cast aluminum can sometimes have internal porosity (tiny voids) if the casting process wasn't perfectly controlled. Extruded aluminum has a wrought structure, meaning it has been mechanically worked, which generally results in a denser, more uniform internal structure without such porosity.

Here's a quick comparison:

Understanding these differences helps our customers, especially traders, correctly identify and source materials.

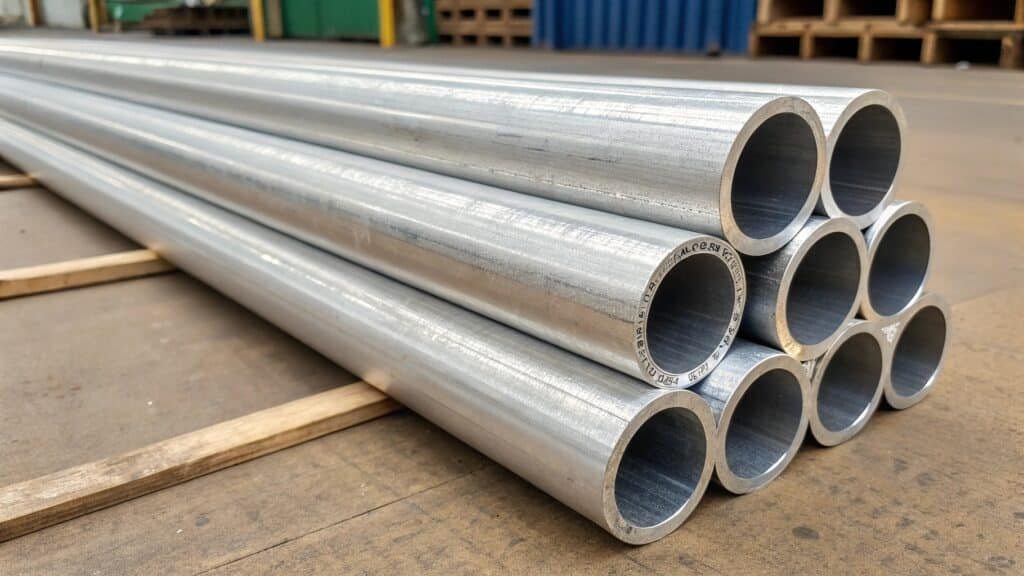

What does extruded aluminum look like?

Can't quite picture what "extruded aluminum" means visually? Without clear characteristics, it's hard to spot. Extruded aluminum typically has a uniform profile and distinct surface features due to its manufacturing process.

Extruded aluminum looks like a long piece of metal with the same cross-sectional shape from one end to the other. It often has a smooth finish with faint, parallel lines (die lines) running along its length. Common shapes include H-beams, T-sections, tubes, and channels.

When you're trying to identify extruded aluminum, there are several key visual characteristics to look out for.
First, the consistent cross-section is the most defining feature. Imagine a stick of butter; if you cut it anywhere along its length, the square shape of the cut end is always the same. Extruded aluminum is like that, but it can be much more complex shapes. If you look at one end of the piece and then the other, the profile (the outline of the shape) will be identical. This is because the aluminum is pushed through a die that has a fixed opening.

Second, look for die lines. These are very fine, parallel lines or subtle grooves that run in the direction the aluminum was extruded. They are caused by the aluminum passing through the steel die. Sometimes they are very faint and you need to catch the light just right to see them, especially on smoother extrusions or if the part has been subsequently finished (like anodized or powder-coated).

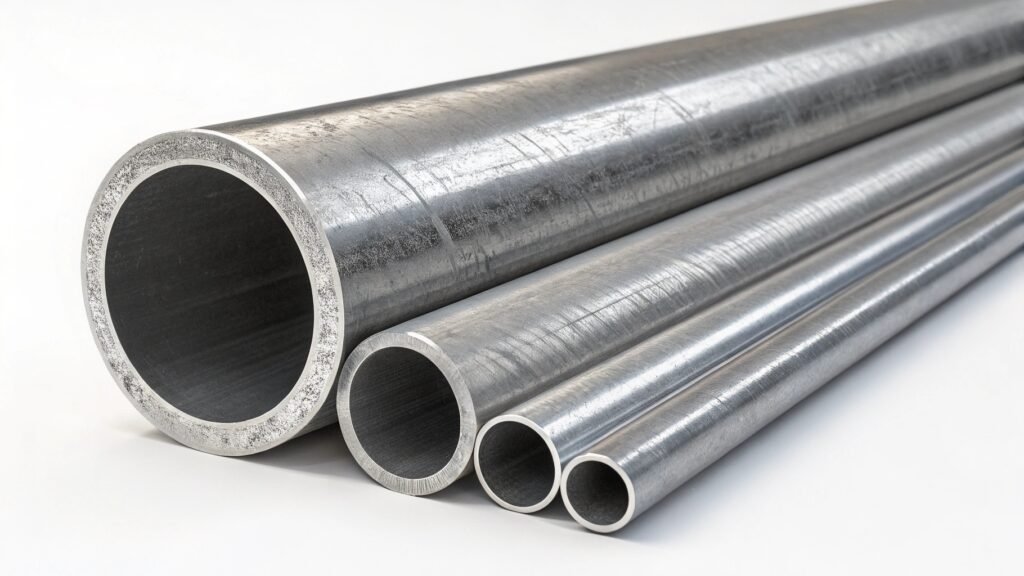

Third, consider the typical shapes. Extrusion is perfect for creating long, linear components. Think of:

• Architectural elements: Window frames, door frames, curtain wall mullions.
• Structural shapes: Angles (L-shapes), channels (U-shapes or C-shapes), I-beams, H-beams, T-sections.
• Tubes and pipes: Round, square, rectangular, or even custom hollow profiles.
• Heat sinks: Often with intricate fin designs to maximize surface area.
• Custom profiles: The extrusion process is versatile enough to create unique, complex shapes tailored to specific applications. I’ve seen some incredibly intricate designs for specialized machinery components.

The surface finish is generally quite good, but it won't typically have the textured look of a sand casting or the possible witness marks of a parting line found on cast items.

What is the difference between regular aluminum and extruded aluminum?

Is "extruded aluminum" just a type of "regular aluminum"? This can be confusing if you're not clear on basic metal terminology. "Regular aluminum" usually refers to the base material, while "extruded" describes a manufacturing process.

"Regular aluminum" typically refers to the aluminum alloy itself in a raw or generic form (like billet or ingot). "Extruded aluminum" is an aluminum alloy product that has been shaped by the extrusion process, giving it a specific profile and directional grain properties.

The term "regular aluminum" can be a bit vague, but in most contexts, it refers to the aluminum alloy in a more basic or unprocessed state. This could mean:

• The chemical composition: For example, 6061 alloy is a "regular" type of aluminum known for its good all-around properties.
• A raw form: Like an aluminum ingot (a large block of cast aluminum ready for remelting or processing) or a billet (a smaller, often cylindrical or square solid block, typically cast or extruded, that serves as the starting material for processes like extrusion or forging).

"Extruded aluminum," on the other hand, specifically describes an aluminum alloy product that has been manufactured using the extrusion process. So, you take a "regular" aluminum alloy (like a 6061 billet) and then you extrude it to create a specific shape, like an angle bar or a tube.

The key differences arise from this processing:

• Shape: "Regular aluminum" in ingot or billet form doesn't have a functional shape yet. Extruded aluminum has a defined, continuous cross-sectional shape.
• Properties: The extrusion process² imparts certain characteristics. For instance, it aligns the grain structure of the aluminum primarily in the direction of extrusion. This can give the extruded part different strength properties in different directions (anisotropy).
• Application: "Regular aluminum" (as billet/ingot) is raw material. Extruded aluminum is a semi-finished or finished product ready for use or further fabrication.

So, extruded aluminum is made from "regular" aluminum alloy, but it has been processed to achieve a specific form and refined properties. It's similar to how wood is the "regular" material, but a "2x4 lumber" is a processed form of that wood.

What is the difference between extrusion and forging aluminum?

Choosing between extruded and forged aluminum requires understanding their distinct creation methods. Using the wrong one means your parts might not have the ideal shape or strength for their job. They are fundamentally different processes.

Extrusion pushes aluminum through a die for long, uniform profiles. Forging shapes aluminum using compressive forces, often creating stronger, discrete components with grain flow aligned to the part's contours for superior multi-directional strength.

While both extrusion and forging are methods of shaping aluminum by deforming it, they operate on different principles and produce parts suited for different types of applications. This is a key distinction we often discuss with clients at SWA Forging, as our expertise lies in forging.

Extrusion:

• Process: A heated aluminum billet is forced (pushed) through a die with a specifically shaped opening.
• Product: Creates long, continuous lengths of material with a constant cross-section (e.g., tubes, channels, angles, custom profiles).
• Grain Flow: Primarily longitudinal, along the length of the extrusion.
• Strengths: Excellent for producing cost-effective linear components and intricate profiles. Good strength in the longitudinal direction.
• Limitations: Less ideal for parts requiring high multi-directional strength or complex, non-linear shapes.

Forging:

• Process: A heated aluminum billet or preform is shaped by localized compressive forces, either by impact (hammering) or gradual pressure (pressing) between dies.
• Product: Creates discrete, often more complex, three-dimensional parts (e.g., our specialty of large-diameter rings and discs, gears, connecting rods, structural brackets).
• Grain Flow: The process refines the grain structure and aligns it to follow the contours of the part, providing strength where it's most needed.
• Strengths: Generally produces parts with superior mechanical properties – higher tensile strength, better fatigue resistance, greater toughness, and structural integrity due to the refined and oriented grain structure. Excellent for critical, high-stress applications.
• Limitations: Can be more costly for simple, long shapes where extrusion excels.

Essentially, if you need a long, uniform shape, extrusion is often the way to go. If you need a strong, reliable, discrete component, especially for demanding applications, forging is typically superior.

Conclusion

Identifying extruded aluminum involves checking for a consistent cross-section, fine die lines, and typical linear shapes. Understanding these features helps distinguish it from other aluminum forms.
