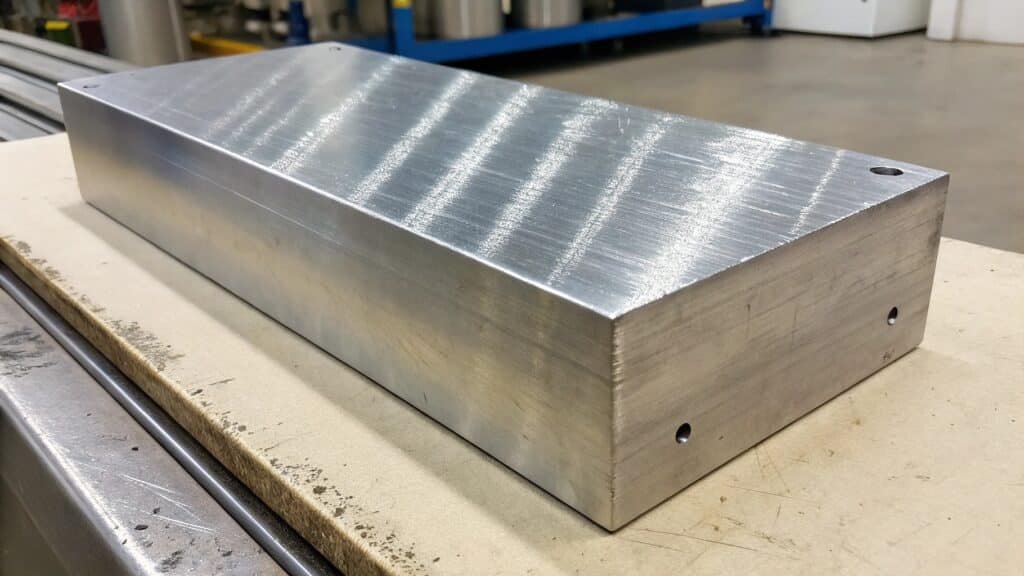

Is 5083 aluminum machinable?

Have you ever wondered if the highly corrosion-resistant 5083 aluminum¹, often used in marine applications, is also easy to machine? Its unique properties raise questions about how it behaves under cutting tools.

Yes, 5083 aluminum is machinable, but it is generally considered to have fair to good machinability, not excellent. Its high magnesium content (4.0-4.9%) makes it somewhat gummy or sticky when machined, leading to the formation of long, continuous chips that can clog tools and require frequent chip breaking. This gumminess can also cause built-up edge on cutting tools, affecting surface finish and tool life. Achieving good results with 5083 requires using sharp, high-positive rake cutting tools, generous lubrication or coolant, and optimized cutting parameters (e.g., lower cutting speeds and higher feed rates to promote chip breaking). Despite these considerations, it is widely machined for applications requiring its superior corrosion resistance and weldability.

At SWA Forging, we often work with 5083 aluminum when creating large-diameter forged rings and discs for clients who need exceptional corrosion resistance and weldability. While our process is forging, not machining, we understand that our clients will often machine our components. Therefore, we ensure the metallurgical quality of our forgings supports subsequent machining operations, acknowledging the specific characteristics of 5083.

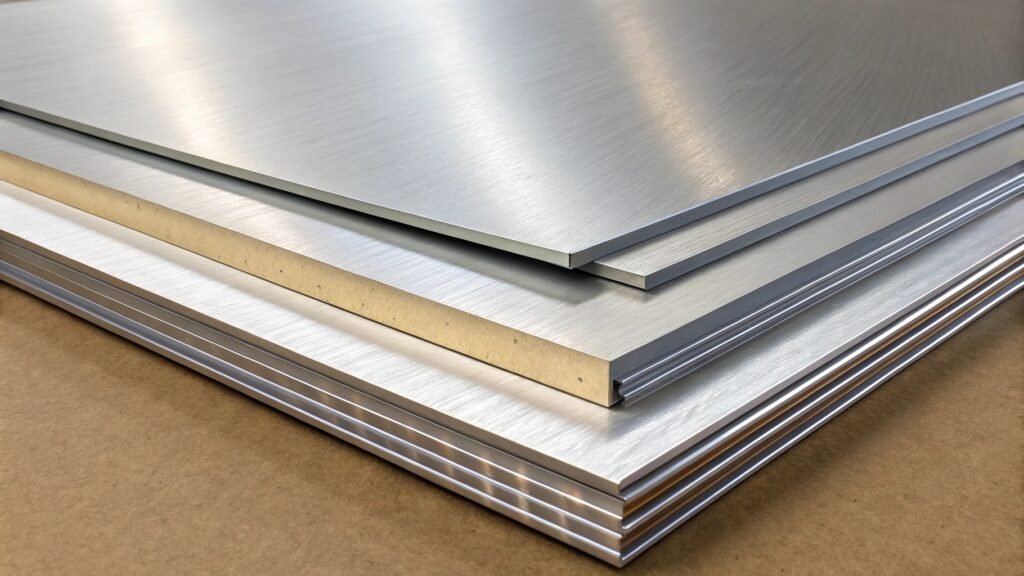

What grade of aluminum is machinable?

Have you ever started a machining project with aluminum and found that some grades cut like butter while others gummed up your tools or created a terrible finish? Not all aluminum grades are created equal when it comes to machinability.

Generally, the most machinable grades of aluminum are those containing alloying elements like lead, bismuth, or tin, which act as chip breakers, or those that form small, easily broken chips. The 2011 alloy is widely considered the "free machining" aluminum due to its lead and bismuth content, offering excellent chip control and surface finish. Other highly machinable grades include 2024, 6061, and 7075, especially in their harder tempers (e.g., T6), as their increased strength helps produce shorter, more manageable chips. Alloys in the 5xxx series, like 5052 and 5083, are considered fair to good, but their higher magnesium content can make them gummier and prone to long chips.

At SWA Forging, while our focus is on producing high-quality forged components, we recognize that our clients often machine our products. We frequently discuss the machinability characteristics of different alloys with them, ensuring that the forged material performs optimally in their machining processes, whether it's a structural 6061 or a corrosion-resistant 5083.

Machinability of Different Aluminum Grades

Let's break down the machinability characteristics of common aluminum grades:

1. Excellent Machinability (Free Machining Alloys):

   • 2011: This is the undisputed king of machinability for aluminum. It contains lead and bismuth, which act as internal chip breakers.
     • Pros: Produces small, brittle chips; excellent surface finish; high cutting speeds.
     • Cons: Lower corrosion resistance than other common alloys; lead content can be a concern for some applications.
     • Applications: Screw machine parts, electrical connectors.

2. Very Good Machinability:

   • 2024: A high-strength aerospace alloy containing copper.
     • Pros: Good chip breaking, good surface finish when sharp tools are used. Higher strength helps chip formation.
     • Cons: Lower corrosion resistance than 6xxx or 5xxx series.
     • Applications: Aircraft structures, fasteners.
   • 7075: One of the strongest aluminum alloys, containing zinc.
     • Pros: Very good machinability due to its high strength; chips break easily. Good surface finish.
     • Cons: Very high strength can require more rigid setups.
     • Applications: Aerospace components, high-stress parts.

3. Good Machinability:

   • 6061: A popular general-purpose structural alloy (Al-Mg-Si).
     • Pros: Good balance of strength, corrosion resistance, and machinability. Chips are generally manageable.
     • Cons: Not as free-machining as 2011 or 2024; can still produce longer chips if parameters aren't optimized.
     • Applications: Structural components, frames, fixtures.

4. Fair to Good Machinability (Gummy Alloys):

   • 5052: A medium-strength alloy with good formability and corrosion resistance (Al-Mg).
     • Pros: Good formability.
     • Cons: Higher magnesium content makes it gummier. Produces longer, continuous chips that can wrap around tools. Requires careful chip control.
     • Applications: Marine components, fuel tanks, general sheet metal.
   • 5083: A high-strength alloy with excellent marine corrosion resistance (Al-Mg-Mn).
     • Pros: Excellent corrosion resistance and weldability.
     • Cons: Even gummier than 5052 due to higher magnesium. Presents challenges with chip breaking and built-up edge. Requires specific tooling and techniques.
     • Applications: Shipbuilding, cryogenic tanks, offshore structures.

5. Poor Machinability:

   • 1100, 1350 (Pure Aluminum):
     • Pros: Excellent corrosion resistance, electrical conductivity.
     • Cons: Extremely soft and gummy. Very difficult to machine, producing long, stringy chips that are hard to control and can create a very poor surface finish.
     • Applications: Electrical conductors, chemical equipment.

Factors Affecting Machinability:

• Alloy Composition: The primary driver.
• Temper: Harder tempers (e.g., T6, H14) generally machine better than softer, annealed (O) tempers because the material is stiffer and chips break more readily.
• Cutting Tools: Sharp, high-positive rake geometry, polished flutes are crucial, especially for gummy alloys.
• Lubrication/Coolant: Essential for all aluminum machining to reduce friction, dissipate heat, prevent chip welding, and improve surface finish.
• Cutting Parameters: Optimized speeds, feeds, and depth of cut for effective chip breaking.

Choosing the right aluminum grade for machining involves balancing machinability with other required properties like strength, corrosion resistance, and weldability.

Which aluminum is best for machining?

Have you ever been on the shop floor, ready to mill or turn a piece of aluminum, and wished you knew which alloy would give you the easiest time and the best finish? "Best for machining" is a specific title in the world of aluminum.

The aluminum alloy best for machining, particularly for high-volume, precision applications requiring excellent chip control and surface finish, is 2011. It is often referred to as "free-machining aluminum" due to its specific alloying elements (lead and bismuth) that promote the formation of small, brittle chips, preventing chip entanglement and built-up edge on cutting tools. For general-purpose machining that also requires good strength and weldability, 6061-T6 is an excellent and widely used choice, though it does not offer the same "free-machining" characteristics as 2011. For high-strength structural parts where machinability is still very good, 2024-T3 and 7075-T6 are also top contenders.

At SWA Forging, we often produce forged components from alloys like 6061 and 7075. While these parts will be subsequently machined by our clients, we understand that optimizing the initial material properties is key. We ensure that our high-quality forgings provide an excellent foundation for efficient and precise machining, even if they aren't the absolute "freest" machining alloys.

Why 2011 is the "Best" for Machining and Other Good Choices

Let's break down why 2011 holds the top spot and what other alloys are excellent for machining:

1. 2011: The "Free Machining" Champion:

   • Composition: Contains lead (Pb) and bismuth (Bi) in small percentages.
   • Mechanism: Lead acts as a lubricant, reducing friction, while bismuth helps to create small, brittle chips that break away cleanly from the workpiece. This prevents long, stringy chips that can tangle around tools, scratch the surface, or clog the machine.
   • Benefits:
     • Excellent chip control: Chips curl and break easily.
     • Superior surface finish: Reduces built-up edge.
     • High cutting speeds: Allows for faster production cycles.
     • Longer tool life: Less friction and heat.
   • Limitations: Lower corrosion resistance than many other aluminum alloys, and the presence of lead can be a concern for some applications (e.g., food contact, certain environmental regulations).
   • Ideal for: High-volume production of intricate parts on screw machines, fasteners, electrical connectors.

2. Other Highly Machinable Alloys:

   • 6061-T6:
     • Why it's good: This alloy offers an excellent balance of strength, weldability, corrosion resistance, and machinability. While not "free machining" like 2011, its T6 temper (heat-treated) provides a harder, more stable microstructure that helps in chip breaking.
     • Benefits: Versatile, good for general-purpose structural and machined parts. Chips are manageable with proper tooling and parameters.
     • Ideal for: Fixtures, frames, structural components, general machined parts.
   • 2024-T3/T4:
     • Why it's good: A high-strength aerospace alloy with good machinability. The copper content contributes to its strength, which aids in producing broken chips.
     • Benefits: Excellent strength-to-weight ratio. Good chip control.
     • Ideal for: Aircraft components, high-strength fasteners.
   • 7075-T6/T7351:
     • Why it's good: This is one of the strongest aluminum alloys. Its high strength means chips are brittle and break easily, leading to very good machinability.
     • Benefits: Exceptional strength, good for highly stressed parts.
     • Ideal for: Aerospace structural parts, molds, highly stressed components.

Key Machining Considerations for All Aluminum:

• Sharp Tools: Always use extremely sharp cutting tools with polished flutes to prevent built-up edge and promote smooth chip evacuation.
• Tool Geometry: High-positive rake angles are generally preferred to facilitate cutting and chip flow.
• Coolant/Lubricant: Essential to prevent chip welding, reduce friction and heat, and improve surface finish.
• Chip Control: Design tool paths and parameters to encourage chip breaking, especially for alloys that tend to produce long, stringy chips (like 5xxx series).

When selecting aluminum for a machining project, prioritize 2011 if machinability is the absolute top concern. Otherwise, alloys like 6061, 2024, or 7075 offer excellent machinability alongside other critical mechanical and environmental properties.

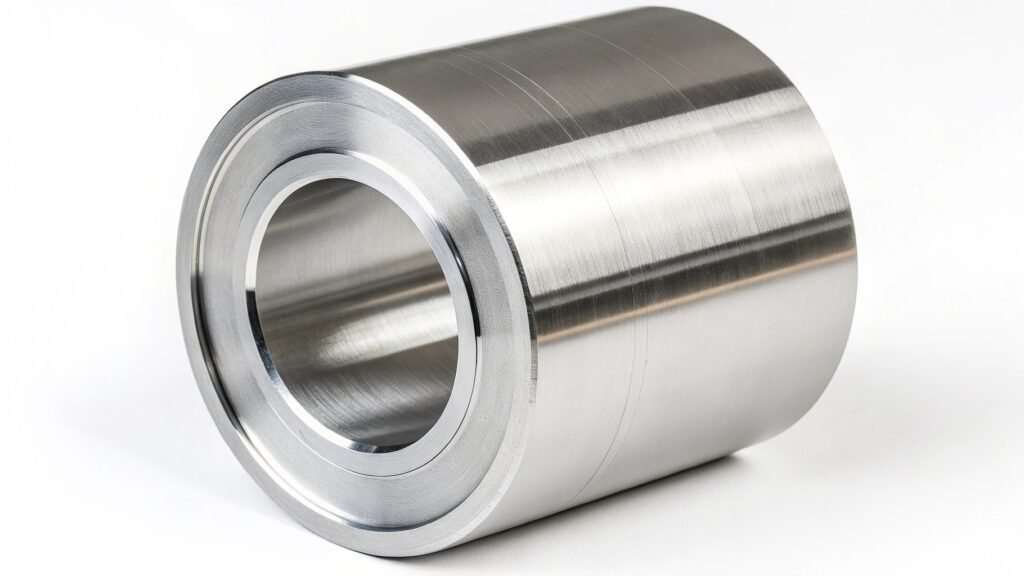

What is the standard aluminum for machining?

Have you ever wondered which aluminum alloy is the workhorse of machine shops, the go-to choice that balances machinability with a wide range of other useful properties? There's definitely an alloy that stands out as the industry standard.

The standard aluminum for general-purpose machining is 6061 aluminum, particularly in the T6 temper (6061-T6). It is widely chosen due to its excellent balance of properties: good strength, very good corrosion resistance, good weldability, and most importantly, good machinability. While not a "free-machining" alloy like 2011, 6061-T6 is stiff enough to produce manageable chips with proper tooling and techniques, resulting in good surface finishes for a broad range of applications. Its versatility and availability make it a default choice for prototyping, fixturing, structural components, and many production parts.

At SWA Forging, 6061 is one of the most common aluminum alloys we forge into large-diameter rings and discs. Our clients frequently select 6061 for its balance of properties, knowing that the material will perform predictably in their subsequent machining operations, thanks to its reliable machinability.

Why 6061-T6 is the Industry Standard for Machining

Let's break down the reasons why 6061-T6 holds its position as the standard for machining:

1. Balanced Properties:

   • Strength: 6061-T6 offers good strength (tensile strength typically around 310 MPa or 45 ksi, yield strength around 275 MPa or 40 ksi) which is sufficient for a vast array of structural and mechanical components.
   • Corrosion Resistance: It provides good general atmospheric corrosion resistance, making it suitable for outdoor applications and less harsh environments.
   • Weldability: 6061 is readily weldable using common welding techniques, although strength in the heat-affected zone may be reduced if not post-weld heat treated.
   • Versatility: This combination of properties makes it extremely versatile, used in everything from bicycle frames and truck components to architectural structures and marine applications.

2. Good Machinability:

   • While not as "free-machining" as alloys like 2011 (which is specifically engineered for chip breaking), 6061-T6 offers predictable and manageable machinability. Its relatively high strength in the T6 temper helps in producing more brittle and manageable chips compared to softer, gummier alloys.
   • With sharp tools, appropriate cutting parameters (speeds, feeds, depth of cut), and proper lubrication/coolant, 6061-T6 can achieve good surface finishes and tight tolerances.
   • It is less prone to the extreme gumminess and continuous chip formation seen in some 5xxx or 1xxx series alloys.

3. Availability and Cost-Effectiveness:

   • 6061 is one of the most widely produced and readily available aluminum alloys in various forms (sheet, plate, bar, extrusions, forgings). This broad availability contributes to its relatively lower cost compared to more specialized high-strength alloys like 7075.
   • Its widespread use means machine shops are well-acquainted with its characteristics and have established machining practices for it.

4. Applications Driven by Machinability:

   • Fixtures and Jigs: Machinists frequently use 6061-T6 to build custom fixtures and jigs due to its stability, machinability, and ability to hold tight tolerances.
   • Prototype Parts: Its ease of machining makes it a popular choice for prototyping new designs.
   • General Structural Components: Any part that requires a combination of strength, corrosion resistance, and is produced via machining, often defaults to 6061-T6.

While more specialized alloys might offer superior machinability (like 2011) or higher strength (like 7075), 6061-T6 remains the "standard" aluminum for machining due to its excellent all-around performance and widespread applicability.

Is 5052 aluminum machinable?

Have you ever worked with 5052 aluminum, known for its excellent formability and corrosion resistance, and then tried to machine it? You might have noticed it behaves differently than other common aluminum alloys.

Yes, 5052 aluminum is machinable, but it is generally considered to have fair to good machinability, not excellent. Its primary alloying element, magnesium (2.2-2.8%), gives it a somewhat gummy or sticky characteristic when cut. This gumminess often leads to the formation of long, continuous chips that can tangle around cutting tools and the workpiece, requiring careful chip management and frequent chip breaking. To achieve good results, it's essential to use very sharp, high-positive rake cutting tools, liberal amounts of coolant or lubrication, and optimized cutting parameters (e.g., higher feed rates with lower cutting speeds to promote chip shearing rather than tearing). Despite these challenges, it is regularly machined for applications where its specific properties, like excellent formability and marine corrosion resistance, are required.

At SWA Forging, we value the diverse properties of aluminum alloys, including those that offer superior formability and corrosion resistance like 5052. While our focus is on forging, we understand that our clients frequently machine these materials, and we emphasize that even "gummier" alloys can be successfully machined with the right approach.

Machining Characteristics of 5052 Aluminum

Let's explore the specifics of machining 5052 aluminum:

1. The "Gummy" Factor:

   • Magnesium Content: The magnesium content in 5052 (and even more so in 5083) makes it relatively soft and ductile compared to heat-treated alloys like 6061-T6 or 7075-T6. This softness and ductility contribute to its excellent formability but can make it "gummy" during machining.
   • Chip Formation: When machined, 5052 tends to produce long, stringy, continuous chips. These chips do not break easily, can wrap around tools, clog flutes, and scratch the workpiece surface.

2. Strategies for Successful Machining:

   • Sharp Tooling: This is paramount. Use extremely sharp, high-quality cutting tools, preferably carbide-tipped, with a highly polished surface finish on the flutes to prevent chip adhesion.
   • Tool Geometry:
     • High-Positive Rake Angles: This promotes a shearing action rather than a pushing action, reducing cutting forces and improving chip flow.
     • Large Helix Angles: Helps to lift chips out of the cut.
     • Large Gullets/Chip Pockets: Essential to accommodate the long chips and prevent recutting.
   • Coolant/Lubrication: Use a generous flow of coolant (water-soluble oil or synthetic coolants) or cutting fluid/wax. This helps to:
     • Reduce friction and heat buildup.
     • Prevent built-up edge (BUE) on the cutting tool.
     • Flush chips away from the cutting zone.
     • Improve surface finish.
   • Cutting Parameters:
     • Lower Cutting Speeds: Can help reduce heat and chip welding.
     • Higher Feed Rates: Can sometimes promote chip breaking by forcing the chip to curl and break against itself or the workpiece. Experimentation is often needed.
     • Aggressive Depth of Cut: A deeper cut can also promote chip breaking and prevent rubbing.
   • Chip Evacuation: Plan tool paths and use air blasts or coolant streams to actively clear chips from the cutting zone.

3. Expected Results:

   • Surface Finish: Can be good to very good if parameters are optimized and BUE is avoided.
   • Tool Life: Can be shorter if chip management is poor or tools are not sharp.
   • Production Rate: Slower than free-machining alloys due to chip control challenges.

Comparison with Other Alloys:

• Compared to 2011: 5052 is far less machinable than 2011, which is designed for easy chip breaking.
• Compared to 6061-T6: 5052 is generally considered less machinable than 6061-T6 because 6061's harder temper promotes better chip formation.
• Compared to 5083: 5052's machinability is very similar to 5083, perhaps slightly easier as 5083 has even more magnesium. Both are "gummy" 5xxx series alloys.
• Compared to Pure Aluminum (1100): 5052 is significantly more machinable than pure aluminum, which is extremely gummy.

In conclusion, while 5052 aluminum presents machining challenges due to its gumminess and chip formation, it is certainly machinable. Success hinges on selecting the correct cutting tools, using ample lubrication, and carefully optimizing cutting parameters to manage chips effectively.

Conclusion

5083 aluminum is machinable, but its high magnesium content makes it somewhat gummy, requiring specific tooling and techniques for good results. Generally, 2011 is the most machinable aluminum grade due to its free-machining properties, while 6061-T6, 2024-T3, and 7075-T6 are also excellent choices. 2011 is considered the best aluminum for machining, particularly for high-volume, precise parts. The standard aluminum for general machining is 6061-T6, offering a great balance of machinability and other essential properties. Lastly, 5052 aluminum is machinable, but like 5083, its gumminess necessitates very sharp tools, ample coolant, and careful chip management.
