Is aluminum easily bendable?

Wondering if aluminum will cooperate when you try to shape it? The fear of cracking or ruining a piece of aluminum can be a real concern. The good news is, many types of aluminum are indeed quite bendable.

Yes, aluminum can be easily bendable, but it greatly depends on the specific alloy, its temper (hardness), the thickness of the material, and the bend radius. Softer alloys and annealed tempers are much easier to bend than harder, high-strength ones.

At SWA Forging, we shape aluminum under immense pressure in our forging processes, creating robust rings and discs. This experience gives us a deep understanding of how different aluminum alloys behave under stress. While our methods are industrial, the underlying principles of aluminum's ductility and malleability apply even to simpler bending tasks. Let's explore what makes aluminum bendable and what factors you need to consider.

How flexible is aluminum?

Trying to figure out just how much give aluminum has before it breaks? Misjudging its flexibility can lead to unexpected fractures. Aluminum's flexibility varies widely, primarily based on its alloy and temper.

Aluminum's flexibility, in terms of ease of bending without fracture, relates to its ductility. Softer aluminum alloys¹ (like 1100 or 3003) or those in an annealed ('O') temper are very ductile and flexible. Harder alloys (like 6061-T6 or 7075-T6) are much less flexible and more prone to cracking if bent cold with a tight radius.

When we talk about flexibility in metals, we often mean two things: how easily it deforms (related to yield strength) and how much it can deform before fracturing (ductility). Aluminum, as a material class, is generally considered more ductile than many steels, especially when comparing pure aluminum or soft alloys. For example, the 1xxx series alloys (like 1100) are over 99% pure aluminum and are extremely ductile and easy to bend. The 3xxx series (like 3003) also exhibits excellent formability.

However, as alloying elements are added and heat treatments are applied to increase strength (like in the 6xxx and 7xxx series in T6 temper), the ductility decreases. This means these stronger alloys are less "flexible" in the sense of tolerating sharp bends without cracking. They require larger bend radii. For instance, 6061-O (annealed) is very flexible, but 6061-T6 (heat-treated) is significantly stiffer and less forgiving. We see this daily at SWA Forging; the starting billet material might be more malleable than the final heat-treated forged part. Therefore, "flexibility" isn't a single property but a result of the interplay between alloy composition and its metallurgical condition (temper).

What is the easiest metal to bend?

Searching for a metal that bends with minimal effort for your project? Struggling with stiff materials can be frustrating and time-consuming. Pure, soft metals are generally the easiest to bend.

The easiest metals to bend are typically those that are very pure and soft, with low yield strength and high ductility. Examples include annealed pure aluminum (like 1100 alloy), annealed copper, lead, and tin. These can often be bent by hand with little force.

When you're looking for the absolute easiest metal to bend, you're seeking materials with very low resistance to permanent deformation (low yield strength) and the ability to stretch significantly before breaking (high ductility).
Here are some of the top contenders:

• Lead: Extremely soft and malleable, lead can be easily shaped by hand even in relatively thick sections. Its low melting point and toxicity limit its applications, though.
• Tin: Similar to lead, tin is very soft and pliable. It's often used in solder and coatings.
• Annealed Copper: Copper in its annealed (softened) state is very ductile and easy to bend. It's commonly used for plumbing and electrical wiring partly for this reason. It does work-harden, meaning it gets stiffer as you bend it.
• Pure Aluminum (e.g., 1100 alloy in 'O' temper): This is nearly pure aluminum and is exceptionally soft and ductile. You can often bend thin sheets or rods of 1100-O aluminum with minimal effort. This is quite different from the high-strength aluminum alloys we might forge at SWA Forging, which require significant force.
• Gold and Silver: These precious metals are famously malleable and ductile, which is why they are so well-suited for intricate jewelry work.

The "easiest" also depends on the thickness and form of the metal. A thin sheet of almost any metal will be easier to bend than a thick bar. However, comparing metals of similar dimensions, those listed above will offer the least resistance. For structural applications, these very soft metals are often not strong enough, so a balance between ease of forming and final strength is usually required.

Should you heat aluminum to bend it?

Worried about cracking that aluminum part when you try to bend it cold? Applying heat can help, but doing it incorrectly might weaken the material. The need for heat depends on several factors.

For thinner sheets of softer aluminum alloys, heating is often unnecessary. However, for thicker plates, harder alloys (like 6061-T6), or when making tight bends, gently heating the aluminum can increase its ductility, making bending easier and reducing the risk of cracking.

Deciding whether to apply heat before bending aluminum is a common question, and it's something we consider even in our industrial forging processes, though at much higher temperatures. For hand bending, here’s a breakdown:

• When you might NOT need heat:
  • Thin material (e.g., sheets under 1/8 inch or 3mm).
  • Soft alloys (like the 1xxx, 3xxx, or 5xxx series in softer tempers).
  • Annealed material (e.g., 6061-O).
  • Large bend radii.
• When heating is beneficial or necessary:
  • Harder Alloys: Heat-treatable alloys in their strengthened tempers (like 6061-T6, 7075-T6) are much less ductile cold. Gentle heating can temporarily soften them.
  • Thicker Sections: More material means more resistance to bending. Heat reduces this resistance.
  • Tight Bend Radii: Sharp bends put more stress on the outer surface of the material. Heat helps the material stretch without cracking.
  • Preventing Springback: Heating can sometimes reduce the amount the aluminum tries to spring back to its original shape after bending.

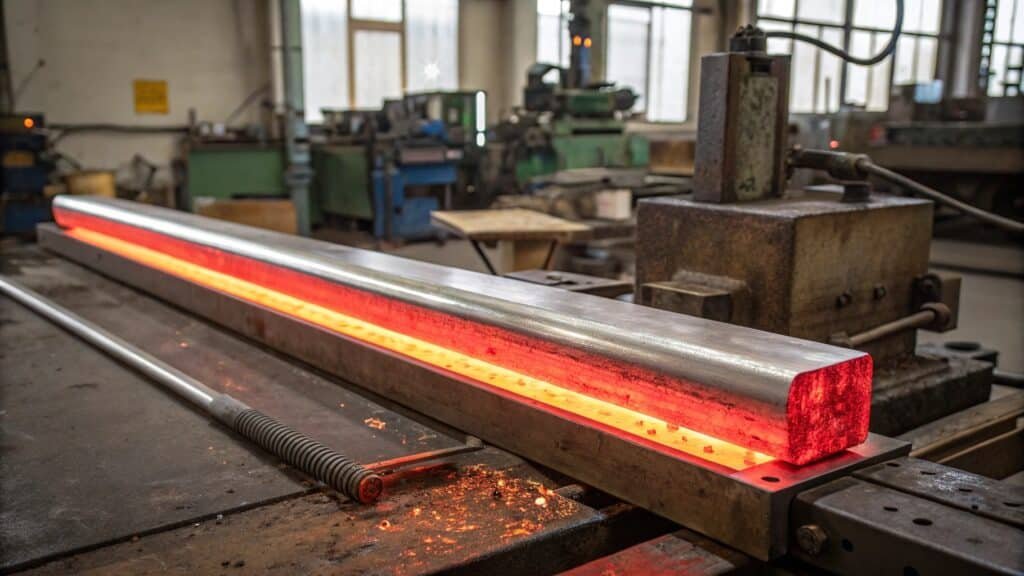

If you do heat aluminum, it’s crucial not to overheat it, especially for heat-treated alloys. Overheating a T6-tempered alloy can partially or fully anneal it in the heated zone, permanently reducing its strength in that area. For alloys like 6061-T6, warming the bend area to around 200-400°F (93-204°C) is often sufficient. You can use temperature-indicating crayons or even see if a drop of water sizzles off quickly. For severe bends in hard alloys, a full anneal might be performed first, followed by bending, and then potentially re-heat treating if the original strength is required.

How stiff is aluminium?

Designing a part and need to know how much aluminum will flex under load? Using a material that's too flexible can lead to unwanted deflection. Aluminum is significantly less stiff than steel.

Aluminum is roughly one-third as stiff as steel. This means for a given shape and load, an aluminum part will deflect (bend elastically) about three times more than an identical steel part. Stiffness is measured by Young's Modulus (Modulus of Elasticity).

Stiffness refers to a material's resistance to elastic deformation – how much it deflects under a given load without permanently bending. This is scientifically quantified by its Young's Modulus (or Modulus of Elasticity), typically denoted by 'E'. A higher Young's Modulus means a stiffer material.

• Aluminum alloys typically have a Young's Modulus around 69-70 GPa (Gigapascals), or about 10,000 ksi (kilopounds per square inch). This value is fairly consistent across different aluminum alloys; alloying and temper have a minor effect on stiffness compared to their effect on strength or ductility.
• Steel, by comparison, has a Young's Modulus of approximately 200 GPa (or about 29,000 ksi).

This means steel is about three times stiffer than aluminum. If you take an aluminum beam and a steel beam of the exact same dimensions and apply the same load, the aluminum beam will bend (elastically) about three times as much. This is a critical consideration in structural design. To achieve the same stiffness as a steel component, an aluminum component often needs to be designed with a deeper section or a different geometry (e.g., using I-beams or hollow tubes) to compensate for its lower modulus. However, aluminum's advantage is its lower density (about one-third that of steel). This means that for applications where stiffness-to-weight ratio is important, aluminum can still be very competitive, as you can use a larger, stiffer aluminum section that still weighs less than a smaller steel section of equivalent stiffness. At SWA Forging, this balance of strength, stiffness, and weight is key for many of the components our clients specify.

Conclusion

Aluminum's bendability varies greatly with its alloy and temper, but many types are indeed manageable. Understanding its flexibility and stiffness, and when to apply heat, ensures successful forming.
