Are you compromising on strength and reliability by relying solely on standard aluminum bars for your critical applications? SWA Forging's precision-forged components offer a higher caliber of performance.
When the inherent limitations of standard aluminum bars prevent achieving peak strength, fatigue life, and structural integrity, SWA Forging's custom-forged aluminum rings and discs provide a superior, monolithic solution with optimized material properties tailored for demanding industrial needs.
Many engineers and procurement specialists begin their material selection process by looking at standard aluminum bars, such as those made from 6061 or 5052 alloys. These bars are widely available and serve well for many general-purpose applications, especially when ease of machining is a primary concern. For example, 6061 is a popular choice for its good all-around properties, and 5052 is known for its excellent corrosion resistance1. However, for applications that push the boundaries of performance—requiring exceptional strength, resistance to fatigue, or components with complex stress patterns—simply machining a part from a standard bar can be insufficient. The material's grain structure might not be aligned optimally for the stresses it will encounter, and there's always a risk of inherent defects. At SWA Forging, we specialize in taking high-performance aluminum alloys and transforming them through custom forging into components that offer a fundamentally higher level of structural integrity and reliability. Our process refines the grain structure, aligns it with the part's geometry, and eliminates internal flaws, creating parts that significantly outperform those machined from basic bar stock for critical applications.

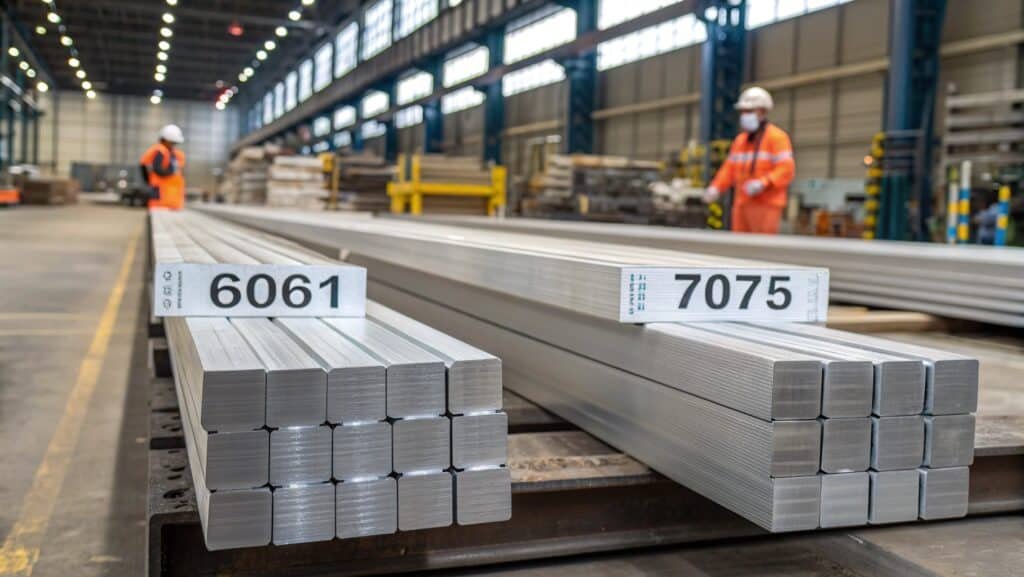

Which is better, 6061 or 7075 aluminum?
The "better" choice between 6061 and 7075 aluminum2 depends entirely on the specific application's requirements for strength, weldability, and cost.
For applications requiring a good balance of strength, corrosion resistance, and weldability, 6061 is often the preferred choice. However, for applications where maximum strength is the absolute priority, 7075 is significantly stronger and is favored in aerospace and high-stress components, though it is more expensive and harder to weld.
When clients at SWA Forging are deciding on the right alloy, the comparison between 6061 and 7075 is a frequent topic. They represent different tiers of aluminum alloy performance. Alloy 6061 is a workhorse in the aluminum industry. It's a medium-to-high strength alloy that offers an excellent combination of properties: good corrosion resistance, good weldability, and good machinability. It’s versatile and cost-effective, making it suitable for a vast range of applications like bicycle frames, automotive parts, and general structural components. Alloy 7075, on the other hand, is in a league of its own when it comes to strength. It's one of the strongest commercially available aluminum alloys, often compared to high-strength steels. This superior strength comes from its zinc alloying element and is further enhanced by heat treatment. Because of this, 7075 is predominantly used in aerospace, military applications, and high-performance sporting equipment where weight savings and maximum strength are critical. However, 7075 is more expensive, less corrosion-resistant than 6061, and significantly more difficult to weld. So, "better" really means "more appropriate" for the job at hand. For applications demanding the absolute peak in strength and reliability, especially in critical stress areas, the superior properties of a forged 7075 alloy are unmatched.
Alloy comparison summary:
- 6061: Balanced properties, good weldability, good corrosion resistance, moderate strength, cost-effective.
- 7075: Very high strength, excellent strength-to-weight ratio, poor weldability, moderate corrosion resistance, higher cost.
The choice hinges on whether maximum strength or a blend of properties is needed.

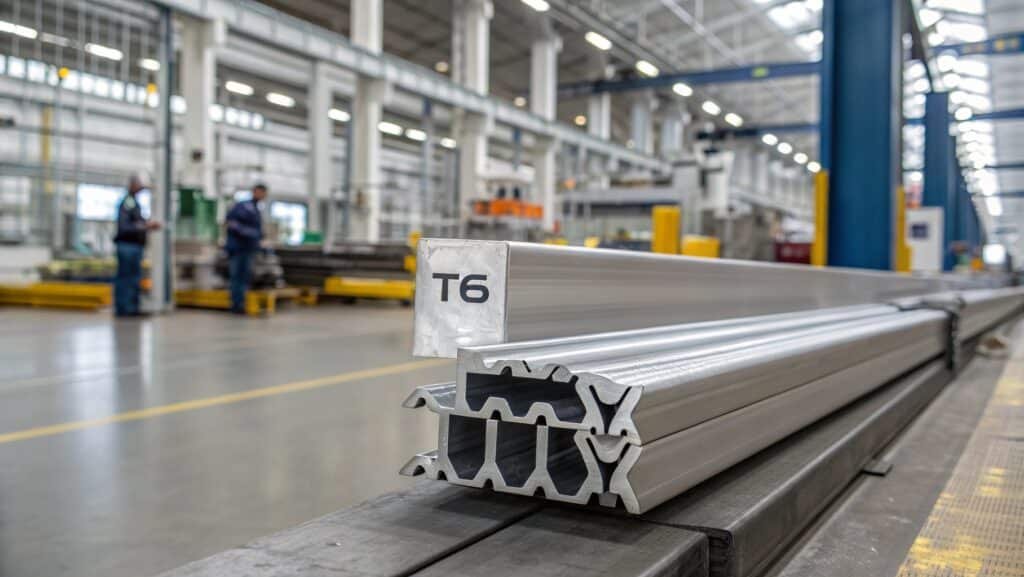

What does T6 mean in aluminum?
In aluminum alloys, "T6" refers to a specific heat treatment condition that significantly enhances the material's strength and hardness.
T6 temper signifies that an aluminum alloy has undergone solution heat treatment followed by artificial aging. This process puts the aluminum into a hardened state, increasing its yield strength, tensile strength, and hardness to near-maximum levels for that particular alloy, making it much stronger and more suitable for structural applications.
For clients at SWA Forging, understanding temper designations like T6 is crucial because it directly relates to the performance of the aluminum components we produce. The "T" in T6 stands for "Temper," indicating a mechanical or heat-treated condition. The "6" refers to a specific process: solution heat treatment followed by artificial aging. In the solution heat treatment phase, the alloy is heated to a high temperature to dissolve alloying elements into the aluminum matrix. Then, it's rapidly cooled (quenched). This traps the elements in a supersaturated solid solution. In the artificial aging phase, the alloy is heated again, but to a lower temperature, for a specific duration. This controlled heating causes fine particles of the alloying elements to precipitate out of the solution within the aluminum grains. This precipitation process hardens the metal significantly, increasing its strength and hardness. So, when you see "6061-T6" or "7075-T6," it means you're getting an aluminum alloy that has been processed to achieve very high mechanical properties, making it robust and reliable for demanding uses. Our forging process often aims to achieve or even enhance these T6 properties.
Understanding T6 temper:
- Heat Treatment: Solution heat treatment followed by artificial aging.
- Purpose: To increase strength and hardness.
- Mechanism: Precipitation hardening through controlled aging.
- Result: Near-maximum mechanical properties for the alloy.
- Common Alloys: Found in 6061-T6, 7075-T6, etc.
T6 temper indicates a highly strengthened condition of the aluminum alloy.
What is the difference between 6061 and 6061-T6 aluminum?
The difference between 6061 and 6061-T6 is the heat treatment applied to the alloy.
6061 is the aluminum alloy designation, while 6061-T6 specifies that the 6061 alloy has been heat-treated to the T6 temper. This T6 treatment significantly increases the strength and hardness of the 6061 alloy, making 6061-T6 much stronger than as-extruded or annealed 6061.
When discussing aluminum alloys at SWA Forging, it's common to encounter the distinction between the base alloy and its specific temper. The designation "6061" refers to the alloy composition itself—a medium-strength aluminum alloy with magnesium and silicon as the primary alloying elements. This alloy can exist in various conditions. "6061-T6," however, specifies a particular state of that alloy. As we discussed regarding the T6 temper, this means the 6061 alloy has undergone a specific heat treatment process (solution heat treatment followed by artificial aging) to maximize its mechanical strength. An aluminum bar or component labeled simply "6061" might be in an annealed (O) state or as-extruded condition, which is considerably softer and weaker than its T6 counterpart. Therefore, 6061-T6 possesses significantly higher tensile and yield strength, making it suitable for structural applications where the "as-is" or annealed 6061 would not be strong enough. This is why specifying the temper is just as important as specifying the alloy itself for critical components.
Alloy vs. Temper:
- 6061: Refers to the chemical composition of the alloy.
- 6061-T6: Refers to the 6061 alloy in a specific, strengthened heat-treated condition.
- Strength Difference: T6 temper provides significantly higher strength than annealed or as-extruded states.
- Application Impact: T6 is chosen for structural integrity and load-bearing applications.
Temper designation is critical for understanding the material's performance characteristics.
What is aluminum 5052?
Aluminum 5052 is a medium-strength aluminum alloy known for its excellent corrosion resistance, formability, and weldability.
Aluminum 5052 is a non-heat-treatable alloy, meaning its strength is primarily achieved through cold working. It contains magnesium as its main alloying element, giving it superior corrosion resistance, especially in marine environments, and making it highly formable and easy to weld, suitable for applications like boat hulls, fuel tanks, and HVAC ducting.
At SWA Forging, while we focus on high-strength alloys often in the 6000 and 7000 series, we understand the importance of other alloys like 5052 for specific applications. Aluminum 5052 belongs to the 5000 series, which are characterized by magnesium as the principal alloying element. This composition gives 5052 some unique advantages. Unlike alloys like 6061 or 7075, 5052 cannot be significantly strengthened by heat treatment; its strength comes from cold working (like rolling or drawing). This also means it retains good ductility and formability. Its standout feature is its exceptional resistance to corrosion, particularly to saltwater and marine environments, making it a common choice for boat components, offshore structures, and outdoor applications. Furthermore, 5052 is very easy to weld using standard methods, and it forms well. While it doesn't reach the sheer tensile strength of a heat-treated 6061 or a 7075, its combination of corrosion resistance, formability, and weldability makes it an excellent choice for applications where these properties are more critical than ultimate tensile strength, such as tanks, marine parts, and appliance components.
Key characteristics of 5052 aluminum:
- Alloying Element: Primarily Magnesium.
- Temperament: Non-heat-treatable (strengthened by cold working).
- Key Strengths: Excellent corrosion resistance (especially marine), good formability, excellent weldability.
- Strength: Medium strength, lower than heat-treated 6xxx and 7xxx series.
- Common Uses: Marine applications, fuel tanks, heat exchangers, appliance parts.
5052 is a go-to alloy for environments requiring superior corrosion resistance and ease of fabrication.
Conclusion
For critical applications where the strength and reliability of standard aluminum bars are insufficient, SWA Forging's custom-forged aluminum components offer a superior solution, engineered for peak performance and durability.
