2024 Aluminum Bar

Facebook
Twitter
LinkedIn
Material: Aluminum Bar
Classification: Extruded Aluminum Bar

 1. Material Composition & Manufacturing Process

2024 aluminum alloy (AMS 4120, ASTM B211) is a high-strength aircraft-grade aluminum-copper alloy prized for its excellent strength-to-weight ratio, superior machinability, and good fatigue performance. The bar stock configuration offers optimized properties for critical structural components:

  • Primary Alloying Elements:
  • Copper (Cu): 3.8-4.9% (primary strengthening element)
  • Magnesium (Mg): 1.2-1.8% (precipitation hardening)
  • Manganese (Mn): 0.3-0.9% (grain structure control)
  • Silicon (Si): ≤0.5% (improves castability)
    • Base Material:
  • Aluminum (Al): ≥90.7% (balance)
    • Controlled Impurities:
  • Iron (Fe): ≤0.5% max
  • Zinc (Zn): ≤0.25% max
  • Titanium (Ti): ≤0.15% max
  • Chromium (Cr): ≤0.10% max
  • Other elements: ≤0.05% each, ≤0.15% total

Premium Manufacturing Process:

  1. Billet Preparation:
  • Primary high-purity aluminum (99.7% minimum)
  • Precise alloying element additions
  • Filtration through ceramic foam filters
  • Degassing treatment (hydrogen < 0.15 ml/100g)
  • Direct-chill semi-continuous casting
    1. Homogenization:
  • 480-500°C for 12-24 hours
  • Uniform temperature control: ±5°C
  • Microstructural equilibration
  • Cu-rich phase dissolution
    1. Extrusion:
  • Preheating to 370-400°C
  • Lubrication optimization
  • Computerized extrusion force monitoring
  • Exit temperature control: 450-480°C
  • Cooling rate optimization for property development
  • Straightening within 4mm/m
    1. Solution Heat Treatment:
  • 490-500°C for 1 hour (diameter-dependent)
  • Temperature uniformity: ±3°C
  • Rapid transfer to quenching medium
    1. Quenching:
  • Cold water (5-30°C)
  • Agitation for uniform cooling
  • Maximum transfer time: 15 seconds
  • Minimum cooling rate: 100°C/sec at surface
    1. Cold Straightening:
  • Hydraulic press straightening
  • Maximum 1-2% cold work
  • Residual stress minimization
    1. Artificial Aging:
  • T3: Natural aging at room temperature
  • T351: Stress relief + natural aging
  • T4: Solution heat treated + natural aging
  • T6: Artificial aging at 190°C for 12 hours

Full process traceability with lot-specific quality documentation.

2. Mechanical Properties of 2024 Aluminum Bar

Property T351 (min) T351 (typical) T6 (min) T6 (typical) Test Method
Ultimate Tensile Strength 425 MPa 440-470 MPa 440 MPa 460-490 MPa ASTM E8
Yield Strength (0.2%) 290 MPa 310-345 MPa 345 MPa 360-400 MPa ASTM E8
Elongation (2 inch) 10% 12-17% 5% 6-10% ASTM E8
Hardness (Brinell) 110 HB 115-125 HB 120 HB 125-135 HB ASTM E10
Fatigue Strength (5×10⁸) 130 MPa 140-150 MPa 120 MPa 125-140 MPa ASTM E466
Shear Strength 270 MPa 285-300 MPa 280 MPa 290-310 MPa ASTM B769
Fracture Toughness (K₁c) 26 MPa√m 28-32 MPa√m 20 MPa√m 22-25 MPa√m ASTM E399
Modulus of Elasticity 73.1 GPa 73.1 GPa 73.1 GPa 73.1 GPa ASTM E111

Property Distribution:

  • Longitudinal to transverse property ratio: 1.00:0.85-0.90
  • Variation across diameter: <5% for bars up to 100mm
  • Core to surface hardness variation: <8 HB
  • Property retention after thermal exposure: Excellent below 100°C

3. Microstructural Characteristics

Key Microstructural Features:

  1. Grain Structure:
  • Elongated grains in extrusion direction
  • ASTM grain size 5-7 (50-70μm)
  • Aspect ratio: 2:1 to 5:1
  • Subgrain development in T351 temper
    1. Precipitate Distribution:
  • Al₂Cu (θ/θ’) strengthening precipitates: 5-50nm
  • Al₂CuMg (S-phase) precipitates
  • Al₁₂Mn₃Si dispersoids: 50-200nm
  • Al₇Cu₂Fe intermetallics: Controlled size and distribution
    1. Texture Development:
  • Strong <111> and <100> fiber textures
  • Deformation texture retained after heat treatment
  • Texture intensity: 3-8× random
    1. Special Features:
  • Recrystallization controlled by Mn dispersoids
  • Natural aging involves GP zone formation
  • T6 temper: θ’ (Al₂Cu) precipitate dominance
  • Precipitate-free zones near grain boundaries: <50nm

4. Dimensional Specifications & Tolerances

Parameter Standard Range Precision Tolerance Commercial Tolerance Test Method
Diameter (Round) 10-300 mm ±0.15mm up to 30mm ±0.25mm up to 30mm Micrometer
    ±0.5% above 30mm ±1.0% above 30mm
Width (Rectangle) 10-250 mm ±0.20mm up to 50mm ±0.30mm up to 50mm Caliper
    ±0.4% above 50mm ±0.8% above 50mm
Length 2000-6000 mm ±3mm ±6mm Tape measure
Straightness N/A 0.5mm/m 1.0mm/m Straightedge
Twist (Rectangular) N/A 2° max per meter 4° max per meter Protractor
Surface Roughness N/A 3.2 μm Ra max 6.3 μm Ra max Profilometer

Standard Available Forms:

  • Round Bar: Diameters 10-300mm
  • Hexagonal Bar: Across flats 10-100mm

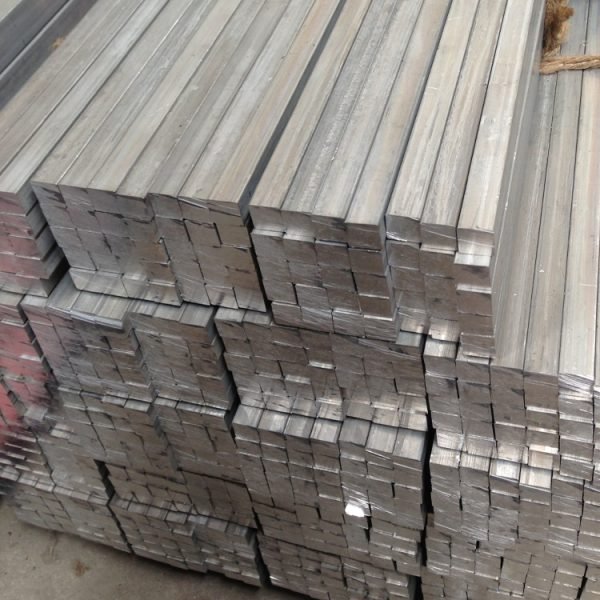

  • Square Bar: Side dimensions 10-150mm
  • Rectangular Bar: Width up to 250mm, thickness from 10mm
  • Cut-to-length service available

5. Temper Designations & Heat Treatment Options

Temper Code Process Description Optimal Applications Key Characteristics
T351 Solution heat treated, stress relieved by stretching (1-3%), naturally aged Aerospace structural components, machined parts Excellent machinability, good strength-toughness balance
T4/T451 Solution heat treated, naturally aged Parts requiring maximum formability Best formability, moderate strength
T6/T651 Solution heat treated, artificially aged Maximum strength applications Highest strength, reduced ductility
T861 Solution heat treated, cold worked, artificially aged Highly stressed components High strength with good SCC resistance
T3 Solution heat treated, cold worked, naturally aged General purpose applications Good balance of properties

Temper Selection Guidance:

  • T351: Optimal for parts machined from bar stock
  • T6: When maximum strength is required
  • T4: When post-forming operations are needed
  • T861: For components exposed to high stress in corrosive environments

6. Machining & Fabrication Characteristics

Operation Tool Material Recommended Parameters Comments
Turning Carbide, PCD Vc=300-600 m/min, f=0.1-0.3 mm/rev Excellent chip breaking
Drilling HSS-Co, Carbide Vc=70-120 m/min, f=0.2-0.4 mm/rev Good hole quality
Milling Carbide, PCD Vc=300-700 m/min, fz=0.1-0.3 mm Climb milling preferred
Tapping HSS-E, TiN coated Vc=15-25 m/min Excellent thread quality
Reaming Carbide, PCD Vc=40-80 m/min, f=0.2-0.5 mm/rev H7 tolerance achievable
Deep Drilling Carbide, HSS-Co Vc=60-90 m/min, pecking cycle Excellent chip evacuation

Fabrication Guidance:

  • Machinability Rating: 70% (1100 aluminum = 100%)
  • Surface Finish: Excellent (Ra 0.8-3.2μm achievable)
  • Chip Formation: Short to medium chips
  • Coolant: Water-soluble emulsion preferred (8-10% concentration)
  • Tool Wear: Moderate with proper parameters
  • Burr Formation: Minimal with sharp tooling
  • Cold Working: Good formability in T4 condition
  • Hot Working: 350-450°C recommended temperature range
  • Weldability: Limited (pre-welding cleaning critical)

7. Corrosion Resistance & Protection Systems

Environment Type Resistance Rating Protection Method Expected Performance
Industrial Atmosphere Moderate Anodizing + paint 5-10 years with maintenance
Marine Environment Poor Anodizing + chromate + paint 3-5 years with maintenance
High Humidity Fair Anodizing Type II 2-3 years without additional protection
Stress Corrosion Poor in T351, Better in T861 Shot peening + protection Application specific
Exfoliation Fair to Good Proper heat treatment T7x tempers preferred for critical apps

Surface Protection Options:

  • Anodizing:
  • Type II (Sulfuric): 10-25μm thickness
  • Type III (Hard): 25-75μm thickness
  • Chromic: 2-7μm (aerospace applications)
    • Conversion Coatings:
  • Chromate per MIL-DTL-5541 Class 1A
  • Non-chromium alternatives available
    • Painting Systems:
  • Epoxy primer + polyurethane topcoat
  • Aerospace-qualified systems available
    • Mechanical Protection:
  • Shot peening for enhanced fatigue and SCC resistance
  • Burnishing for improved surface finish

8. Physical Properties for Engineering Design

Property Value Design Consideration
Density 2.78 g/cm³ Weight calculation for components
Melting Range 502-638°C Heat treatment limitations
Thermal Conductivity 120-150 W/m·K Thermal management design
Electrical Conductivity 30-40% IACS Electrical applications design
Specific Heat 875 J/kg·K Thermal mass calculations
Thermal Expansion (CTE) 23.2 ×10⁻⁶/K Thermal stress analysis
Young’s Modulus 73.1 GPa Deflection and stiffness calculations
Poisson’s Ratio 0.33 Structural analysis parameter
Machinability Rating 70% (1100=100%) Manufacturing planning

Design Considerations:

  • Operating Temperature Range: -80°C to +120°C
  • Property Retention: Excellent below 100°C
  • Electrical Conductivity: 30% IACS (T3), 40% IACS (T6)
  • Stress Relaxation: Minimal below 100°C
  • Magnetic Properties: Non-magnetic
  • Damping Capacity: Low (typical of aluminum alloys)

9. Quality Assurance & Testing

Standard Testing Procedures:

  1. Chemical Composition:
  • Optical emission spectroscopy
  • Verification of all major elements and impurities
    1. Mechanical Testing:
  • Tensile testing (longitudinal and transverse)
  • Hardness testing (Brinell or Rockwell)
  • Electrical conductivity for temper verification
    1. Dimensional Inspection:
  • Diameter/dimensions at multiple locations
  • Straightness verification
  • Surface finish measurement
    1. Visual Inspection:
  • Surface defects assessment
  • Finish quality verification
    1. Specialized Testing (When Required):
  • Ultrasonic inspection per AMS-STD-2154
  • Penetrant inspection
  • Grain flow evaluation
  • Microstructural examination

Standard Certifications:

  • Mill Test Report (EN 10204 3.1)
  • Chemical analysis certification
  • Mechanical properties certification
  • Heat treatment certification
  • Dimensional inspection report

10. Applications & Design Considerations

Primary Applications:

  • Aircraft landing gear components
  • Aerospace fittings and connectors
  • High-strength structural elements
  • Critical automotive components
  • Defense industry applications
  • Precision machine parts
  • Mold tooling components
  • High-performance bolts and fasteners
  • Hydraulic system components
  • Connecting rods and drive shafts

Design Advantages:

  • Excellent strength-to-weight ratio
  • Superior machinability for complex parts
  • Good fatigue performance
  • High fracture toughness in T351 condition
  • Dimensional stability after machining
  • Suitable for critical load-bearing applications
  • Good wear resistance with appropriate surface treatments
  • Proven history in aerospace applications
  • Predictable and consistent properties
  • Widely available in various sizes and forms
