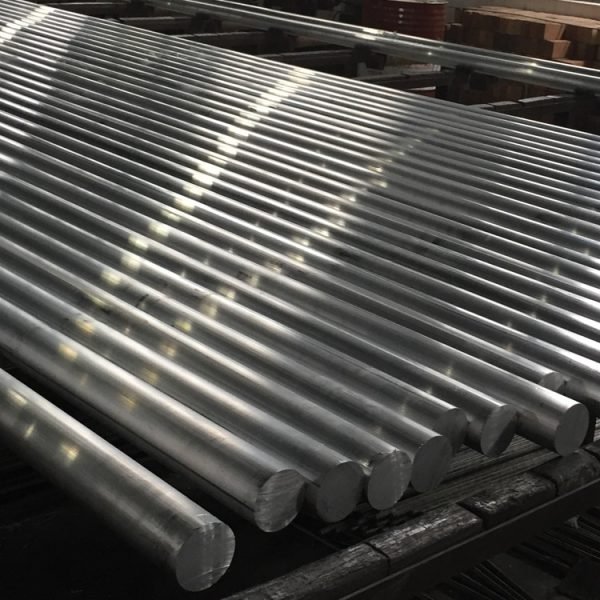

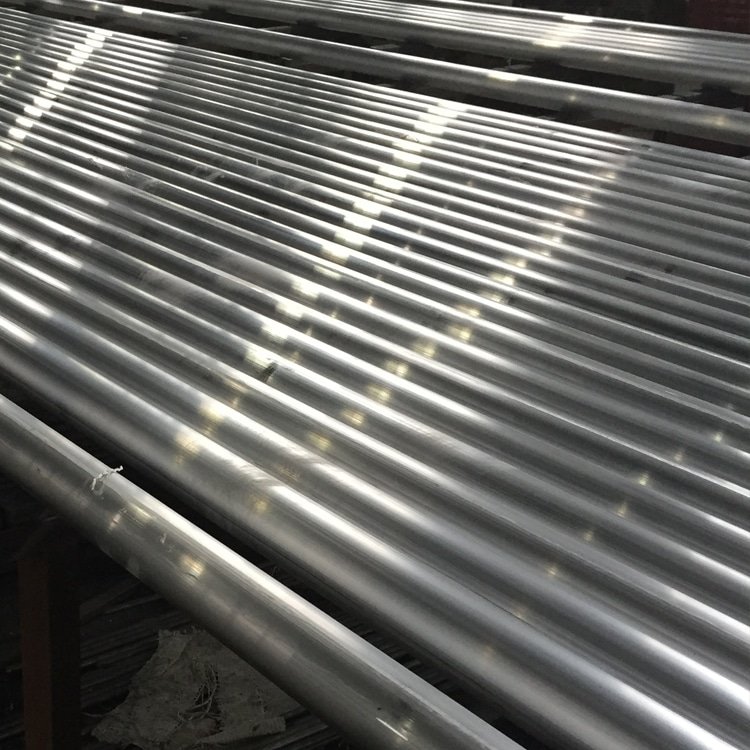

7075-T6 Aluminum Round Bar

Facebook
Twitter
LinkedIn
Material: Aluminum Bar
Classification: Extruded Aluminum Bar

1. Material Composition & Manufacturing Process

7075-T6 aluminum round bar represents the pinnacle of high-strength aluminum alloys, offering an exceptional combination of strength, hardness, and stress resistance for aerospace, defense, and high-performance mechanical applications:

  • Primary Alloying Elements:
  • Zinc (Zn): 5.1-6.1% (principal strengthening element)
  • Magnesium (Mg): 2.1-2.9% (enhances precipitation hardening)
  • Copper (Cu): 1.2-2.0% (improves strength and stress resistance)
  • Chromium (Cr): 0.18-0.28% (corrosion resistance and grain structure control)
    • Base Material:
  • Aluminum (Al): ≥87.1% (balance)
    • Controlled Impurities:
  • Iron (Fe): ≤0.50% max
  • Silicon (Si): ≤0.40% max
  • Manganese (Mn): ≤0.30% max
  • Titanium (Ti): ≤0.20% max
  • Other elements: ≤0.05% each, ≤0.15% total

Premium Manufacturing Process:

  1. Melt Preparation:
  • Primary high-purity aluminum (99.7% minimum)
  • Precise alloying element additions with ±0.1% tolerance
  • Advanced filtration through ceramic foam filters (30-40 ppi)
  • SNIF degassing treatment (hydrogen < 0.10 ml/100g)
  • Grain refinement with Al-Ti-B master alloy
  • Direct-chill (DC) semi-continuous casting
    1. Homogenization:
  • 460-480°C for 24-48 hours
  • Uniform temperature control: ±5°C
  • Controlled cooling rate: 20-30°C/hour
  • Dissolution of coarse intermetallics
  • Microsegregation elimination
    1. Hot Working Process:
  • Breakdown forging/rolling: 385-415°C
  • Intermediate operations: 370-400°C
  • Final hot working: 350-380°C
  • Computerized temperature monitoring throughout
    1. Solution Heat Treatment:
  • 465-485°C for 1-2 hours (diameter dependent)
  • Temperature uniformity: ±3°C
  • Rapid transfer to quenching medium
  • Maximum transfer time: 10 seconds
    1. Quenching:
  • Cold water (10-30°C)
  • Agitation for uniform cooling
  • Minimum cooling rate: 100°C/sec at surface
    1. Cold Stretching (T651):
  • 5-3.0% permanent deformation
  • Stress relief and straightening
  • Dimensional accuracy enhancement
    1. Artificial Aging (T6):
  • Dual-stage aging process:
    • First stage: 110-130°C for 4-6 hours
    • Second stage: 165-175°C for 8-12 hours
  • Temperature uniformity: ±3°C
  • Controlled cooling after aging
    1. Final Processing:
  • Precision centerless grinding (optional)
  • Stress-free straightening
  • Nondestructive testing
  • Surface treatment and protection

Full process traceability with computerized quality monitoring at all stages.

2. Mechanical Properties of 7075-T6 Aluminum Round Bar

Property Minimum Typical Range Test Method
Ultimate Tensile Strength 570 MPa 580-600 MPa ASTM E8
Yield Strength (0.2%) 500 MPa 510-540 MPa ASTM E8
Elongation (2 inch) 7% 8-11% ASTM E8
Hardness (Brinell) 150 HB 155-165 HB ASTM E10
Fatigue Strength (5×10⁸) 160 MPa 170-190 MPa ASTM E466
Shear Strength 330 MPa 340-360 MPa ASTM B769
Fracture Toughness (K₁c) 24 MPa√m 25-29 MPa√m ASTM E399
Compressive Yield Strength 520 MPa 530-550 MPa ASTM E9
Modulus of Elasticity 71.7 GPa 71.7-72.4 GPa ASTM E111

Property Distribution:

  • Longitudinal to transverse property ratio: 1.00:0.95 (strength), 1.00:0.75 (elongation)
  • Variation across diameter: <5% for diameters up to 75mm, <8% for diameters >75mm
  • Core to surface hardness variation: <10 HB for diameters up to 100mm
  • Property stability: <3% strength reduction after 10,000 hours at 100°C
  • Stress Corrosion Cracking Threshold: 125-175 MPa (dependent on environment)

3. Microstructural Characteristics

Key Microstructural Features:

  1. Grain Structure:
  • Partially recrystallized structure with elongated grains
  • ASTM grain size 7-9 (32-16μm)
  • Aspect ratio: 2:1 to 4:1 (length:width)
  • Well-controlled grain flow pattern
    1. Precipitate Distribution:
  • MgZn₂ (η/η’) strengthening precipitates: 5-15nm
  • CuMgAl₂ (S-phase) precipitates
  • Al₇Cu₂Fe intermetallics: Controlled size and distribution
  • Al₁₂Mg₂Cr dispersoids: 50-200nm
    1. Texture Development:
  • Strong <111> and <100> fiber textures
  • Texture intensity: 3-8× random
  • Optimized for maximum strength in primary loading directions
    1. Special Features:
  • Precipitation-hardened microstructure
  • Minimal precipitate-free zones (PFZs) at grain boundaries
  • Controlled distribution of coarse intermetallics
  • Fine dispersoid distribution for recrystallization control

4. Dimensional Specifications & Tolerances

Parameter Standard Range Precision Tolerance Commercial Tolerance Test Method
Diameter 10-250 mm ±0.10mm up to 30mm ±0.20mm up to 30mm Micrometer
    ±0.4% above 30mm ±0.7% above 30mm
Ovality N/A 50% of diameter tolerance 75% of diameter tolerance Micrometer
Length 2000-6000 mm ±2mm ±5mm Tape measure
Straightness N/A 0.2mm/m 0.5mm/m Straightedge
Surface Roughness N/A 1.6 μm Ra max 3.2 μm Ra max Profilometer
Cut End Squareness N/A 0.5° max 1.0° max Protractor

Standard Available Forms:

  • Diameters: 10mm to 250mm (larger sizes available on request)
  • Standard Lengths: 2000mm, 3000mm, 4000mm, 6000mm
  • Custom cut lengths available
  • Centerless ground bars available for precision applications
  • Saw-cut ends with protective end caps

5. Temper Designations & Heat Treatment Options

Temper Code Process Description Optimal Applications Key Characteristics
T6 Solution heat treated and artificially aged High-strength applications Maximum strength and hardness
T651 T6 + stress relieved by stretching Critical aerospace components Improved stress corrosion resistance
T73 Overaged for stress corrosion resistance Corrosion-critical applications Better SCC resistance with reduced strength
T76 Modified overaging treatment Balanced properties Compromise between T6 and T73
T7351 T73 + stress relieved by stretching Thick sections with residual stress concerns Dimensional stability with SCC resistance

Temper Selection Guidance:

  • T6/T651: Highest strength requirements
  • T73/T7351: Stress-corrosion critical applications
  • T76: Balanced properties for general aerospace applications

6. Machining & Fabrication Characteristics

Operation Tool Material Recommended Parameters Comments
Turning Carbide, PCD Vc=150-300 m/min, f=0.1-0.3 mm/rev Sharp tools essential
Drilling HSS-Co, Carbide Vc=60-120 m/min, f=0.15-0.35 mm/rev Frequent chip clearing
Milling Carbide, PCD Vc=180-350 m/min, fz=0.05-0.15 mm Climb milling preferred
Tapping HSS-Co, TiN coated Vc=10-20 m/min Thread quality sensitive to heat
Reaming Carbide, PCD Vc=40-90 m/min, f=0.1-0.3 mm/rev H7 tolerance achievable
Thread Milling Carbide Vc=100-200 m/min, fz=0.03-0.08 mm Preferred over tapping for critical threads

Fabrication Guidance:

  • Machinability Rating: 70% (1100 aluminum = 100%)
  • Surface Finish: Good (Ra 0.8-3.2μm achievable)
  • Chip Formation: Short to medium chips with proper tooling
  • Coolant: Water-soluble emulsion preferred (8-10% concentration)
  • Tool Wear: Moderate with proper parameters
  • Cutting Forces: Higher than other aluminum alloys
  • Weldability: Poor (not recommended for structural applications)
  • Cold Working: Limited formability
  • Hot Working: Not recommended in T6 condition
  • Heat Treatment: Can be fully re-heat treated after machining

7. Corrosion Resistance & Protection Systems

Environment Type Resistance Rating Protection Method Expected Performance
Industrial Atmosphere Fair Anodizing + paint 3-5 years with maintenance
Marine Environment Poor Anodizing + chromate + paint 2-3 years with maintenance
High Humidity Fair Anodizing Type II 1-2 years without additional protection
Stress Corrosion Poor in T6, Good in T73 Proper temper selection Application specific
Exfoliation Poor Proper temper + protection Critical in marine applications
Galvanic Corrosion Poor with carbon steels Isolation or sacrificial protection Requires careful design

Surface Protection Options:

  • Anodizing:
  • Type I (Chromic): 2-8μm (aerospace grade)
  • Type II (Sulfuric): 10-25μm (general purpose)
  • Type III (Hard): 25-75μm (wear resistance)
  • Sealing options: Hot water, dichromate, nickel acetate
    • Conversion Coatings:
  • Chromate per MIL-DTL-5541 Class 1A
  • Non-chromium alternatives for environmental compliance
    • Painting Systems:
  • Epoxy primer + polyurethane topcoat
  • Aerospace-qualified systems available
    • Mechanical Protection:
  • Shot peening for enhanced fatigue and SCC resistance
  • Glass bead blasting for uniform appearance

8. Physical Properties for Engineering Design

Property Value Design Consideration
Density 2.81 g/cm³ Weight calculation for components
Melting Range 477-635°C Heat treatment limitations
Thermal Conductivity 130-150 W/m·K Thermal management design
Electrical Conductivity 33-40% IACS Electrical applications design
Specific Heat 860 J/kg·K Thermal mass calculations
Thermal Expansion (CTE) 23.4 ×10⁻⁶/K Thermal stress analysis
Young’s Modulus 71.7 GPa Deflection and stiffness calculations
Poisson’s Ratio 0.33 Structural analysis parameter
Magnetic Permeability ~1.00 (non-magnetic) Electronic applications

Design Considerations:

  • Operating Temperature Range: -70°C to +120°C
  • Property Retention: Excellent below 100°C, gradual degradation above
  • Stress Relaxation: Minimal below 100°C
  • Fatigue Life: Superior to most aluminum alloys
  • Notch Sensitivity: Moderate to high
  • Cryogenic Performance: Good strength retention at low temperatures
  • Vibration Damping: Poor (typical of high-strength aluminum)

9. Quality Assurance & Testing

Standard Testing Procedures:

  1. Chemical Composition:
  • Optical emission spectroscopy
  • X-ray fluorescence analysis
  • Verification of all major elements and impurities
    1. Mechanical Testing:
  • Tensile testing (longitudinal and transverse)
  • Hardness testing (Brinell, Rockwell B)
  • Impact testing (when required)
  • Fatigue testing (for critical applications)
    1. Dimensional Inspection:
  • Diameter/ovality at multiple locations
  • Straightness verification
  • Length measurement
    1. Nondestructive Testing:
  • Ultrasonic inspection per AMS-STD-2154
  • Eddy current testing for surface defects
  • Penetrant inspection (critical applications)
    1. Microstructural Analysis:
  • Grain size determination
  • Intermetallic particle evaluation
  • Exfoliation corrosion susceptibility (ASTM G34)

Standard Certifications:

  • Mill Test Report (EN 10204 3.1)
  • Chemical analysis certification
  • Mechanical properties certification
  • Heat treatment certification
  • Nondestructive testing certification
  • Material traceability documentation

10. Applications & Design Considerations

Primary Applications:

  • Aerospace Components:
  • Aircraft landing gear components
  • Wing spars and structural elements
  • Fuselage frames and bulkheads
  • Engine mounts and supports
    • Defense Applications:
  • Missile components
  • Weapons systems parts
  • Armored vehicle components
  • Tactical equipment fixtures
    • High-Performance Automotive:
  • Drive shafts
  • Suspension components
  • Connecting rods
  • Performance-critical fasteners
    • Industrial Equipment:
  • High-stress machine parts
  • Molds for plastic injection
  • Hydraulic system components
  • Robotics and automation components
    • Specialized Applications:
  • Precision instrument components
  • High-performance sporting equipment
  • Rock climbing equipment
  • Camera mounting systems

Design Advantages:

  • Exceptional strength-to-weight ratio
  • Superior fatigue performance
  • High resistance to mechanical wear
  • Excellent machining characteristics
  • Dimensional stability after machining
  • Reliable performance in high-stress applications
  • Comprehensive material database for engineering design
  • Wide availability in standard sizes
