What are the 4 types of forging?

Have you ever wondered how strong metal parts, like those in your car engine or an airplane's landing gear, are made to withstand immense forces? The secret often lies in the ancient yet highly advanced manufacturing process of forging, which isn't a single technique but a family of methods.

The primary types of forging are distinguished by how the metal is shaped and the kind of dies used, broadly categorized into: 1) Open-die forging¹, which shapes metal between simple, flat dies allowing for large, incremental deformation; 2) Closed-die forging² (or impression-die forging), where metal fills a pre-designed die cavity to form a specific shape; 3) Ring rolling, which forms seamless rings by reducing the wall thickness of a heated doughnut-shaped preform; and 4) Upset forging, which increases the cross-sectional area of a workpiece by compressing its length, often at the ends. Each type offers distinct advantages for producing parts with enhanced mechanical properties.

At SWA Forging, we deeply understand these different types as our expertise lies in shaping aluminum through advanced forging techniques, especially open-die and ring rolling, to create large, high-integrity components. We use our knowledge of these processes to deliver the best solutions to our clients.

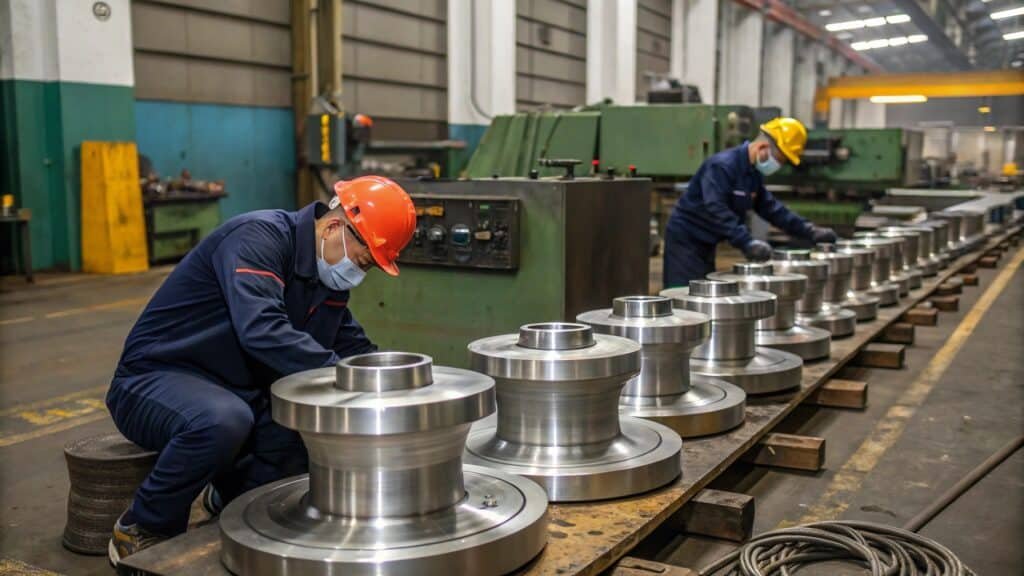

What is the difference between conventional forging and precision forging?

Are you curious about the nuances in forging techniques, specifically what sets "conventional" apart from "precision" forging? The distinction lies in the level of detail, tolerance, and post-processing required.

The main difference between conventional forging and precision forging lies in the dimensional tolerances achieved, the complexity of the final shape, and the amount of subsequent machining required. Conventional forging aims to achieve a general shape with broad tolerances, often necessitating significant post-forging machining to reach final dimensions and surface finishes. In contrast, precision forging produces parts with much tighter tolerances, closer-to-net shapes, and finer surface finishes, thereby minimizing or even eliminating the need for extensive machining, which leads to material savings and reduced production costs, though it typically involves higher tooling costs and more stringent process control.

At SWA Forging, while our large-diameter forgings often fall under conventional open-die forging in terms of initial shape, our commitment to tight dimensional control and uniform material properties means we often apply principles of precision to our initial forging process, minimizing waste and ensuring optimal machinability for our clients.

Key Distinctions Between Conventional and Precision Forging

The evolution from conventional to precision forging is driven by the demand for reduced material waste, lower machining costs, and improved product performance.

1. Dimensional Tolerances:

   • Conventional Forging: Characterized by relatively loose tolerances. The forged part will be close to the desired final shape but requires significant material removal (machining) to achieve final dimensions and surface finish. Often includes significant flash.
   • Precision Forging: Aims for much tighter tolerances, reducing or eliminating the need for machining. Features like holes, pockets, and thin webs can be formed directly during forging, minimizing material waste and production steps.

2. Surface Finish:

   • Conventional Forging: Typically rougher surface finish, necessitating machining for functional surfaces or aesthetic appeal.
   • Precision Forging: Achieves a finer, smoother surface finish, often acceptable for direct use without further finishing, depending on the application.

3. Material Utilization (Buy-to-Fly Ratio):

   • Conventional Forging: Can have a higher "buy-to-fly" ratio, meaning a larger percentage of the initial material is removed as scrap during machining.
   • Precision Forging: Produces "near-net shape" or "net-shape" parts, significantly reducing material waste and improving the buy-to-fly ratio. This is particularly valuable for expensive or difficult-to-machine alloys like some titanium or high-strength aluminum alloys.

4. Tooling Costs and Complexity:

   • Conventional Forging: Dies are generally simpler and less expensive, designed for gross shaping rather than fine detail.
   • Precision Forging: Requires highly precise and complex dies, often made from specialized materials and manufactured with tighter tolerances. This results in higher initial tooling costs.

5. Process Control:

   • Conventional Forging: While process control is always important, precision forging demands much stricter control over heating temperatures, deformation rates, die lubrication, and cooling cycles to achieve the desired tight tolerances and surface quality.

6. Applications:

   • Conventional Forging: Used for a wide range of parts where strength is paramount and subsequent machining is acceptable, such as large structural components, heavy machinery parts, and initial shaping of complex geometries.
   • Precision Forging: Ideal for aerospace components, automotive transmission parts, gears, surgical implants, and other applications where material savings, weight reduction, and minimal post-processing are critical.

Precision forging represents an advancement over conventional methods, offering economic and performance benefits for specific applications, especially with high-value materials.

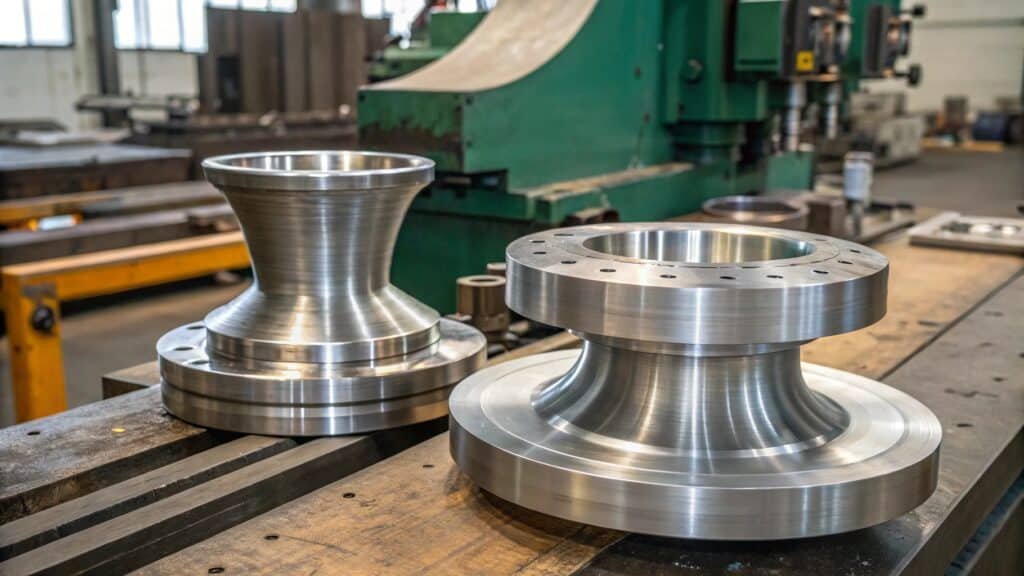

What is upset forging also known as?

Have you ever heard the term "upset forging" and wondered if it has other names or what it actually entails? It's a fundamental forging technique with a distinct purpose.

Upset forging is also commonly known as "heading" or "hot upsetting." This specific type of forging involves increasing the cross-sectional area of a localized portion of a workpiece by compressing its length, typically along its axis, resulting in a bulged or "upset" section. This process is frequently used to form heads on bolts, valves, or other fasteners, or to create an enlarged section on a shaft, as it effectively consolidates the metal and refines the grain structure in the upset area, enhancing strength and impact resistance where needed.

While SWA Forging primarily focuses on large rings and discs, understanding processes like upset forging is crucial for a complete grasp of how aluminum components are optimized for strength and form in various industrial applications.

Details of Upset Forging (Heading)

Upset forging is a specialized form of impression-die forging, unique in its primary action of shortening and thickening a part.

1. Process Description:

   • A length of bar stock is heated (usually locally at one end or a specific section).
   • One end of the bar is clamped in a die.
   • A ram or punch then strikes the free, heated end of the bar, compressing it axially.
   • This compression causes the material to flow radially outward, increasing its diameter (upsetting it) to fill the die cavity, thus forming a larger cross-section or a "head."
   • Multiple steps or blows may be used to achieve the final shape, gradually forming the desired upset portion.

2. Key Characteristics and Advantages:

   • Material Concentration: Upset forging allows for the concentration of material where it's needed for strength or specific features, rather than removing material through machining.
   • Grain Flow Optimization: The process maintains and refines the continuous grain flow of the material, directing it to where the greatest stress will occur, thus enhancing strength, toughness, and fatigue resistance in the upset section.
   • Reduced Material Waste: It's a near-net-shape process for the upset area, leading to less material waste compared to machining a head from a larger diameter bar.
   • High Production Rates: Upset forging machines (upsetters) are often highly automated and can achieve high production speeds, making the process very efficient for mass-produced items like fasteners.

3. Common Applications:

   • Fasteners: The most common application is forming the heads of bolts, screws, rivets, and other threaded fasteners.
   • Valve Stems: Creating the enlarged section for valve heads.
   • Shafts: Forming flanges, collars, or other larger diameter sections on shafts, such as axle shafts or connecting rods (though connecting rods are more often fully closed-die forged).
   • Tooling: Forming hammer heads, chisel ends, or other tool components.

Comparison with other Forging Types:

• Open-die and Closed-die forging: Primarily focus on changing the overall shape and elongating or spreading the material. Upset forging specifically focuses on shortening and thickening a localized section.
• Ring Rolling: Forms a hollow ring by radial compression. Upset forging typically works with solid bar stock to create a solid, enlarged section.

While aluminum can be upset forged, it's particularly common for steel and steel alloys due to their properties and the high demand for upset-forged steel fasteners.

What are the major types of forgery?

Have you ever encountered the word "forgery" and immediately thought of someone creating fake documents or art? That's one common meaning, but the term "forgery" in the context of manufacturing actually refers to a specific type of process.

In the context of manufacturing, there are not "major types of forgery" as the term "forgery" itself specifically refers to the act of fraudulently making or altering a document, signature, or artwork to deceive. The correct term in metalworking and manufacturing is "forging," which is a metal-shaping process. The major types of forging operations include open-die forging, closed-die forging (or impression-die forging), ring rolling, and upset forging, each offering distinct methods for shaping metal to enhance its mechanical properties. It's crucial to distinguish between "forgery" (the crime) and "forging" (the manufacturing process).

I want to clarify this common linguistic pitfall. While SWA Forging is all about creating real, high-quality aluminum products through forging, we have absolutely nothing to do with the fraudulent act of forgery. My job is to explain the metalworking process clearly.

Clarifying "Forgery" vs. "Forging"

It's a simple, single-letter difference in spelling, but it makes all the difference in meaning.

1. Forgery (Crime):

   • Definition: The act of falsely making or materially altering, with intent to defraud, any writing which, if genuine, might be of legal efficacy or the foundation of a legal liability. This includes creating fake documents, signatures, currency, or works of art.
   • Examples: Signing someone else's name on a check, creating counterfeit money, fabricating a will, reproducing a famous painting and claiming it's an original.
   • Nature: It is a criminal act involving deception.

2. Forging (Manufacturing Process):

   • Definition: A manufacturing process involving the shaping of metal using localized compressive forces. The blows are delivered with a hammer (often powered by hydraulics, steam, or electricity) or a press.
   • Purpose: To deform metal into desired shapes, enhance its mechanical properties (like strength, toughness, and fatigue resistance) by refining its grain structure and creating a continuous grain flow, and eliminate internal defects.
   • Examples: Making crankshafts for cars, aircraft landing gear, large industrial gears, hand tools, and, in our case at SWA Forging, large aluminum rings and discs.
   • Nature: It is a legitimate and widely used industrial manufacturing technique.

Why the Confusion?
The word "forge" (verb) can mean both "to make or shape a metal object by heating it in a fire or furnace and beating or hammering it" AND "to produce a fraudulent copy or imitation of (a document, signature, banknote, or work of art)." The noun "forgery" only refers to the fraudulent act. The noun for the metalworking process is "forging."

It's important for clear communication, especially in technical fields, to use the correct terminology. As a ghostwriter for SWA Forging, I always ensure to use "forging" when referring to the metalworking process.

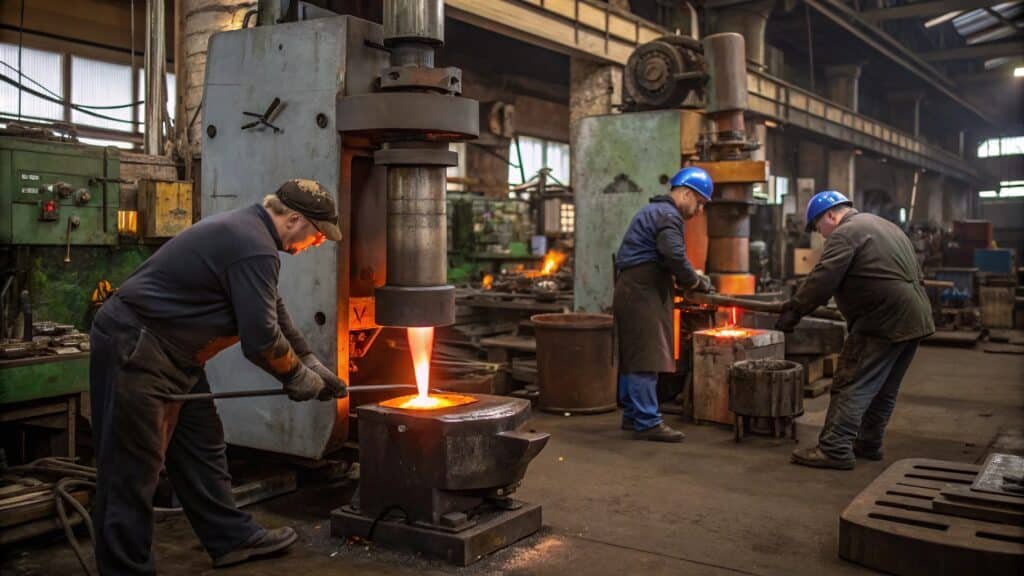

What are the three main classes of forging?

Have you ever considered that the broad category of "forging" isn't a single, uniform process, but rather encompasses a few fundamental approaches that determine the final properties and applications of the metal part? Understanding these classes helps clarify the entire field.

The three main classes of forging are typically defined by the method of force application and interaction with the die: 1) Hammer forging (or drop forging), which uses repeated blows from a hammer to deform the metal; 2) Press forging, which applies continuous, slow pressure to shape the metal; and 3) Roll forging, which uses rotating rolls to reduce the cross-section and increase the length of a workpiece. These classes dictate the speed of deformation, the type of equipment used, and can influence the resulting material properties, each suited for different part complexities and production volumes.

At SWA Forging, our operations primarily involve presses for large-diameter components, as press forging offers the controlled deformation necessary for the high-integrity aluminum products we create. We consider these fundamental classes in every project.

Details of the Three Main Forging Classes

These three classes represent the fundamental ways that force is applied to deform the metal during the forging process.

1. Hammer Forging (or Drop Forging):

   • Process: The metal is shaped by a series of rapid, impactful blows from a hammer (or ram) onto the workpiece. The hammer might be gravity-powered, pneumatic, hydraulic, or steam-driven. Dies are typically attached to the hammer and anvil.
   • Characteristics:
     • High Strain Rate: The deformation occurs very quickly due to the sudden impact.
     • Dynamic Loading: The energy transfer is dynamic.
     • Equipment: Drop hammers (gravity drop, air/steam drop), counterblow hammers.
     • Advantages: Lower tooling costs (dies don't experience continuous pressure), can create complex shapes in multiple blows, suitable for lower to medium production volumes.
     • Disadvantages: Less control over deformation than press forging, can introduce more vibrations, potentially less uniform grain flow (especially for complex parts).
   • Sub-types: Open-die hammer forging, closed-die hammer forging.
   • Applications: Connecting rods, hand tools, gears, some aerospace components.

2. Press Forging:

   • Process: The metal is shaped by a continuous, slow squeezing action from a hydraulic or mechanical press. The force is applied steadily over the entire deformation stroke.
   • Characteristics:
     • Low Strain Rate: Deformation occurs slowly and uniformly.
     • Static Loading: Continuous pressure.
     • Equipment: Hydraulic presses, mechanical presses.
     • Advantages: Better control over deformation, allows for full die filling, more uniform properties throughout the part, less vibration, suitable for large parts and high production volumes.
     • Disadvantages: Higher initial equipment cost, slower than hammer forging for single blows.
   • Sub-types: Open-die press forging, closed-die press forging.
   • Applications: Large crankshafts, turbine discs, large structural components, artillery shells, large aluminum forgings (like those we make at SWA Forging).

3. Roll Forging:

   • Process: A continuous forging process where the cross-section of a workpiece is reduced, and its length is simultaneously increased, by passing it between two rotating rolls. The rolls have contoured grooves that progressively shape the metal.
   • Characteristics:
     • Incremental Deformation: Shaping occurs over several passes or sections of the roll.
     • Material Elongation: Primarily used to create long, tapered, or pre-formed sections.
     • Equipment: Roll forging machines.
     • Advantages: High material utilization, good surface finish, high production rates for suitable parts, often used as a pre-forming step for subsequent hammer or press forging.
     • Disadvantages: Limited to relatively simple shapes (often round or flat sections), not suitable for complex 3D parts.
   • Applications: Axle shafts, leaf springs, pre-forming blanks for connecting rods, knives, and various tapered components.

Each of these classes plays a vital role in the forging industry, providing the means to produce a vast array of high-performance metal components.

Conclusion

The four main types of forging are open-die, closed-die, ring rolling, and upset forging, each offering unique shaping capabilities. Precision forging differs from conventional by achieving tighter tolerances and requiring less machining, leading to material and cost savings. Upset forging is also known as heading, used to thicken localized sections. The three main classes of forging are hammer (impact), press (continuous squeeze), and roll forging (incremental shaping), distinguished by their force application and suitable for different parts and volumes.
