What are the most common aluminum round tube sizes?

Are you trying to find aluminum tubes but the range of sizes is confusing? Ordering the wrong size can cause delays and waste money. Understanding common sizes makes your project simpler.

Aluminum round tubes come in many sizes. Common outer diameters (OD) start from 1/4 inch and can go over 6 inches. Wall thicknesses also vary a lot. Your specific project, whether small or large, will decide the best OD and wall thickness.

At SWA Forging, we believe in "Master Southwest Aluminum Right." We mainly make large-diameter forged aluminum rings and forged discs. But understanding material details is a big part of our work. Our clients include traders who stock common items. They also include sourcing managers at machining plants who need exact parts. This knowledge helps them. Even though we might not make small extruded tubing, knowing about sizing is key for anyone working with aluminum. So, let's look at the common dimensions for aluminum round tubes.

What are the common sizes of aluminum tubing?

Feeling lost with so many aluminum tube size options? Picking the wrong one can mess up your build. Knowing the usual ranges helps you find the right material faster.

Common Outer Diameters (ODs) are 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1.5", 2", and even larger. Wall thicknesses go from thin (like 0.035") to thick (like 0.250"+). What's available often depends on the alloy and the supplier.

When we talk about aluminum tubing sizes, two main numbers are important. These are the Outer Diameter (OD) and the Wall Thickness. The OD is the measurement across the outside of the tube. The Wall Thickness tells you how thick the tube's material is. These two measurements together decide the Inside Diameter (ID). They also determine the tube's strength. For instance, someone making a small model might use a 1/4 inch OD tube. This tube might have a thin wall, perhaps 0.035 inches. But if you are building a structural frame, you might need a 2-inch OD tube. This tube would need a thicker wall, like 0.125 inches or even 0.250 inches, for more strength. The most common aluminum alloys for tubing, such as 6061 and 6063, come in many of these sizes. Here is a general guide to give you an idea:

At SWA Forging, we are very familiar with exact dimensions. Our custom forged rings and discs need high precision. Our clients, especially those in machining, depend on this. So, understanding these sizing rules for tubing is equally important for those who use it in their work.

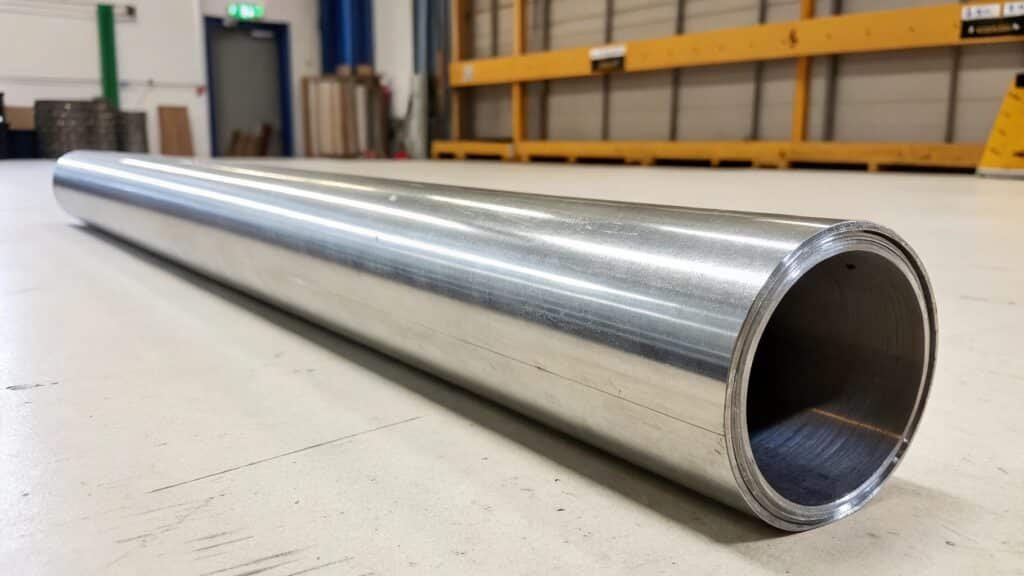

What is the standard length of an aluminium tube?

Are you unsure about the stock lengths for aluminum tubes? Ordering too little or too much creates issues. Knowing standard lengths improves project planning and purchasing.

Standard lengths for aluminum tubing are typically 6, 8, 10, 12, 20, or 24 feet. This is about 1.8 to 7.3 meters. Many suppliers can also cut tubes to custom lengths. It is always best to check with your supplier.

Standard lengths for materials like aluminum tubing are set for good reasons. These reasons include making manufacturing more efficient. They also simplify shipping and make handling easier. Just imagine trying to ship a tube that is 50 feet long! I mentioned common lengths like 6, 12, 20, and 24 feet. But "standard" can sometimes be different from one supplier to another. It can also change based on the tube's diameter and wall thickness. Very large diameter tubes might have different standard lengths than very small ones. Usually, aluminum mills produce tubing in very long, continuous pieces. Then, they cut these long pieces into the standard stock lengths they sell. If you need a specific length that is not standard, many metal suppliers offer cutting services. This is very helpful. It can reduce waste if you only need, for example, a 7-foot piece from a 12-foot standard length. I remember a situation at SWA Forging. We had a project needing large forged rings with very specific, non-standard widths for a client. We had to work very closely with our production team. This ensured precision and kept waste low. It is a similar situation with tubing. Clear communication with your supplier about length needs is very important. This is especially true for our trader customers who manage inventory. It is also true for machining plants that want to use materials wisely. Always ask your supplier what standard lengths they have. Also ask if they can provide custom cuts.

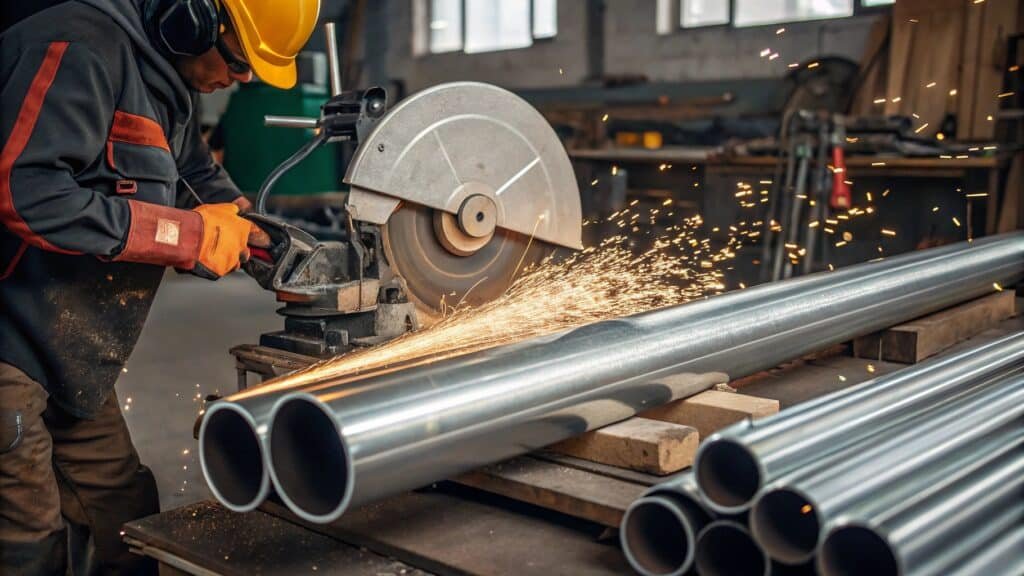

How to cut round aluminum tubing?

Do you need to cut aluminum tubes precisely for your project? Bad cuts mean wasted material and poor fits. Using the correct tools gives you clean, accurate results every time.

To cut round aluminum tubing¹, use a hacksaw with a fine-tooth blade (24-32 TPI). A specialized tubing cutter gives clean, square cuts. A power miter saw with a non-ferrous metal cutting blade also works. Always deburr edges after cutting.

Cutting aluminum tubing correctly is very important for good project results. You have a few common ways to do it. Let's break them down:

• Hacksaw: This is a basic tool that many people have. You will need a blade with fine teeth. Usually, this means 24 to 32 teeth per inch (TPI) for aluminum. It is cheap. But it can be slow. Getting a perfectly straight, square cut takes some practice.
• Tubing Cutter: This tool looks a bit like a C-clamp. It has cutting wheels. You clamp it onto the tube and rotate it. It makes very clean and square cuts. This is especially true for thinner-walled tubing. It does not remove material like a saw. Instead, it pinches and parts the metal. Be careful not to tighten it too much. It can bend very thin tubes.
• Power Miter Saw or Chop Saw: A power saw is great for faster, very accurate cuts. This is true if you have many cuts to make. You MUST use a blade made for cutting non-ferrous metals like aluminum. These blades usually have carbide tips. They also have a high tooth count and a negative hook angle. Never use a wood blade. Also, never use a steel-cutting abrasive blade.
• Band Saw: A band saw is another very good option if you do a lot of cutting. Use a fine-toothed blade that is suitable for metal.
  Always wear safety glasses, no matter which method you use. Using a lubricant can also help. Cutting oil or even WD-40 can make cutting smoother. It can also make your blade last longer. After cutting, the edges will be sharp. It is very important to deburr them. Use a file or a deburring tool for this. This makes them safer to handle. It also ensures parts will fit together well. Our clients in machining plants use very advanced cutting machines. But the basic idea of a clean, accurate cut is something we all value in metalworking at SWA Forging.

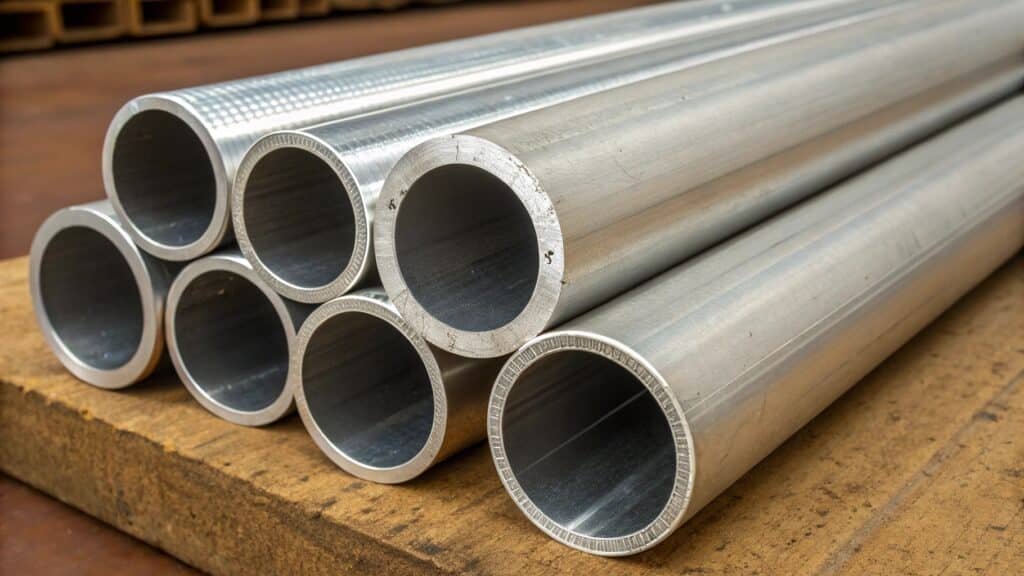

What is the inside diameter of a 5/8 inch .072 5052-0 aluminum tube?

Does calculating a tube's inside diameter seem hard? Guessing the ID can mean parts don't fit right. This causes delays. A simple formula gives you the precise answer.

To find the Inside Diameter (ID), use this formula: ID = Outer Diameter (OD) - (2 Wall Thickness). For a 5/8" (.625") OD tube with a .072" wall: ID = 0.625 - (2 0.072) = 0.625 - 0.144 = 0.481 inches.

Knowing how to calculate the Inside Diameter (ID) of a tube is a basic but important skill. It is essential when you work with these materials. The formula is quite simple:
ID = Outer Diameter (OD) - (2 x Wall Thickness)
Let's look at the example: a 5/8 inch OD, 0.072 inch wall, 5052-O aluminum tube. Here is how you find the ID:

1. First, change the OD to a decimal if it is a fraction. So, 5/8 inch is 5 divided by 8. This equals 0.625 inches.
2. The wall thickness is given as 0.072 inches.
3. The wall is on both sides of the tube when you look at its diameter. So, you need to multiply the wall thickness by 2. This means 2 times 0.072 inches equals 0.144 inches. This is the total thickness of both walls together.
4. Now, subtract this total wall thickness from the OD: 0.625 inches minus 0.144 inches equals 0.481 inches.
   So, the inside diameter of this specific tube is 0.481 inches.
   The alloy (5052) and temper (-O, which means annealed or soft) tell you about the material's properties. These include its strength and how easy it is to form. They do not directly change how you calculate the ID from the OD and wall thickness. But, the alloy and temper can affect which standard OD and wall thickness combinations are easy to find from suppliers. Knowing the ID is very important. You need it if you must fit something inside the tube, like another rod or tube. You also need it if you are calculating how much can flow through it. At SWA Forging, precision is everything to us. Our large-diameter forged rings and discs must meet very strict dimensional tolerances for our clients in machining plants. Calculating an ID correctly is a basic but critical part of this same world of precision. You can always double-check with a caliper if you have the tube. But the calculation is how it is defined.

Conclusion

Knowing common aluminum tube sizes, standard lengths, cutting methods, and ID calculation helps you succeed. This knowledge ensures you choose correctly for your aluminum tubing projects.
