What Exactly Defines an Aluminum Tube?

Confused about what an "aluminum tube" really is? Using incorrect terms or selecting the wrong profile can cause problems in your project or procurement process. Understanding the basic definition is the first step.

An aluminum tube¹ is essentially a hollow cylinder made from aluminum or one of its many alloys. These versatile profiles are used for structural purposes, fluid or gas transportation, and various fabricated components across many industries.

Knowing the definition is helpful, but understanding how these tubes come into existence and why they are chosen gives a much clearer picture. Let's explore how they are made and what makes them so useful.

How Are Aluminum Tubes Produced?

Not knowing how aluminum tubes are made can make sourcing difficult. You might not understand the different types available or their potential limitations. Learning about the main production methods clarifies this.

Aluminum tubes are primarily made using extrusion, where a heated aluminum billet is forced through a shaped die. Drawing is another method, often used for specific sizes or tolerances, involving pulling the tube through a die.
!

Dive Deeper Paragraph: Extrusion and Drawing Explained

The most common method for producing aluminum tubes is extrusion².

• Direct Extrusion: Imagine squeezing toothpaste from a tube. A heated, solid cylinder of aluminum alloy (called a billet) is placed inside a container. A powerful ram pushes the billet through a die with a specific opening (the orifice) and a central piece (the mandrel). The aluminum flows around the mandrel and through the orifice, forming a hollow tube shape. This is highly efficient for creating standard and custom tube profiles.
• Seamless vs. Structural: Extrusion can produce seamless tubes, ideal for pressure applications where leaks are unacceptable. Another method involves extruding a shape that is then welded to form a tube (structural or welded tube), which can be cost-effective but isn't suitable for high-pressure fluids.
  Drawing is often a secondary process.
• Tube Drawing: An extruded tube (called a 'tube bloom') might be pulled through a smaller die, sometimes with a plug or mandrel inside to control the inner diameter and wall thickness accurately. This process increases strength through work hardening, improves surface finish, and achieves tighter dimensional tolerances than extrusion alone.
  At SWA Forging, while we specialize in forged rings and discs, we understand the properties of alloys like 6061 or 6063 which are commonly extruded into tubes. The quality control processes we apply to our forgings are just as critical in tube manufacturing to ensure consistent dimensions and material properties, something our machining customers definitely appreciate.

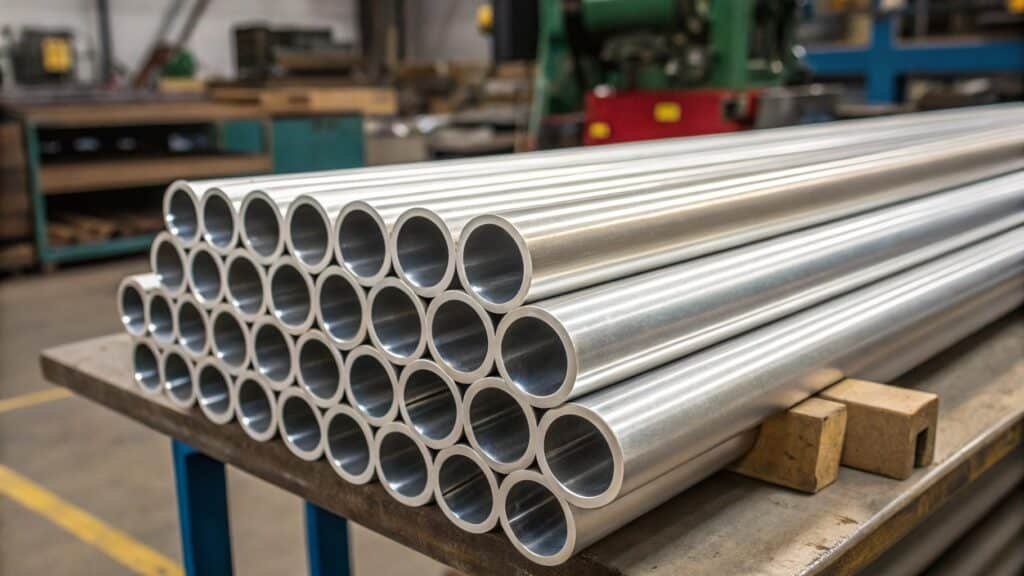

What Makes Aluminum Tubes a Good Choice?

Choosing materials for your project can be tough. If you overlook aluminum tubes, you might miss out on significant benefits like weight savings or corrosion resistance, potentially leading to a less optimal design.

Aluminum tubes offer several key advantages: they are lightweight, highly resistant to corrosion, have an excellent strength-to-weight ratio, are easily formed and machined, conduct heat and electricity well, and are fully recyclable.

Dive Deeper Paragraph: Exploring the Benefits

Let's break down why aluminum tubes are so popular:

• Lightweight³: Aluminum is about one-third the density of steel. This makes aluminum tubes much easier to handle, transport, and install. It also significantly reduces the overall weight of finished products, crucial in automotive, aerospace, and even consumer goods. Think about lighter vehicles improving fuel efficiency.
• Corrosion Resistance⁴: Aluminum naturally forms a tough, protective oxide layer when exposed to air. This layer prevents further oxidation (rusting), making aluminum tubes excellent for outdoor applications or environments where moisture is present. Different alloys offer varying degrees of corrosion resistance, but it's a fundamental advantage. This durability is something we emphasize at SWA Forging, ensuring our alloys meet quality standards.
• Strength-to-Weight Ratio⁵: While not as strong as steel volume-for-volume, aluminum's low density means it offers high strength for its weight. Certain alloys (like 6061-T6, commonly used for tubes) provide structural strength comparable to some mild steels but at a fraction of the weight.
• Formability & Machinability: Aluminum tubes can be easily bent, cut, drilled, and machined, allowing for complex designs and fabrications. This ease of working reduces manufacturing costs and time. Our machining clients value this property highly.
• Conductivity: Aluminum is a good conductor of both heat and electricity, making tubes suitable for applications like heat exchangers or electrical conduits.
• Recyclability: Aluminum can be recycled repeatedly without losing its quality, making it an environmentally friendly choice.
  These combined benefits make aluminum tubes a versatile solution for countless applications, from window frames and railings to complex machinery and structural frameworks.

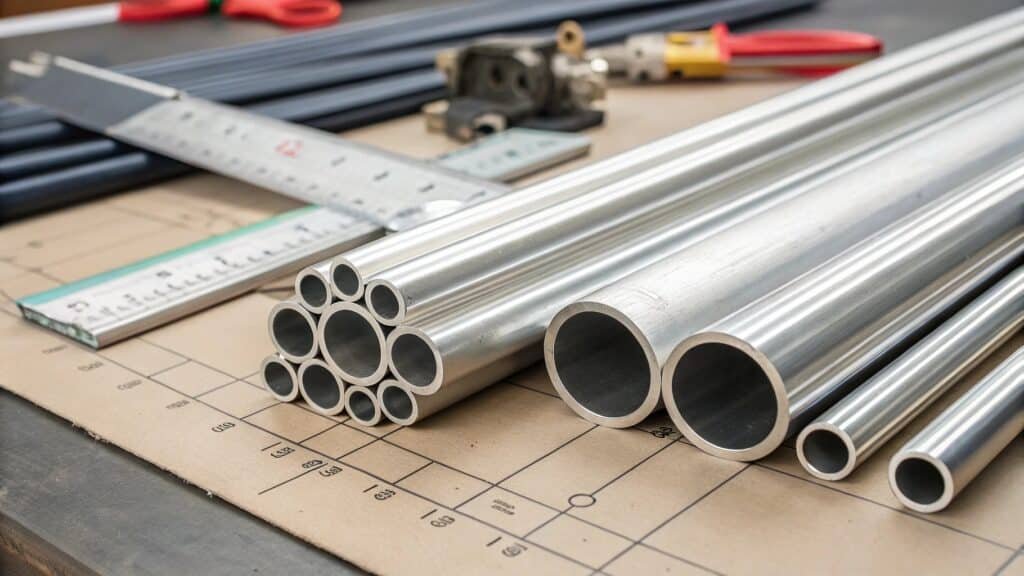

How Do You Specify Aluminum Tube Dimensions?

Ordering the wrong size aluminum tube can halt your project. Incorrect measurements lead to wasted material, costly delays, and frustration trying to make parts fit. Knowing the standard measurements prevents these issues.

Aluminum tubes are primarily specified by their Outer Diameter (OD) and Wall Thickness (WT). The Inner Diameter (ID) can be calculated from these (ID = OD - 2*WT). Length is also a required specification.

Dive Deeper Paragraph: Understanding Tube Measurements

Getting the dimensions right is critical when ordering or designing with aluminum tubes. Here’s a closer look:

• Outer Diameter (OD): This is the distance across the widest point of the tube's circular cross-section, measured from the outside surfaces. It's usually the primary size indicator.
• Wall Thickness (WT): This is the thickness of the material forming the tube wall. It directly impacts the tube's strength, weight, and Inner Diameter. Consistent wall thickness is a sign of a quality tube.
• Inner Diameter (ID): This is the diameter of the hollow space inside the tube. While sometimes specified directly, it's often calculated using the formula: ID = OD - (2 x WT). This is important for applications involving fluid flow or fitting other components inside the tube.
• Length: The overall length of the tube section required.
• Tolerances: Manufacturers produce tubes within certain dimensional tolerances (allowable variations from the specified OD, WT, and straightness). For precision applications, like those required by our machining customers at SWA Forging, understanding and specifying the necessary tolerances is crucial. Tighter tolerances usually mean higher costs but ensure better fit and performance.
• Units: Measurements can be in imperial units (inches) or metric units (millimeters). Be sure to specify which system you are using.
  Measurement Summary Table:

Clearly communicating these dimensions ensures you get the exact aluminum tube you need for your application.

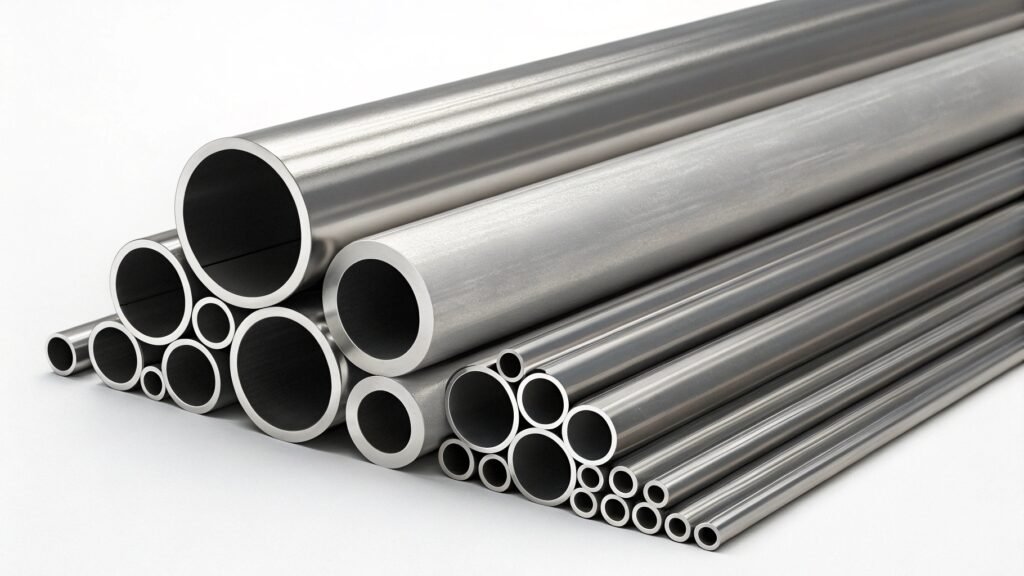

Just How Strong Are Aluminum Tubes?

You might hesitate to use aluminum tubes if you think they aren't strong enough. This could lead you to choose heavier, potentially overkill materials like steel, adding unnecessary weight and cost to your project. Let's look at the facts.

Aluminum tubes can be surprisingly strong, especially when considering their light weight. Their actual strength depends significantly on the specific aluminum alloy used, its temper (heat treatment), and the tube's dimensions, particularly wall thickness and diameter.

Dive Deeper Paragraph: Factors Influencing Tube Strength

Strength isn't a single value for "aluminum tube"; it's a result of several factors:

• Alloy Choice: This is paramount. Pure aluminum is quite soft. Alloying elements like magnesium, silicon (as in 6xxx series like 6061 or 6063, common for tubes), copper (2xxx series), or zinc (7xxx series) drastically increase strength. A 6061-T6 tube is much stronger than a 1100 (pure aluminum) tube. While we at SWA Forging focus on alloys like 6061 and 7075 for forging, these same principles apply – the alloy dictates the base material properties.
• Temper: Heat treatment (temper designation like -T6) further enhances strength. A T6 temper involves solution heat-treating and artificial aging, significantly boosting the yield and tensile strength compared to an annealed ('O') or non-heat-treated temper.
• Geometry (Dimensions):
  • Wall Thickness: A thicker wall provides much greater resistance to bending, buckling, and crushing forces. Doubling the wall thickness generally increases bending stiffness much more significantly.
  • Diameter: A larger diameter tube is inherently more rigid and resistant to bending than a smaller diameter tube with the same wall thickness.
• Strength-to-Weight Ratio: This is where aluminum shines. While a steel tube of the exact same dimensions might be stronger, it will also be roughly three times heavier. For applications where weight is critical (aerospace, automotive, portable structures), a well-designed aluminum tube often provides the necessary strength with significant weight savings.
  So, are aluminum tubes strong? Yes, when the correct alloy, temper, and dimensions are selected for the specific load and application requirements. They provide robust structural solutions across many industries.

Conclusion
Aluminum tubes are defined by their hollow cylindrical shape. Made mainly by extrusion, they offer benefits like light weight and corrosion resistance. Specify them by OD, WT, and length. Their strength depends heavily on alloy, temper, and dimensions.
