Heard about 6061-T6 aluminum but not sure what it means? Choosing the wrong aluminum spec can cause big problems in your project. It's vital to understand your materials.

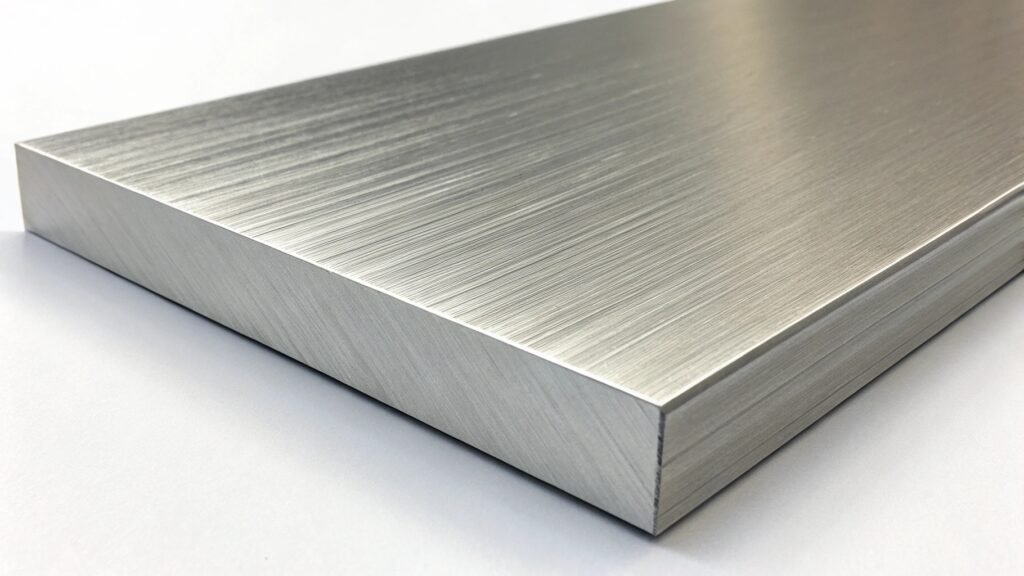

6061-T6 aluminum1 is a very popular aluminum alloy. It contains magnesium and silicon. The "T6" part means it has been heat-treated (solutionized and artificially aged) to make it much stronger and harder than regular, non-treated 6061 aluminum.
As a manufacturer of aluminum forged rings and discs at SWA Forging, we often work with 6061 alloy. Our clients, both traders and machining companies, rely on specific material properties. So, understanding designations like T6 is really important for everyone involved. Let's break down what makes 6061-T6 special.
What is the difference between 6061 and 6061 T6?
You see "6061" and "6061-T6" listed, are they the same? Assuming they are identical could lead to parts failing if you need T6 strength. Getting this wrong is risky.
6061 refers to the specific chemical makeup of the aluminum alloy2. 6061-T6 is that same alloy but specifically heat-treated using the T6 temper process. This process significantly increases its strength and hardness compared to untreated 6061 (like 6061-O) or differently treated 6061 (like -T4).
!
Dive Deeper Paragraph: The Impact of Temper
The difference between plain 6061 and 6061-T6 lies entirely in the temper, which is achieved through heat treatment. Think of "6061" as the recipe (the elements mixed together: aluminum, magnesium, silicon, etc.) and "T6" as how it's 'baked' to achieve certain properties.
Without the T6 heat treatment, 6061 aluminum exists in other tempers:
- 6061-O: This means the aluminum is annealed, or fully softened. It's very ductile and easy to form but has low strength.
- 6061-T4: This means it was solution heat-treated and then naturally aged (left at room temperature). It's stronger than -O but not as strong as -T6.
The T6 treatment involves two main steps (solution heat treatment and artificial aging) which we'll discuss next. This process changes the internal structure of the metal, making it much stronger. For our machining clients, using 6061-T6 means they get a material that holds its shape well during cutting and performs reliably under stress. Using 6061-O by mistake would result in a much weaker final part. Here's a rough comparison:
| Temper | Typical Yield Strength | Typical Tensile Strength | Hardness (Brinell) | Notes |
|---|---|---|---|---|
| 6061-O | ~8 ksi (55 MPa) | ~18 ksi (125 MPa) | ~30 | Softest, most formable |
| 6061-T4 | ~16 ksi (110 MPa) | ~30 ksi (207 MPa) | ~65 | Stronger than -O |
| 6061-T6 | ~40 ksi (276 MPa) | ~45 ksi (310 MPa) | ~95 | Much stronger, harder |
(Values are approximate and can vary)
So, the T6 makes a huge difference in mechanical properties.
What does T6 stand for in aluminum?
You keep seeing "T6" after aluminum alloys like 6061. What does it mean? Ignoring this code means you don't fully understand the material's condition and strength, which is risky.
T6 is a specific temper designation for heat-treatable aluminum alloys. The 'T' means heat-treated. The '6' means it was solution heat-treated and then artificially aged to achieve peak strength properties for that alloy.
Dive Deeper Paragraph: Decoding the T6 Temper
The T6 temper is one of the most common and important tempers for alloys like 6061, 6063, 7075, and others. Let's break down the process:
- Solution Heat Treatment: The aluminum is heated to a high temperature (around 985°F or 530°C for 6061). This dissolves the alloying elements (like magnesium and silicon in 6061) evenly into the aluminum, creating a 'solid solution'. It's held at this temperature long enough for this to happen.
- Quenching: The aluminum is then rapidly cooled, usually in water. This 'freezes' the dissolved elements in place within the aluminum structure. At this stage, the material might be in a T4 condition if allowed to age naturally.
- Artificial Aging (Precipitation Hardening): This is the key step for T6. The material is reheated to a lower temperature (around 320-350°F or 160-175°C for 6061) and held for a specific time (several hours). This controlled heating causes the dissolved alloying elements to precipitate out as tiny, finely dispersed particles within the aluminum matrix. These particles act like roadblocks, hindering internal movement (dislocations) within the metal structure. This makes the material significantly harder and stronger.
Contrast this with the T4 temper, which involves solution heat treatment and quenching, but then aging happens naturally at room temperature over days or weeks. T4 doesn't achieve the same peak strength as T6. For traders supplying materials, ensuring the product is correctly certified as T6 is vital, as their customers depend on those guaranteed mechanical properties. Our ISO certifications at SWA Forging reflect our commitment to process control, similar to the controls needed for proper T6 tempering.

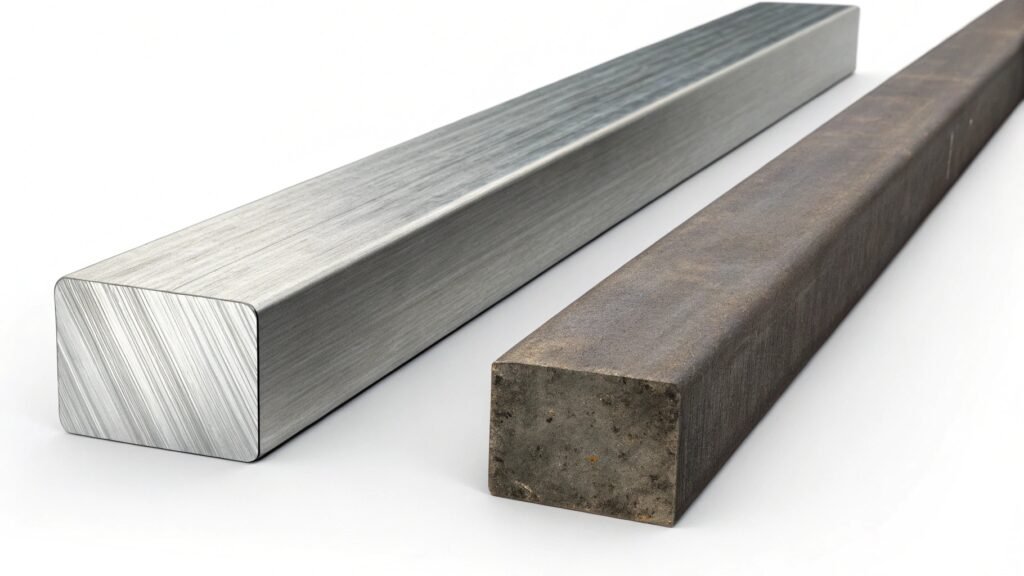

Is 6061-T6 aluminum stronger than steel?
Need strength, but also light weight? People often compare aluminum and steel. Choosing based on a simple "stronger" claim can lead to designs that are too heavy or not stiff enough.
It depends on how you define "stronger". By weight, 6061-T6 aluminum has a better strength-to-weight ratio than most common steels. But, piece-for-piece of the same size, steel is generally much stronger and significantly stiffer than 6061-T6 aluminum.
Dive Deeper Paragraph: Strength, Stiffness, and Weight
When comparing 6061-T6 aluminum and steel, we need to look at specific properties:
- Density (Weight): Aluminum (~2.7 g/cm³) is roughly one-third the weight of steel (~7.85 g/cm³). This is aluminum's biggest advantage.
- Yield Strength (Resistance to permanent bending):
- 6061-T6: ~276 MPa (40 ksi)
- Mild Steel (A36): ~250 MPa (36 ksi) - Similar or slightly lower
- Medium Carbon Steel (e.g., 1045): ~310-580 MPa (45-84 ksi) - Often higher
- Alloy Steel (e.g., 4140 annealed): ~415 MPa (60 ksi) - Significantly higher
- Tensile Strength (Resistance to breaking):
- 6061-T6: ~310 MPa (45 ksi)
- Mild Steel (A36): ~400-550 MPa (58-80 ksi) - Significantly higher
- Medium Carbon Steel (1045): ~565-700 MPa (82-100 ksi) - Much higher
- Alloy Steel (4140 annealed): ~655 MPa (95 ksi) - Much higher
- Stiffness (Modulus of Elasticity - Resistance to elastic bending):
- Aluminum: ~69 GPa (10 Msi)
- Steel: ~200 GPa (29 Msi) - Steel is about 3 times stiffer
So, what does this mean?
If you have a bar of 6061-T6 and a bar of mild steel of the exact same size, the steel bar will be much heavier, but it will also be significantly stronger (it can take more force before breaking) and much stiffer (it will bend less under the same load).
However, if you compare equal weights, you can have a much larger or thicker piece of aluminum. This allows designers to create aluminum structures that are just as strong as steel ones but weigh considerably less. This "strength-to-weight ratio" is why 6061-T6 is used in aircraft, bicycles, and performance cars. Machining clients choose based on whether absolute strength/stiffness or low weight is more critical for their part.
Where is 6061 T6 used?
Knowing 6061-T6 is strong and light is good, but where is it actually used? Not understanding its applications makes it hard to appreciate why it's so popular and useful.
6061-T6 aluminum is incredibly versatile. You find it in structural parts like building frames and bridges, transportation like bicycle frames and truck bodies, marine fittings, aerospace components, pipelines, storage tanks, and countless machined parts.
Dive Deeper Paragraph: A Versatile Workhorse Alloy
The combination of good strength (from the T6 temper), excellent corrosion resistance, good weldability, and good machinability makes 6061-T6 suitable for a huge range of applications. Here are some key areas:
- Structural Applications: Used for medium-strength structures, platforms, walkways, railings, and some architectural framing. While not typically used for primary high-rise building structures like steel, it's great for secondary elements.
- Transportation: This is a major use case due to its strength-to-weight ratio.
- Automotive: Suspension components, structural nodes, chassis parts (especially in performance or electric vehicles), truck bodies and trailers.
- Cycling: Very common for bicycle frames and components (handlebars, seatposts).
- Marine: Boat hulls, docks, gangways, marine fittings (good corrosion resistance helps here).
- Aerospace: Used for non-critical aircraft structures, seat tracks, cargo handling systems, and ground support equipment. Higher strength alloys like 7075 are used for primary airframes.
- Industrial & Machining: It's a favorite for general-purpose machining. Used for base plates, jigs, fixtures, machine parts, hydraulic valve bodies, and mounting brackets. Our machining clients love it because it cuts cleanly and holds tolerances well.
- Consumer Goods: Furniture frames, camera mounts, SCUBA tanks, fishing reels, electrical connectors.
For traders, 6061-T6 is a staple product because the demand is consistently high across many industries. As SWA Forging provides large-diameter forged rings and discs in 6061, these raw forms are often machined by our clients into specific components for these very applications. Its wide usability makes it a cornerstone aluminum alloy.
Conclusion
6061-T6 is a heat-treated aluminum alloy, much stronger than standard 6061. It offers good strength-to-weight but less absolute strength/stiffness than steel. It's used everywhere from bikes to planes.
