You've encountered the designation "2024 aluminum" and need to understand its properties. Without knowing what this specific alloy offers, you might choose an unsuitable material for a critical application, especially where strength and durability are key.
2024 aluminum alloy1 is a high-strength, copper-based aluminum alloy primarily known for its excellent fatigue resistance and good strength-to-weight ratio. It's extensively used in aerospace applications, particularly for structures requiring good damage tolerance.
At SWA Forging, while our primary focus since 2012 has been manufacturing large-diameter forged rings and discs from various aluminum alloys, we have a deep understanding of the entire aluminum family. Many of our clients, both traders and machining companies, deal with a wide spectrum of materials, and questions about specific alloys like 2024 often come up. Understanding its characteristics is vital for making informed engineering decisions.

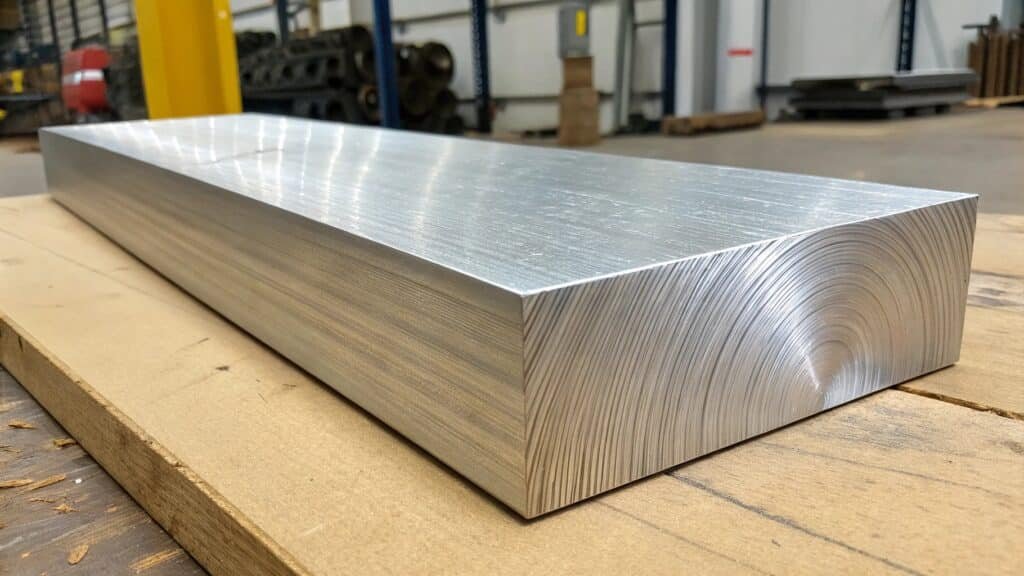

What does al 2024 mean?
You see "Al 2024" and wonder what those numbers and letters signify. This specific designation seems technical, and you want to decode it to understand the material's basic nature.
"Al 2024" means it's an aluminum alloy designated by the Aluminum Association. The "2" indicates it's in the 2xxx series, where copper is the principal alloying element, significantly enhancing strength through heat treatment.
The designation "Al 2024" is part of a standardized system managed by The Aluminum Association for wrought aluminum alloys. Let's break it down:
- Al: Simply stands for Aluminum.
- 2xxx series: The first digit, "2," indicates that copper is the primary alloying element. Adding copper to aluminum, along with other minor elements like magnesium and manganese in the case of 2024, allows the alloy to be significantly strengthened through solution heat treatment and subsequent aging (natural or artificial).
- 024: The last three digits identify the specific alloy within the 2xxx series. For "024," it signifies a particular composition. In 2024, the nominal composition is around 4.4% copper, 1.5% magnesium, and 0.6% manganese.
This alloy is well-known for achieving high strength after heat treatment, particularly in tempers like T3, T351, or T4. The T3 temper, for instance, involves solution heat-treating, cold working, and then naturally aging to a substantially stable condition. This combination gives 2024 its characteristic high strength and excellent fatigue resistance, making it a staple in aircraft structures, especially for fuselage and wing components subjected to cyclic loading. I often explain to clients that while we might forge other alloys more frequently for industrial rings, the principles of how alloying elements like copper affect heat treatability and final properties are common across many aluminum families.
| Designation Part | Meaning | Example in 2024 |
|---|---|---|
| Al | Base Metal | Aluminum |
| 2xxx | Primary Alloying Element Series | Copper (Cu) as principal |
| x024 | Specific alloy within the series | Unique composition (Cu, Mg, Mn) |
| -T3, -T4 etc. | Temper designation (heat treatment status) | Defines mechanical properties post-treatment |

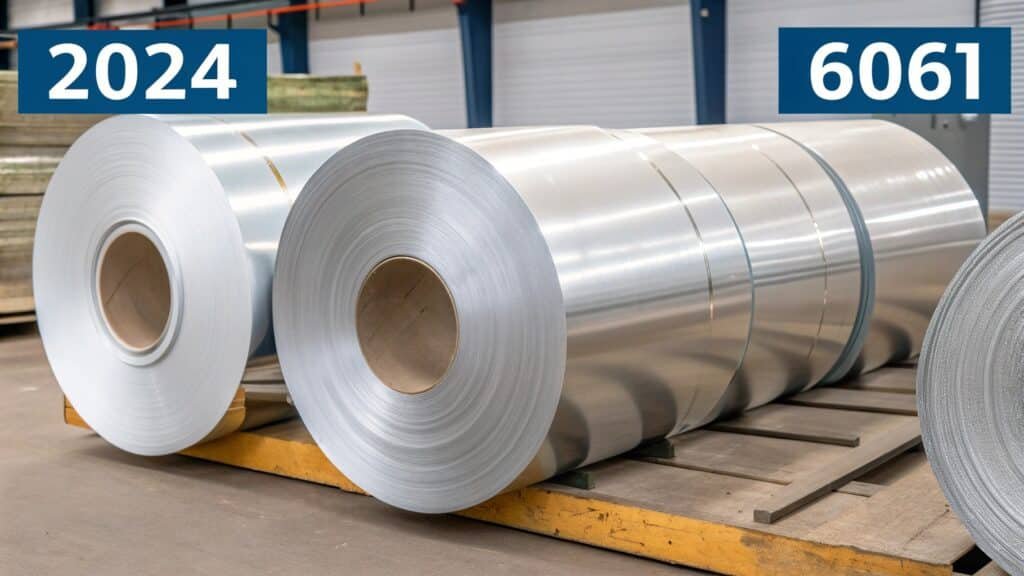

What is the difference between 6061 and 2024 aluminum?
You're comparing two popular aluminum alloys, 6061 and 2024, for your project. They seem similar, but choosing incorrectly could lead to a part failing under stress or being over-engineered and costly.
The main differences are: 2024 aluminum is significantly stronger and has better fatigue resistance than 6061. However, 6061 offers much better corrosion resistance, weldability, and is generally more formable and less expensive.
6061 and 2024 are both widely used aluminum alloys, but they have distinct characteristics that make them suitable for different applications.
Alloying Elements: 2024's main alloying element is copper, with magnesium and manganese. 6061's main alloying elements are magnesium and silicon. This fundamental difference in chemistry drives most of their property variations.
Strength: 2024, especially in tempers like T3 or T351, is considerably stronger than 6061-T6. For example, 2024-T3 can have a typical tensile strength of around 470 MPa (68 ksi), while 6061-T6 is typically around 310 MPa (45 ksi). This makes 2024 a preferred choice for applications demanding high strength-to-weight ratios, like aircraft structures.
Corrosion Resistance: 6061 has good general corrosion resistance2. 2024, due to its copper content, has poorer corrosion resistance and often requires protective coatings (like cladding with pure aluminum, known as Alclad 2024) or anodizing, especially in moist or marine environments.
Weldability: 6061 is readily weldable by common methods. 2024 is generally considered difficult to weld using fusion techniques, as it's prone to hot cracking. If welding is required, specialized techniques and filler materials are necessary, and the heat-affected zone will lose significant strength.
Formability: 6061 is generally more formable than 2024, especially in its annealed (O) temper.
Cost: 2024 is typically more expensive than 6061.
I recall a client who approached us wanting a high-strength forged ring. They initially considered 2024 due to its reputation. However, their application involved exposure to weather and some on-site welding for attachments. After discussing these requirements, we guided them towards a high-strength 6xxx series alloy or a 7xxx series alloy with better corrosion resistance and weldability for their specific, non-aerospace, structural need. While we can forge 2024, it's crucial to match the alloy to all aspects of the application.
| Feature | 2024 Aluminum | 6061 Aluminum |
|---|---|---|
| Primary Alloying | Copper (Cu) | Magnesium (Mg), Silicon (Si) |
| Strength (Typical) | Higher (e.g., 2024-T3 ~470 MPa) | Moderate (e.g., 6061-T6 ~310 MPa) |
| Fatigue Resistance | Excellent | Good |
| Corrosion Resistance | Poor (often requires cladding) | Good |
| Weldability | Poor to Fair (special procedures) | Good |
| Formability | Fair | Good |
| Cost | Higher | Moderate |
| Typical Uses | Aerospace structures, high-stress parts | General structural, marine, automotive |

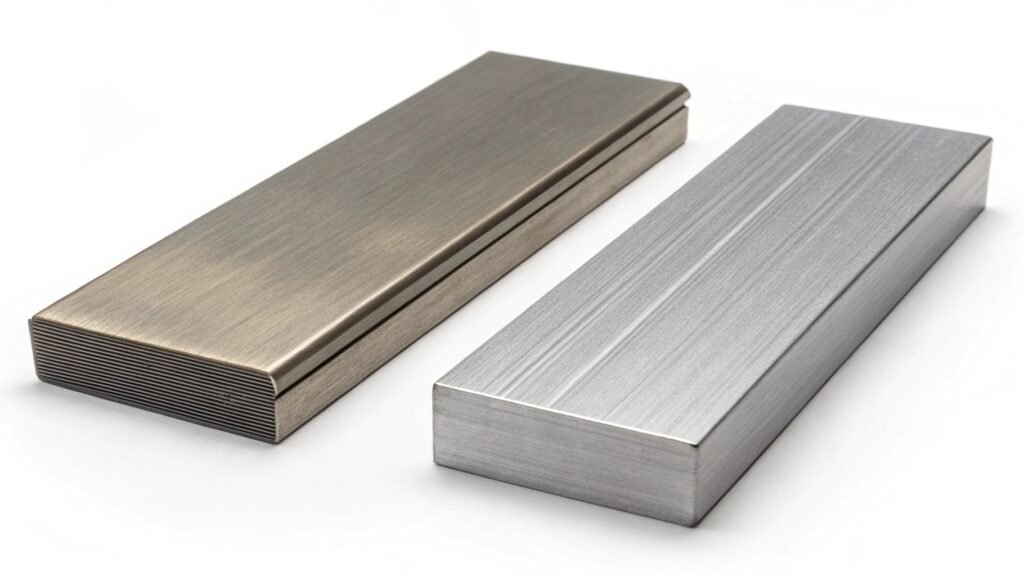

What is the difference between 2024 aluminum and 7075 aluminum?
You're looking at two high-strength aluminum alloys, 2024 and 7075, often used in aerospace. Choosing between them is tough, as both offer impressive performance, but subtle differences could impact your design's success.
7075 aluminum generally offers higher ultimate and yield strength than 2024. However, 2024 often exhibits better fatigue resistance and fracture toughness in certain applications and tempers, making it preferred for damage-tolerant designs.
Both 2024 and 7075 are premier high-strength aluminum alloys extensively used in the aerospace industry, but they cater to slightly different performance requirements.
Alloying Elements: 2024 is a copper-alloyed aluminum (2xxx series). 7075 is primarily alloyed with zinc, along with magnesium and copper (7xxx series).
Strength: 7075, particularly in the T6 temper, generally boasts higher tensile and yield strengths than 2024-T3 or T4. For instance, 7075-T6 can achieve typical tensile strengths of around 570 MPa (83 ksi), surpassing 2024-T3's ~470 MPa. This makes 7075 suitable for components subjected to very high static loads, like aircraft wing spars or landing gear components.
Fatigue Resistance & Fracture Toughness: While 7075 is stronger, 2024 often demonstrates superior fatigue performance, especially in applications with many load cycles, and can offer better fracture toughness. This makes 2024 a common choice for fuselage skins and lower wing skins where damage tolerance (ability to resist crack growth) is critical.
Corrosion Resistance: Both alloys have relatively poor corrosion resistance compared to alloys like 6061 due to their alloying elements (copper in 2024, zinc and copper in 7075). Both often require protective coatings. 7075 can be more susceptible to stress corrosion cracking (SCC) in certain tempers and environments if not properly selected or protected.
Cost & Machinability: Both are premium alloys and thus more expensive than general-purpose alloys. Machinability is generally good for both, though 7075 in the T6 temper can produce smaller chips.
At SWA Forging, while we can forge both 7075 (which we do for various high-strength industrial components) and 2024, the choice often comes down to a detailed analysis of the service conditions. If a client needs the absolute highest static strength for a forged part, 7075 might be the answer. If fatigue life or damage tolerance is paramount in a dynamic loading scenario, 2024 (or even specific tempers of 7075 designed for better toughness, like T73) would be considered.
| Feature | 2024 Aluminum (e.g., T3/T351) | 7075 Aluminum (e.g., T6/T651) |
|---|---|---|
| Primary Alloying | Copper (Cu) | Zinc (Zn) |
| Tensile Strength | ~470 MPa (68 ksi) | ~570 MPa (83 ksi) |
| Yield Strength | ~325 MPa (47 ksi) | ~500 MPa (73 ksi) |
| Fatigue Resistance | Excellent | Good (but 2024 often preferred) |
| Fracture Toughness | Good to Very Good | Moderate (can be improved in T7x tempers) |
| Corrosion Resistance | Poor (requires protection) | Fair to Poor (requires protection, SCC concern) |
| Typical Uses | Fuselage/wing skins, fatigue critical | Wing spars, landing gear, high static load parts |
Conclusion
2024 aluminum is a high-strength, copper-alloyed material prized for fatigue resistance, mainly in aerospace. It differs significantly from 6061 in strength and corrosion, and from 7075 in its balance of strength versus toughness.
