What is a 5-series aluminum alloy?

You're seeing "5-series aluminum" mentioned and wondering what makes it special. With so many aluminum types, you need to understand its unique properties and where it fits in the bigger picture.

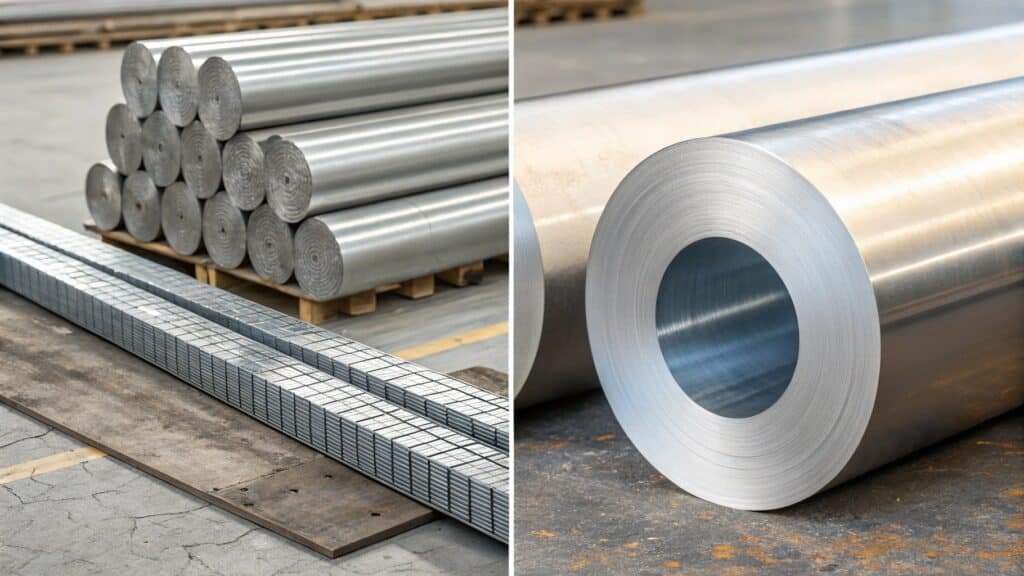

A 5-series aluminum alloy is a type of aluminum primarily alloyed with magnesium. These alloys are known for their good strength (especially when work-hardened), excellent corrosion resistance (particularly in marine environments), and good weldability.

At SWA Forging, we've worked with a wide range of aluminum alloys since 2012, producing large-diameter forged rings and discs. While many of our high-strength forged parts might use heat-treatable alloys like the 6xxx or 7xxx series, we also encounter specifications for 5-series alloys, especially when exceptional corrosion resistance and good formability are key. Our clients, including traders and machining companies, rely on us to understand the nuances of these different alloy families.

What is the difference between 5 series and 6 series aluminium?

You see "5-series" and "6-series" aluminum, and they sound similar. What sets them apart? You need to know their core differences to choose the right one for your needs.

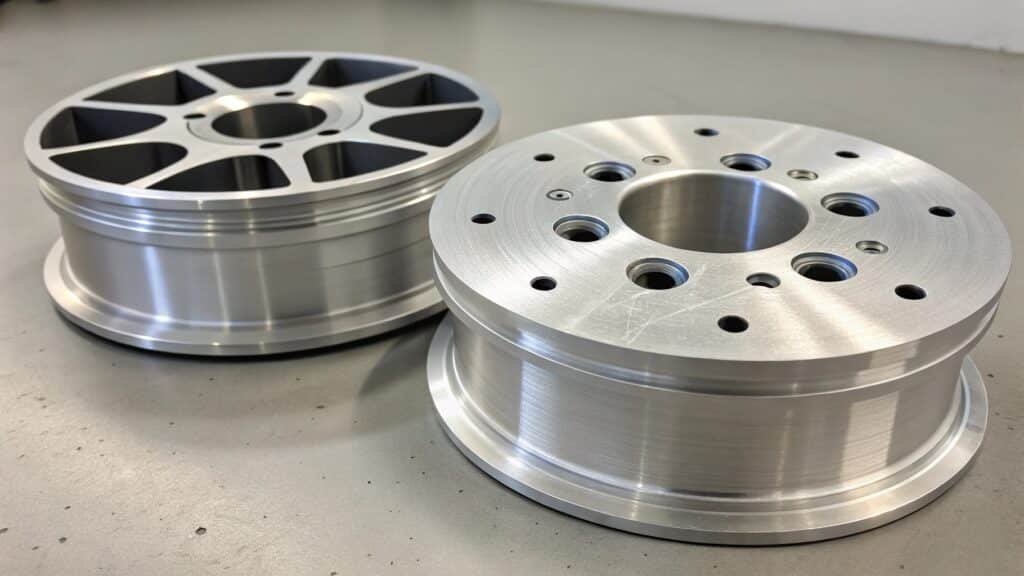

The main difference is their primary alloying elements and strengthening mechanism: 5-series alloys use magnesium and are strengthened by work hardening. 6-series alloys use magnesium and silicon and are strengthened by heat treatment.

The distinction between 5-series and 6-series aluminum alloys comes down to their chemical composition and how they achieve their strength.
5-Series Aluminum Alloys:

• Primary Alloying Element: Magnesium (Mg). Some may also contain small amounts of manganese (Mn) or chromium (Cr).
• Strengthening Mechanism: These are non-heat-treatable alloys. Their strength is primarily increased through strain hardening (also known as work hardening). This means the metal becomes stronger and harder as it is cold worked (e.g., rolled, drawn, or, in some cases, forged at lower temperatures). They cannot be significantly strengthened by heat treatment processes like solution heat treating and aging.
• Key Properties: Excellent corrosion resistance (especially in saltwater, making them "marine grade"), good weldability, moderate to good strength, good formability.
• Common Alloys: 5052, 5083, 5086, 5754.
• Typical Applications: Boat hulls, marine hardware, fuel tanks, truck and trailer components, some automotive body panels, pressure vessels. At SWA Forging, if a client needs a large forged ring with superior corrosion resistance for a marine environment and doesn't require the ultra-high strength of a heat-treated alloy, a 5-series alloy might be considered.

6-Series Aluminum Alloys:

• Primary Alloying Elements: Magnesium (Mg) and Silicon (Si). These elements combine to form magnesium silicide (Mg₂Si), which is key to their strengthening.
• Strengthening Mechanism: These are heat-treatable alloys. Their strength is primarily developed through a process of solution heat treatment followed by quenching and then aging (either natural aging at room temperature or artificial aging at elevated temperatures - like T5 or T6 tempers).
• Key Properties: Good strength (moderate to high, depending on the alloy and temper), good corrosion resistance (though generally not as good as 5-series in saltwater unless protected), excellent extrudability and formability, good weldability (though strength in the weld zone can be reduced and may require post-weld heat treatment).
• Common Alloys: 6061, 6063, 6082.
• Typical Applications: Architectural extrusions (window frames, door frames), structural components, automotive parts, bicycle frames, railings, and many of the general-purpose forged parts we produce, like rings and discs where a good balance of strength, corrosion resistance, and machinability is needed. I often recommend 6061-T6 to our machining clients for its versatility.

The choice between a 5-series and a 6-series alloy depends heavily on the application's demands for strength, corrosion resistance, formability, and whether heat treatment is a feasible part of the manufacturing process.

What is T5 and T6 in aluminium?

You see "T5" or "T6" after an aluminum alloy number, like 6061-T6. What do these codes mean? You need to understand these temper designations to know the alloy's condition and properties.

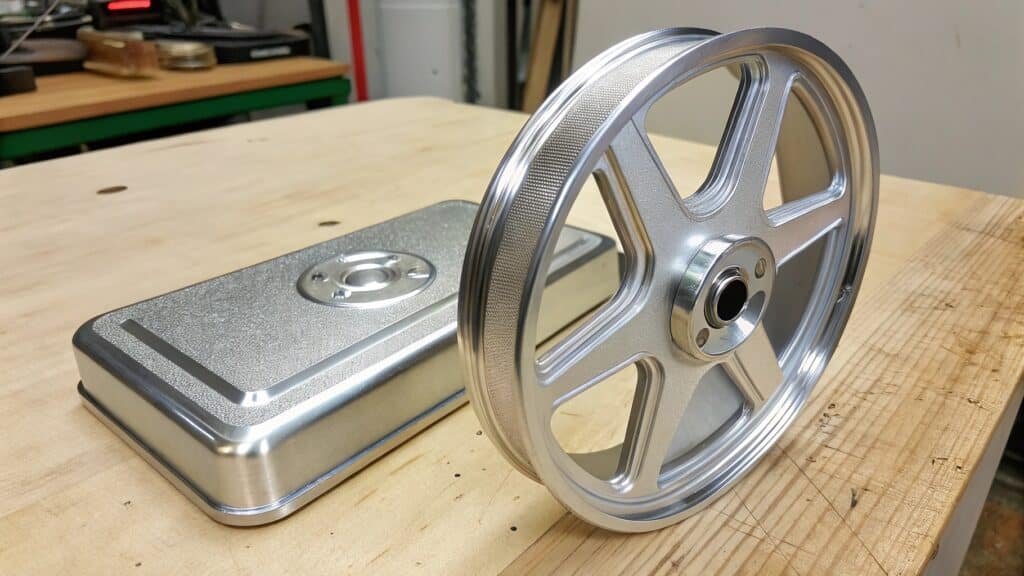

T5 and T6 are temper designations for heat-treatable aluminum alloys (like the 6xxx series), indicating specific thermal treatments to achieve desired strength and hardness. T6 generally offers higher strength than T5.

The "T" in T5 and T6 signifies that the aluminum alloy has been thermally treated to enhance its mechanical properties. These temper designations are primarily associated with heat-treatable alloys, particularly the 6xxx series (containing magnesium and silicon) and also the 2xxx (copper) and 7xxx (zinc) series.

• T5 Temper: This typically means the aluminum has been cooled from an elevated temperature shaping process (like extrusion) and then artificially aged. The "cooling from an elevated temperature shaping process" often implies that the material wasn't given a full solution heat treatment and rapid quench before aging. The material comes off the extrusion press, for example, still hot. It's then cooled (sometimes air-cooled, sometimes a mild quench) and then subjected to an artificial aging (precipitation hardening) process at a specific temperature for a specific time. This develops good strength, but typically not the maximum potential strength for that alloy. It's often chosen for applications where formability after cooling from extrusion is important, or where the very highest strength isn't critical, and it can be a more economical process.

• T6 Temper: This generally indicates a more comprehensive heat treatment. It means the aluminum has been solution heat-treated, then quenched (rapidly cooled, often in water), and then artificially aged.

  1. Solution Heat Treatment: The alloy is heated to a high temperature to dissolve the alloying elements (like magnesium and silicon in 6061) into a solid solution.
  2. Quenching: It's then rapidly cooled to "freeze" these elements in solution.
  3. Artificial Aging (Precipitation Hardening): Finally, it's reheated to a lower, specific temperature for a set time, causing the dissolved alloying elements to precipitate out as fine, uniformly dispersed particles within the aluminum matrix. These precipitates impede dislocation movement, significantly increasing the strength and hardness of the alloy.
     The T6 temper usually results in significantly higher strength (yield and tensile) and hardness compared to the T5 temper for the same alloy. For many of our forged rings and discs at SWA Forging, when high strength is required from a 6xxx series alloy, the 6061-T6 condition is a very common specification. We ensure our heat treatment processes are rigorously controlled to meet these temper requirements, which is verified by the product quality certificates we provide.

What is the difference between the Series 5 and Series 6?

You're still comparing Series 5 and Series 6 aluminum. A deeper dive is needed. Beyond just the alloying elements, how do their practical characteristics and typical uses differ?

Series 5 (magnesium-alloyed, work-hardened) excels in corrosion resistance¹ and weldability, ideal for marine uses. Series 6 (magnesium-silicon alloyed, heat-treated) offers better strength and extrudability, favored for structural applications.

Let's delve a bit deeper into the practical differences between Series 5 and Series 6 aluminum alloys, building on what we've already discussed:

Series 5 Aluminum Alloys (e.g., 5052, 5083):

• Core Strength: Comes from the magnesium content and how much the material has been cold worked (strain-hardened). The temper designation for these often starts with "H" (e.g., H32, H116) indicating the degree of strain hardening and any subsequent stabilization treatments.
• Corrosion Resistance: This is their standout feature, especially their resistance to saltwater and general atmospheric corrosion. This makes them the go-to choice for boat building, marine fittings, and chemical storage tanks.
• Weldability: Generally very good. They can be welded using common techniques, and the welds tend to retain a good portion of the base metal's strength and ductility without complex post-weld heat treatments.
• Formability: Good, especially in their annealed (O temper) state. They can be bent, formed, and drawn effectively.
• Strength Level: Moderate. While they can achieve good strength through work hardening, they generally don't reach the peak strengths attainable by heat-treated 6-series or 7-series alloys.
• Machinability: Can be a bit "gummy" compared to harder alloys, especially the softer tempers. Chip control can sometimes be a challenge.
• Typical Uses in SWA Forging Context: While less common for our high-strength forged rings and discs, a 5-series alloy might be specified if a client needs a large component for a highly corrosive environment where extreme strength isn't the primary driver, and good toughness is valued.

Series 6 Aluminum Alloys (e.g., 6061, 6063):

• Core Strength: Derived from the precipitation of magnesium silicide (Mg₂Si) particles during heat treatment (typically T5 or T6 tempers).
• Corrosion Resistance: Good general corrosion resistance, but not usually as robust as 5-series alloys in aggressive marine environments unless anodized or otherwise protected.
• Weldability: Good, but the heat from welding will anneal the heat-affected zone, reducing strength locally. For full strength restoration in welded 6-series parts, a post-weld heat treatment may be necessary, which can be complex for large structures.
• Formability & Extrudability: Excellent. 6063 is often called "architectural aluminum" because it extrudes into complex shapes so well. 6061 also has good formability, especially in the annealed (O) or T4 temper, before being aged to T6.
• Strength Level: Good to high. 6061-T6, for example, offers a very versatile combination of strength, toughness, and workability.
• Machinability: Generally good, especially in the T6 temper, producing decent chips. Our machining clients appreciate this when finishing our 6061-T6 forged rings and discs.
• Typical Uses in SWA Forging Context: This is a very common series for us. Large diameter forged rings and discs in 6061-T6 are used in a vast array of industrial machinery, structural components, and applications where a reliable, strong, and relatively lightweight material is needed.

The choice often comes down to: if supreme corrosion resistance in harsh conditions and excellent weld strength retention are paramount, Series 5 is often favored. If higher strength, good extrudability/formability, and response to heat treatment for tailored properties are more critical, Series 6 is usually the better option.

What are the classification of alloys?

You hear about "5-series," "6-series," but what's the broader system? You want to understand how all these different metal mixtures are organized.

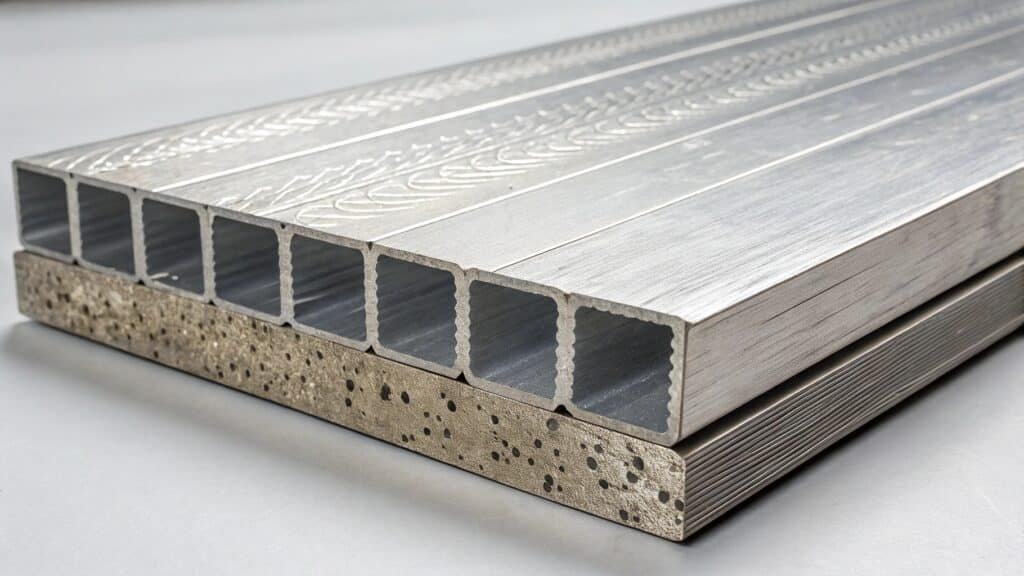

Alloys are broadly classified based on their base metal (e.g., aluminum alloys, copper alloys, steel alloys) and then further subdivided by their principal alloying elements or specific characteristics (like wrought vs. cast, heat-treatable vs. non-heat-treatable).

The classification of alloys is a way to organize the vast number of metallic mixtures available to engineers and designers. It helps in understanding their general properties and potential applications. Here’s a general overview, focusing on aluminum:

1. Based on the Base Metal: This is the most fundamental classification. We have:

   • Ferrous Alloys: Iron is the main component (e.g., steel, cast iron).
   • Non-Ferrous Alloys: The main component is a metal other than iron. This is where aluminum alloys fit. Other examples include copper alloys (brass, bronze), titanium alloys, magnesium alloys, nickel alloys, etc.

2. Sub-Classification of Aluminum Alloys: Aluminum alloys have a specific numerical system overseen by The Aluminum Association, which is widely adopted internationally:

   • Wrought Alloys: These are alloys intended to be shaped by mechanical working processes like rolling, extrusion, forging (which is what we specialize in at SWA Forging), or drawing. They are designated by a four-digit system:

     • 1xxx Series: Commercially pure aluminum (99.00% or greater). Not typically used for high-strength forgings due to low strength.
     • 2xxx Series: Copper is the principal alloying element. Heat-treatable, high strength, often used in aerospace.
     • 3xxx Series: Manganese is the principal alloying element. Non-heat-treatable, moderate strength, good workability. (e.g., beverage cans).
     • 4xxx Series: Silicon is the principal alloying element. Used as welding wire and brazing alloy; some are heat-treatable.
     • 5xxx Series: Magnesium is the principal alloying element. Non-heat-treatable, good weldability, excellent corrosion resistance, especially marine.
     • 6xxx Series: Magnesium and Silicon are the principal alloying elements. Heat-treatable, good formability, good corrosion resistance, good strength. (e.g., 6061). Very common for our forged rings and discs.
     • 7xxx Series: Zinc is the principal alloying element. Heat-treatable, very high strength. (e.g., 7075). Also used for high-performance forgings.
     • 8xxx Series: Other elements.

   • Cast Alloys: These are alloys intended to be shaped by pouring molten metal into a mold. They have a different designation system, often a three-digit number with a decimal (e.g., 356.0).

3. Further Classification (within Wrought or Cast):

   • Heat-Treatable vs. Non-Heat-Treatable: This is a crucial distinction.
     • Non-heat-treatable alloys (like the 1xxx, 3xxx, 5xxx series) primarily gain strength through strain hardening (cold working).
     • Heat-treatable alloys (like the 2xxx, 6xxx, 7xxx series) gain most of their strength from solution heat treatment and subsequent aging processes (T-tempers like T5, T6).

Understanding this classification helps us at SWA Forging quickly identify the general characteristics of an alloy specified by a client and how to best process it to achieve the desired properties in the final forged product. Our ISO 9001, ISO 14001, and ISO 45001 certifications reflect our commitment to managing these materials and processes to the highest standards.

Conclusion

5-series aluminum alloys, rich in magnesium, offer superb corrosion resistance and weldability, ideal for marine use. Understanding alloy classifications and tempers like T5/T6 helps in selecting the best material.
