What is a 5-Series Aluminum Alloy?

Have you ever encountered designations like "5xxx series" when looking at aluminum, and wondered what that means for its properties and uses? It's a fundamental way to classify aluminum alloys.

A 5-series aluminum alloy, also known as 5xxx series or Al-Mg alloy, primarily uses magnesium as its main alloying element. These alloys are renowned for their excellent corrosion resistance, especially in marine environments, good weldability, and moderate to high strength. They are non-heat-treatable, meaning their strength is achieved through cold working (strain hardening) rather than thermal precipitation hardening processes.

In my work at SWA Forging, understanding these alloy series is fundamental. When a client needs something for a marine application, a 5-series alloy is often the first thing that comes to mind.

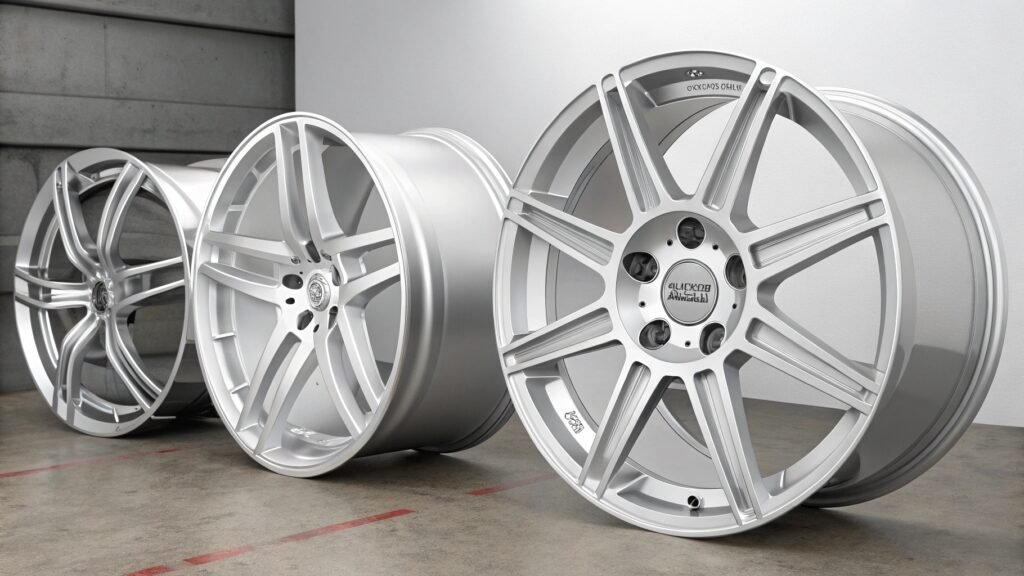

What is T5 and T6 in Aluminum?

Are you confused by terms like "T5" and "T6" when discussing aluminum alloys? These are crucial temper designations that define a material's strength and properties.

T5 and T6 are temper designations under the Aluminum Association (AA) system, indicating specific heat treatment processes applied to aluminum alloys to achieve desired mechanical properties. T5 means the alloy was cooled from an elevated temperature shaping process (like extrusion) and then artificially aged. T6 means the alloy was solution heat-treated, quenched, and then artificially aged, typically resulting in higher strength than T5 for a given alloy.

I'm constantly working with these temper designations. When we process aluminum, specifying the exact temper is as important as specifying the alloy itself.

Understanding the Temper Designations

The "T" in T5 and T6 stands for "thermally treated to produce stable tempers other than F, O, H." The numbers following the "T" describe the specific sequence of thermal treatments.

• T5 Temper:

  • Process: This temper is typically applied to alloys that gain strength from artificial aging after being cooled from a high-temperature fabrication process like extrusion or casting. The material is quickly cooled from its forming temperature and then artificially aged (heated to an intermediate temperature for a period, then cooled).
  • Purpose: The artificial aging promotes the precipitation of fine particles within the aluminum matrix, which increases the alloy's strength and hardness.
  • Common Alloys: Often seen with 6xxx series alloys, such as 6063-T5 (common for architectural extrusions) and 6005-T5.
  • Properties: Offers a good balance of strength and formability, though generally not as strong as T6.

• T6 Temper:

  • Process: This temper involves two main steps:
    1. Solution Heat Treatment: The alloy is heated to a very high temperature (above the recrystallization temperature) to dissolve alloying elements into a solid solution.
    2. Quenching: The material is then rapidly cooled (quenched) to trap the alloying elements in solution, preventing them from precipitating immediately.
    3. Artificial Aging: Finally, the material is artificially aged (heated to an intermediate temperature for a period, then cooled). This causes controlled precipitation of fine particles, leading to significant strengthening.
  • Purpose: To achieve maximum strength and hardness for heat-treatable alloys.
  • Common Alloys: Widely used for 6xxx series (e.g., 6061-T6, 6063-T6), 2xxx series (e.g., 2024-T6), and 7xxx series (e.g., 7075-T6).
  • Properties: Provides the highest strength and hardness for a given heat-treatable alloy, often with good machinability and corrosion resistance, but generally reduced ductility compared to softer tempers.

I remember a client who ordered 6063-T5 extrusions for a structural application that turned out to be more demanding than initially thought. The parts were bending too much. We had to explain that while T5 is good, for their strength requirements, they really needed 6061-T6 material, which meant a different alloy and a more intensive heat treatment process. It showed how critical understanding these temper differences is.

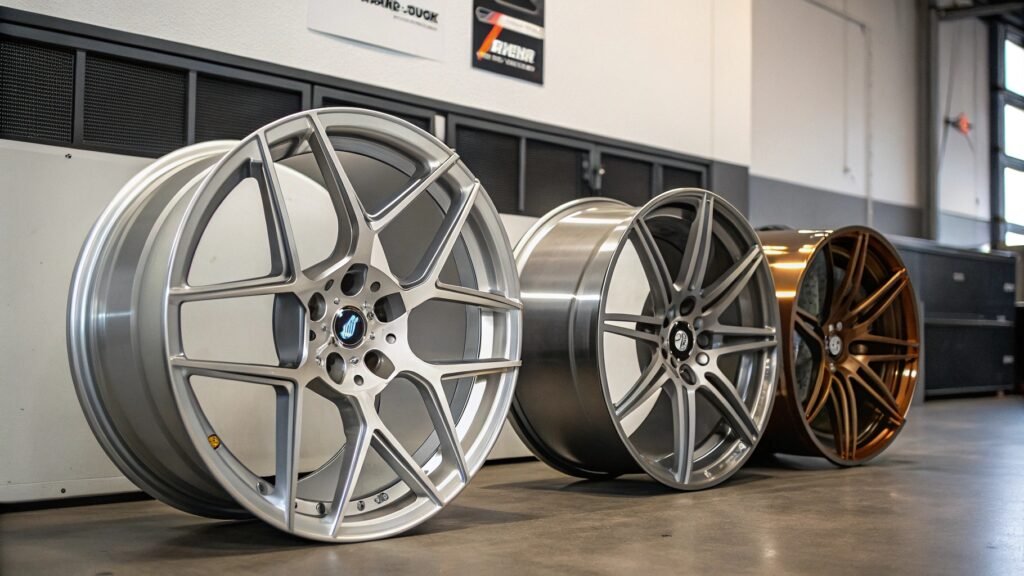

What is the Difference Between 5-Series and 6-Series Aluminum?

Are you trying to choose between a 5-series and a 6-series aluminum alloy for your project? Understanding their fundamental differences is key to making the right material selection.

The primary difference between 5-series (Al-Mg) and 6-series (Al-Mg-Si) aluminum alloys lies in their main alloying elements and their strengthening mechanisms. 5-series alloys are primarily strengthened by magnesium and cold working, making them non-heat-treatable with excellent weldability and corrosion resistance. 6-series alloys are strengthened by magnesium and silicon, which allows them to be heat-treated (e.g., to T5 or T6 tempers) for significantly higher strengths, while still offering good weldability and corrosion resistance.

From my perspective, the choice often comes down to whether maximum strength via heat treatment or superior weldability and formability are the top priorities.

Core Distinctions and Applications

These two alloy series offer different balances of properties, making them suitable for different applications.

• 5-Series (Al-Mg) Alloys:

  • Main Alloying Element: Magnesium.
  • Strengthening Mechanism: Primarily through strain hardening (cold working), often designated with "H" tempers (e.g., H32, H34). They are non-heat-treatable for strength.
  • Properties:
    • Corrosion Resistance: Excellent, especially in marine and saltwater environments, making them ideal for shipbuilding and offshore structures.
    • Weldability: Generally considered to have excellent weldability, retaining much of their strength in the weld zone.
    • Formability: Very good ductility, making them suitable for bending, deep drawing, and other forming operations.
    • Strength: Moderate to high, depending on the amount of magnesium and the degree of cold working.
  • Common Alloys: 5052, 5083, 5086.
  • Applications: Marine components, pressure vessels, storage tanks, automotive panels, electronics chassis.

• 6-Series (Al-Mg-Si) Alloys:

  • Main Alloying Elements: Magnesium and Silicon.
  • Strengthening Mechanism: Primarily through heat treatment (precipitation hardening), designated with "T" tempers (e.g., T4, T5, T6).
  • Properties:
    • Strength: Can achieve significantly higher strengths compared to 5-series alloys through heat treatment, making them excellent for structural applications.
    • Weldability: Good, but welding can reduce strength in the heat-affected zone, often requiring post-weld heat treatment for full strength recovery.
    • Corrosion Resistance: Good, generally suitable for most atmospheric conditions but slightly less resistant than 5-series in harsh marine environments.
    • Formability: Good in annealed (O) or T4 tempers, but reduced in T6 temper, making them less suitable for severe bending compared to 5-series.
  • Common Alloys: 6061, 6063.
  • Applications: Structural components (frames, bridges), architectural extrusions (window frames, doors), transportation (trucks, rail cars), general engineering.

I often guide clients in choosing between these. If they're building a yacht or a chemical tank, 5083 is a go-to. If it's a building frame or an automotive part where strength is paramount and post-weld heat treatment is feasible, 6061-T6 is the natural choice.

What is Better, 6061 T6 or 6063 T5?

Are you weighing the merits of 6061-T6¹ against 6063-T5 for your application? Both are common, but they serve different purposes.

Choosing between 6061-T6 and 6063-T5 depends entirely on the application's requirements. 6061-T6 is generally "better" for applications demanding higher strength and structural integrity due to its superior mechanical properties achieved through a more intensive heat treatment. 6063-T5 is "better" for applications where aesthetic finish, formability, and ease of extrusion are prioritized, often used for architectural and decorative purposes, offering moderate strength.

When a customer asks for the "better" alloy, my first question is always, "Better for what?" There's no single best; it's about the right fit.

Comparing Two Workhorse Alloys

Both 6061 and 6063 are 6-series alloys, but their specific compositions and common temper applications lead to distinct performance profiles.

• 6061-T6:

  • Strength: High. This is its key advantage. Typical tensile strength of 310 MPa (45 ksi) and yield strength of 276 MPa (40 ksi).
  • Heat Treatment: Achieves its strength through solution heat treatment, quenching, and artificial aging.
  • Weldability: Good, but strength in the heat-affected zone is reduced unless post-weld heat treatment is applied.
  • Machinability: Good.
  • Corrosion Resistance: Good, suitable for most general atmospheric conditions.
  • Extrudability/Formability: Good extrudability. Formability is reduced in T6 temper, less suitable for severe bending.
  • Applications: Structural components (frames, bridges, aircraft parts), automotive parts, marine applications (though 5xxx is often preferred for salt water), general purpose high-strength applications.

• 6063-T5:

  • Strength: Moderate. Typical tensile strength of 207 MPa (30 ksi) and yield strength of 172 MPa (25 ksi). Noticeably lower than 6061-T6.
  • Heat Treatment: Strengthened by cooling from the extrusion temperature and then artificially aging. This is a simpler heat treatment than T6.
  • Weldability: Excellent.
  • Machinability: Good.
  • Corrosion Resistance: Good.
  • Extrudability/Formability: Excellent extrudability, allowing for complex shapes with good surface finish. Better formability than 6061-T6. Often called "architectural aluminum."
  • Applications: Window frames, door frames, architectural trim, handrails, furniture, and other applications where appearance and moderate strength are sufficient.

I've seen projects where cost-conscious customers tried to use 6063-T5 for a load-bearing structure and it ended up deflecting too much. Conversely, I've seen customers over-specify 6061-T6 for non-load-bearing cosmetic components, adding unnecessary cost and complexity. It's about matching the material to the actual demands.

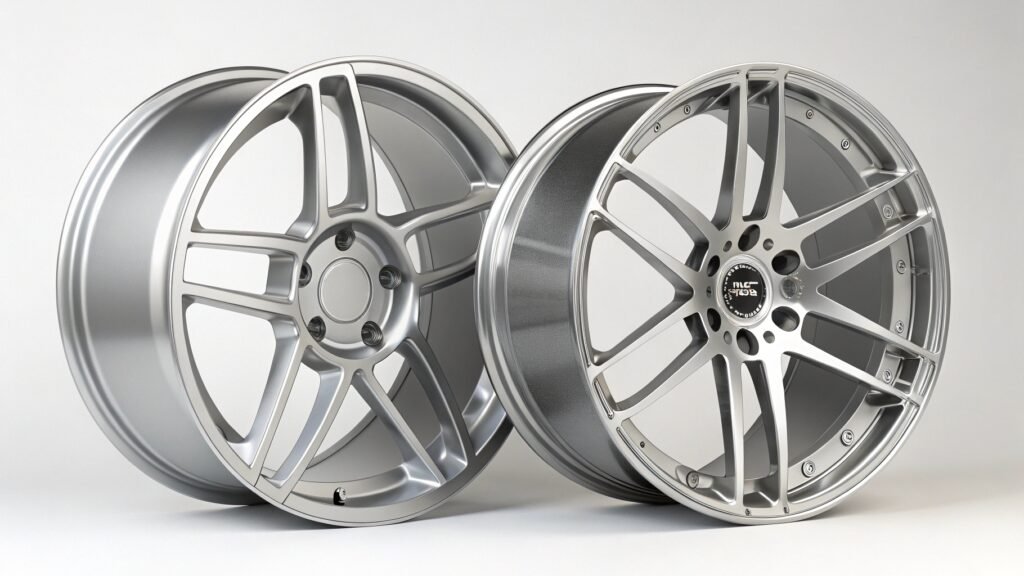

What is the Difference Between T7 and T6 Aluminum?

Are you wondering about the nuances of aluminum temper designations, specifically what distinguishes T7 from T6? These subtle differences can have a big impact on a material's performance.

The primary difference between T7 and T6 aluminum tempers lies in their artificial aging processes, which impact the final properties. T6 involves artificial aging to achieve maximum strength and hardness. T7 involves over-aging beyond the peak strength condition, which results in slightly lower strength but significantly improved resistance to stress corrosion cracking (SCC) and better dimensional stability, making it ideal for specific critical applications, particularly in aerospace.

For our high-performance forged components, especially those going into aerospace, the distinction between T6 and T7 is critical for ensuring long-term reliability.

The Trade-off: Strength vs. Stress Corrosion Cracking Resistance

Both T6 and T7 tempers are achieved through artificial aging after solution heat treatment and quenching. The key is the duration and/or temperature of this aging step.

• T6 Temper (Peak Strength Aging):

  • Process: After solution heat treatment and quenching, the alloy is artificially aged to achieve its peak strength. This involves aging at a specific temperature for a time that allows precipitates to grow to a size and distribution that maximizes the material's yield and tensile strength.
  • Properties: Maximum strength and hardness for a given alloy. However, for certain high-strength alloys (especially 7xxx series with high zinc content), this peak strength condition can sometimes make them more susceptible to stress corrosion cracking (SCC), particularly in aggressive environments or under sustained tensile stress.
  • Common Alloys: 6061-T6, 7075-T6.
  • Applications: General structural components where maximum strength is required and SCC is not a primary concern or can be mitigated by design/environment.

• T7 Temper (Over-aged for SCC Resistance):

  • Process: The alloy undergoes a longer or higher-temperature artificial aging process compared to T6. This "over-ages" the material, causing the strengthening precipitates to coarsen and grow larger than their optimal size for peak strength.
  • Properties:
    • Strength: Slightly lower strength compared to the peak T6 condition.
    • Stress Corrosion Cracking (SCC) Resistance: Significantly improved. The over-aging process changes the nature and distribution of precipitates, making the grain boundaries less susceptible to attack by corrosive agents under stress.
    • Dimensional Stability: Often improved, as more of the precipitation process is completed during heat treatment, reducing potential for age-hardening or dimensional changes in service.
  • Common Alloys: Primarily seen with high-strength 7xxx series alloys where SCC is a major concern, such as 7075-T73, 7075-T76, 7050-T7451.
  • Applications: Critical aerospace components (e.g., wing structures, landing gear) where components are under sustained tensile stress in potentially corrosive environments.

We produce large forged discs for aerospace applications. For some of these, the customer specifically requests 7075-T7351. This "T73" sub-temper indicates a very specific over-aging process designed to make that particular forging almost immune to stress corrosion cracking, even if it means sacrificing a small percentage of its ultimate strength. It's a classic engineering trade-off for safety and reliability.

Conclusion

A 5-series aluminum alloy is an Al-Mg alloy known for excellent corrosion resistance and weldability, gaining strength through cold working. T5 and T6 are temper designations indicating artificial aging (T5) or solution heat treatment followed by quenching and artificial aging (T6) for higher strength. The main difference between 5-series and 6-series lies in their strengthening mechanisms (cold working vs. heat treatment), impacting strength and weldability. 6061-T6 offers higher strength for structural needs, while 6063-T5 prioritizes extrudability and finish. T7 temper, an over-aged condition, offers lower strength but superior stress corrosion cracking resistance compared to T6, crucial for critical applications.
