What is aluminum alloy forging and its benefits?

Need strong, lightweight metal parts but unsure about manufacturing? Choosing the wrong material or process leads to failures and project delays. Aluminum alloy forging offers an optimal blend of strength, light weight, and reliability.

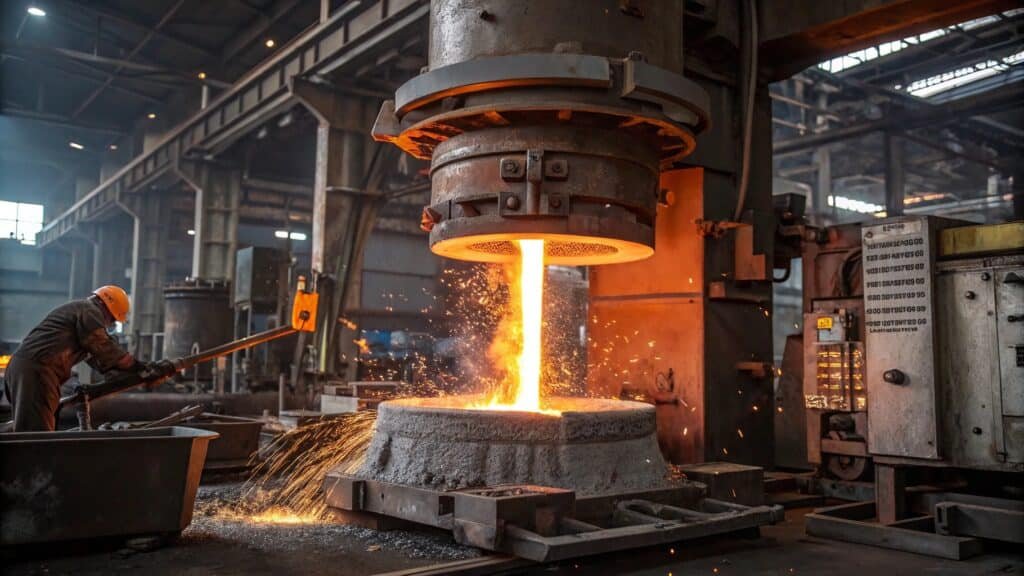

Aluminum alloy forging is a manufacturing process where aluminum alloys are shaped using compressive forces, often at elevated temperatures. This method enhances the material's strength, toughness, and structural integrity, making it ideal for critical applications.

At SWA Forging, we've seen firsthand how this process transforms excellent aluminum alloys into superior components for our clients, from traders needing reliable stock to machining companies creating precision parts. The benefits are significant, impacting everything from performance to longevity. Let's look closer at what makes aluminum alloy forging so valuable.

What is the aluminium alloy for forging?

Selecting the right aluminum for forging seems complex? An unsuitable alloy means poor forgeability, wasted resources, or parts that don't meet specifications. Specific aluminum alloys are favored for their excellent response to the forging process.

Common aluminum alloys for forging include the 6xxx series (like 6061 for good all-around properties) and the 7xxx series (like 7075 for very high strength). The 2xxx series is also used for high-strength applications, especially in aerospace.

Choosing the right aluminum alloy is the first crucial step in achieving a high-quality forging. Not all aluminum alloys are equally suited for the forging process or the desired end-use. At SWA Forging, we guide our clients through this selection.
Generally, we work with several key series:

• 2xxx Series (e.g., 2014, 2618): These are copper-alloyed aluminums known for high strength, often comparable to mild steel, especially after heat treatment. They are widely used in aerospace for their strength at elevated temperatures. However, they can have lower corrosion resistance if not properly protected.
• 6xxx Series (e.g., 6061): This series, with magnesium and silicon, is probably the most versatile for forging. Alloys like 6061 offer good strength, excellent forgeability, weldability, and corrosion resistance. It's a workhorse alloy for many structural and machinery components. We produce many large-diameter 6061 forged rings for various industries.
• 7xxx Series (e.g., 7075, 7050): Containing zinc as the primary alloying element, these achieve the highest strengths among aluminum alloys. 7075-T6 is a benchmark for high-stress applications. While they can be more challenging to forge than 6xxx alloys, the resulting strength is exceptional. Our clients in demanding sectors like aerospace and high-performance machinery often specify these for their critical components. The choice always depends on balancing required strength, toughness, corrosion resistance, machinability, and the complexity of the forging.

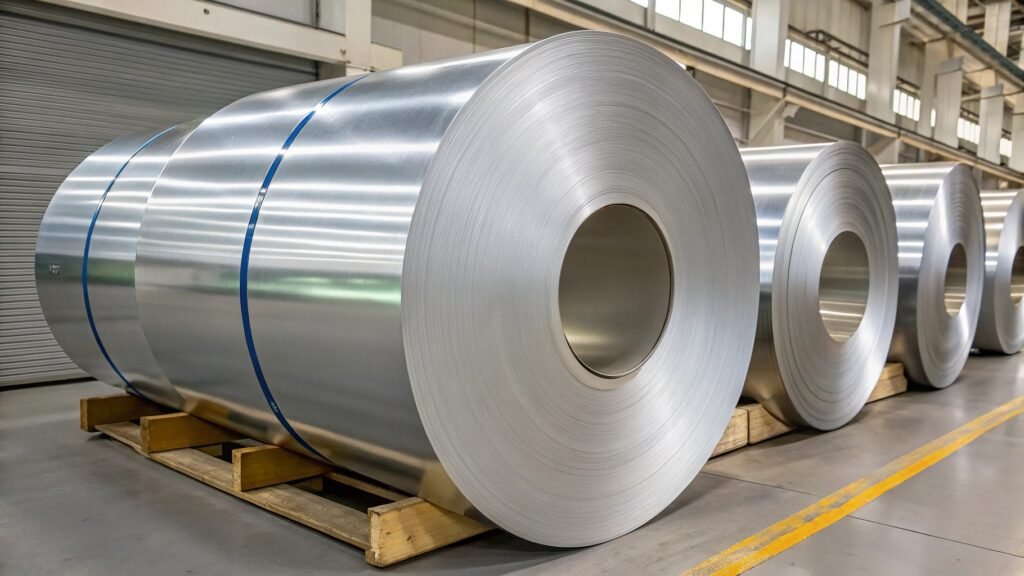

What are the advantages of aluminum alloy?

Considering materials and wondering why choose aluminum alloy? Overlooking aluminum could mean using heavier, more corrosive, or less adaptable materials. Aluminum alloys offer a unique combination of beneficial properties for diverse applications.

Aluminum alloys offer significant advantages including light weight (about one-third of steel), excellent corrosion resistance, high strength-to-weight ratios, good thermal and electrical conductivity, and high recyclability, making them versatile and sustainable.

Aluminum, when alloyed with other elements, becomes an incredibly versatile engineering material. Its inherent advantages are why it's so widely adopted across industries, from aerospace to everyday consumer goods. I've seen our clients at SWA Forging leverage these benefits repeatedly.
Let's break them down:

• Lightweight: This is perhaps its most famous trait. Aluminum's density is roughly 2.7 g/cm³, compared to steel's 7.8 g/cm³. This makes a huge difference in transportation applications, contributing to better fuel efficiency, and in any application where ease of handling or reduced overall mass is important.
• Corrosion Resistance: Aluminum naturally forms a protective oxide layer (alumina) on its surface when exposed to air. This layer is very stable and self-repairing, preventing further oxidation and giving aluminum excellent resistance to weathering and many chemicals. This is a big plus for our clients in the Middle East where environmental conditions can sometimes be demanding.
• High Strength-to-Weight Ratio: Certain aluminum alloys, especially when forged and heat-treated, can achieve strengths comparable to some steels but at a significantly lower weight. This makes them ideal for applications requiring both robust performance and lightness.
• Thermal and Electrical Conductivity: Aluminum is an excellent conductor of both heat and electricity, making it suitable for heat sinks, heat exchangers, and electrical busbars.
• Recyclability: Aluminum can be recycled repeatedly without significant loss of quality, requiring only about 5% of the energy needed to produce primary aluminum. This makes it an environmentally friendly and sustainable material choice.
  These combined advantages make aluminum alloys a go-to material for many modern engineering challenges.

What are the benefits of forged aluminum?

Why opt for forging when other metal forming methods exist? Using cast or simply machined parts might mean compromising on strength or reliability. Forging aluminum enhances its inherent properties, delivering superior mechanical performance.

Forged aluminum benefits from a refined grain structure, improved metallurgical soundness (no porosity), enhanced tensile strength, better fatigue resistance, and increased impact toughness compared to cast or machined-from-bar-stock counterparts. This leads to highly reliable components.

While aluminum alloys themselves have great properties, the forging process elevates them to another level. This is why we specialize in forged rings and discs at SWA Forging. The mechanical working involved in forging brings about several key benefits:

• Refined Grain Structure: The immense pressure used in forging breaks down the coarse grain structure of the initial billet, creating a fine, uniform grain structure. This finer structure contributes significantly to increased strength and toughness.
• Improved Structural Integrity: Forging closes up internal voids or porosity that might be present in cast materials. This results in a denser, more sound material, which is critical for components subjected to high stress or fatigue. I recall a client who switched from cast parts to our forgings for a high-vibration application and saw a dramatic reduction in field failures.
• Enhanced Mechanical Properties: Forged aluminum typically exhibits higher tensile strength, yield strength, and fatigue resistance compared to the same alloy in cast form or even machined from standard bar stock. The grain flow can also be oriented to align with the direction of principal stresses in the part, further optimizing strength.
• Increased Toughness and Impact Resistance: The refined grain structure and lack of porosity make forged aluminum¹ more resistant to impact and crack propagation. This is crucial for safety-critical applications where unexpected loads can occur.
• Near-Net Shape Capability: Forging can produce parts closer to their final shape, reducing subsequent machining time and material waste compared to starting with oversized bar stock. This is a cost benefit our machining clients appreciate.

Essentially, forging optimizes the aluminum alloy to its full potential for demanding applications.

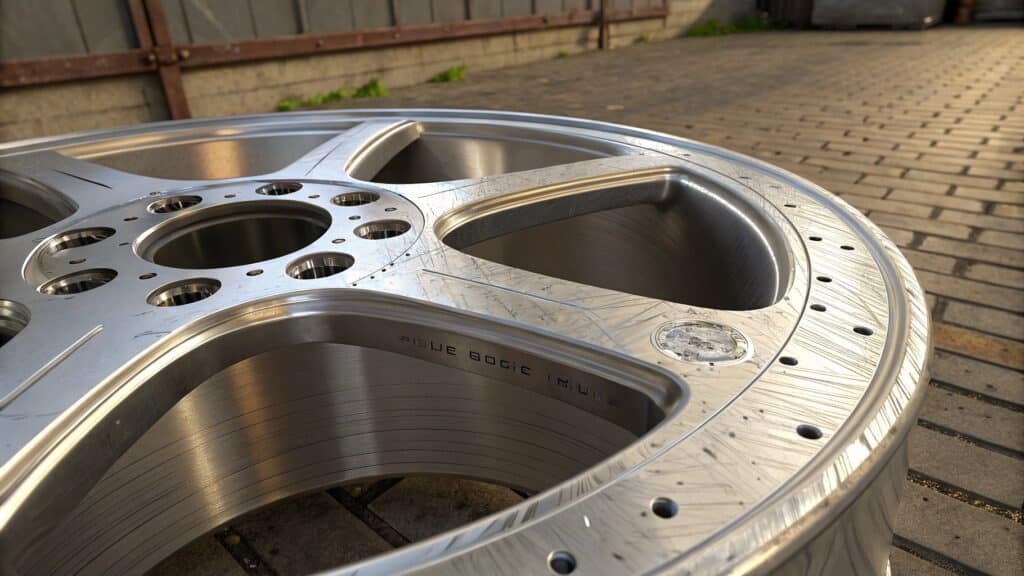

What is forged aluminum alloy?

Unclear on what "forged aluminum alloy" specifically means? This lack of clarity can make it difficult to appreciate its unique value. It's a premium material form combining alloy chemistry with process-induced enhancements.

Forged aluminum alloy refers to an aluminum alloy product that has been shaped by the forging process. This process involves applying compressive forces, usually at elevated temperatures, to refine the metal's structure and enhance its mechanical properties.

So, when we talk about "forged aluminum alloy," we're describing an aluminum material that has undergone a specific manufacturing journey. It starts with a carefully selected aluminum alloy – a base of aluminum mixed with other elements like copper, magnesium, silicon, or zinc to achieve desired base properties. Then, this alloy is subjected to the forging process.

This isn't just about shaping the metal. As we emphasize at SWA Forging, the forging process – whether it's open-die, closed-die, or seamless rolled ring forging for our specialty products like large-diameter rings and discs – fundamentally changes the material at a microstructural level. The intense pressure deforms the metal, causing its internal grains to refine, align, and become more consolidated. This process heals any internal discontinuities like porosity that might be found in other forms, such as castings.

The result is a product where the inherent chemical advantages of the aluminum alloy are amplified by the structural enhancements from forging. Therefore, a "forged aluminum alloy" component is typically superior in strength, toughness, fatigue resistance, and overall reliability compared to the same alloy if it were cast or simply machined from a standard extruded bar. It's a combination of optimized chemistry and optimized structure. This is why our clients, from traders requiring top-quality stock to machining facilities producing high-performance parts, choose SWA Forging.

Conclusion

Aluminum alloy forging provides strong, lightweight, and reliable components. It enhances material properties, making it ideal for many demanding industrial uses, ensuring superior performance and durability.
