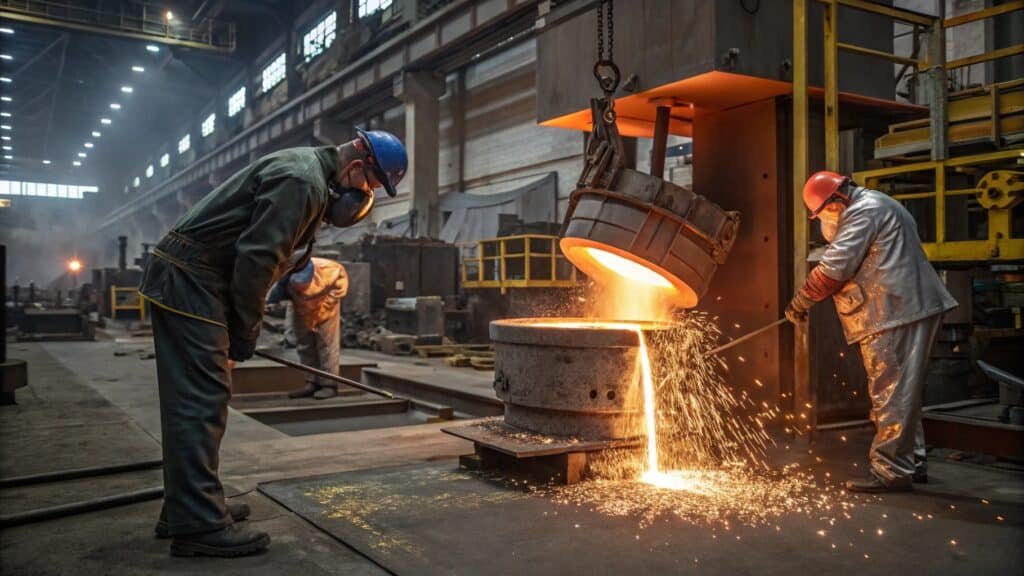

What is aluminum forging?

When we talk about shaping metal to create incredibly strong and precise parts, forging is often the go-to method. But what happens when we apply this process specifically to aluminum?

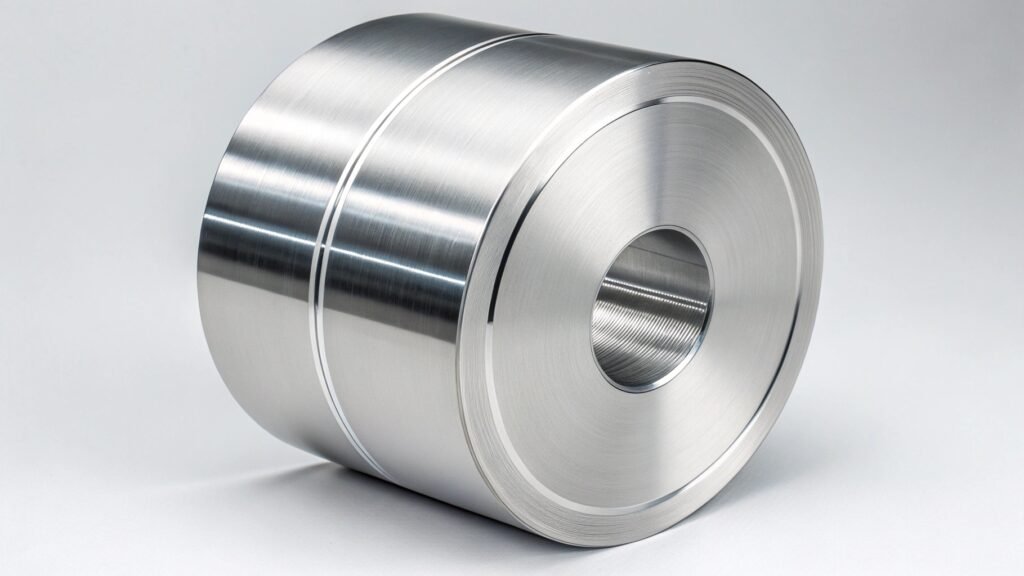

Aluminum forging¹ is a manufacturing process that shapes aluminum alloys by applying localized compressive forces, usually through hammering or pressing, at elevated temperatures. This process refines the metal's grain structure, eliminating internal defects and increasing its strength, toughness, and fatigue resistance compared to other methods like casting or machining. It's particularly effective for creating complex, high-performance components where material integrity is paramount.

At SWA Forging, we specialize in precisely this: aluminum forging. We leverage the inherent advantages of aluminum alloys and the power of forging to produce custom-made, high-quality parts like large-diameter rings and discs for demanding industries worldwide, from automotive to machinery.

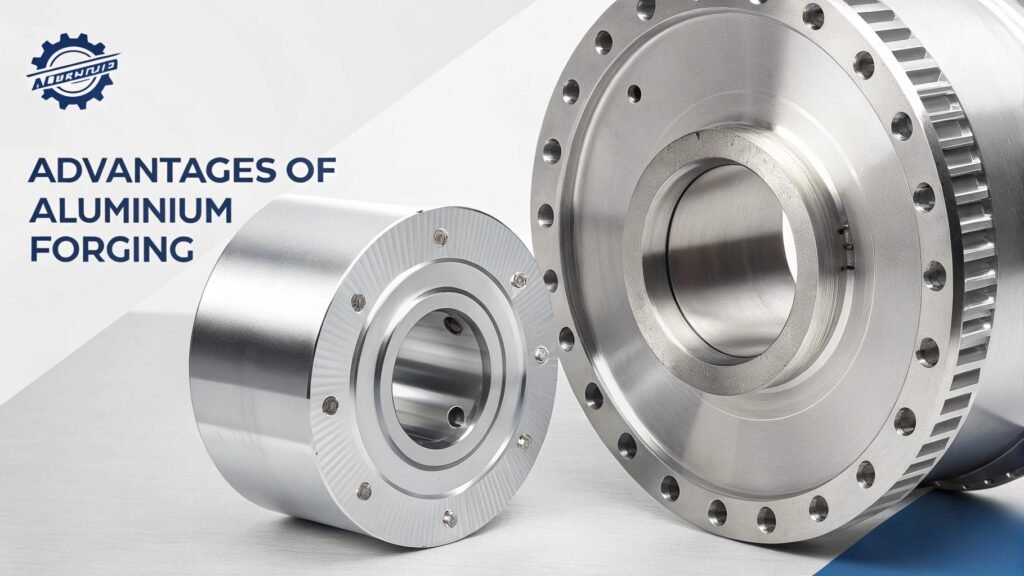

What are the advantages of Aluminium forging?

When we choose a manufacturing method, we're always looking for the best way to get the strongest, most reliable part. For aluminum, forging offers a clear set of benefits.

The advantages of aluminum forging are significant, primarily stemming from the refinement of the aluminum alloy's grain structure. This results in superior mechanical properties, including higher tensile strength, yield strength, and fatigue strength compared to cast or machined aluminum. Forged parts also exhibit excellent toughness and ductility, making them resistant to fracture under stress and impact. The process minimizes internal voids and defects, leading to greater reliability. Furthermore, forging can produce complex shapes with good dimensional accuracy and surface finish, often reducing the need for subsequent machining and improving overall part integrity.

At SWA Forging, these advantages are what we deliver to our clients. Whether it’s a critical component for a high-performance vehicle or a vital part for industrial machinery, our forged aluminum products benefit from this enhanced strength, reliability, and precise shaping, ensuring they meet the highest standards.

Unpacking the Benefits of Forged Aluminum

Forging transforms aluminum alloys into components with exceptional performance characteristics. Here’s why it’s a preferred method:

1. Enhanced Mechanical Properties:

   • Grain Structure Refinement: Forging manipulates the metal's grain structure. During the process, the grains are refined and elongated in the direction of the metal flow. This creates a continuous grain pattern that follows the contours of the part, eliminating weak points.
   • Increased Strength and Toughness: This refined grain structure significantly increases tensile strength, yield strength, and impact toughness. The material becomes more resistant to deformation and fracture under stress.
   • Fatigue Resistance: Forged aluminum parts generally have much better fatigue life than cast or machined parts. This means they can withstand repeated stress cycles without failing, which is crucial for components in dynamic applications like engines or suspension systems.

2. Improved Reliability and Reduced Defects:

   • Minimizing Voids: Casting processes can sometimes leave behind internal porosity (small voids or gas pockets) or shrinkage cavities. Machining starts from a solid block but can introduce stress risers if not done carefully. Forging, by plastic deformation, closes up any existing voids and prevents new ones from forming.
   • Homogeneous Material: The result is a more homogeneous and sound material throughout the component, leading to greater reliability and predictability in performance.

3. Complex Shapes and Dimensional Accuracy:

   • Formability: Aluminum alloys, especially when heated, are very malleable. This allows them to be shaped into intricate and complex geometries using dies.
   • Precision: While some machining may still be required for very tight tolerances or specific features, forging can produce parts with good dimensional accuracy and surface finish, reducing the amount of secondary machining needed. This saves time and cost.

4. Cost-Effectiveness for High-Volume or Critical Parts:

   • Reduced Machining: For parts requiring high strength and complexity, the reduced need for extensive machining after forging can make it more cost-effective overall, especially for larger production runs.
   • Material Savings: Although initial tooling costs for dies can be high, the improved material properties and reduced scrap rates (due to fewer defects) can lead to overall material savings.

5. Specific Applications:

   • Large Diameter Rings and Discs: Forging is ideal for producing these parts with high material integrity, essential for machinery, industrial equipment, and aerospace applications.
   • Aerospace Components: Where extreme reliability and performance are critical, forged aluminum is often specified.
   • Automotive Parts: Suspension components, wheels, and engine parts benefit greatly from the strength and fatigue resistance of forged aluminum.

In essence, aluminum forging is the process that unlocks the highest potential of aluminum alloys, making them suitable for applications where strength, reliability, and performance are non-negotiable.

What does forging mean in metal?

When we talk about metalworking, "forging" is a term that comes up frequently. It's a fundamental process that shapes metals in a very specific way.

In metalworking, forging means shaping a metal object by heating it and then striking it repeatedly with a hammer or pressing it with dies. This process uses localized, controlled compressive forces to deform the metal plastically. Forging is distinct from casting (where metal is melted and poured into a mold) and machining (where excess material is removed by cutting). The key outcome of forging is a refined grain structure that aligns with the shape of the part, resulting in improved strength, toughness, and fatigue resistance.

At SWA Forging, we understand the deep meaning and power behind this process. We apply forging to aluminum alloys to create parts that are not only precisely shaped but also possess superior mechanical integrity, making them ideal for demanding industrial and automotive applications.

The Core Principles and Techniques of Forging

Forging is an ancient art that has evolved into a sophisticated manufacturing science. At its heart, it's about controlled deformation.

1. The Fundamental Action: Plastic Deformation:

   • What it is: Forging works by forcing the metal to change its shape permanently without fracturing. This occurs when the applied stress exceeds the metal's yield strength.
   • How it's Achieved: This stress is applied through impact (hammering) or steady pressure (pressing).
   • Temperature's Role: Most forging is done hot (hot forging), meaning the metal is heated to temperatures well above room temperature, often to a significant fraction of its melting point. This makes the metal much more ductile and malleable, allowing it to deform easily. Cold forging is also done, but typically for smaller parts or specific effects.

2. Types of Forging:

   • Open-Die Forging: The workpiece is placed between two dies that do not completely enclose it. Dies often have simple shapes (flat or slightly contoured). The operator manipulates the workpiece, and the dies strike or press it in different areas to achieve the desired shape. This is very versatile for custom parts, large items, and simpler geometries like discs, rings, shafts, and blocks.
   • Closed-Die Forging (Impression Die Forging): The workpiece is placed between two dies that fit together, completely enclosing the metal. The dies have a cavity that matches the desired final shape of the part. The metal fills the cavity as the dies are pressed or hammered together. This method is used for producing complex shapes with high precision and is common in high-volume production.
   • Upset Forging: A type of forging where the metal is placed on its side, and force is applied to its ends, causing it to thicken and shorten. This is often used to create features like flanges on shafts or bolts.

3. The Critical Outcome: Grain Structure Refinement:

   • As-Cast or As-Rolled Grain: Metals in their raw form often have grain structures that are either coarse (from casting) or elongated in a specific direction (from rolling). These can contain internal stresses or weaknesses.
   • Forging's Effect: When metal is forged, the grains are deformed and recrystallized. This process breaks down large grains into smaller, more uniform ones. Crucially, the grain flow lines (or flow fronts) are oriented to follow the contour of the part.
   • Why it Matters: This alignment of grains means that stresses are distributed more evenly, and any points of stress concentration are minimized. This leads to greatly improved strength, ductility, and resistance to fatigue and impact.

In summary, forging is a metal-shaping process that uses force to plastically deform metal, typically at high temperatures, to achieve a refined grain structure and enhanced mechanical properties that are superior to other manufacturing methods.

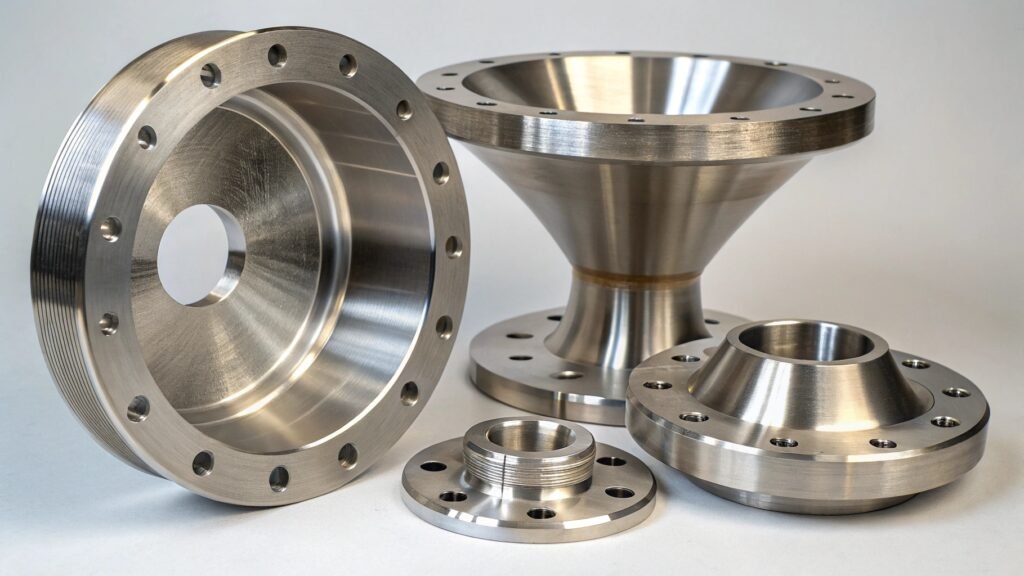

Can you forge aluminum like steel?

We often think of steel as the go-to metal for strength and durability, and it's very commonly forged. But when it comes to aluminum, can we perform the same kind of forging processes?

Yes, you can forge aluminum, and much like steel, it benefits greatly from the process. However, there are key differences in how aluminum is forged compared to steel. Aluminum alloys have much lower melting points and forging temperatures than steels. Forging aluminum requires precise temperature control because it has a narrower "forging window"—the temperature range between when it becomes soft enough to deform and when it becomes too hot and begins to melt or degrade. While aluminum is highly malleable, some aluminum alloys can be more prone to cracking if not handled correctly during the forging process, especially at cooler temperatures or if they contain certain alloying elements.

At SWA Forging, we specialize in forging aluminum. We've developed the expertise to manage these specific characteristics, ensuring that we can produce high-quality, defect-free forged aluminum parts, such as large diameter rings and discs, that rival the performance and reliability of forged steel in many applications.

Forging Aluminum: Similarities and Key Differences from Steel

While the fundamental principles of forging apply to both aluminum and steel, their distinct properties dictate different approaches and considerations.

1. The Process is Similar (Hammering/Pressing):

   • Forging Techniques: Both aluminum and steel are shaped using similar methods: open-die forging and closed-die forging, employing hammers and presses.
   • Heat is Key: Forging both metals typically involves heating them to achieve optimal plasticity, although the actual temperatures differ significantly.

2. Temperature is the Major Difference:

   • Aluminum's Lower Melting Point: Pure aluminum melts around 1220°F (660°C). Steel melts at much higher temperatures, around 2500°F (1370°C).
   • Forging Temperatures:
     • Aluminum: Typically forged between 750°F (400°C) and 950°F (510°C), depending on the alloy. This is a relatively narrow range.
     • Steel: Typically forged between 1700°F (925°C) and 2200°F (1200°C). This offers a wider temperature window.
   • Consequences: Aluminum needs to be heated carefully to avoid reaching its melting point or overheating, which can degrade its properties. Steel requires much higher temperatures, demanding more robust heating and tooling.

3. Malleability and Ductility:

   • Aluminum: Many aluminum alloys are very malleable and ductile, making them easy to shape. However, certain alloys, especially those with higher zinc or copper content (like some 7xxx series), can be more prone to cracking during forging if the temperature is too low or if the deformation rate is too high.
   • Steel: Steel is also ductile and malleable when hot, and its wider temperature range offers more flexibility.

4. Oxidation and Surface Contamination:

   • Aluminum: Aluminum oxidizes rapidly when heated, forming an aluminum oxide layer. While this oxide is hard and protective, it can also be abrasive and can get trapped in the metal during forging if not managed. Forging processes for aluminum often involve specific methods to handle this oxide.
   • Steel: Steel also oxidizes at forging temperatures, forming scale, which is also abrasive. Both materials require careful control of the heating environment to minimize contamination.

5. Tooling and Lubrication:

   • Aluminum: Lower forging temperatures for aluminum mean less thermal stress on the tooling, but the abrasive oxide layer requires appropriate die materials and lubricants to prevent sticking and wear.
   • Steel: Higher temperatures mean greater wear and thermal stress on tooling, often requiring specialized alloys and cooling systems.

6. Properties of Forged Products:

   • Strength: While both can be forged to high strength, aluminum alloys achieve their best properties at lower densities. The resulting strength-to-weight ratio is often a primary reason for choosing forged aluminum.
   • Grain Flow: Both processes align grain flow for improved mechanical properties.

In summary, while aluminum can be forged using similar principles as steel, the process requires careful management of its lower forging temperatures, narrower forging window, and unique oxidation behavior to achieve optimal results.

How to tell if metal is forged?

Once a metal part is in your hands, how can you be sure if it's been forged rather than cast, machined, or formed through some other process? There are several tell-tale signs.

You can often tell if metal is forged by examining its grain structure and surface features. Forged metal typically has a fine, uniform, and continuous grain flow that follows the part's contours, which can sometimes be seen on a fracture surface. Forged parts often have smooth surfaces with minimal flash marks (remnants from the die parting line in closed-die forging) or draft angles (slight tapers on vertical surfaces to aid removal from the die). Unlike machined parts, forged surfaces generally lack tool marks or feed spirals. While casting might show porosity or a more random grain structure, forging aims for a dense, homogenous structure. Often, the part's design itself, especially complex shapes needing high strength, implies it was forged.

At SWA Forging, the parts we produce, like large diameter forged rings, are engineered for strength and precision. While our finished products often look smooth and well-defined, knowing these indicators helps our clients appreciate the inherent quality and structural integrity that comes from the forging process itself.

Indicators of a Forged Metal Part

Identifying a forged part often requires a close look at its manufacturing clues.

1. Grain Flow and Structure (Requires Fracture or Metallography):

   • The Gold Standard: The most definitive way is to observe the metal's grain structure. Forged metal has grain lines that flow around the shape of the part, much like wood grain. This is strongest when viewed on a fractured surface or under a microscope (metallography).
   • Visual Clues: Sometimes, on a broken edge or a specially prepared surface, you can see these flow lines. They are continuous and follow the part's geometry.
   • Contrast with Casting: Cast metal typically has a more random or dendritic grain structure, and may contain internal porosity. Machined parts will show tool marks.

2. Surface Finish and Features:

   • Smoothness: Forged parts often have a smooth, slightly matte surface finish. While dies can be highly polished, the process itself often imparts a certain sheen.
   • Flash: In closed-die forging, a small amount of excess metal is often squeezed out between the die halves. This forms a thin ridge called "flash" along the parting line of the dies. While much of this is trimmed, slight remnants might be visible, especially around edges.
   • Draft Angles: To facilitate removal from the die, forged parts usually have slight tapered surfaces called draft angles. These are intentional and typically uniform.
   • Absence of Tool Marks: Unlike machined parts, which show the distinct patterns of cutting tools (like feed marks or spiral grooves), forged surfaces are typically free from these machining artifacts.

3. Part Geometry and Design:

   • Complex Shapes: Forging excels at creating complex shapes that would be difficult or impossible to machine or cast reliably, especially for high-strength applications. If a part has intricate curves, undercuts, or features that clearly follow stress paths, it's likely forged.
   • Strength Requirements: Parts designed for high stress, impact, or fatigue loads are almost always forged to ensure the necessary material integrity.

4. Density and Soundness:

   • Homogeneous Structure: Forged parts are generally very dense and free from internal voids or porosity, which are common in castings. A heavy, solid feel without the potential for internal hollowness can be an indicator.
   • Sound Test: Tapping a forged part might produce a clean, ringing sound, whereas a cast part might sound duller if it has internal flaws.

5. Markings:

   • Manufacturer Marks: Forged parts often carry the manufacturer's mark, material specification, or batch number, which might be forged into the part itself during the process.

While a visual inspection can often provide strong clues, a definitive confirmation of forging usually involves examining the grain structure through fracture or metallographic analysis.

Conclusion

Aluminum forging shapes aluminum alloys using heat and force to create stronger, more reliable parts with refined grain structures. This offers superior mechanical properties, improved reliability, and the ability to create complex shapes compared to casting or machining. Forging in metal involves shaping it through controlled plastic deformation, typically with heat. While aluminum can be forged like steel, it requires managing its lower temperatures and narrower forging window. You can often tell if metal is forged by its smooth surface, absence of tool marks, presence of flash or draft angles, and crucially, its continuous grain flow that follows the part's contour.
