What Is the Temperature Needed to Bend Aluminum Alloy Successfully?

Bending aluminum alloy can be frustratingly difficult when done incorrectly. Without proper knowledge of temperature requirements, you risk cracking your material, creating unsightly surface defects, or applying excessive force that damages both the workpiece and your equipment.

Most aluminum alloys bend most effectively when heated to temperatures between 300°F and 750°F (149°C and 400°C), depending on the specific alloy and thickness. This heating reduces the yield strength and increases ductility, allowing for easier forming without cracking.

At SWA Forging, we work with aluminum alloys daily, primarily producing large-diameter forged rings and discs. While our process involves more substantial forming than simple bending, the principles regarding aluminum's behavior at various temperatures remain the same. I've seen firsthand how crucial temperature control is when working with these versatile but sometimes challenging materials. Our customers, particularly those in machining operations who further process our materials, often ask about the best practices for forming aluminum. Understanding the temperature requirements for bending aluminum alloys is essential knowledge for anyone working with these materials.

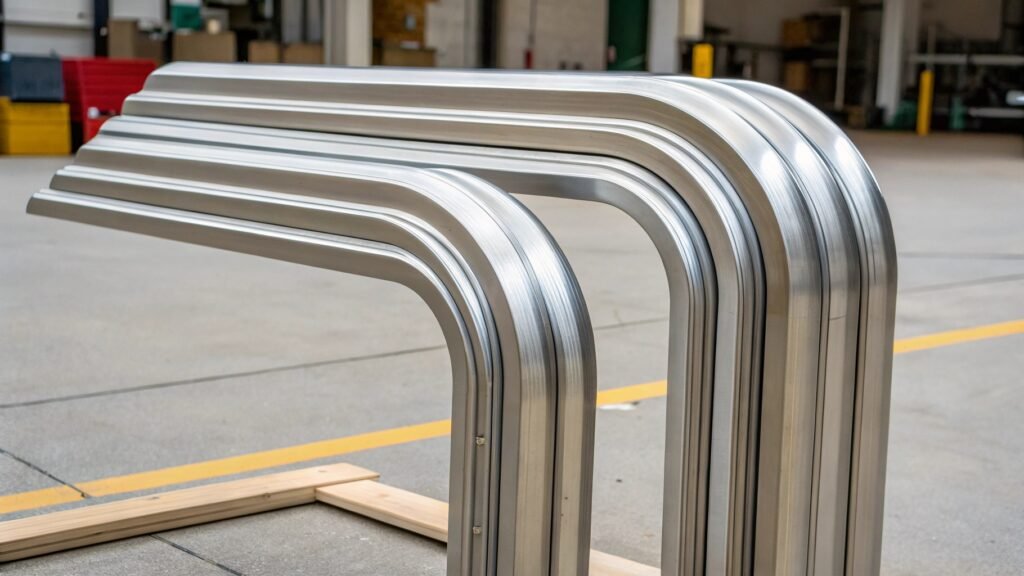

Can aluminum be bent 90 degrees?

Wondering if your aluminum project can make that sharp 90-degree turn without breaking? This seemingly simple question can determine the success or failure of your entire fabrication plan.

Yes, most aluminum alloys can be bent to 90 degrees successfully if proper techniques are used. Softer alloys like 3003 and 5052 can be bent at room temperature, while stronger alloys like 6061 and 7075 often require heating or annealing first to prevent cracking.

Achieving successful 90-degree bends in aluminum is absolutely possible, though it depends significantly on several factors that I've come to understand through our work at SWA Forging. The ability to make these sharp bends relates directly to the material's properties and how you handle it during the bending process.

The aluminum alloy type is perhaps the most crucial factor. Softer, more ductile alloys like 1100, 3003, and 5052 are naturally more bendable and can often achieve 90-degree bends at room temperature without cracking. These are often referred to as "non-heat-treatable" alloys, and they rely on cold working (like the bending itself) for their strength.

In contrast, stronger heat-treatable alloys like 6061 and 7075, which we commonly forge into rings and discs, present more challenges for sharp bends. Their higher strength comes with reduced ductility, making them more prone to cracking during severe forming operations like 90-degree bends.

The material thickness relative to the bend radius is another critical consideration. A general rule of thumb is that the inside bend radius should be at least equal to the material thickness to avoid excessive strain and potential cracking. For example, 1/4-inch thick aluminum would ideally have at least a 1/4-inch inside bend radius.

Bend orientation relative to the grain direction also matters. Bending perpendicular to the grain direction (against the grain) requires more force and increases the risk of cracking compared to bending parallel to the grain.

For challenging bends in stronger alloys, we often recommend:

1. Annealing the material first to soften it
2. Heating the bend area to increase ductility
3. Using a larger bend radius whenever possible
4. Bending in multiple stages rather than one operation

I've seen many successful 90-degree bends in various aluminum alloys, even in relatively thick sections, when these principles are applied correctly.

Does aluminum alloy bend easily?

You're planning a project and wondering about aluminum's flexibility. Will it cooperate with your design vision, or fight you at every turn? Understanding its bendability could save you considerable time and frustration.

Some aluminum alloys¹ bend easily while others are more resistant. Soft alloys like 1100, 3003, and 5052 are quite bendable at room temperature. Stronger alloys like 6061-T6 and 7075-T6 are much more difficult to bend without heating or annealing first.

The bendability of aluminum alloys varies dramatically based on several factors, and I've seen this firsthand through our work at SWA Forging. The ease of bending is primarily determined by the alloy type, temper condition (heat treatment state), and thickness.

The alloy series plays a major role in bendability. Pure aluminum (1xxx series) is extremely ductile and bends with minimal effort. As you move into alloy categories with higher strength, bendability generally decreases. For example, 3xxx series (aluminum-manganese) and 5xxx series (aluminum-magnesium) alloys offer good bendability while maintaining moderate strength. The 6xxx series (aluminum-magnesium-silicon) that we commonly work with has moderate bendability in the annealed state but becomes significantly more difficult to bend after heat treatment to the T6 condition. The high-strength 7xxx series (aluminum-zinc) alloys are the most challenging to bend, especially in their heat-treated states.

The temper or heat treatment condition dramatically affects bendability. Any aluminum alloy in the annealed state (designated with an "O" suffix, like 6061-O) will bend much more easily than the same alloy in a hardened state (like 6061-T6). For example, 6061-O can be bent fairly easily, while 6061-T6 requires much more force and is more prone to cracking.

Material thickness relative to the bend radius is another crucial factor. Thinner material bends more easily than thicker material of the same alloy and temper. A 1/16-inch thick piece of 6061-T6 might bend adequately with proper tooling, while a 1/2-inch thick piece of the same material would likely crack if bent to the same radius without heating.

For our customers working with our aluminum products, we often recommend:

1. Choose softer alloys when bendability is a primary requirement
2. Consider using annealed material for bending operations, with the option to heat treat after forming
3. Design with appropriate bend radii based on the material properties
4. Heat the bend area when working with stronger alloys or thicker sections

What temperature do you bend aluminum?

Finding the sweet spot for heating aluminum before bending can be tricky. Too cold, and it might crack; too hot, and you could damage the material's properties. This uncertainty can lead to costly mistakes.

For most aluminum alloys, a temperature range of 300-750°F (149-400°C) is ideal for bending. Softer alloys like 3003 need minimal heating (300-400°F/149-204°C), while stronger alloys like 6061-T6 benefit from higher temperatures (400-550°F/204-288°C) to safely achieve tight bends.

At SWA Forging, we've found that the optimal temperature for bending aluminum depends significantly on the specific alloy and its temper condition. While our primary focus is on forging operations rather than bending, the principles of how aluminum behaves at different temperatures are fundamental to both processes.

For non-heat-treatable alloys like 1100, 3003, and 5052, minimal heating is typically required. These can often be bent at room temperature, but heating to 300-400°F (149-204°C) can make the process easier, especially for thicker sections or tighter radii. The heating reduces the force required and minimizes the risk of cracking or surface defects.

For heat-treatable alloys in the annealed condition (like 6061-O), similar moderate heating to 300-450°F (149-232°C) is usually sufficient to improve bendability. These temperatures don't significantly affect the material's microstructure but do increase ductility.

The situation changes dramatically for heat-treated alloys like 6061-T6 or 7075-T6. These materials benefit from higher temperatures, typically in the range of 400-550°F (204-288°C). This temperature range provides a good balance: it's high enough to significantly reduce the yield strength and increase ductility, but not so high that it causes unwanted changes to the material's temper or properties.

For very difficult bends in high-strength alloys or thick sections, temperatures up to 650-750°F (343-400°C) might be used, though this approaches the range where some precipitation hardening alloys begin to experience changes in their temper condition. This can be acceptable if the slight reduction in strength is not problematic for the application.

It's important to note that unlike steel, aluminum doesn't change color when heated, making temperature measurement crucial. We typically use temperature indicators, infrared thermometers, or temperature-indicating crayons to ensure we're in the proper range.

The heating should be uniform across the bend area to prevent stress concentrations that could lead to cracking. After bending, allowing the part to air cool is usually sufficient, as aluminum's high thermal conductivity means it cools relatively quickly.

What temperature is too hot for aluminum?

You're heating aluminum for bending, but worry about going too far. At what point does the temperature damage the material? This critical question could mean the difference between a successful project and ruined material.

For most aluminum alloys, temperatures above 750-800°F (400-425°C) are generally considered too hot for processing. At these temperatures, heat-treated alloys begin to lose their temper, and approaching 900°F (482°C) risks incipient melting in some alloys with lower melting constituents.

Working with aluminum daily at SWA Forging has given me a deep appreciation for how critical temperature control is when processing this material. While aluminum's relatively low melting point (around 1,220°F/660°C for pure aluminum) might suggest a high tolerance for heating, the reality is much more nuanced.

For most aluminum alloys, there are several critical temperature thresholds to be aware of:

450-650°F (232-343°C): This is generally the range where heat-treated alloys (particularly 2xxx, 6xxx, and 7xxx series) begin to experience some temper changes. Brief exposure for bending operations is usually acceptable, but extended time at these temperatures will start to reduce the strength gained through previous heat treatment.

700-750°F (371-400°C): At these temperatures, significant tempering effects occur in heat-treated alloys. For example, 6061-T6 exposed to these temperatures for more than a few minutes will begin to revert toward the T4 condition, losing some of its yield and tensile strength.

775-850°F (413-454°C): This range approaches or reaches the typical solution heat treatment temperatures for many aluminum alloys. Extended exposure here will effectively anneal heat-treated materials, substantially reducing their strength.

900°F (482°C) and above: Some aluminum alloys, particularly those containing higher amounts of magnesium, copper, or zinc, can experience "incipient melting" at temperatures well below the melting point of pure aluminum. This occurs when low-melting-point constituents at grain boundaries begin to melt while the bulk of the material remains solid. Once incipient melting occurs, the material is typically ruined for structural purposes.

1,220°F (660°C): The approximate melting point for pure aluminum, though most alloys begin melting at slightly lower temperatures.

For bending operations specifically, we generally recommend staying below 750°F (400°C) to maintain material properties while still getting the benefits of increased formability. If higher temperatures are absolutely necessary for extremely difficult bends, it's important to understand that the material may lose some of its temper and strength.

Non-heat-treatable alloys like 3003 and 5052 are somewhat more forgiving of higher temperatures since they don't rely on precipitation hardening for their strength. However, even these alloys should generally be kept below 900°F (482°C) to avoid potential grain boundary issues.

Conclusion

Bending aluminum successfully requires understanding its specific temperature needs—typically 300-750°F depending on the alloy. With proper heating, most aluminum alloys can achieve 90-degree bends without cracking, while avoiding temperatures above 800°F prevents damaging the material's structural properties.
