Why use 6061 Aluminium alloy?

Choosing an aluminum alloy can be tough, can't it? The wrong one might mean project delays or even failures. So, what makes 6061 aluminum so incredibly popular and widely trusted?

6061 aluminum alloy is extensively used due to its excellent combination of good strength, great corrosion resistance, good weldability, good machinability, and overall cost-effectiveness, making it highly versatile for a vast range of applications, including forging.

At SWA Forging, we've seen countless projects succeed thanks to the reliable performance of 6061 aluminum¹. Since we started back in 2012, we've supplied numerous large-diameter forged rings and discs made from this very alloy to our clients, especially traders and machining companies in the Middle East. It truly is a workhorse material in the aluminum world. Let's explore its attributes in more detail and understand why it's such a go-to choice.

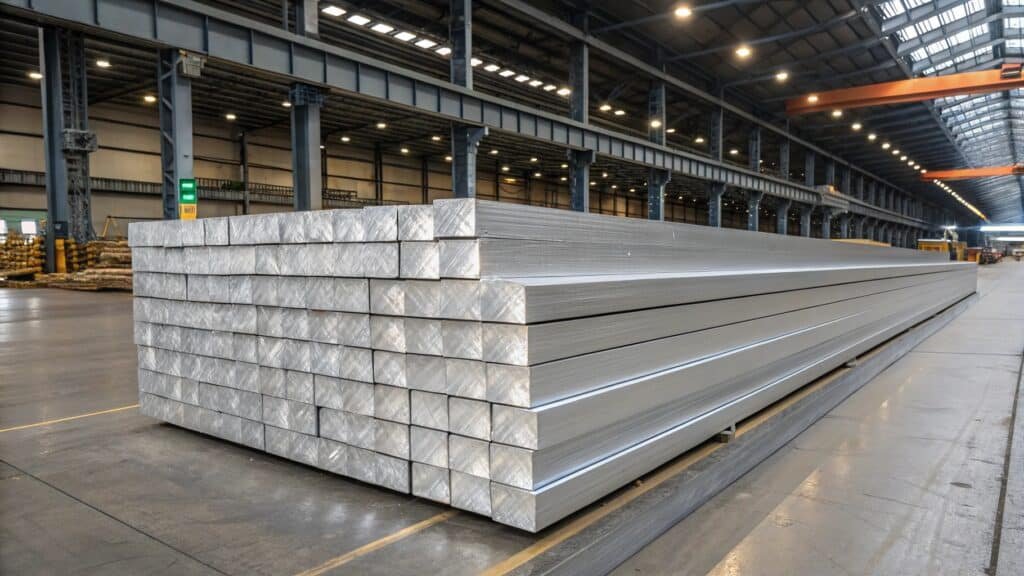

What is 6061 aluminum?

You've probably heard the term "6061 aluminum" used quite a bit, but what does it actually mean? It's a common material, yet its exact nature can be a bit of a mystery if you're not a metallurgist.

6061 aluminum is a precipitation-hardened aluminum alloy, with magnesium and silicon as its major alloying elements. It's known for its medium-to-high strength, good toughness, and excellent corrosion resistance, especially after undergoing heat treatment like the T6 temper.

So, to dive a bit deeper, 6061 aluminum belongs to the 6000 series of aluminum alloys. The main ingredients added to the aluminum are magnesium (Mg) and silicon (Si). These two elements are key because they combine to form a compound called magnesium silicide (Mg₂Si). This compound is what gives 6061 its excellent response to heat treatment.
One of the most common tempers for 6061 is T6. This means the aluminum goes through a specific heat treatment process:

1. Solution Heat Treatment: The alloy is heated to a high temperature (around 530°C or 985°F) to dissolve the magnesium silicide into the aluminum.
2. Quenching: It's then rapidly cooled, usually in water, to trap the magnesium silicide in this dissolved state.
3. Artificial Aging: Finally, it's "aged" by reheating it to a lower temperature (around 160-175°C or 320-350°F) for several hours. This causes the magnesium silicide to precipitate out as very fine particles throughout the aluminum structure, significantly increasing its strength and hardness.
   This process results in a material with a great balance of mechanical strength, good corrosion resistance (it forms a natural protective oxide layer), and it can be easily welded and machined. At SWA Forging, many of the large-diameter forged rings and discs we produce for our clients, who are often traders or machining companies, are made from 6061. Its ability to be heat-treated to the T6 temper provides the robust mechanical properties they need for diverse industrial applications.

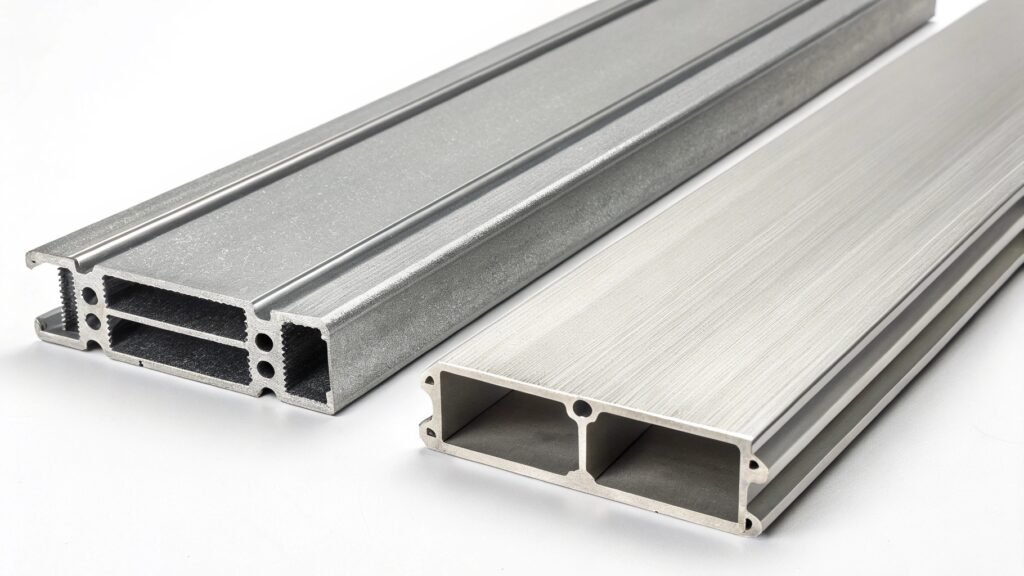

How do I know if my aluminum is 5052 or 6061?

Got a piece of aluminum, but you're not quite sure if it's 5052 or 6061? This identification challenge can certainly halt projects if the wrong material ends up being used for a critical part.

Distinguishing 5052 from 6061 aluminum visually is very difficult. The most reliable way is to check material certifications. For definitive identification without paperwork, a chemical analysis using an XRF analyzer is needed.

It's a common problem – these alloys can look almost identical. The best and most straightforward method is always to refer to the documentation that came with the material. At SWA Forging, we provide product quality certificates with every single order, and these clearly state the alloy designation. This is absolutely crucial for our trader clients, who need to provide assurance to their downstream customers, and for machining companies, who rely on precise material specifications for their CNC processes.
If you don't have paperwork, you'll need to resort to material analysis. A portable X-Ray Fluorescence (XRF) analyzer is a very practical tool for this. It can give you a quick elemental breakdown of the alloy. For even more precise lab-based results, Optical Emission Spectrometry (OES) can be used.
There are some key property differences, though these often require testing or prior knowledge:

Generally, 5052 is softer and more ductile than 6061-T6. It's excellent for forming complex shapes without cracking. 6061-T6 is noticeably harder and stronger. While not a scientific test, if you can very easily bend a thin piece significantly by hand and it stays bent without much spring-back, it might behave more like an annealed 5xxx series alloy than a T6 tempered 6061, but please don't rely on this for critical applications!

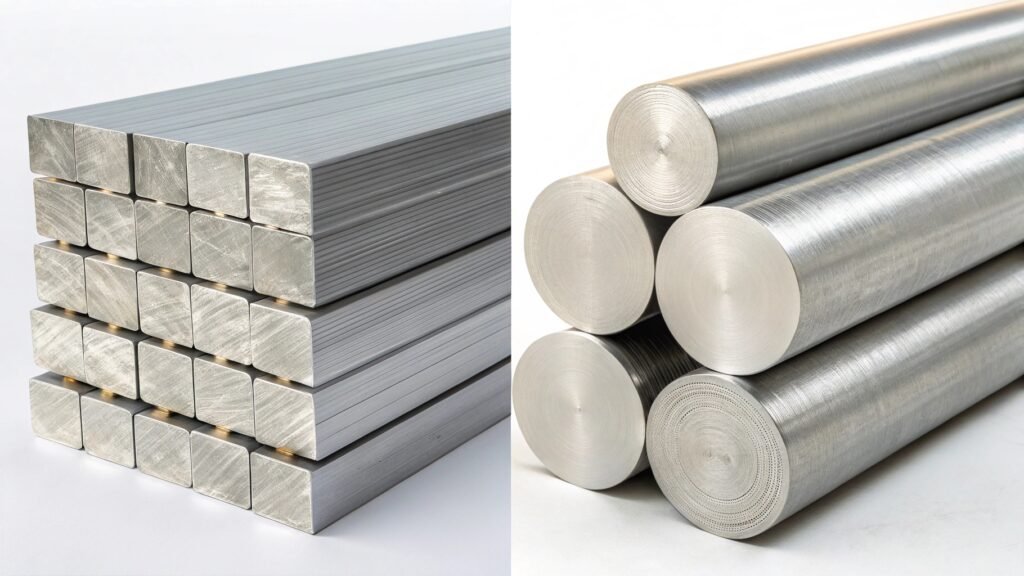

Which is better, 6061 or 7075 aluminum?

Choosing between 6061 and 7075 aluminum² can feel like picking a champion in a strength contest. Both are respected aluminum alloys, but which one truly suits your specific needs best? It's a common question.

Neither 6061 nor 7075 aluminum is universally "better"; it depends on the application. 7075 is significantly stronger and harder, ideal for high-stress aerospace applications. 6061 offers better weldability, general corrosion resistance, and lower cost, making it more versatile.

The term "better" really depends on what you need the aluminum to do. These two alloys have quite different strengths and characteristics.
Let's look at a quick comparison:

As you can see, 7075-T6 is a powerhouse when it comes to strength; it's nearly twice as strong as 6061-T6. However, this high strength comes with trade-offs. It's not as corrosion-resistant as 6061 in certain environments and is generally considered difficult to weld without compromising its properties. For many of our clients at SWA Forging who need large-diameter forged rings and discs for general industrial, automotive, or machinery applications, 6061-T6 provides an excellent and cost-effective balance of properties. But, if a client has an application where maximum strength is paramount, like for a specialized high-load component, then 7075 is the clear choice, and we always make sure to counsel them on its specific handling and processing requirements.

Is 6061 better than 6063 aluminum?

You'll often see both 6061 and 6063 aluminum³ mentioned, as they are both popular alloys from the 6xxx series. But subtle differences exist between them. Is 6061 always the superior choice, or does 6063 have its own specific advantages?

6061 is generally stronger and harder than 6063 due to a higher percentage of alloying elements, especially magnesium silicide. However, 6063 offers better extrudability, a smoother surface finish, and very good corrosion resistance, often making it preferred for architectural applications.

Both 6061 and 6063 are indeed part of the same family, relying on magnesium and silicon as their main alloying elements. The key difference lies in the proportions of these elements. 6061 contains more magnesium silicide (Mg₂Si), which is the primary strengthening precipitate. This means that after heat treatment (like to the T6 temper), 6061 achieves higher strength levels than 6063.
On the other hand, 6063 has a lower amount of Mg₂Si. This makes it:

• Easier to extrude: It flows more easily through extrusion dies, allowing for more complex shapes and thinner walls.
• Better surface finish: It typically yields a smoother, more aesthetically pleasing surface right after extrusion, which is why it's often called an "architectural alloy."
• Excellent corrosion resistance: It's very good in this regard.

Here's a quick comparison:

While 6063 is fantastic for things like window frames, railings, and decorative trim, our specialization at SWA Forging is in producing large-diameter forged rings and discs. For these types of robust components, 6061 is typically the more requested alloy from our clients in the Middle East. Its superior strength and toughness after the forging and heat treatment processes are usually the paramount considerations for their demanding industrial and machining applications.

Conclusion

6061 aluminum's remarkable versatility, good strength, and excellent processability make it a preferred choice for countless applications, consistently offering reliable performance and great value, especially in demanding forged components like ours.
