Why is aluminium alloy used in engine cylinder blocks?

Car engines need to be powerful yet efficient. Heavy blocks sap performance and fuel economy. Aluminum offers a lighter solution, but is it strong enough for the job?

Aluminum alloy is used in engine cylinder blocks primarily for its light weight, which improves vehicle performance and fuel efficiency, and its excellent thermal conductivity for better engine cooling.

At SWA Forging, while we specialize in large forged aluminum rings and discs rather than cast engine blocks, we work extensively with high-performance aluminum alloys. The same material science principles that make aluminum attractive for our forged components also apply to complex parts like engine blocks. We've been supplying customized aluminum alloy¹ solutions since 2012, so we understand the material's capabilities. Let's explore why this material is a top choice for automotive and aerospace engineers.

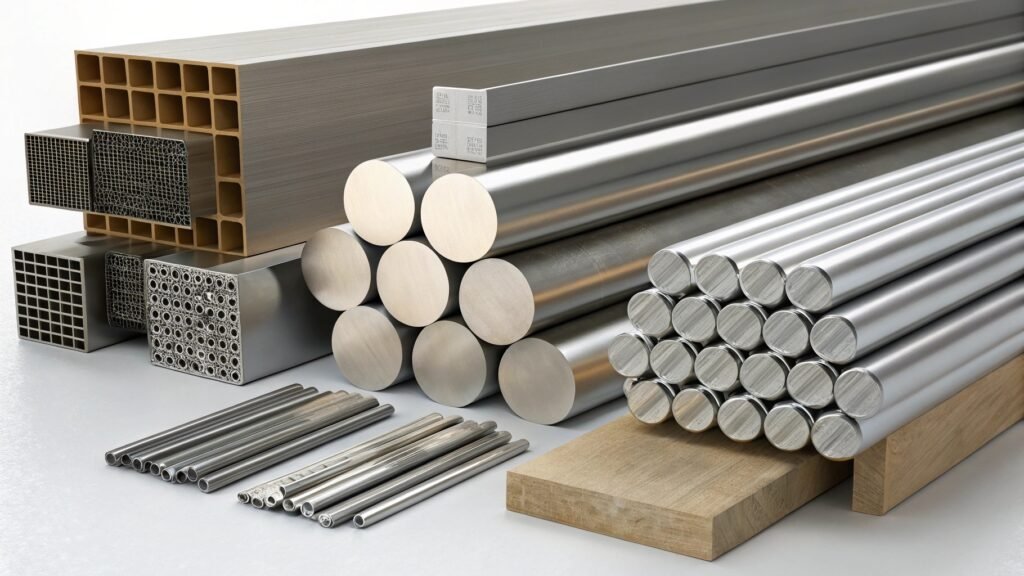

What is the purpose of aluminum alloy?

Pure aluminum is quite soft on its own. Engineers need stronger, more durable materials for tough jobs. Aluminum alloys provide tailored properties, enhancing performance well beyond the base metal.

The purpose of aluminum alloy is to enhance aluminum's natural properties like strength, hardness, corrosion resistance, and workability by adding other elements, creating materials suitable for specific demanding applications.

Pure aluminum is a useful metal, but for many demanding applications, it needs a boost. That's where alloying comes in. Think of an aluminum alloy as a specific recipe where aluminum is the main ingredient, and small, carefully controlled amounts of other elements are added to achieve desired characteristics. These additions can dramatically change how the aluminum behaves.
For example, silicon is often added to improve the fluidity of molten aluminum, making it easier to cast into complex shapes like engine blocks. It also increases wear resistance. Copper is another common addition; it significantly increases strength and hardness, although it can sometimes reduce corrosion resistance if not managed correctly. Magnesium can enhance strength, particularly when combined with silicon (forming the basis of the popular 6xxx series alloys), and it also improves corrosion resistance, especially in marine environments. For very high-strength applications, like in aerospace, zinc is a key alloying element in the 7xxx series.
At SWA Forging, we see this need for specific properties in the alloys our clients request for forged rings and discs. A trader supplying parts for critical machinery might specify a high-strength 7075 aluminum alloy for a forged disc. Another client, perhaps a machining company making components for a marine application, might need a 5xxx series alloy for its excellent corrosion resistance. The core purpose of creating an aluminum alloy is to fine-tune the metal so it performs optimally for its intended use.

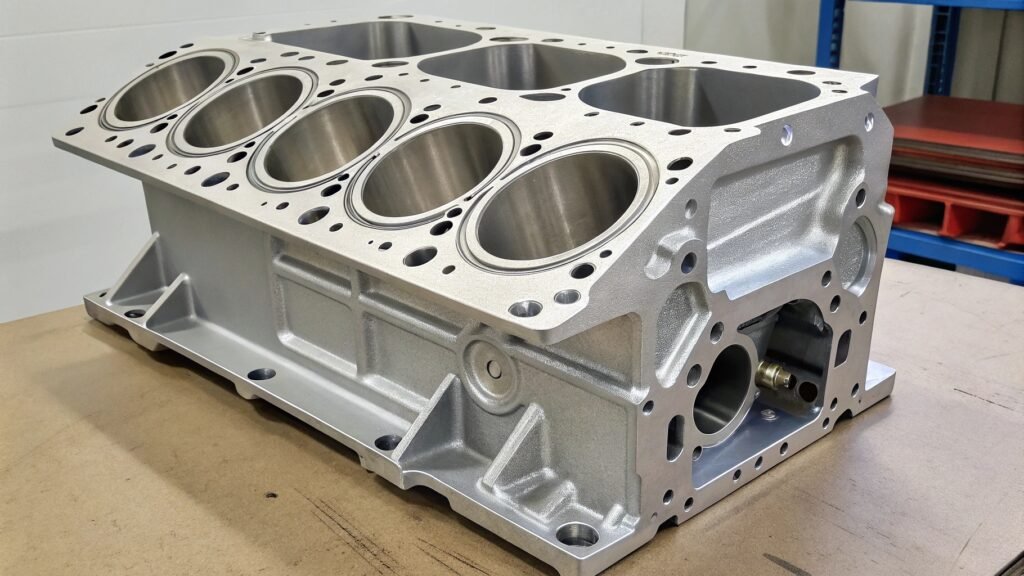

What are the benefits of aluminum block?

Traditional iron engine blocks are heavy, impacting car handling and fuel usage. Lighter alternatives are constantly sought for modern vehicle design. Aluminum blocks offer significant advantages, but what are they exactly?

Benefits of an aluminum engine block include significant weight reduction improving fuel economy and handling, better thermal conductivity for efficient cooling, and good recyclability, contributing to sustainable manufacturing.

The move towards aluminum engine blocks has been driven by several key advantages over traditional cast iron. The most significant benefit is weight reduction. An aluminum block can be up to 50% lighter than a comparable cast iron one. This weight saving has a cascading effect on vehicle performance. It contributes directly to improved fuel economy because the engine has less mass to move. It can also lead to better acceleration and more responsive handling, as reducing weight at the front of the car improves overall weight distribution. I remember talking to an automotive engineer who emphasized that for their new sports car model, switching to an aluminum block was crucial for achieving the desired agility and performance targets.
Another major benefit is aluminum's excellent thermal conductivity. Aluminum conducts heat about three to four times more effectively than cast iron. This means an aluminum engine block can dissipate heat more quickly and evenly. This leads to more stable engine operating temperatures, reduces the risk of hotspots, and allows engineers to design engines that run more efficiently, potentially with higher compression ratios.
Aluminum alloys suitable for engine blocks also offer good castability. This allows for the production of complex shapes and the integration of features that might be more difficult or costly with cast iron. Finally, aluminum is highly recyclable. This is an increasingly important factor for sustainability in manufacturing. At SWA Forging, many of our clients, particularly traders and machining companies focused on long-term partnerships, value the environmental credentials of the materials they use, and aluminum's recyclability is a big plus.

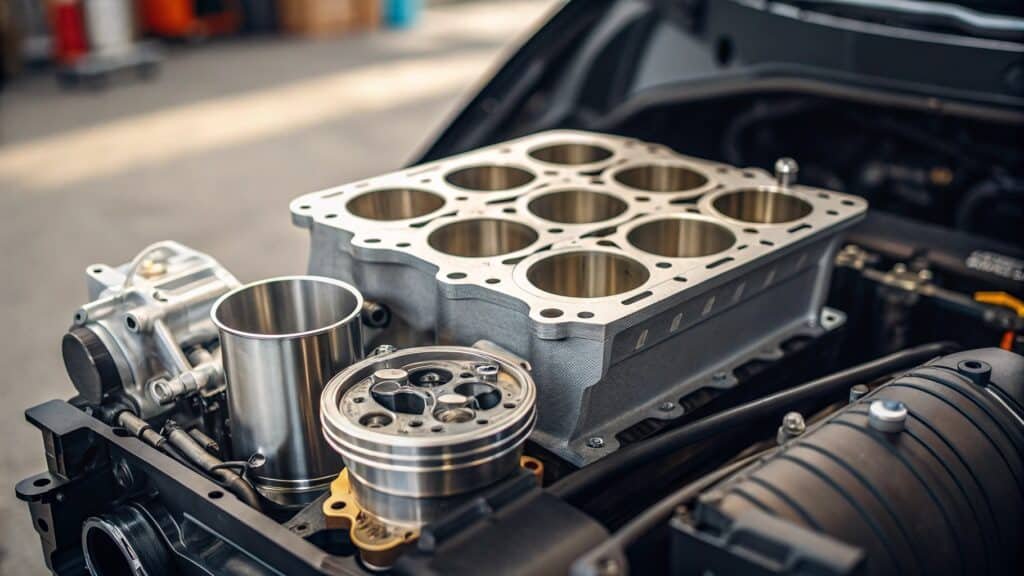

Why is aluminium used in car engines?

Car manufacturers constantly push for better performance and efficiency. Material choices are critical in this quest. Why has aluminum become so prevalent in many engine components, not just the block?

Aluminum is used extensively in car engines for cylinder blocks, cylinder heads, pistons, and other components due to its light weight, good thermal conductivity, and the ability to be alloyed for specific strength and wear resistance.

Aluminum's use in car engines extends well beyond just the cylinder block. Its beneficial properties make it suitable for a range of critical components. Cylinder heads, for example, are almost universally made from aluminum alloys today. They require complex internal passages for coolant and airflow, and aluminum's good castability allows these intricate designs. Plus, the excellent thermal conductivity helps manage the high temperatures generated in the combustion chamber.
Pistons are another key application. Lightweight aluminum pistons reduce the reciprocating mass within the engine. This allows the engine to rev higher and run more smoothly, and it also reduces stress on other components like connecting rods and the crankshaft. While we at SWA Forging produce large forged rings and discs, the fundamental advantage of using strong, lightweight aluminum for dynamic parts is clear – much like how forged aluminum connecting rods are chosen for high-performance engines to handle extreme forces.
Other engine parts like intake manifolds, oil pans, and various housings and brackets are also frequently made from aluminum to save weight. The overall impact of using aluminum in multiple engine components is a significant reduction in the total weight of the engine, and consequently, the vehicle. This leads to better fuel economy, which helps meet increasingly stringent emissions standards. It also contributes to improved vehicle performance in terms of acceleration and braking, and often results in better handling due to more balanced weight distribution.
Initially, one challenge with aluminum in engines was its lower wear resistance and stiffness compared to iron. However, this has been addressed through innovations like iron cylinder liners, advanced bore coatings (such as Nikasil, Alusil, or plasma-sprayed coatings for linerless blocks), and the development of specialized aluminum alloys with enhanced wear characteristics. Our machining clients who finish our forged parts understand the nuances of different aluminum alloys and how they respond to various manufacturing processes.

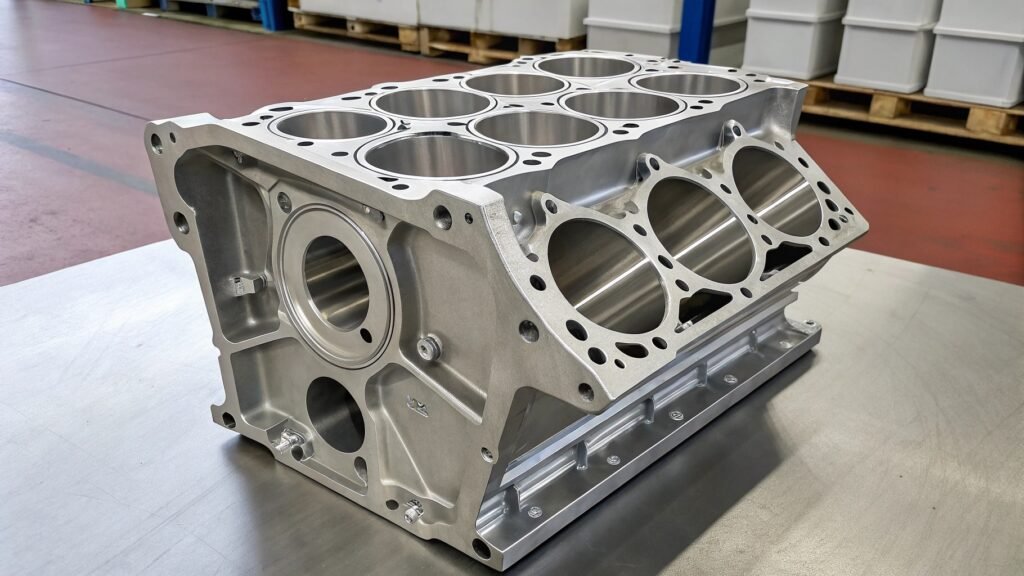

Why is an aluminium alloy preferred for an aero engine cylinder block?

Aircraft demand extreme performance, safety, and efficiency. Every single gram of weight matters immensely. Why do aerospace engineers often choose aluminum alloys for the critical cylinder blocks of piston aero engines?

Aluminum alloy is preferred for aero engine cylinder blocks primarily for its exceptional strength-to-weight ratio, crucial for minimizing aircraft weight, and good thermal conductivity for reliable cooling under demanding flight conditions.

In the aerospace industry, the demand for lightweight materials is even more intense than in automotive applications. For piston-driven aero engines, aluminum alloys are a preferred choice for cylinder blocks due to a compelling set of characteristics. The most critical factor is the exceptional strength-to-weight ratio. Every kilogram saved on an aircraft directly translates into increased payload capacity, extended range, better fuel efficiency, or improved climb performance. At SWA Forging, we supply many high-strength forged aluminum rings and discs for aerospace applications. Our clients in this sector, often traders supplying to aerospace manufacturers or machining companies producing flight-critical parts, demand materials that meet stringent specifications where reducing weight without compromising strength is paramount. This same focus applies to aero engine components.
Specific aluminum alloys, often from the 2xxx series (like 2618, known for good strength at elevated temperatures) or even some specialized 7xxx series alloys, are chosen. These alloys maintain good mechanical properties even at the high operating temperatures experienced by aero engines.
Thermal conductivity is also vitally important. Many piston aero engines, particularly in smaller aircraft, are air-cooled. Aluminum's ability to efficiently dissipate heat is essential for preventing overheating and ensuring reliable engine operation during sustained high-power conditions, such as during takeoff and climb. Even in liquid-cooled aero engines, efficient heat transfer is crucial for performance and durability. The reliability and durability of the engine are non-negotiable in aviation. While aero engine blocks are typically cast, the intrinsic properties of the chosen aluminum alloy, such as its fatigue resistance and ability to withstand thermal cycling, are key. Our commitment to providing product quality certificates and allowing third-party inspections by bodies like SGS, BV, or TUV gives our aerospace-related clients confidence in the material integrity.

Conclusion

Aluminum alloys are vital in engine blocks for their lightness and heat handling capabilities. These benefits significantly enhance vehicle and aircraft performance, fuel efficiency, and overall design possibilities across industries.
