Aluminum Tubing Specifications: OD, Wall Thickness and Tolerances Explained

Aluminum tubing specifications can be confusing. Many people wonder about the differences in measurements and tolerances. Understanding these can help you make better choices when purchasing aluminum tubing.

When discussing aluminum tubing, it is crucial to recognize that it is typically measured by the Outside Diameter (OD). This measurement influences the overall structure and application of the tubing.

In the world of aluminum, knowing your specifications can save you time and money. When it comes to tubing, OD and wall thickness are key factors. Often, tolerances can make or break a project. Let's dive deeper into these specifications.

Is aluminum tubing measured ID or OD?

When it comes to aluminum tubing, many people ask if it's measured by Inside Diameter (ID) or Outside Diameter (OD). The answer is OD. Most manufacturers and industry standards measure aluminum tubing by OD. This is important because the OD affects the structural integrity and overall application of the tubing.

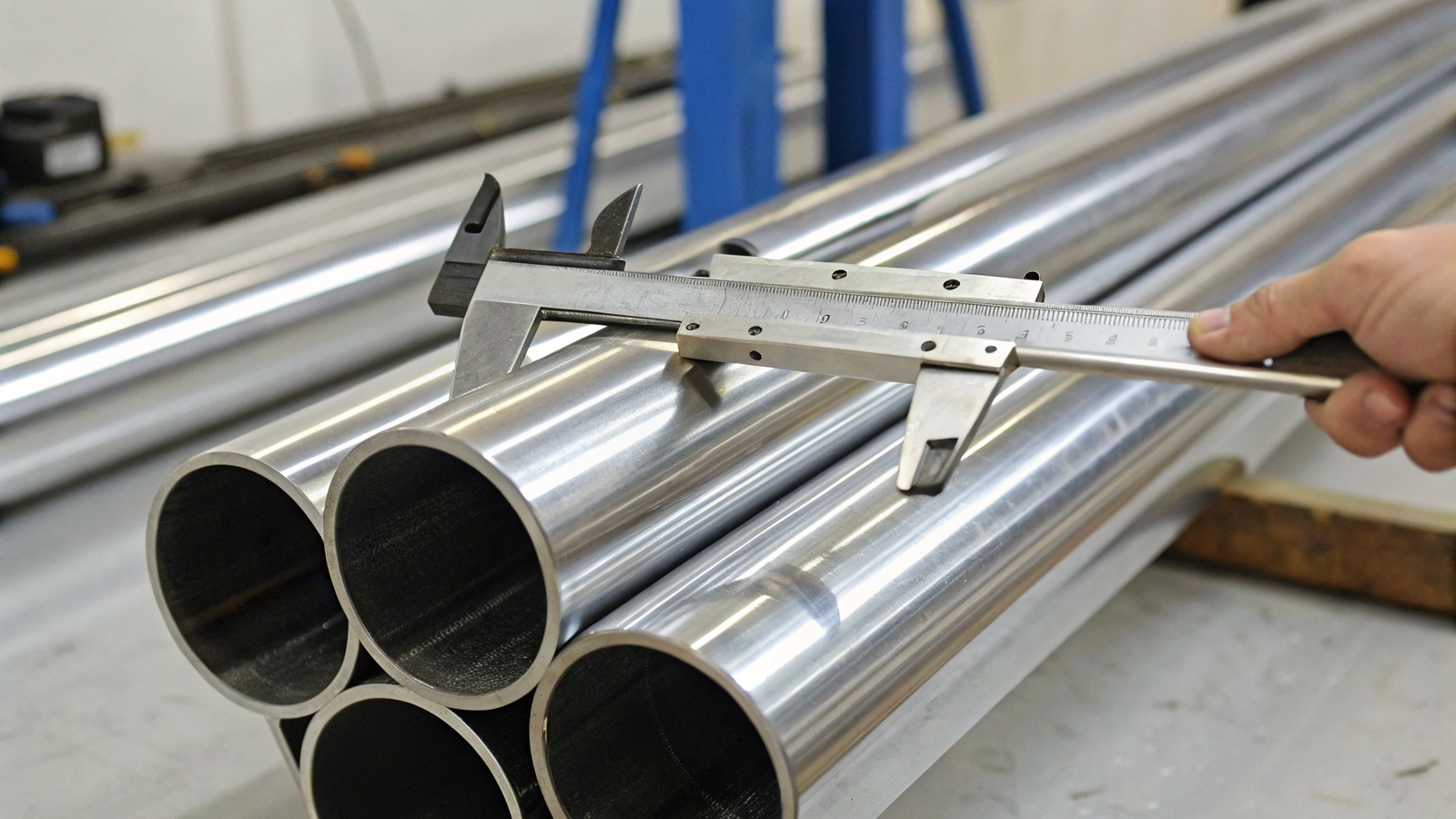

Aluminum tubing is primarily measured by the Outside Diameter (OD). This measurement is essential for determining compatibility with other components in your project.

Understanding this measurement helps in ensuring a proper fit. It is also helpful for those working with various components that require specific sizes. Knowing the OD will allow you to make informed decisions during the design and manufacturing process¹.

In my experience, working with OD has simplified many projects. When I first started, I often confused ID with OD. Once I focused on OD, my work became more efficient. I was able to find compatible parts faster. This saved me time and reduced errors in my designs.

What is the acceptable tolerance on pipe wall thickness?

Pipe wall thickness is crucial for maintaining the strength and durability of aluminum tubing. Tolerance is the acceptable range of deviation in wall thickness. It is generally measured in inches or millimeters, depending on the standard being followed.

The acceptable tolerance for pipe wall thickness usually falls between ±10% to ±15% of the specified thickness. However, tighter tolerances may be required for specific applications.

Tolerances can vary depending on the application and industry standards. For instance, if you're in the aerospace or automotive industry, you might need tighter tolerances. This is because these industries require higher precision for safety and performance.

When I worked on a project for the aerospace sector, the tolerances were strict. I had to ensure that the wall thickness met the requirements precisely. This experience taught me the importance of understanding not just the dimensions, but the tolerances² as well. It made me appreciate how critical these specifications are for project success.

What is the ASTM standard for aluminum pipe?

The ASTM (American Society for Testing and Materials) provides standards and specifications for aluminum and aluminum alloy pipes. These standards help manufacturers maintain quality and consistency³ across products.

The most relevant ASTM standards for aluminum pipe include ASTM B221 for aluminum extruded bars, rods, shapes, and tube. This standard outlines specific dimensions, tolerances, and mechanical properties.

Adhering to these standards is essential for ensuring product quality. It also helps manufacturers provide reliable information to customers. Knowing the ASTM standards can guide your choice when sourcing aluminum tubing.

In my journey through the aluminum industry, I have always relied on ASTM standards. They have provided a benchmark for quality and consistency. I once had a client who insisted on high standards for their project. By following the ASTM guidelines, we were able to meet their expectations and build their trust.

Conclusion

Aluminum tubing specifications are vital for making informed decisions. Understanding OD, wall thickness, and tolerances is essential for successful projects.
